Ergoldsbacher E 58 RS®

Color palette

Copper brown

Technical data

Size:	aprox. 28.5 x 46.5 cm
Gauge:	aprox. 36.0 - 36.6 cm
Average cover width:	aprox. 21.9 cm
Quantity required per m²:	from 12.5 Pieces
Weight per m² in accordance with DIN 1055 incl. battens:	aprox. 0.55 kN/m²
Real weight without battens:	aprox. 53 kg/m²
Pallet capacity:	200 Pieces
Pallet weight:	aprox. 925 kg
Bundle capacity:	5 Pieces
Hail resistance class:	4
Gauge class:	depending on model

More technical data

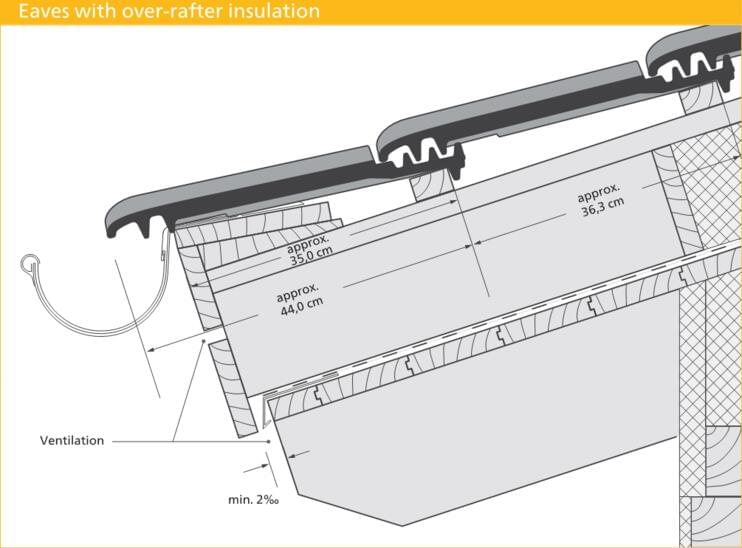

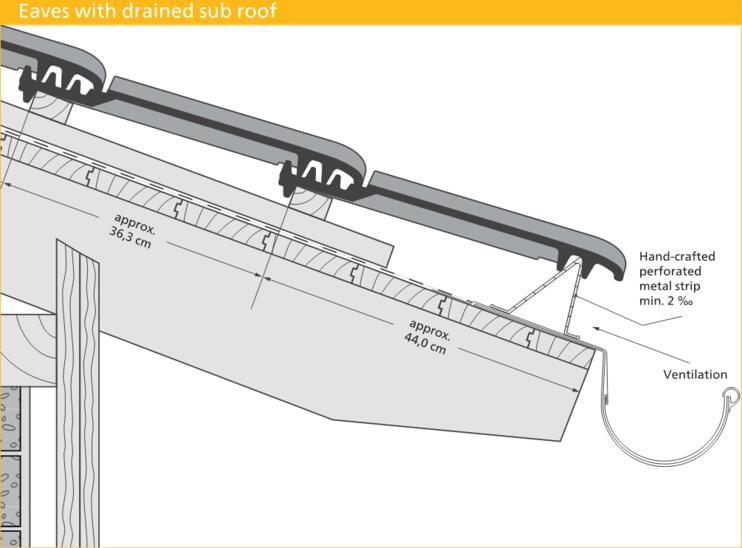

Average eaves gauge	aprox. 35 cm

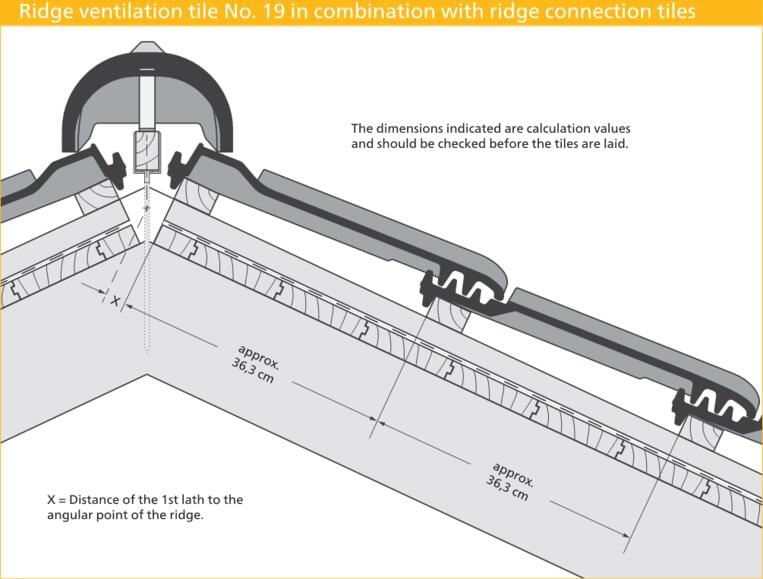

Distance between the 1st lath and the angular point of the ridge with ridge connection tiles and standard tiles
X (distance) in mm	Ridge connection tile¹⁾
Roof pitch in °	10°	15°	20°	25°	30°	35°	40°	45°	50°	55°	60°
Ridge tile no. 15	70	65	60	60	55	55	50	45	50	50	45
Ridge ventilation tile no. 15 Lü	70	70	65	60	60	55	55	55	-	-	-
Ridge tile no. 18	65	60	60	55	50	45	45	35	35	35	35
Ridge ventilation tile no. 19 Lü	55	45	45	45	40	40	35	-	-	-	-
Ridge tile no. 21	60	55	50	50	45	40	35	30	30	30	30

X (distance) in mm	Standard tiles²⁾
Roof pitch in °	10°	15°	20°	25°	30°	35°	40°	45°	50°	55°	60°
Ridge tile no. 15	40	35	30	30	20	15	15	15	15	-	-
Ridge ventilation tile no. 15 Lü	-	-	-	-	-	-	-	-	-	-	-
Ridge tile no. 18	-	-	-	-	-	-	-	-	-	-	-
Ridge ventilation tile no. 19 Lü	-	-	-	-	-	-	-	-	-	-	-
Ridge tile no. 21	-	-	-	-	-	-	-	-	-	-	-

1) without aluminium ridge ventilation strap2) with aluminium ridge ventilation strap

Assignment o f additional measures for the Ergoldsbacher E58 RS®

According to the Central Association of German Roofers’ pamphlet on sub-roofs, sub-coverings and under-bracings, and the basic regulations of the Roofers’ Guild , regular roof pitch 16°, minimum roof pitch 10°, according to the state of technology.
Country-specific building standards and/or regulations must be adhered to, if no other contractual agreements have been made.

Increased demands due to
Use: of the attic level, especially for residential purposes (residential use equals two increased demands)
Construction: special roof shapes (e.g. butterfly roof), long spar lengths (longer than 10 meters), heavily structured roof shapes (e.g. due to valleys, gables, etc.)
Climate situation: exposed locations, extreme locations, areas with a lot of snow, special weather situations, areas with a lot of wind
Technical installations: On-roof or in-roof systems, air-conditioning systems, antenna systems, roof access systems, rooflight/skylight
systems, snow guard systems, etc.

Classification
Class 1: Waterproof sub-roof (1.1.)
Class 2: Rainproof sub-roof (1.2.)
Class 3: Seam and perforation secured under-bracing (2.1.) Seam and perforation secured sub-covering (3.1.)
Class 4: Welded or glued sub-covering (2.2.) Coated under-bracing made of strips of bitumen (2.3.) Seam-secured sub-covering (3.2.)
Class 5: Overlapped / tongue in groove sub-covering (2.4.)
Class 6: Under-bracing (3.3.)

Definition of sub-roof's type to use
roof pitch	No further increased demands*	1 further increased demands*	2 further increased demands*	3 further increased demands*
≥ 16°	Class 6	Class 6	Class 5	Class 4
from < 16° to ≥ 12°	Class 4	Class 4	Class 3	Class 3
from < 12° to ≥ 10°	Class 3	Class 3	Class 3	Class 3*

Definition of sub-roof's type to use
roof pitch	No further increased demands*	1 further increased demands*
≥ 16°	Class 6	Class 6
from < 16° to ≥ 12°	Class 4	Class 4
from < 12° to ≥ 10°	Class 3	Class 3

roof pitch	2 further increased demands*	3 further increased demands*
≥ 16°	Class 5	Class 4
from < 16° to ≥ 12°	Class 3	Class 3
from < 12° to ≥ 10°	Class 3	Class 3*

* The additional measures listed in the table are minimum measures under consideration of Table 1 in the pamphlet on sub-roofs, sub-coverings and under-bracings. Sub-covering panels are to be assigned according to the classification in the pamphlet on sub-roofs, sub-coverings and under-bracings. Increased demands make up categories according to chapter 1.1.3. Further increased demands can arise out of the weighting within a category according to 1.1.3. For example, climate situations can result in several increased demands. Only permitted if the manufacturer provides proof of the functionality and safety of the products used, including accessories (sealing tapes, sticky tapes, sealing compounds, pre-assembled seam securing, etc.), as part of a deluge test and 24-hour rain test on a roof pitch of 15°. Otherwise, the next class up is to be selected. Any limitations noted by the manufacturer are to be taken into account. See the product data information sheet for instructions regarding protection against perforation. These can be used for classes 3 to 6.

Technical drawings

These are the advantages of the
Ergoldsbacher E 58 RS®

Ideal for flat-pitched roofs ≥ 10° roof pitch, e.g. for extending living space by adding floors
Easy handling ca. 4 kg per piece, can be installed with one hand
Perfect design in E 58 look Harmonious proportion, clean interlocking joint, gentle curvature of the visible surface
Gauge: ca. 36.3 cm
High protection against storm and wind suction thanks to the triple cover in the four-tile overlap
Very good channel flow thanks to high ribs on the head and lateral interlocking joint
Extremely robust Hail resistance class 4
Storm groove for a perfect fit for storm clips
Especially robust and break-proof thanks to high ribs on the front and rear side
Rainproof for roof pitch ≥ 10° thanks to 3-fold head and lateral interlocking
joint

Standard tile

ERLUS Standard Accessories

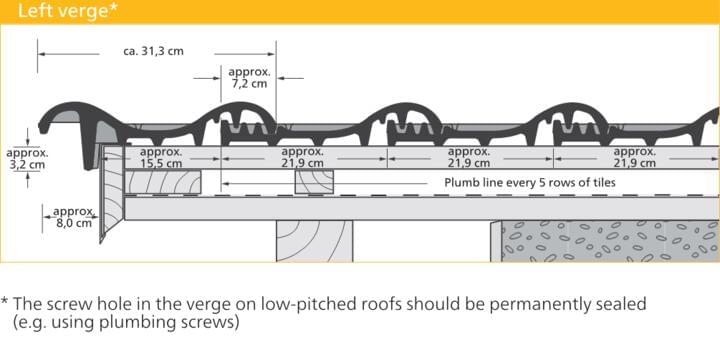

Verge tile left

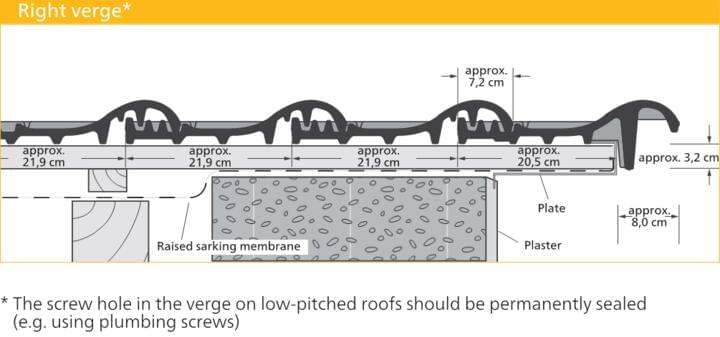

Verge tile right

Double roll tile

Ridge connection tile

Ridge connection verge tile left

Ridge connection verge tile right

Ridge connection double roll tile

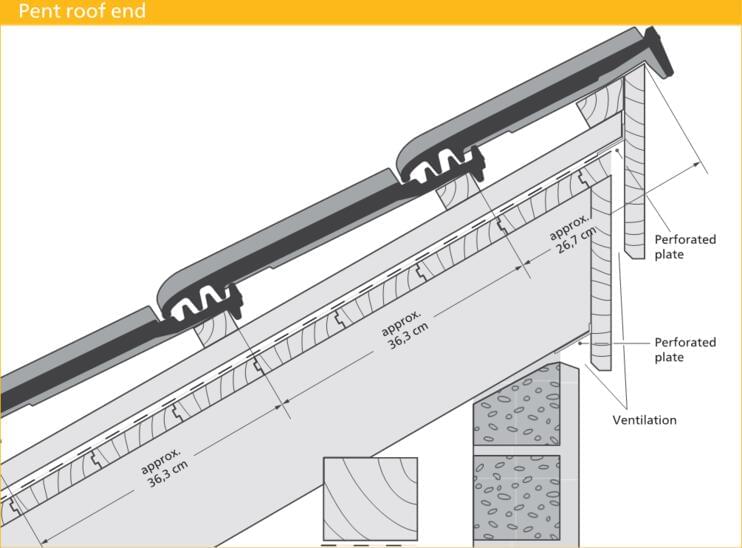

Pent roof tile

Pent roof verge tile left

Pent roof verge tile right

Ventilation tile

Snow stop tile

Ridge tile no. 15

Ridge end tile no. 15

Ridge compensation tile no. 15

Ridge ventilation tile no. 15 Lü

Ridge beginning tile no. 15 Lü

Ridge end tile no. 15 Lü

Ridge tile no. 18

Ridge end tile no. 18

Ridge compensation tile no. 18

Ridge ventilation tile no. 19 Lü

Ridge beginning tile no. 19 Lü

Ridge end tile no. 19 Lü

Ridge tile no. 21

Ridge end tile no. 21

Ridge compensation tile no. 21

ERLUS Special Accessories

Aluminium sanitary ventilator with base tile

Aluminium aerial with base tile

Aluminium solar outlet with base tile

Aluminium snow stop fence holder with base tile

Aluminium snow stop fence, 20 cm high

Aluminium snow stop incl. snow guard tube bracket with base tile

Aluminium snow guard tube, length 2 m

Aluminium connector for snow guard tube

Aluminium round wood holder with base tile

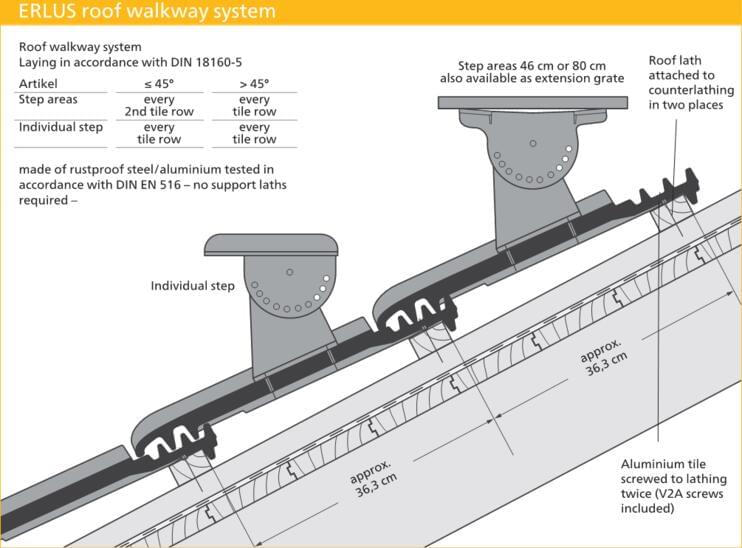

Aluminium step with base tile

Aluminium step grate 50 cm x 25 cm, with two base tiles

Aluminium step grate 80 cm x 25 cm, with two base tiles

Aluminium extension step grate, 80 x 25 cm, with base tile

Aluminium step grate bracket, uncoated, with base tile

Aluminium safety hooks for ladder, Type A, with base tile

Aluminium solar panel holder with base tile

Ceramic ridge end disc with ERLUS-logo

Ceramic extension plate universal for ridge end tile

Ceramic hip cap no. 15 N

Ceramic hip cap no. 18 N

Ceramic hip cap für ridge beginning tiles no. 19

Ceramic hip cap for ridge end tiles no. 19

Ceramic hip cap no. 21 N

Ceramic hip cap with four outlets for rigde tiles

Ceramic hip start for ridge tiles no. 18

Ceramic hip start for ridge tiles no. 19

Ceramic hip start for ridge tiles no. 21 N

ERLUS universal storm clips I M for battens 24/48 mm

ERLUS universal storm clips II M for battens 30/50 mm

Ridge clips no. 15/17

Ridge clips no. 15/17 Lü

Ridge clips no. 18/21

Ridge clips no. 19 Lü

Aluminium ridge ventilation strap

Eave protection tape

Eave ventilation comb, PVC

Aluminium ridge end disc

Roof surfaces

Completed projects

The solution for flat roofs!

The Ergoldsbacher E 58 RS® is the sixth model in the popular E 58 family and is a special tile for flat roofs. Its sophisticated technical design permits a low roof pitch (standard roof pitch 16°, minimum roof pitch 10°) because the water on the tile surface is channelled away perfectly. The marked profile of the interlocking joints on all sides with triple head and side locks and the direct water channelling ensure that the substructure stays dry. This means that no laborious extra measures are necessary to ensure raintightness.

Quantity required per m²: from 12.5 Pieces

Minimum roof pitch: 10 °

Regular roof pitch: 16 °
