Ergoldsbacher E 58 SL-D

Color palette
Graphite Grey (through-coloured)
  • E 58 SL-D - Standard tile Graphite Grey (through-coloured) | Image standard tiles | © © ERLUS AG 2021
  • E 58 SL-D - Standard tile Slate Grey (through-coloured) | Image standard tiles | © © ERLUS AG 2021

Technical data

Size: aprox. 29.0 x 46.5 cm
Gauge: aprox. 32.5 - 35.5 cm
Average cover width: aprox. 24.3 cm
Quantity required per m²: from 11.5 Pieces
Weight per m² in accordance with DIN 1055 incl. battens: aprox. 0.55 kN/m²
Real weight without battens: aprox. 50 - 55 kg/m²
Pallet capacity: 240 Pieces
Pallet weight: aprox. 1,017 kg
Bundle capacity: 5 Pieces
Hail resistance class: 4
Gauge class: 34,0 cm

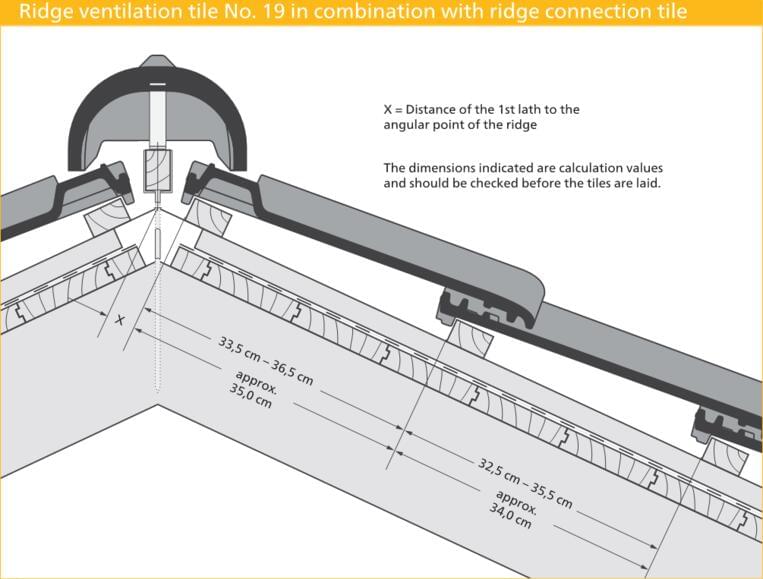

Distance between the 1st lath and the angular point of the ridge with ridge connection tiles and standard tiles
X (distance) in mm Ridge connection tile1)
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 15 60 55 50 45 45 45 40 40 45 - -
Ridge ventilation tile no. 15 Lü 70 65 60 60 55 50 50 45 45²⁾ 45²⁾ 40²⁾
Ridge tile no. 18 45 40 35 35 30 30 30 30 30 25 20
Ridge ventilation tile no. 19 Lü 40 35 30 30 30 30 25 30 35 - -
Ridge tile no. 21 40 35 30 30 25 25 25 25 25 25 -
X (distance) in mm Standard tiles2)
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 15 70 65 60 60 60 55 60 55 55 - -
Ridge ventilation tile no. 15 Lü 75 70 65 60 55 50 - - - - -
Ridge tile no. 18 50 45 45 45 30 30 30 30 30 25 20
Ridge ventilation tile no. 19 Lü 50 40 35 35 30 30 25 30 - - -
Ridge tile no. 21 50 40 35 35 30 30 30 25 25 - -

1) without aluminium ridge ventilation strap2) with aluminium ridge ventilation strap

Assignment of additional measures for the Ergoldsbacher E58 SL

According to the Central Association of German Roofers’ pamphlet on sub-roofs, sub-coverings and under-bracings, and the basic regulations of the Roofers’ Guild, regular roof pitch 20°, minimum roof pitch 10°, according to the generally accepted rules of technology.
Country-specific building standards and/or regulations must be adhered to, if no other contractual agreements have been made.

Increased demands due to
Use: of the attic level, especially for residential purposes (residential use equals two increased demands)
Construction: special roof shapes (e.g. butterfly roof), long spar lengths (longer than 10 meters), heavily structured roof shapes (e.g. due to valleys, gables, etc.)
Climate situation: exposed locations, extreme locations, areas with a lot of snow, special weather situations, areas with a lot of wind
Technical installations: On-roof or in-roof systems, air-conditioning systems, antenna systems, roof access systems, rooflight/skylight
systems, snow guard systems, etc.

Classification
Class 1: Waterproof sub-roof (1.1.)
Class 2: Rainproof sub-roof (1.2.)
Class 3: Seam and perforation secured under-bracing (2.1.) Seam and perforation secured sub-covering (3.1.)
Class 4: Welded or glued sub-covering (2.2.) Coated under-bracing made of strips of bitumen (2.3.) Seam-secured sub-covering (3.2.)
Class 5: Overlapped / tongue in groove sub-covering (2.4.)
Class 6: Under-bracing (3.3.)

Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*2 further increased demands*3 further increased demands*
≥ 20° Class 6 Class 6 Class 5 Class 4
from < 20° to ≥ 16° Class 4 Class 4 Class 3 Class 3
from < 16° to ≥ 12° Class 3 Class 3 Class 3 Class 3*
from < 12° to ≥ 10° Class 2 Class 2 Class 1 Class 1
Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*
≥ 20° Class 6 Class 6
from < 20° to ≥ 16° Class 4 Class 4
from < 16° to ≥ 12° Class 3 Class 3
from < 12° to ≥ 10° Class 2 Class 2
roof pitch2 further increased demands*3 further increased demands*
≥ 20° Class 5 Class 4
from < 20° to ≥ 16° Class 3 Class 3
from < 16° to ≥ 12° Class 3 Class 3*
from < 12° to ≥ 10° Class 1 Class 1
* The additional measures listed in the table are minimum measures under consideration of Table 1 in the pamphlet on sub-roofs, sub-coverings and under-bracings. Sub-covering panels are to be assigned according to the classification in the pamphlet on sub-roofs, sub-coverings and under-bracings. Increased demands make up categories according to chapter 1.1.3. Further increased demands can arise out of the weighting within a category according to 1.1.3. For example, climate situations can result in several increased demands. Only permitted if the manufacturer provides proof of the functionality and safety of the products used, including accessories (sealing tapes, sticky tapes, sealing compounds, pre-assembled seam securing, etc.), as part of a deluge test and 24-hour rain test on a roof pitch of 15°. Otherwise, the next class up is to be selected. Any limitations noted by the manufacturer are to be taken into account. See the product data information sheet for instructions regarding protection against perforation. These can be used for classes 3 to 6.

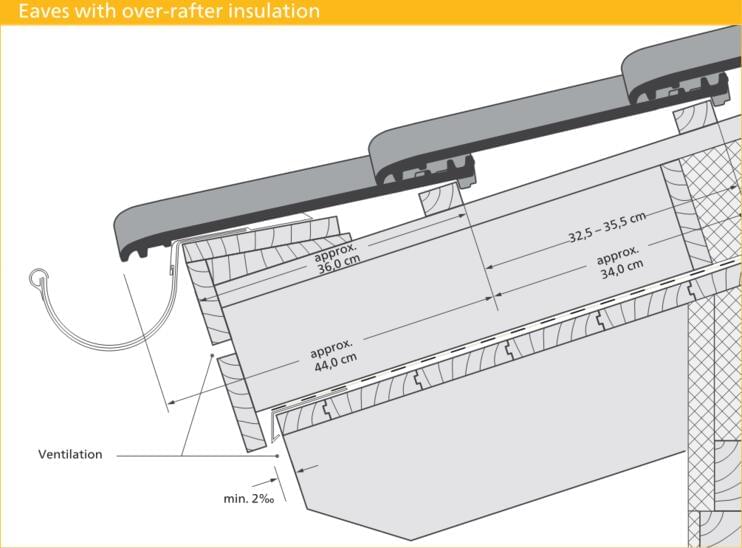

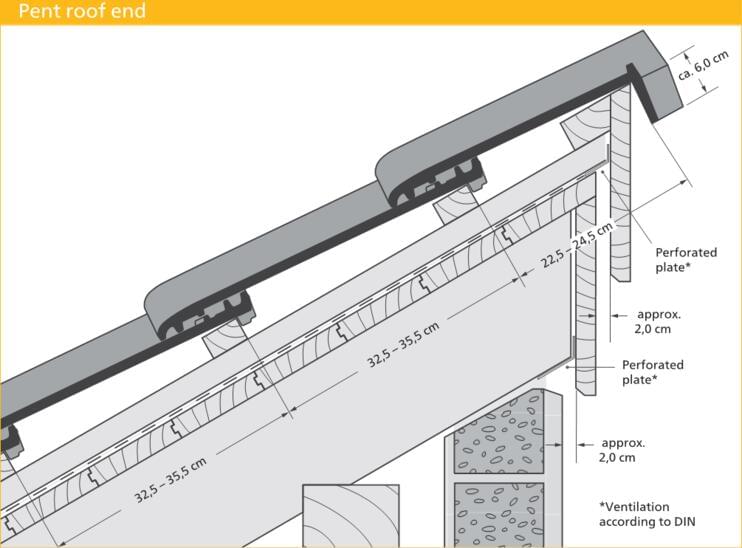

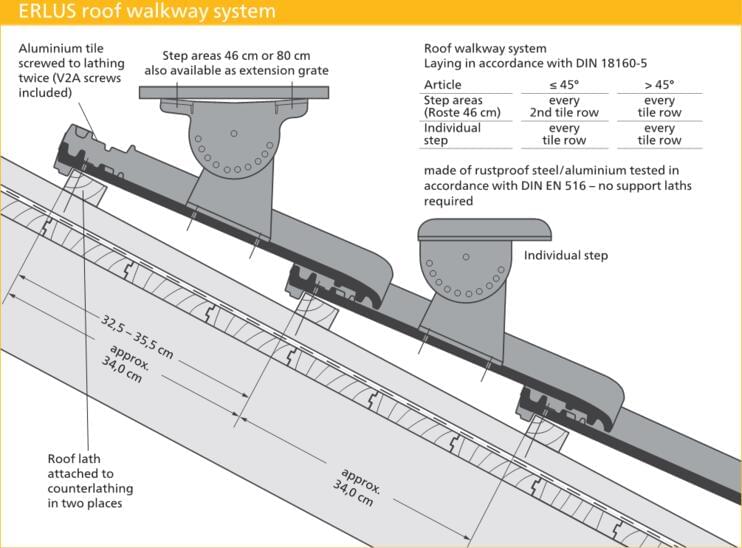

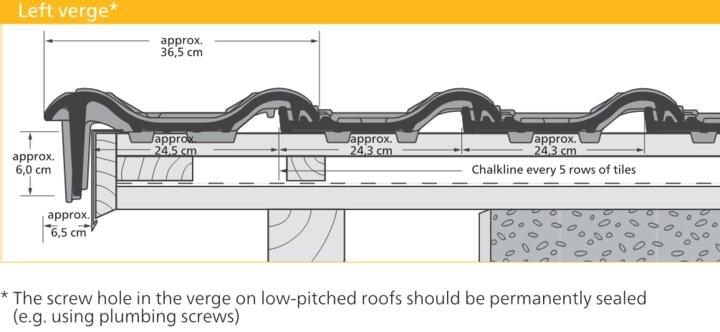

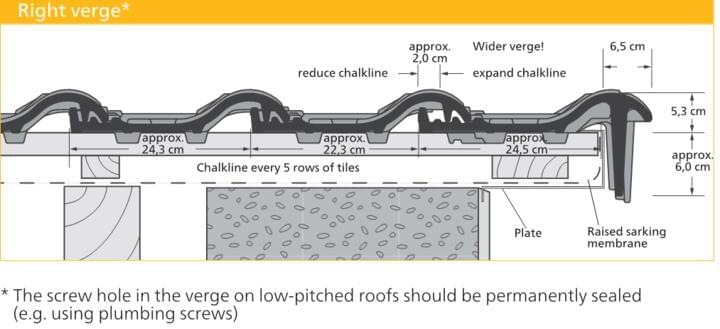

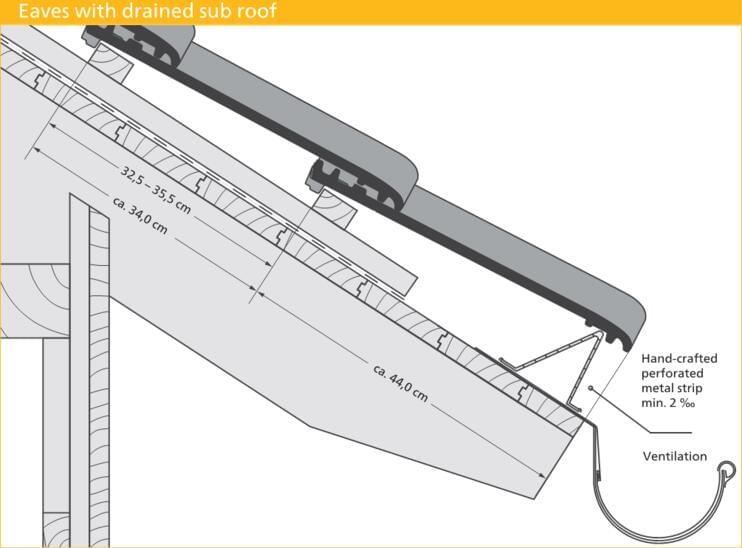

Technical drawings

These are the advantages of the
Ergoldsbacher E 58 SL-D

  • NEW: Graphit grey and Slate grey

  • Safe against storm and wind suction due to the hooked four-tile corner

  • NEW: through-coloured tile

  • Complete accessories including aluminium accessories from one source

  • Especially robust and break-proof

  • Gauge class: 34,0 cm

  • Safe against storm and wind suction due to the hooked four-tile corner

  • Extremely easy to install due to the big slinding range

  • 20° standard roof pitch

  • Sliding range 30 mm

Standard tile

E 58 SL-D - Standard tile Graphite Grey (through-coloured) | Image product range | © © ERLUS AG 2021
Standard tile

ERLUS Standard Accessories

E 58 SL-D - Verge tile left Graphite Grey (through-coloured) | Image product range | © © ERLUS AG 2021
Verge tile left
E 58 SL-D - Verge tile right Graphite Grey (through-coloured) | Image product range | © © ERLUS AG 2021
Verge tile right
E 58 SL-D - Double roll tile Graphite Grey (through-coloured) | Image product range | © © ERLUS AG 2021
Double roll tile
E 58 SL-D - Ridge connection tile Graphite Grey (through-coloured) | Image product range | © © ERLUS AG 2021
Ridge connection tile
E 58 SL-D - Ridge connection verge tile left Graphite Grey (through-coloured) | Image product range | © © ERLUS AG 2021
Ridge connection verge tile left
E 58 SL-D - Ridge connection verge tile right Graphite Grey (through-coloured) | Image product range | © © ERLUS AG 2021
Ridge connection verge tile right
E 58 SL-D - Pent roof tile Graphite Grey (through-coloured) | Image product range | © © ERLUS AG 2021
Pent roof tile
E 58 SL-D - Pent roof verge tile left Graphite Grey (through-coloured) | Image product range | © © ERLUS AG 2021
Pent roof verge tile left
E 58 SL-D - Pent roof verge tile right Graphite Grey (through-coloured) | Image product range | © © ERLUS AG 2021
Pent roof verge tile right
E 58 SL-D - Ventilation tile Graphite Grey (through-coloured) | Image product range | © © ERLUS AG 2021
Ventilation tile
Ridge end tile no. 15 Graphite Grey (through-coloured) | Image product range | © © ERLUS AG 2021
Ridge end tile no. 15
Ridge compensation tile no. 15 Graphite Grey (through-coloured) | Image product range | © © ERLUS AG 2021
Ridge compensation tile no. 15

ERLUS Special Accessories

E 58 SL-D - Aluminium sanitary ventilator with base tile graphitgrau - alu | Image product range | © © ERLUS AG 2021
Aluminium sanitary ventilator with base tile
E 58 SL-D - Aluminium aerial with base tile graphitgrau - alu | Image product range | © © ERLUS AG 2021
Aluminium aerial with base tile
E 58 SL-D - Aluminium solar outlet with base tile graphitgrau - alu | Image product range | © © ERLUS AG 2021
Aluminium solar outlet with base tile
Level RS® - Aluminium snow stop fence holder with base tile sinterrot - alu | Image product range | © © ERLUS AG 2021
Aluminium snow stop fence holder with base tile
Aluminium snow stop incl. snow guard tube bracket with base tile | Image product range | © © ERLUS AG 2021
Aluminium snow stop incl. snow guard tube bracket with base tile
Aluminium connector for snow guard tube | Image product range | © © ERLUS AG 2021
Aluminium connector for snow guard tube
Aluminium round wood holder with base tile | Image product range | © © ERLUS AG 2021
Aluminium round wood holder with base tile
Aluminium step with base tile | Image product range | © © ERLUS AG 2021
Aluminium step with base tile
Aluminium step grate 46 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 46 cm x 25 cm, with two base tiles
Aluminium step grate 80 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 80 cm x 25 cm, with two base tiles
Aluminium extension step grate, 80 x 25 cm, with base tile | Image product range | © © ERLUS AG 2021
Aluminium extension step grate, 80 x 25 cm, with base tile
Aluminium step grate bracket, uncoated, with base tile | Image product range | © © ERLUS AG 2021
Aluminium step grate bracket, uncoated, with base tile
Aluminium safety hooks for ladder, Type A, with base tile | Image product range | © © ERLUS AG 2021
Aluminium safety hooks for ladder, Type A, with base tile
E 58 SL-D - Aluminium solar panel holder with base tile graphitgrau - alu | Image product range | © © ERLUS AG 2021
Aluminium solar panel holder with base tile
Ceramic hip cap no. 15 N Graphite Grey (not through-coloured) | Image product range
Ceramic hip cap no. 15 N
Ceramic hip start for ridge tiles no. 15 Graphite Grey (through-coloured) | Image product range | © © ERLUS AG 2021
Ceramic hip start for ridge tiles no. 15
ERLUS universal solar module support, incl. ventilation tile | Image product range | © © ERLUS AG 2021
ERLUS universal solar module support, incl. ventilation tile
Universal ERLUS Sturmklammer I Größe "M" 2,5 mm 40/60 V2A Federstahl | Image product range | © © ERLUS AG 2021
ERLUS universal storm clips I M for battens 24/48 mm
Universal ERLUS Sturmklammer II Größe "M" 2,2 mm 40/60 V2A Federstahl | Image product range | © © ERLUS AG 2021
ERLUS universal storm clips II M for battens 30/50 mm

Roof surfaces

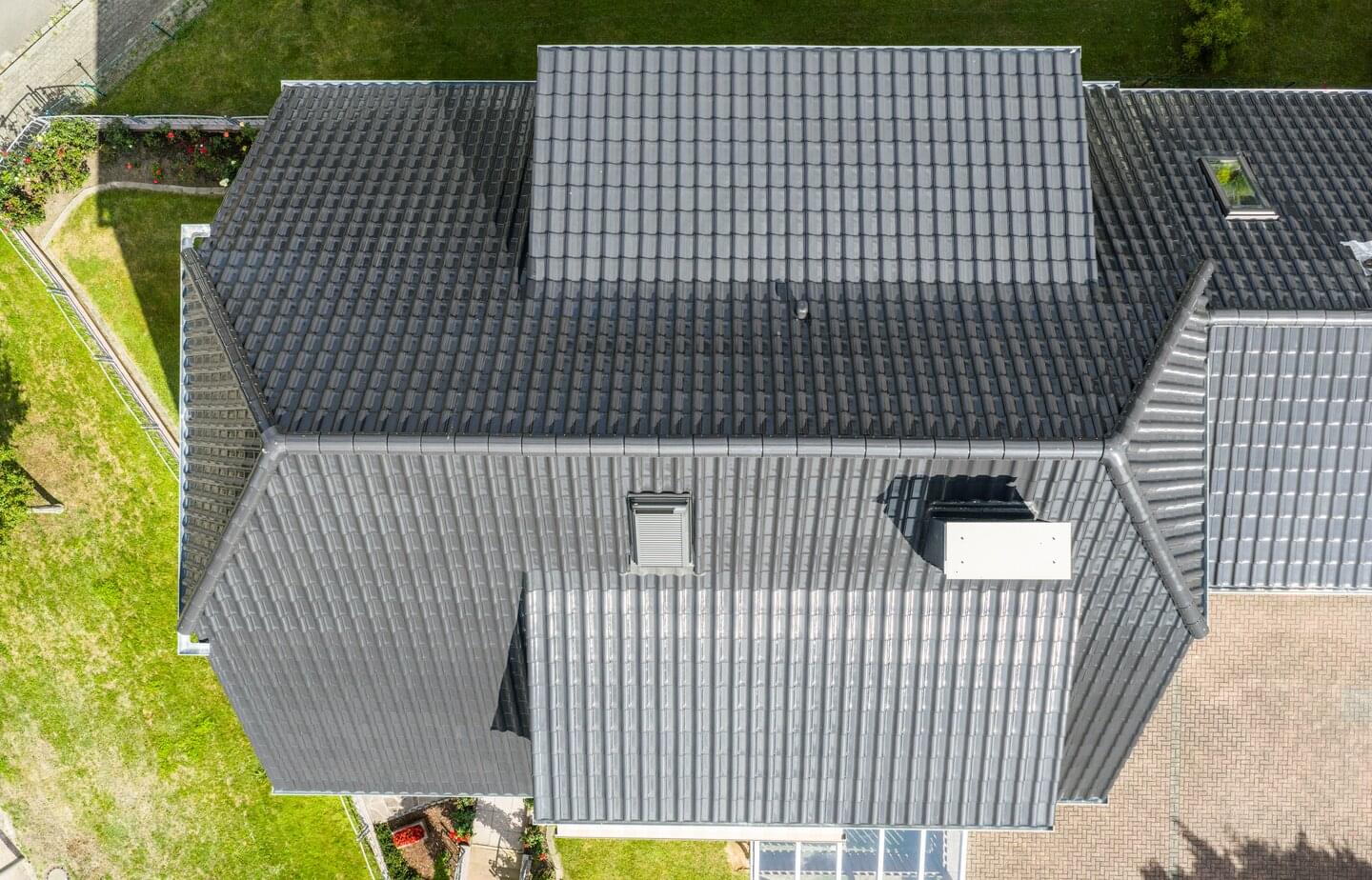

E 58 SL-D - Standard tile Graphite Grey (through-coloured) | Image roof surface | © © ERLUS AG 2021 Graphite grey (through-coloured)
E 58 SL-D - Standard tile Slate Grey (through-coloured) | Image roof surface Slate grey (through-coloured)

The universal tile from the Ergoldsbacher E 58 family

The Ergoldsbacher E 58 SL combines all the advantages of the Ergoldsbacher E 58 family in one economic clay roof tile. Its design is based on the classic Ergoldsbacher E 58; but lots of details reveal the difference. It is particularly suitable for renovations of roofs with roofing tiles due to its generous gauge range. The roof tile is easy to lay, and although it has a medium-sized format, the overall appearance is of a smaller tile.
Quantity required per m²: from 11.5 Pieces
Minimum roof pitch: 10 °
Regular roof pitch: 20 °
