ERLUS Erlutherm
The Storage Stove Built into the Chimney
Space-Saving, Self-Sufficient Heating for Modern Buildings
Erlutherm is the new premium product from ERLUS. It combines a storage stove and chimney in one unit, saving valuable space in the living area. Its ceramic core stores heat efficiently and releases it slowly and evenly as pleasant radiant warmth. Airborne dust, commonly stirred up by air-fed stoves, is avoided - making it possible to enjoy a cozy fire in modern, energy-efficient homes in the best possible way. Erlutherm makes your home self-sufficient when it comes to heating and is the perfect complement to any central heating system, especially to heat pumps. On the coldest days of the year, when a heat pump’s efficiency is at its lowest, Erlutherm steps in as an ideal backup, helping to reduce heating costs. Developed for contemporary living concepts, the room-air-independent Erlutherm combines cutting-edge technology with sophisticated design and provides an ideal solution for dealers and stove builders alike. With the new Erlutherm, economical, user-friendly, and low-maintenance wood heating in low-energy homes becomes a true pleasure.
Advantages
User-Friendly
Heat output tailored to your needs, fewer wood refills, optional automatic combustion control
Sustainably
Lowers heating costs, enables self-sufficiency and independence from electricity and fossil fuels
Space-Saving
Integrated storage stove and chimney; no minimum clearance from the rear wall required; all components are built in
Combinable
An ideal supplement to heat pumps and other heating systems
Room-Air Independent
Air supply via the annular gap of the attached LAF premium chimney; compatible with mechanical ventilation systems
Climate-Friendly
Reduces fine particulate emissions and conserves resources
Optional Accessory Packages
Fine dust separator, combustion control system, pressure monitor, and more
Quick Installation
Erlutherm prefabricated modules and matching SL 16 chimney can be installed using a construction crane
DIBt Approval
Application submitted to the German Institute for Building Technology (DIBt)
Healthy Indoor Climate
Minimizes airborne dust, provides comfortable radiant warmth and an unobstructed view of the flames
Flexible Design
Available in four versions
Overview of Models
Erlutherm Basic
Surface: Plaster
Distribution channel: Building materials wholesalers
The included plaster kit must be applied on site.
Erlutherm Keramik
Surface: Partially ceramic front with plastered side panels
Distribution channel: Building materials wholesalers
Both the included plaster kit and the ceramic front cladding must be installed on site.
Erlutherm Keramik Deluxe
Surface: Full ceramic cladding
Distribution channel: Building materials wholesalers
The included ceramic cladding must be installed on site.
Erlutherm Kreativ
Distribution channel: Exclusive to specialist stove builders
Requires custom design, planning, and handcrafted surface finishing by the stove builder.
Overview of Accessory Packages
- Fine Dust Separator: Electrostatic fine dust separator fully integrated into the storage stove; easily accessible via the service compartment (electrode) and the built-in housing in the base (control electronics)
- Combustion Control: Control damper and electronic controller fully integrated into the storage stove, accessible via the corresponding installation housing in the base
- Combustion Control with Pressure Monitor: Control damper, electronic controller, and pressure monitor fully integrated into the storage stove, accessible via the corresponding installation housing in the base
System Structure
| 1 | Installation Housing Elegant integration of optional electronic components in the base of the Erlutherm (fine dust separator, electronic combustion control, pressure monitor) |
| 2 | Stove Door with Integrated Air-Wash System Keeps the viewing window clean for a clear view of the cozy fire |
| 3 | Ceramic Heat-Retention Surface Delivers long-lasting and even heat emission through radiant warmth over several hours |
| 4 | Service Compartment Easily accessible via an inspection opening - visible from the outside only as a shadow gap; provides access to the exhaust pipe and the optional fine dust separator |
| 5 | Integrated Baffle Protects the heat storage channel during chimney sweeping |
| 6 | Exhaust Pipe Includes a protective baffle and a cleaning door for chimney sweeping. An optional version with a fully integrated electrostatic fine dust separator is available |
| 7 | Cleaning Door / Optional Dust Separator For easy maintenance; remains invisible from the outside |
| 8 | Erlutherm Design Freely selectable surface finish: from plaster to partial ceramic to full ceramic; also available in a version for creative customization by the stove builder |
| 9 | KDA (included in delivery, installation on site) Connection to the attached LAF Premium Chimney |
| 10 | ERLUS Premium Ceramic Pipe Durable and factory-insulated |
| 11 | LAF Premium Chimney SL 16 (to be ordered separately and installed on site) Safe, concentric ducting for exhaust gases and supply air |

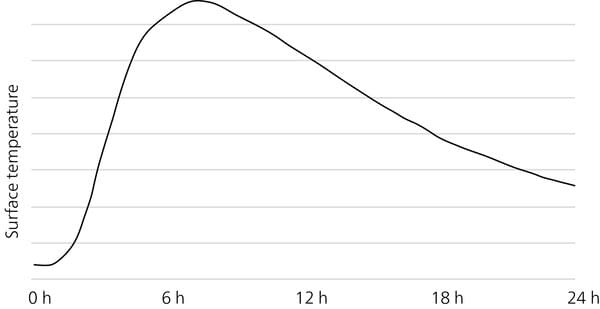

Storage Curve
Technical Data
| Depth | 610 mm |
| Width | 553 mm |
| Height | 3045 mm |
| approx. 1150 kg | |
| Dimensions of SL 16 chimney | 380 x 380 mm |
| Heating insert frame dimensions (plaster cladding) |
391 x 623 mm |
| Heating insert frame dimensions (ceramic cladding) |
407 x 639 mm |
| Door opening service compartment | 383 x 600 mm |
| Fireplace window dimensions | 306 x 530 mm |
| Maximum heat output | 2,9 kW |
| Efficiency | >=90% |
| Energy efficiency class | A+ |
| Fine particulate emissions | <40 mg/m³ |
| DIBt approval pending, market launch in 2025 |
You can find all information about the Erlutherm in our product sheet.
Product Sheet Erlutherm
