Ergoldsbacher Level RS®

Color palette
Sinter red
  • Level RS® - Sinter red | Image standard tiles | © © ERLUS AG 2021

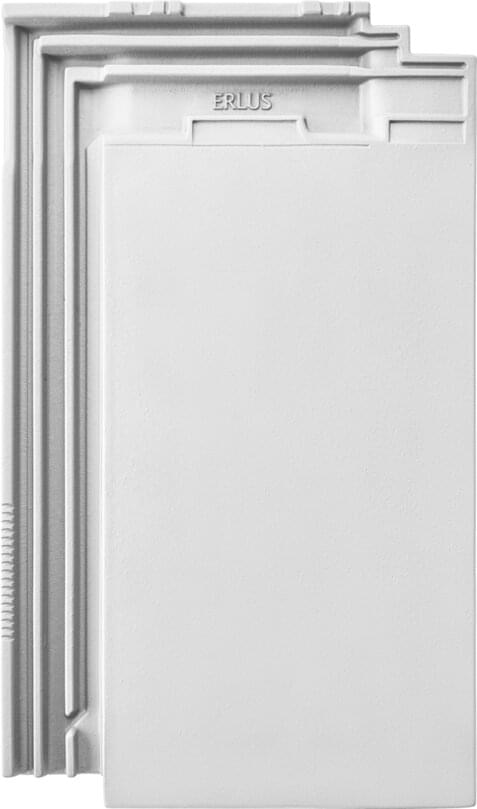

  • Level RS® - Sinter cotto | Image standard tiles
  • Level RS® - Sinter grey | Image standard tiles | © © ERLUS AG 2021
  • Level RS® - Sinter black matt | Image standard tiles

Technical data

Size: aprox. 29.0 x 48.5 cm
Gauge: aprox. 38.0 - 39.0 cm
Average cover width: aprox. 23.0 cm
Quantity required per m²: aprox. 11.3 Pieces
Weight per m² in accordance with DIN 1055 incl. battens: aprox. 0.55 kN/m²
Pallet capacity: 160 Pieces
Pallet weight:
Bundle capacity: 4 Pieces
Hail resistance class: 4
Gauge class: 38,5 cm
Distance between the 1st lath and the angular point of the ridge with ridge connection tiles and standard tiles
X (distance) in mm Ridge connection tile1)
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 17 55 55 55 50 50 45 45 35 - - -
Ridge ventilation tile no. 17 Lü 55 55 55 50 50 50 60 - - - -
Ridge ventilation tile no. 19 Lü 45 45 45 35 30 30 35 40 - - -
X (distance) in mm Standard tiles2)
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 17 45 45 55 50 50 50 60 40 30 - -
Ridge ventilation tile no. 17 Lü 45 45 55 50 50 55 60 - - - -
Ridge ventilation tile no. 19 Lü 45 45 40 40 30 30 35 35 - - -

1) without aluminium ridge ventilation strap2) with aluminium ridge ventilation strap

Assignment of additional measures for the Ergoldsbacher Level RS®

According to the Central Association of German Roofers’ pamphlet on sub-roofs, sub-coverings and under-bracings, and the basicregulations of the Roofers’ Guild, regular roof pitch 16° when laid in a cross bond pattern and 22° when laid in rows, minimum roofpitch 10°; according to the state-of-the-art of science and technology.
Country-specific building standards and/or regulations must be adhered to, if no other contractual agreements have been made.

Increased demands due to
Use: of the attic level, especially for residential purposes (residential use equals two increased demands)
Construction: special roof shapes (e.g. butterfly roof), long spar lengths (longer than 10 meters), heavily structured roof shapes (e.g. due to valleys, gables, etc.)
Climate situation: exposed locations, extreme locations, areas with a lot of snow, special weather situations, areas with a lot of wind
Technical installations: On-roof or in-roof systems, air-conditioning systems, antenna systems, roof access systems, rooflight/skylight
systems, snow guard systems, etc.

Classification
Class 1: Waterproof sub-roof (1.1.)
Class 2: Rainproof sub-roof (1.2.)
Class 3: Seam and perforation secured under-bracing (2.1.) Seam and perforation secured sub-covering (3.1.)
Class 4: Welded or glued sub-covering (2.2.) Coated under-bracing made of strips of bitumen (2.3.) Seam-secured sub-covering (3.2.)
Class 5: Overlapped / tongue in groove sub-covering (2.4.)
Class 6: Under-bracing (3.3.)

Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*2 further increased demands*3 further increased demands*
≥ 16° Class 6 Class 6 Class 5 Class 4
from < 16° to ≥ 12° Class 4 Class 4 Class 3 Class 3
from < 12° to ≥ 10° Class 3 Class 3 Class 3 Class 3*
Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*
≥ 16° Class 6 Class 6
from < 16° to ≥ 12° Class 4 Class 4
from < 12° to ≥ 10° Class 3 Class 3
roof pitch2 further increased demands*3 further increased demands*
≥ 16° Class 5 Class 4
from < 16° to ≥ 12° Class 3 Class 3
from < 12° to ≥ 10° Class 3 Class 3*
* The additional measures listed in the table are minimum measures under consideration of Table 1 in the pamphlet on sub-roofs, sub-coverings and under-bracings. Sub-covering panels are to be assigned according to the classification in the pamphlet on sub-roofs, sub-coverings and under-bracings. Increased demands make up categories according to chapter 1.1.3. Further increased demands can arise out of the weighting within a category according to 1.1.3. For example, climate situations can result in several increased demands. Only permitted if the manufacturer provides proof of the functionality and safety of the products used, including accessories (sealing tapes, sticky tapes, sealing compounds, pre-assembled seam securing, etc.), as part of a deluge test and 24-hour rain test on a roof pitch of 15°. Otherwise, the next class up is to be selected. Any limitations noted by the manufacturer are to be taken into account. See the product data information sheet for instructions regarding protection against perforation. These can be used for classes 3 to 6.

Technical drawings

These are the advantages of the
Ergoldsbacher Level RS®

  • Sintered quality fired to clinker hardness at 1.200° C, low water absorption (less than 5%)

  • High protection against wind suction with bond tiling (even without clamping)

  • Hail resistance class 4

  • Marked storm groove for a perfect fit for storm clips I+II

  • Deep interlocking joints on all sides with triple head and side locks

  • Complete accessories including aluminium accessories from one source

  • Gauge class 38.5 cm model from the XXL family

Standard tile

Level RS® - Sinter red | Image product range
Standard tile

ERLUS Standard Accessories

Level RS® - 1/2 Tile Sinter red | Image product range
1/2 Tile
Level RS® - Verge tile left Sinter red | Image product range
Verge tile left
Level RS® - Verge tile right Sinter cotto | Image product range
Verge tile right
Level RS® - 1/2 Verge tile left / Double roll tile (set) Sinter red | Image product range
1/2 Verge tile left / Double roll tile (set)
Level RS® - 1/2 Verge tile right Sinter red | Image product range
1/2 Verge tile right
Level RS® - Double roll tile Sinter red | Image product range
Double roll tile
Level RS® - Ridge connection tile Sinter red | Image product range
Ridge connection tile
Level RS® - 1/2 Ridge connection tile Sinter red | Image product range
1/2 Ridge connection tile
Level RS® - Ridge connection verge tile left Sinter red | Image product range
Ridge connection verge tile left
Level RS® - Ridge connection verge tile right Sinter red | Image product range
Ridge connection verge tile right
Level RS® - 1/2 Ridge connection verge tile left / Ridge connection double roll tile (set) Sinter red | Image product range
1/2 Ridge connection verge tile left / Ridge connection double roll tile (set)
Level RS® - 1/2 Ridge connection verge tile right Sinter red | Image product range
1/2 Ridge connection verge tile right
Level RS® - Ridge connection double roll tile Sinter red | Image product range
Ridge connection double roll tile
Level RS® - Pent roof tile Sinter red | Image product range
Pent roof tile
Level RS® - Pent roof verge tile left Sinter red | Image product range
Pent roof verge tile left
Level RS® - Pent roof verge tile right Sinter red | Image product range
Pent roof verge tile right
Level RS® - Ventilation tile Sinter red | Image product range
Ventilation tile
Ridge tile no. 15 Sinter red | Image product range
Ridge tile no. 15
Ridge end tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge end tile no. 15
Ridge compensation tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge compensation tile no. 15
Ridge tile no. 17 Sinter red | Image product range | © © ERLUS AG 2021
Ridge tile no. 17
Ridge end tile no. 17 Sinter red | Image product range | © © ERLUS AG 2021
Ridge end tile no. 17
Ridge tile no. 17 Sinter red | Image product range | © © ERLUS AG 2021
Ridge compensation tile no. 17
Ridge ventilation tile no. 17 Lü Sinter red | Image product range | © © ERLUS AG 2021
Ridge ventilation tile no. 17 Lü
Ridge beginning tile no. 17 Lü Sinter red | Image product range | © © ERLUS AG 2021
Ridge beginning tile no. 17 Lü
Ridge end tile no. 17 Lü Sinter red | Image product range | © © ERLUS AG 2021
Ridge end tile no. 17 Lü
Ridge ventilation tile no. 19 Lü Sinter red | Image product range | © © ERLUS AG 2021
Ridge ventilation tile no. 19 Lü
Ridge beginning tile no. 19 Lü Sinter red | Image product range | © © ERLUS AG 2021
Ridge beginning tile no. 19 Lü
Ridge end tile no. 19 Lü Sinter red | Image product range | © © ERLUS AG 2021
Ridge end tile no. 19 Lü

ERLUS Special Accessories

Level RS® - Aluminium sanitary ventilator with base tile sinterrot - alu | Image product range
Aluminium sanitary ventilator with base tile
Level RS® - Aluminium aerial with base tile sinterrot - alu | Image product range
Aluminium aerial with base tile
Level RS® - Aluminium solar outlet with base tile sinterrot - alu | Image product range
Aluminium solar outlet with base tile
Aluminium snow stop fence holder with base tile
Aluminium snow stop fence, 20 cm high naturrot/rot engobiert | Image product range
Aluminium snow stop fence, 20 cm high
Aluminium snow stop incl. snow guard tube bracket with base tile | Image product range | © © ERLUS AG 2021
Aluminium snow stop incl. snow guard tube bracket with base tile
Aluminium snow guard tube, length 2 m naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium snow guard tube, length 2 m
Aluminium connector for snow guard tube | Image product range | © © ERLUS AG 2021
Aluminium connector for snow guard tube
Aluminium round wood holder with base tile | Image product range | © © ERLUS AG 2021
Aluminium round wood holder with base tile
Aluminium step with base tile | Image product range | © © ERLUS AG 2021
Aluminium step with base tile
Aluminium step grate 46 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 46 cm x 25 cm, with two base tiles
Aluminium step grate 80 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 80 cm x 25 cm, with two base tiles
Aluminium extension step grate, 80 x 25 cm, with base tile | Image product range | © © ERLUS AG 2021
Aluminium extension step grate, 80 x 25 cm, with base tile
Aluminium step grate bracket, uncoated, with base tile | Image product range | © © ERLUS AG 2021
Aluminium step grate bracket, uncoated, with base tile
Aluminium safety hooks for ladder, Type A, with base tile | Image product range | © © ERLUS AG 2021
Aluminium safety hooks for ladder, Type A, with base tile
Level RS® - Aluminium solar panel holder with base tile rot sinterbrand - alu | Image product range
Aluminium solar panel holder with base tile
Ceramic extension plate universal for ridge end tile Natural red | Image product range
Ceramic extension plate universal for ridge end tile
Ceramic hip cap no. 15 N Sinter red | Image product range
Ceramic hip cap no. 15 N
Ceramic hip cap no. 17 N
Ceramic hip cap für ridge beginning tiles no. 19 Sinter red | Image product range | © © ERLUS AG 2021
Ceramic hip cap für ridge beginning tiles no. 19
Ceramic hip cap for ridge end tiles no. 19 Sinter red | Image product range | © © ERLUS AG 2021
Ceramic hip cap for ridge end tiles no. 19
Ceramic hip cap with four outlets for rigde tiles Natural red | Image product range
Ceramic hip cap with four outlets for rigde tiles
Universal ERLUS Sturmklammer I Größe "M" 2,5 mm 40/60 V2A Federstahl | Image product range | © © ERLUS AG 2021
ERLUS universal storm clips I M for battens 24/48 mm
First-und Gratklammern für First 15/17 rot beschichtet -Systemverlegung- | Image product range
Ridge clips no. 15/17
First- und Gratklammern für Firstziegel Nr. 19  | Image product range
Ridge clips no. 19 Lü
Aluminium ridge ventilation strap rot (beschichtet) | Image product range
Aluminium ridge ventilation strap
Eave protection tape rotbraun (beschichtet) | Image product range
Eave protection tape
Eave ventilation comb, PVC rotbraun (beschichtet) | Image product range
Eave ventilation comb, PVC
Aluminium ridge end disc rotbraun/schwarz (beschichtet) | Image product range | © © ERLUS AG 2021
Aluminium ridge end disc

Roof surfaces

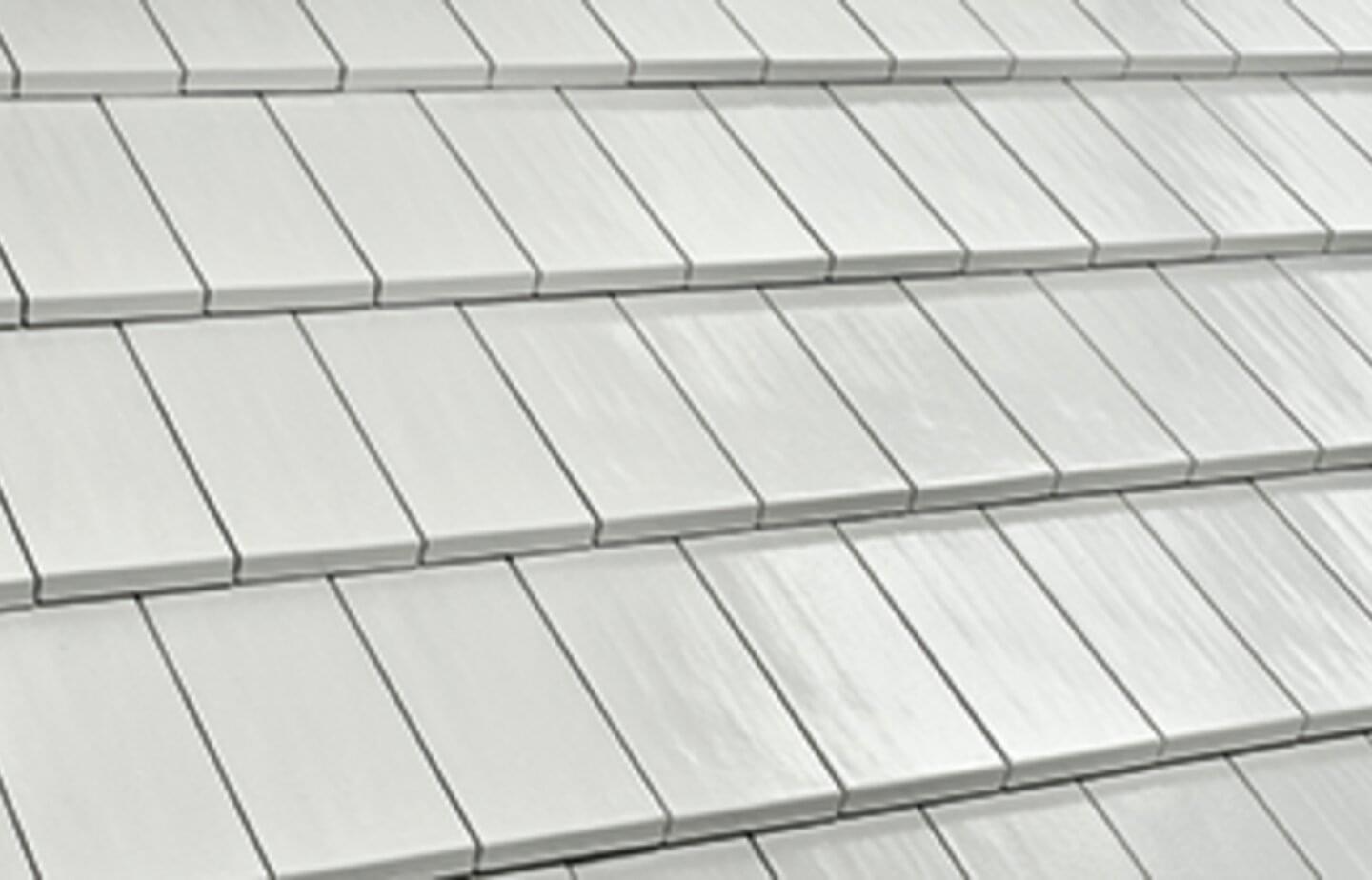

Level RS® - Sinter red | Image roof surface Sinter red
Level RS® - Sinter cotto | Image roof surface Sinter cotto
Level RS® - Sinter black matt | Image roof surface Sinter black matt
Level RS® - Sinter grey | Image roof surface Sinter grey

Completed projects

Ergoldsbacher Level RS® - Sinter grey ©ERLUS/Zimmerei Pöschl | © ERLUS/Zimmerei Pöschl 2021 Ergoldsbacher Level RS® - Sinter grey ©ERLUS/Zimmerei Pöschl
Ergoldsbacher Level RS® - Sinter grey ©ERLUS/Zimmerei Pöschl | © ERLUS/Zimmerei Pöschl 2021 Ergoldsbacher Level RS® - Sinter grey ©ERLUS/Zimmerei Pöschl
Ergoldsbacher Level RS® - Sinter grey ©ERLUS/Zimmerei Pöschl | © ERLUS/Zimmerei Pöschl 2021 Ergoldsbacher Level RS® - Sinter grey ©ERLUS/Zimmerei Pöschl
Ergoldsbacher Level RS® - Sinter grey ©ERLUS/Zimmerei Pöschl | © ERLUS/Zimmerei Pöschl 2021 Ergoldsbacher Level RS® - Sinter grey ©ERLUS/Zimmerei Pöschl
Ergoldsbacher Level RS® - Sinter grey ©ERLUS/Zimmerei Pöschl | © ERLUS/Zimmerei Pöschl 2021 Ergoldsbacher Level RS® - Sinter grey ©ERLUS/Zimmerei Pöschl

Pure design for shallow roofs – flat, square-edged, raintight for pitches starting at 10°

The Ergoldsbacher Level RS® is already the third specialist for shallow roofs. What is striking about this tile is its clear, square-edged form. What is significant about it is its deep interlocking joints on all sides with triple head and side locks. Due to this special design feature, the water on the tile surface is channelled away perfectly. That way, even on shallow roofs (laid in cross pattern: standard roof pitch 16°, minimum roof pitch 10°); the substructure stays dry. The new Ergoldsbacher Level RS® is the real solution: a raintight roof tile that does not need a waterproof sub-roof!
Quantity required per m²: aprox. 11.3 Pieces
Minimum roof pitch: 10 °
Regular roof pitch: 16 °
