Ergoldsbacher Linea®

Color palette
Sinter red

2000: Ergoldsbacher Linea®
2016: Ergoldsbacher Linea® Sinterbraun

  • Linea® - Sinter red | Image standard tiles | © © ERLUS AG 2021
  • Linea® - Sinter cotto | Image standard tiles | © © ERLUS AG 2021

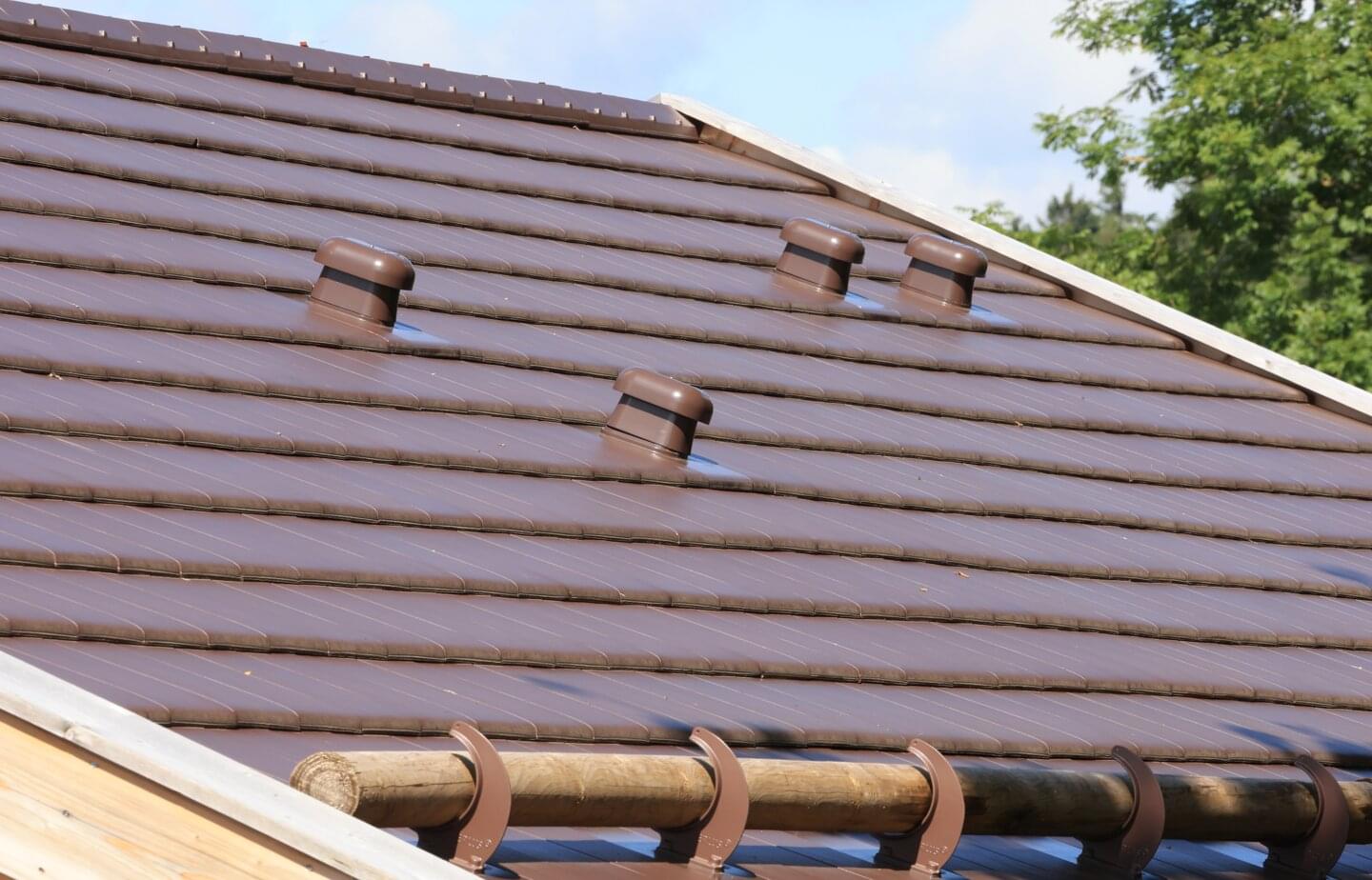

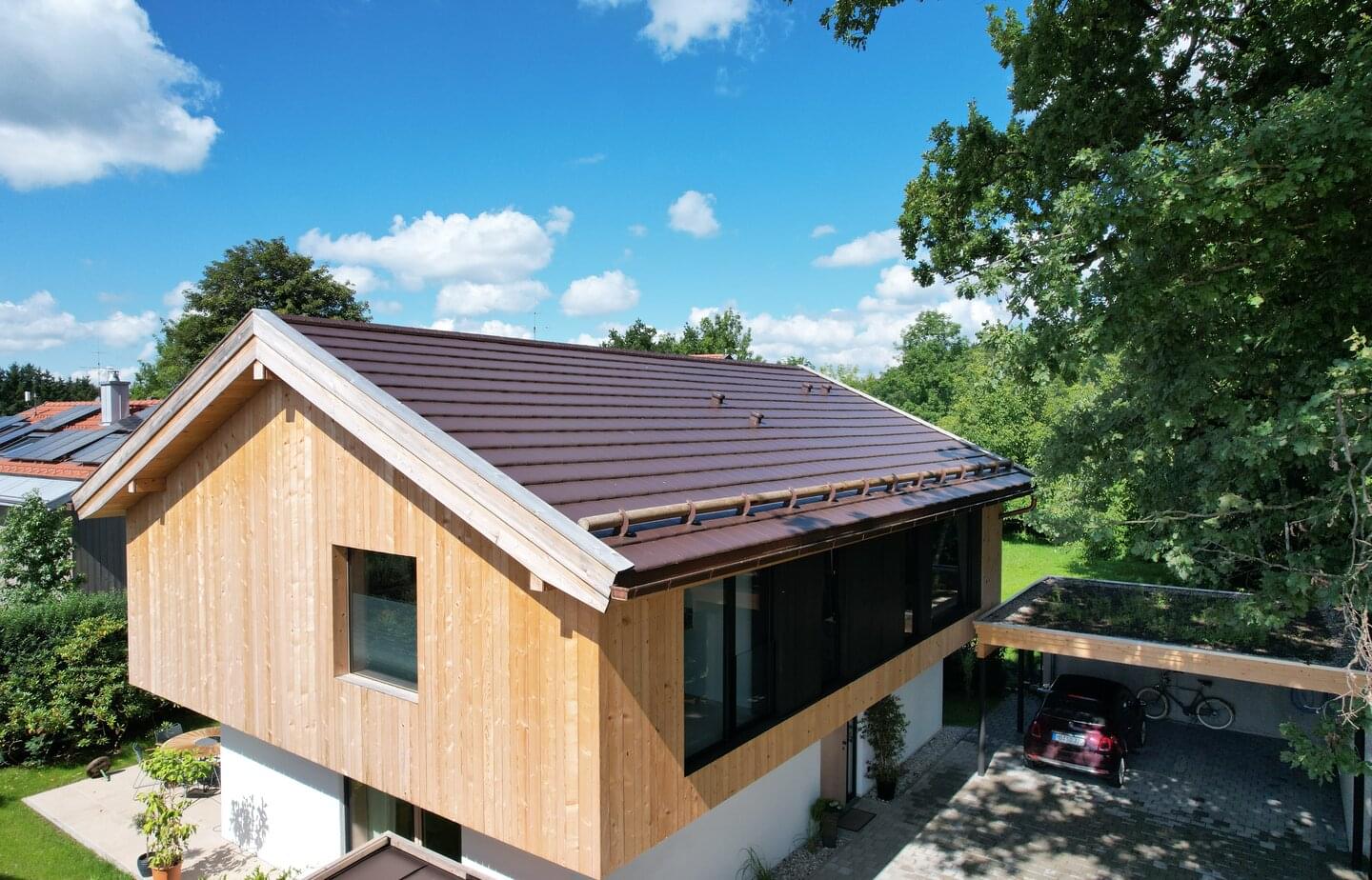

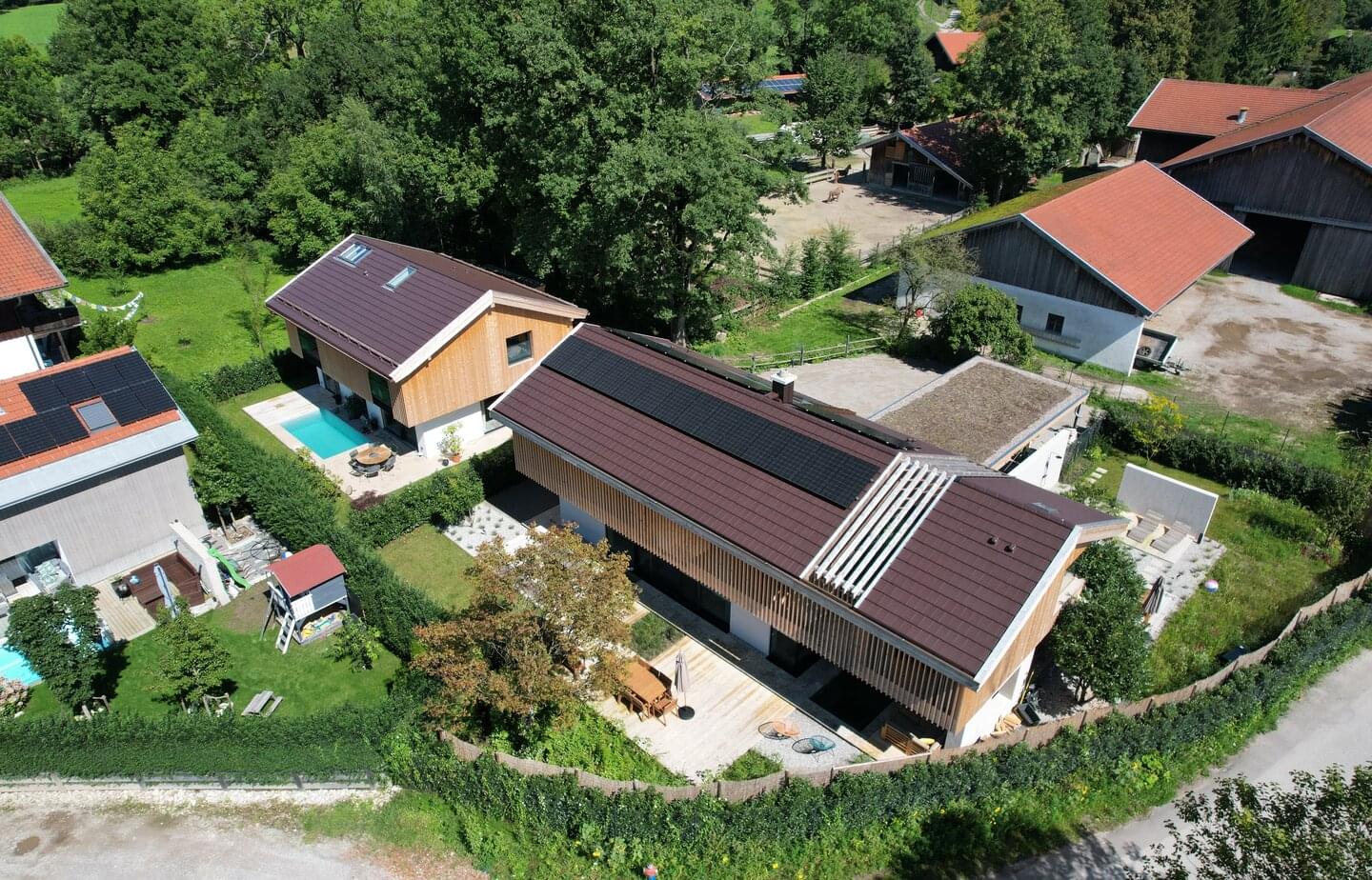

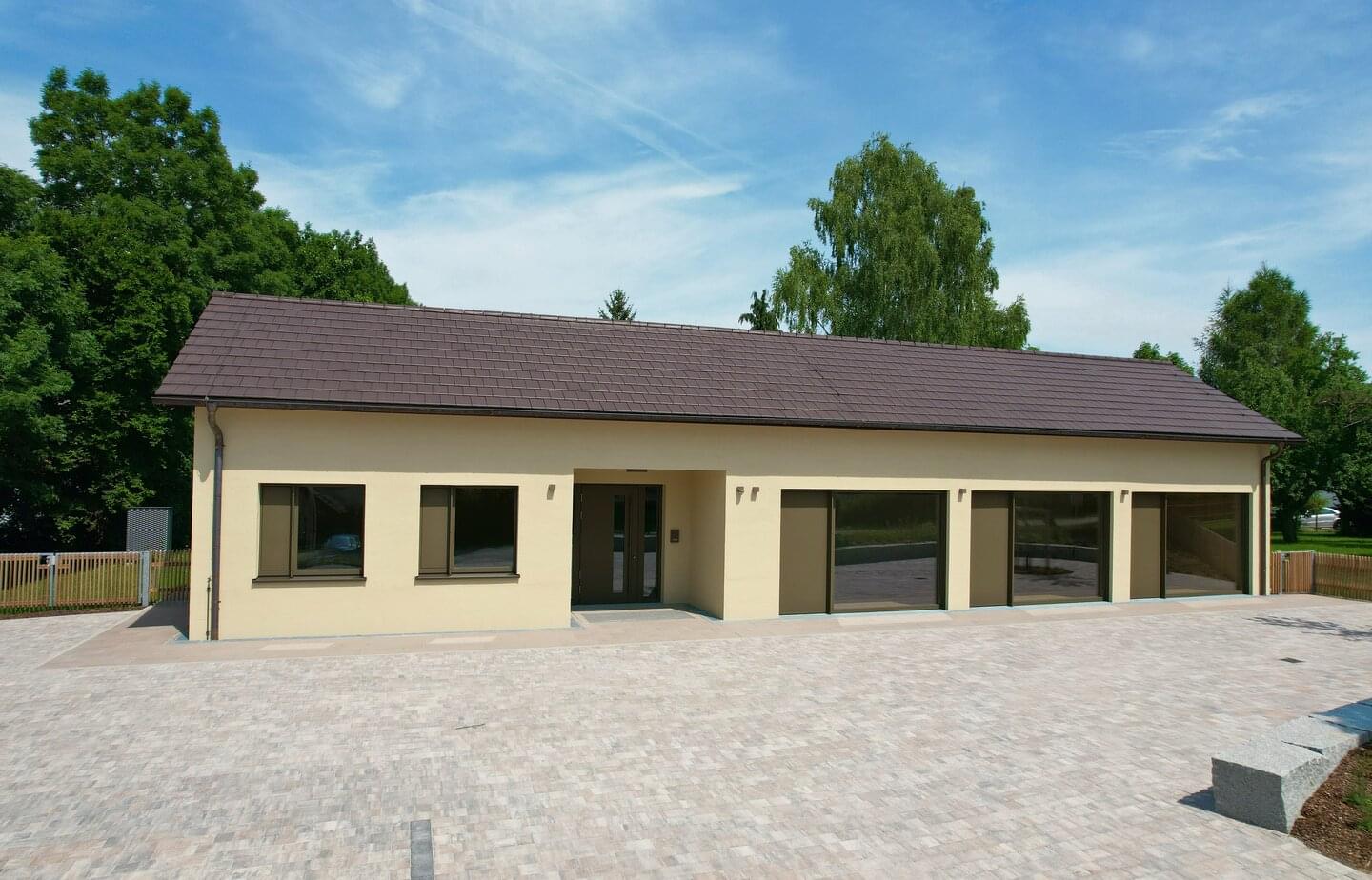

  • Linea® - Sinter brown | Image standard tiles | © © ERLUS AG 2021

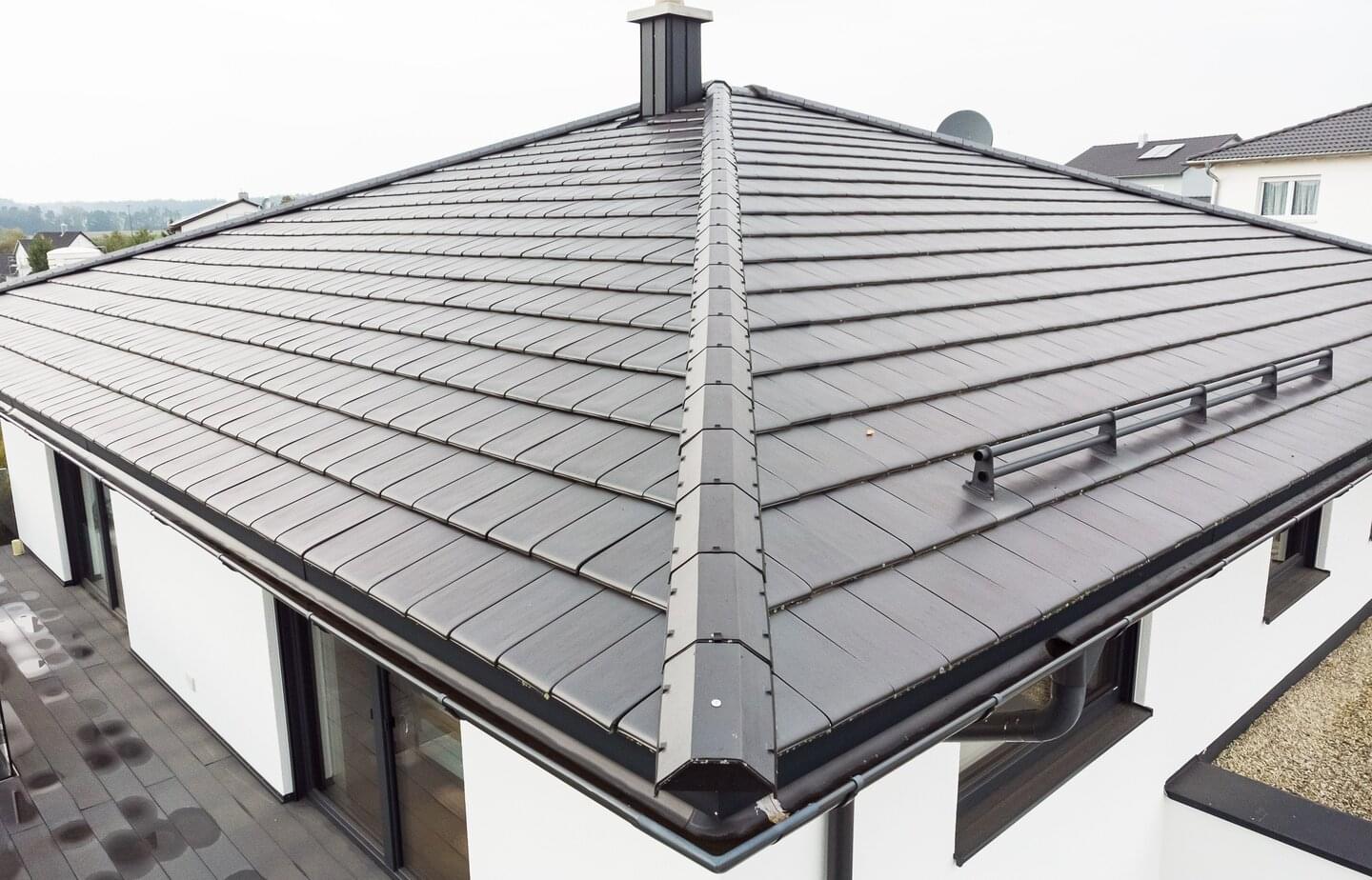

  • Linea® - Sinter grey | Image standard tiles | © © ERLUS AG 2021
  • Linea® - Sinter ligth grey | Image standard tiles | © © ERLUS AG 2021
  • Linea® - Sinter black matt | Image standard tiles | © © ERLUS AG 2021

Technical data

Size: aprox. 29.0 x 48.5 cm
Gauge: aprox. 37.3 - 39.3 cm
Average cover width: aprox. 24.5 cm
Quantity required per m²: aprox. 10.5 Pieces
Weight per m² in accordance with DIN 1055 incl. battens: aprox. 0.55 kN/m²
Real weight without battens: aprox. 46 kg/m²
Pallet capacity: 192 Pieces
Pallet weight: aprox. 927 kg
Bundle capacity: 4 Pieces
Hail resistance class: 4
Gauge class: 38,5 cm

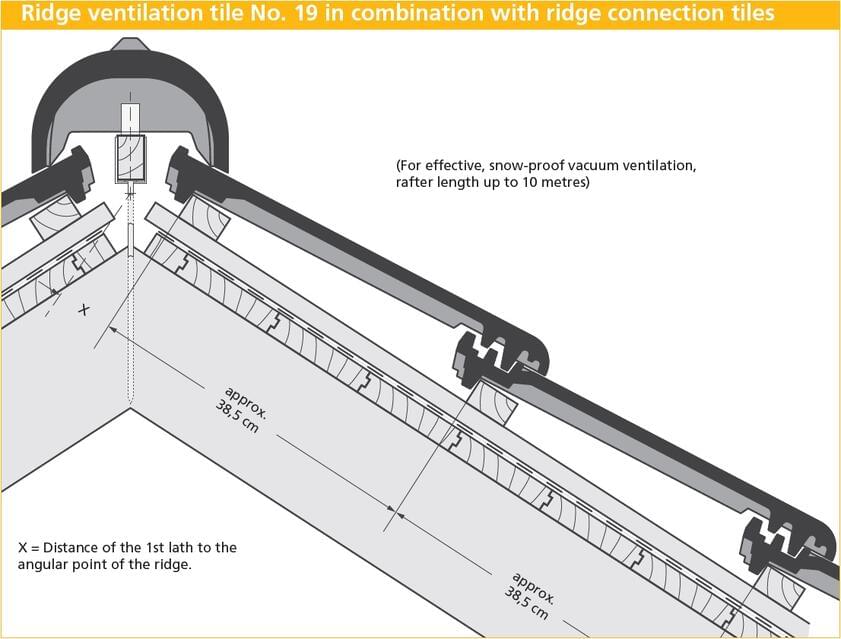

Distance between the 1st lath and the angular point of the ridge with ridge connection tiles and standard tiles
X (distance) in mm Ridge connection tile1)
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 17 65 65 65 60 60 55 55 45 - - -
Ridge ventilation tile no. 17 Lü 65 65 65 60 60 60 70 - - - -
Ridge ventilation tile no. 19 Lü 55 55 65 45 40 40 45 50 - - -
X (distance) in mm Standard tiles2)
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 17 55 55 65 60 60 60 70 50 40 - -
Ridge ventilation tile no. 17 Lü 55 55 65 60 60 65 70 - - - -
Ridge ventilation tile no. 19 Lü 55 55 50 50 40 40 40 45 - - -

1) without aluminium ridge ventilation strap2) with aluminium ridge ventilation strap

Assignment of additional measures for the Ergoldsbacher Linea®

According to the Central Association of German Roofers’ pamphlet on sub-roofs, sub-coverings and under-bracings, and the basicregulations of the Roofers’ Guild, regular roof pitch 25° - when laid in cross pattern, when laid in rows - regular roof pitch 30 °, according  to the state of technology.
Country-specific building standards and/or regulations must be adhered to, if no other contractual agreements have been made.

Increased demands due to
Use: of the attic level, especially for residential purposes (residential use equals two increased demands)
Construction: special roof shapes (e.g. butterfly roof), long spar lengths (longer than 10 meters), heavily structured roof shapes (e.g. due to valleys, gables, etc.)
Climate situation: exposed locations, extreme locations, areas with a lot of snow, special weather situations, areas with a lot of wind
Technical installations: On-roof or in-roof systems, air-conditioning systems, antenna systems, roof access systems, rooflight/skylight
systems, snow guard systems, etc.

Classification
Class 1: Waterproof sub-roof (1.1.)
Class 2: Rainproof sub-roof (1.2.)
Class 3: Seam and perforation secured under-bracing (2.1.) Seam and perforation secured sub-covering (3.1.)
Class 4: Welded or glued sub-covering (2.2.) Coated under-bracing made of strips of bitumen (2.3.) Seam-secured sub-covering (3.2.)
Class 5: Overlapped / tongue in groove sub-covering (2.4.)
Class 6: Under-bracing (3.3.)

Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*2 further increased demands*3 further increased demands*
≥ 25° Class 6 Class 6 Class 5 Class 4
from < 25° to ≥ 21° Class 4 Class 4 Class 3 Class 3
from < 21° to ≥ 17° Class 3 Class 3 Class 3 Class 3*
from < 17° to ≥ 13° Class 2 Class 2 Class 1 Class 1
from < 13° to ≥ 10° Class 1 Class 1 Class 1 Class 1
Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*
≥ 25° Class 6 Class 6
from < 25° to ≥ 21° Class 4 Class 4
from < 21° to ≥ 17° Class 3 Class 3
from < 17° to ≥ 13° Class 2 Class 2
from < 13° to ≥ 10° Class 1 Class 1
roof pitch2 further increased demands*3 further increased demands*
≥ 25° Class 5 Class 4
from < 25° to ≥ 21° Class 3 Class 3
from < 21° to ≥ 17° Class 3 Class 3*
from < 17° to ≥ 13° Class 1 Class 1
from < 13° to ≥ 10° Class 1 Class 1
* The additional measures listed in the table are minimum measures under consideration of Table 1 in the pamphlet on sub-roofs, sub-coverings and under-bracings. Sub-covering panels are to be assigned according to the classification in the pamphlet on sub-roofs, sub-coverings and under-bracings. Increased demands make up categories according to chapter 1.1.3. Further increased demands can arise out of the weighting within a category according to 1.1.3. For example, climate situations can result in several increased demands. Only permitted if the manufacturer provides proof of the functionality and safety of the products used, including accessories (sealing tapes, sticky tapes, sealing compounds, pre-assembled seam securing, etc.), as part of a deluge test and 24-hour rain test on a roof pitch of 15°. Otherwise, the next class up is to be selected. Any limitations noted by the manufacturer are to be taken into account. See the product data information sheet for instructions regarding protection against perforation. These can be used for classes 3 to 6.

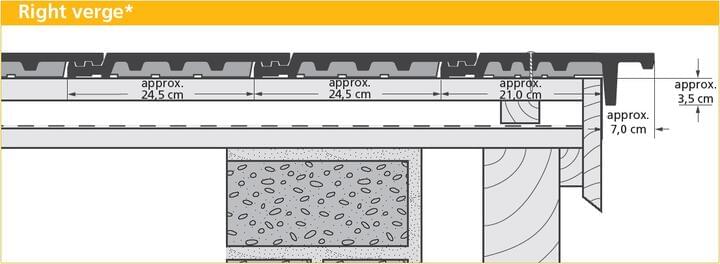

Technical drawings

These are the advantages of the
Ergoldsbacher Linea®

  • Sintered quality

  • Highly stormproof when laid in a cross bond pattern, even when used without storm-clips

  • Hail resistance class 4

  • Flat tile that particularly guards against rain getting in due to double interlocking head and side joints

  • iF DESIGN AWARD winner

  • Profitable approx. 10 pcs./m², can also be laid in rows (standard roof pitch 25° or 30°)

  • 20 mm sliding range

  • 2 solutions for the verges

  • Complete accessories including aluminium accessories from one source

  • Gauge class 38.5 cm model from the XXL family

Standard tile

Linea® - Sinter red | Image product range
Standard tile

ERLUS Standard Accessories

Linea® - 1/2 Tile Sinter red | Image product range
1/2 Tile

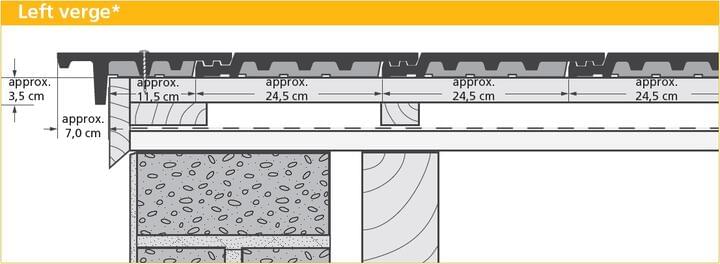

Linea® - Verge tile left Sinter red | Image product range
Verge tile left
Linea® - Verge tile right Sinter red | Image product range
Verge tile right

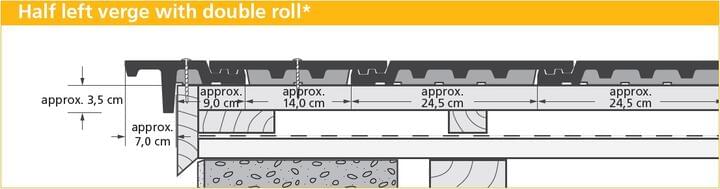

Linea® - 1/2 Verge tile left / Double roll tile (set) Sinter red | Image product range
1/2 Verge tile left / Double roll tile (set)

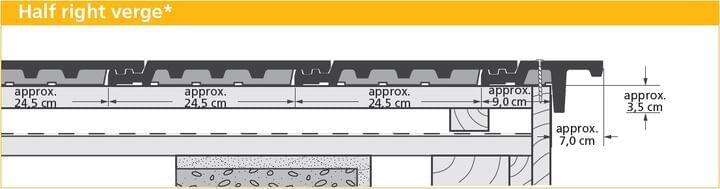

Linea® - 1/2 Verge tile right Sinter red | Image product range
1/2 Verge tile right
Linea® - Double roll tile Sinter red | Image product range
Double roll tile
Linea® - Ridge connection tile Sinter red | Image product range
Ridge connection tile
Linea® - 1/2 Ridge connection tile Sinter red | Image product range
1/2 Ridge connection tile
Linea® - Ridge connection verge tile left Sinter red | Image product range
Ridge connection verge tile left
Linea® - Ridge connection verge tile right Sinter red | Image product range
Ridge connection verge tile right
Linea® - 1/2 Ridge connection verge tile left / Ridge connection double roll tile (set) Sinter red | Image product range
1/2 Ridge connection verge tile left / Ridge connection double roll tile (set)
Linea® - 1/2 Ridge connection verge tile right Sinter red | Image product range
1/2 Ridge connection verge tile right
Linea® - Ridge connection double roll tile Sinter red | Image product range
Ridge connection double roll tile

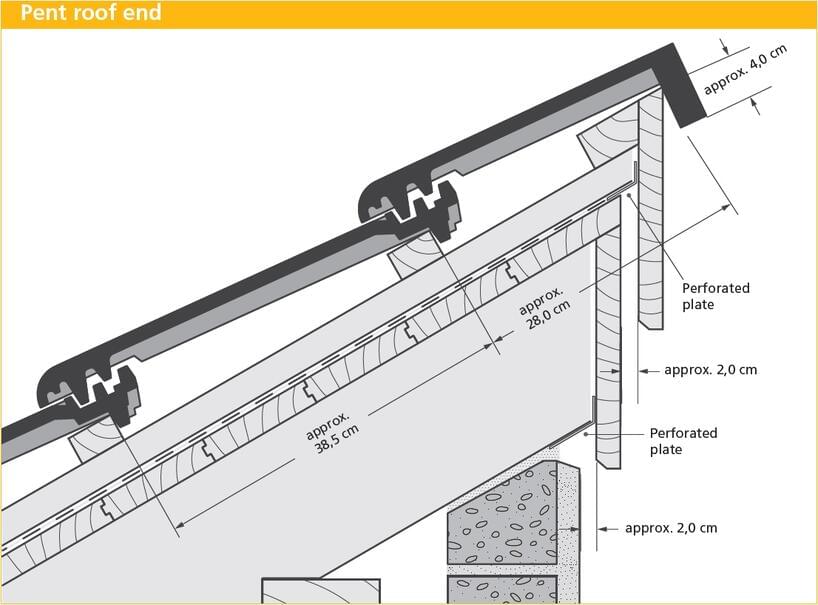

Linea® - Pent roof tile Sinter red | Image product range
Pent roof tile
Linea® - 1/2 Pent roof tile Sinter red | Image product range
1/2 Pent roof tile
Linea® - Pent roof verge tile left Sinter red | Image product range
Pent roof verge tile left
Linea® - Pent roof verge tile right Sinter red | Image product range
Pent roof verge tile right
Linea® - Ventilation tile Sinter red | Image product range
Ventilation tile
Ridge tile no. 15 Sinter red | Image product range
Ridge tile no. 15
Ridge end tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge end tile no. 15
Ridge compensation tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge compensation tile no. 15
Ridge tile no. 17 Sinter red | Image product range | © © ERLUS AG 2021
Ridge tile no. 17
Ridge end tile no. 17 Sinter red | Image product range | © © ERLUS AG 2021
Ridge end tile no. 17
Ridge tile no. 17 Sinter red | Image product range | © © ERLUS AG 2021
Ridge compensation tile no. 17
Ridge ventilation tile no. 17 Lü Sinter red | Image product range | © © ERLUS AG 2021
Ridge ventilation tile no. 17 Lü
Ridge beginning tile no. 17 Lü Sinter red | Image product range | © © ERLUS AG 2021
Ridge beginning tile no. 17 Lü
Ridge end tile no. 17 Lü Sinter red | Image product range | © © ERLUS AG 2021
Ridge end tile no. 17 Lü
Ridge ventilation tile no. 19 Lü Sinter red | Image product range | © © ERLUS AG 2021
Ridge ventilation tile no. 19 Lü
Ridge beginning tile no. 19 Lü Sinter red | Image product range | © © ERLUS AG 2021
Ridge beginning tile no. 19 Lü
Ridge end tile no. 19 Lü Sinter red | Image product range | © © ERLUS AG 2021
Ridge end tile no. 19 Lü

ERLUS Special Accessories

Linea® | Image product range
Aluminium sanitary ventilator with base tile
Linea® | Image product range
Aluminium aerial with base tile
Linea® - Aluminium solar outlet with base tile sinterrot - alu | Image product range
Aluminium solar outlet with base tile
Aluminium snow stop fence holder with base tile | Image product range | © © ERLUS AG 2021
Aluminium snow stop fence holder with base tile
Aluminium snow stop fence, 20 cm high naturrot/rot engobiert | Image product range
Aluminium snow stop fence, 20 cm high
Aluminium snow stop incl. snow guard tube bracket with base tile | Image product range | © © ERLUS AG 2021
Aluminium snow stop incl. snow guard tube bracket with base tile
Aluminium snow guard tube, length 2 m naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium snow guard tube, length 2 m
Aluminium connector for snow guard tube | Image product range | © © ERLUS AG 2021
Aluminium connector for snow guard tube
Aluminium round wood holder with base tile | Image product range | © © ERLUS AG 2021
Aluminium round wood holder with base tile

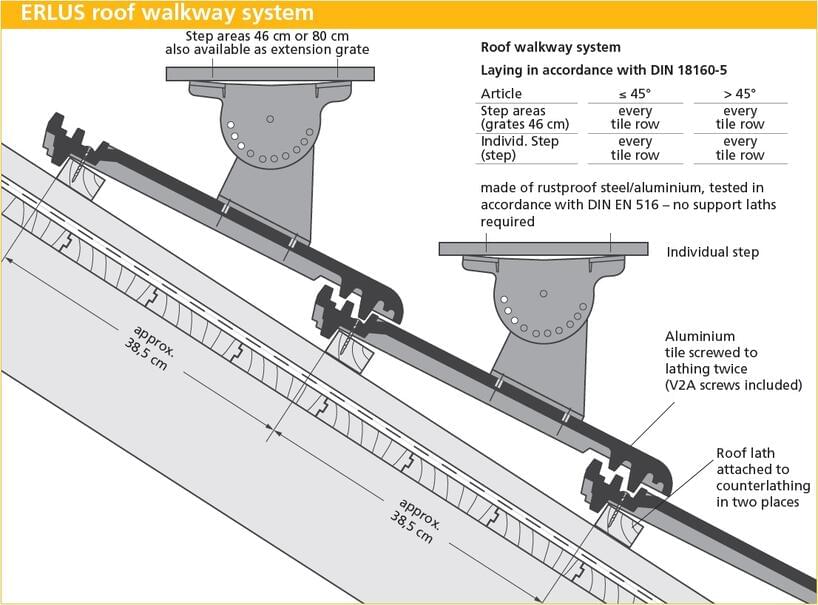

Aluminium step with base tile | Image product range | © © ERLUS AG 2021
Aluminium step with base tile
Aluminium step grate 50 cm x 25 cm, with two base tiles | Image product range | © ERLUS AG 2021
Aluminium step grate 50 cm x 25 cm, with two base tiles
Aluminium step grate 80 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 80 cm x 25 cm, with two base tiles
Aluminium extension step grate, 80 x 25 cm, with base tile | Image product range | © © ERLUS AG 2021
Aluminium extension step grate, 80 x 25 cm, with base tile
Aluminium step grate bracket, uncoated, with base tile | Image product range | © © ERLUS AG 2021
Aluminium step grate bracket, uncoated, with base tile
Aluminium safety hooks for ladder, Type A, with base tile | Image product range | © © ERLUS AG 2021
Aluminium safety hooks for ladder, Type A, with base tile
Linea® - Aluminium solar panel holder with base tile sinterrot - alu | Image product range
Aluminium solar panel holder with base tile
Ceramic extension plate universal for ridge end tile Natural red | Image product range
Ceramic extension plate universal for ridge end tile
Ceramic hip cap no. 15 N Sinter red | Image product range
Ceramic hip cap no. 15 N
Ceramic hip cap no. 17 N
Ceramic hip cap für ridge beginning tiles no. 19 Sinter red | Image product range | © © ERLUS AG 2021
Ceramic hip cap für ridge beginning tiles no. 19
Ceramic hip cap for ridge end tiles no. 19 Sinter red | Image product range | © © ERLUS AG 2021
Ceramic hip cap for ridge end tiles no. 19
Ceramic hip cap with four outlets for rigde tiles Natural red | Image product range
Ceramic hip cap with four outlets for rigde tiles
Ceramic hip start for ridge tiles no. 17 | Image product range
Ceramic hip start for ridge tiles no. 17
Ceramic hip start for ridge tiles no. 19 Natural red | Image product range
Ceramic hip start for ridge tiles no. 19
Universal ERLUS Sturmklammer I Größe "M" 2,5 mm 40/60 V2A Federstahl | Image product range | © © ERLUS AG 2021
ERLUS universal storm clips I M for battens 24/48 mm
Universal ERLUS Sturmklammer II Größe "M" 2,2 mm 40/60 V2A Federstahl | Image product range | © © ERLUS AG 2021
ERLUS universal storm clips II M for battens 30/50 mm
First-und Gratklammern für First 15/17 rot beschichtet -Systemverlegung- | Image product range
Ridge clips no. 15/17
First- und Gratklammern für Lüfterfirst Nr. 15 / 17  | Image product range
Ridge clips no. 15/17 Lü
First- und Gratklammern für Firstziegel Nr. 19  | Image product range
Ridge clips no. 19 Lü
Linea® - Snow stop hooks schwarz (beschichtet) | Image product range
Snow stop hooks
Aluminium ridge ventilation strap rot (beschichtet) | Image product range
Aluminium ridge ventilation strap
Eave protection tape rotbraun (beschichtet) | Image product range
Eave protection tape
Eave ventilation comb, PVC rotbraun (beschichtet) | Image product range
Eave ventilation comb, PVC
Aluminium ridge end disc rotbraun/schwarz (beschichtet) | Image product range | © © ERLUS AG 2021
Aluminium ridge end disc

Roof surfaces

Linea® - Sinter red | Image roof surface | © © ERLUS AG 2021 Sinter red
Linea® - Sinter ligth grey | Image roof surface | © © ERLUS AG 2021 Sinter ligth grey
Linea® - Sinter cotto | Image roof surface | © © ERLUS AG 2021 Sinter cotto
Linea® - Sinter black matt | Image roof surface | © © ERLUS AG 2021 Sinter black matt

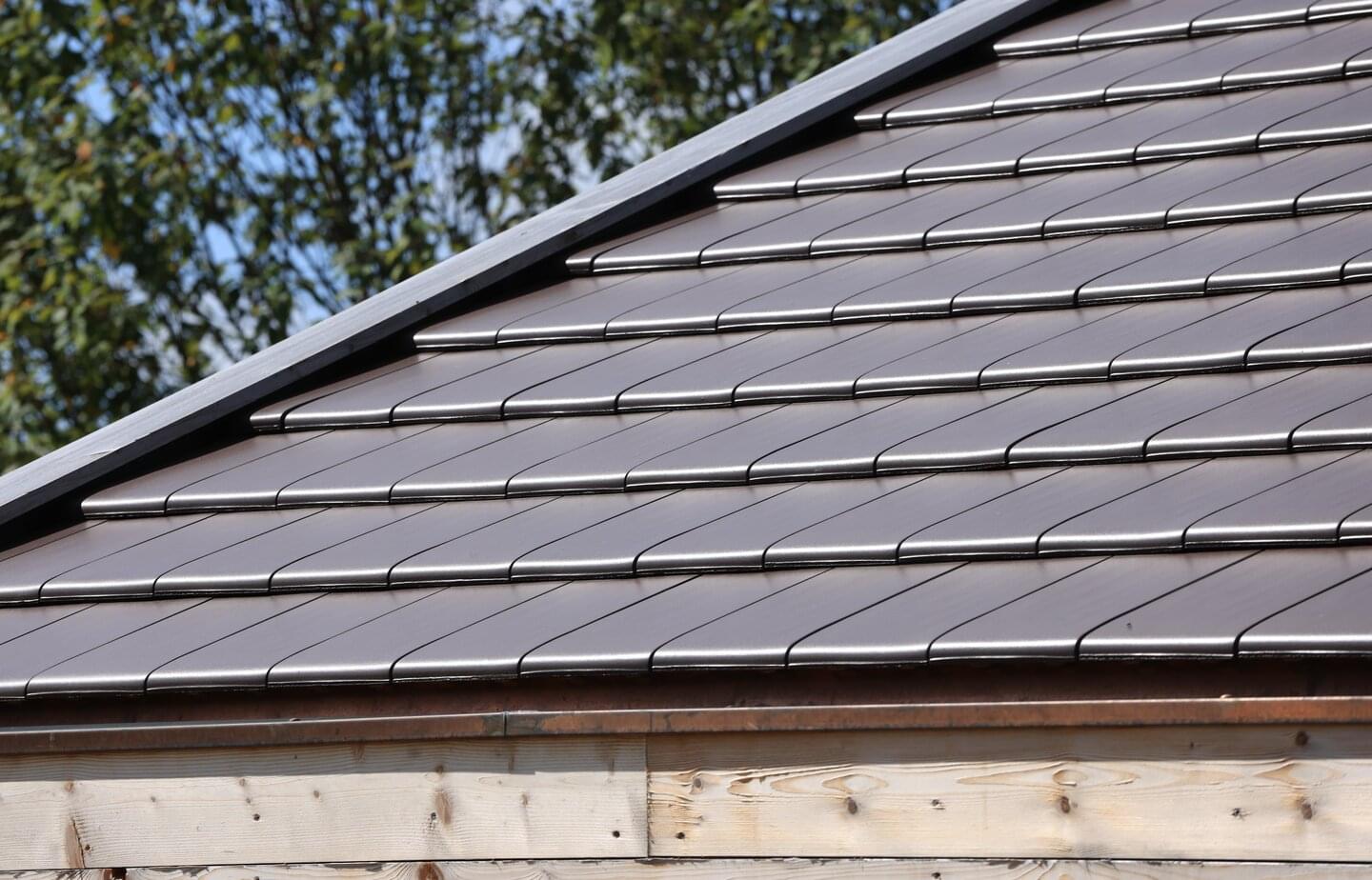

Linea® - Sinter brown | Image roof surface | © © ERLUS AG 2021 Sinterbraun

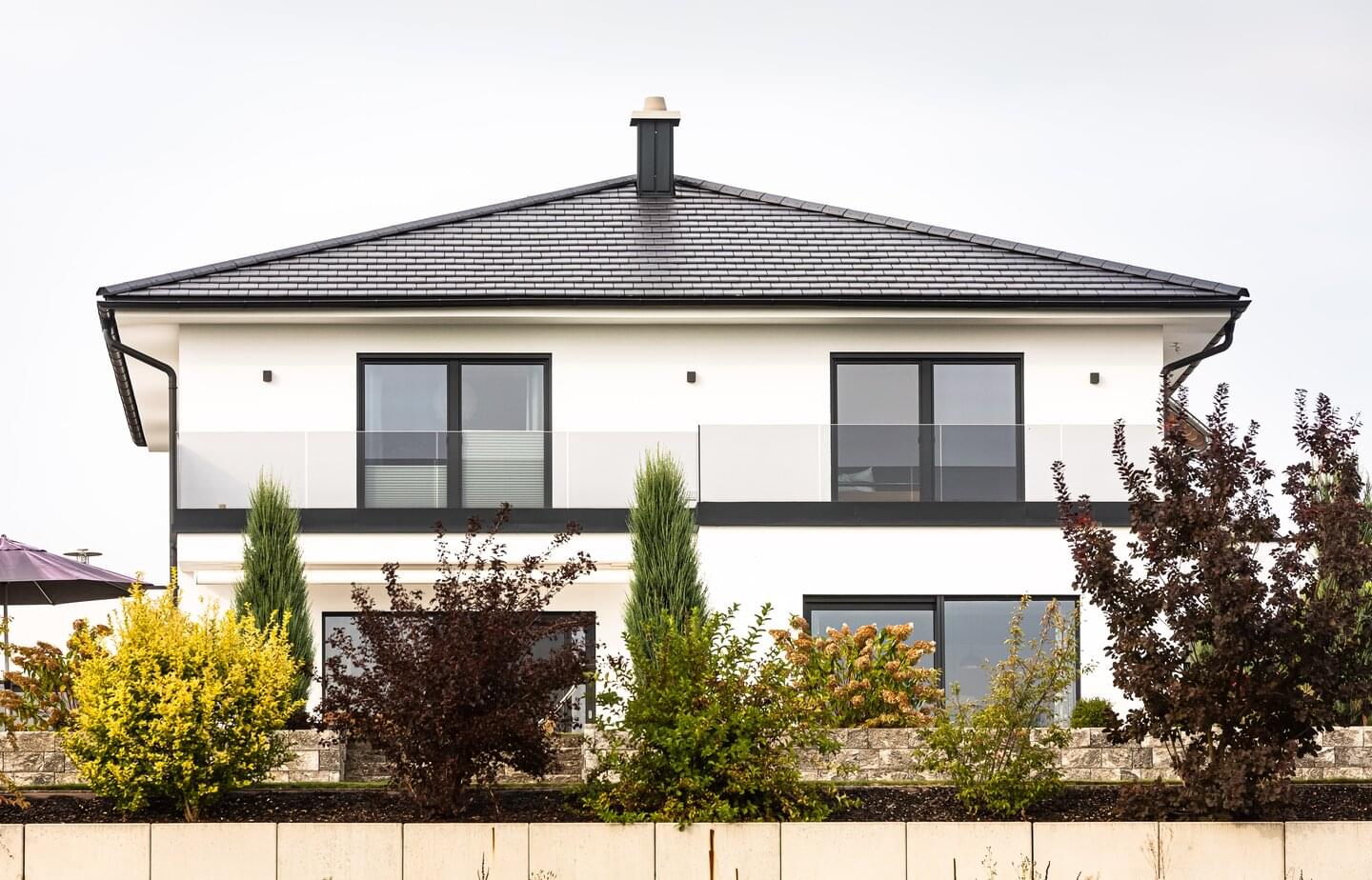

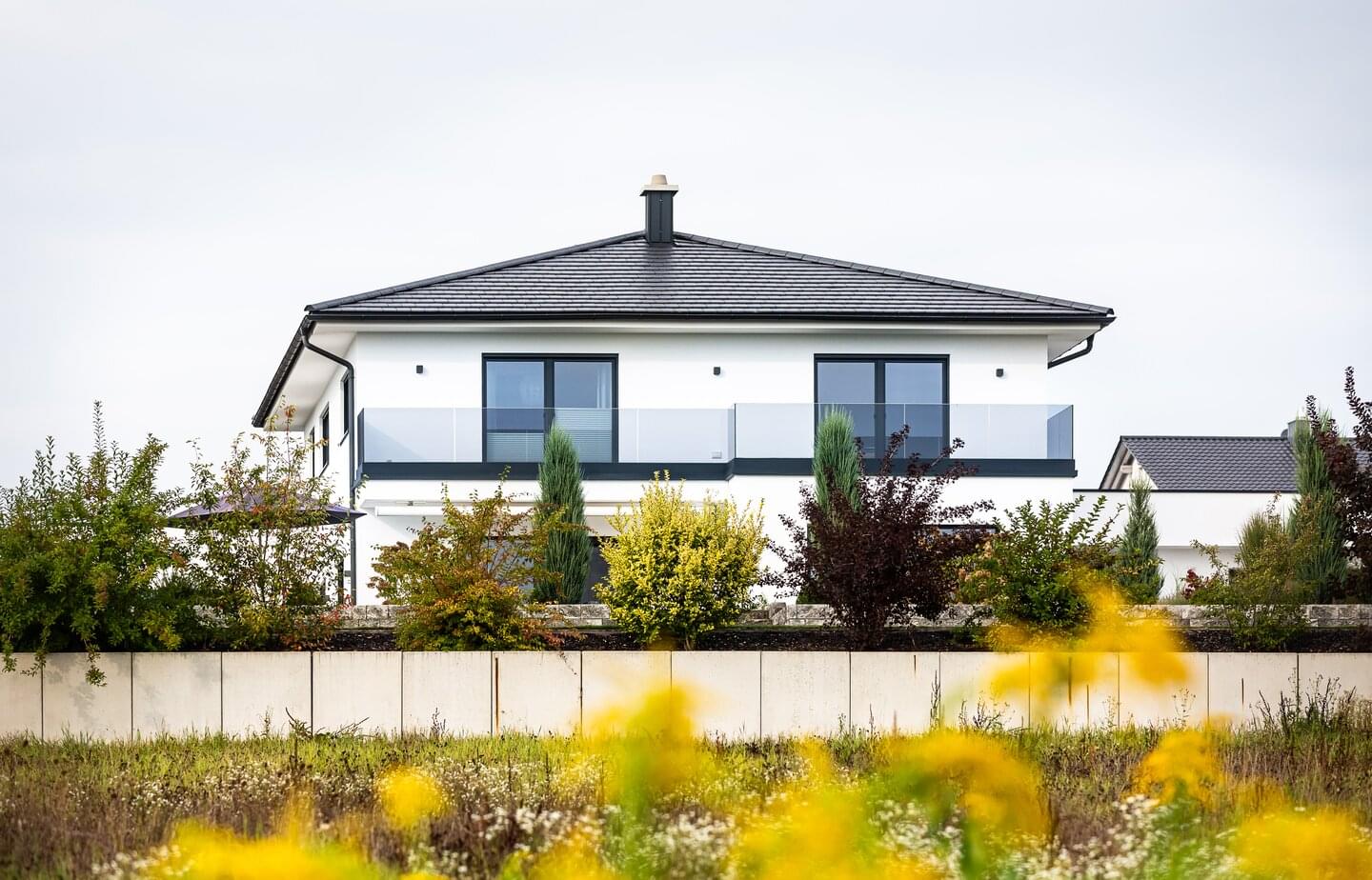

Linea® - Sinter grey | Image roof surface | © © ERLUS AG 2021 Sinter grey

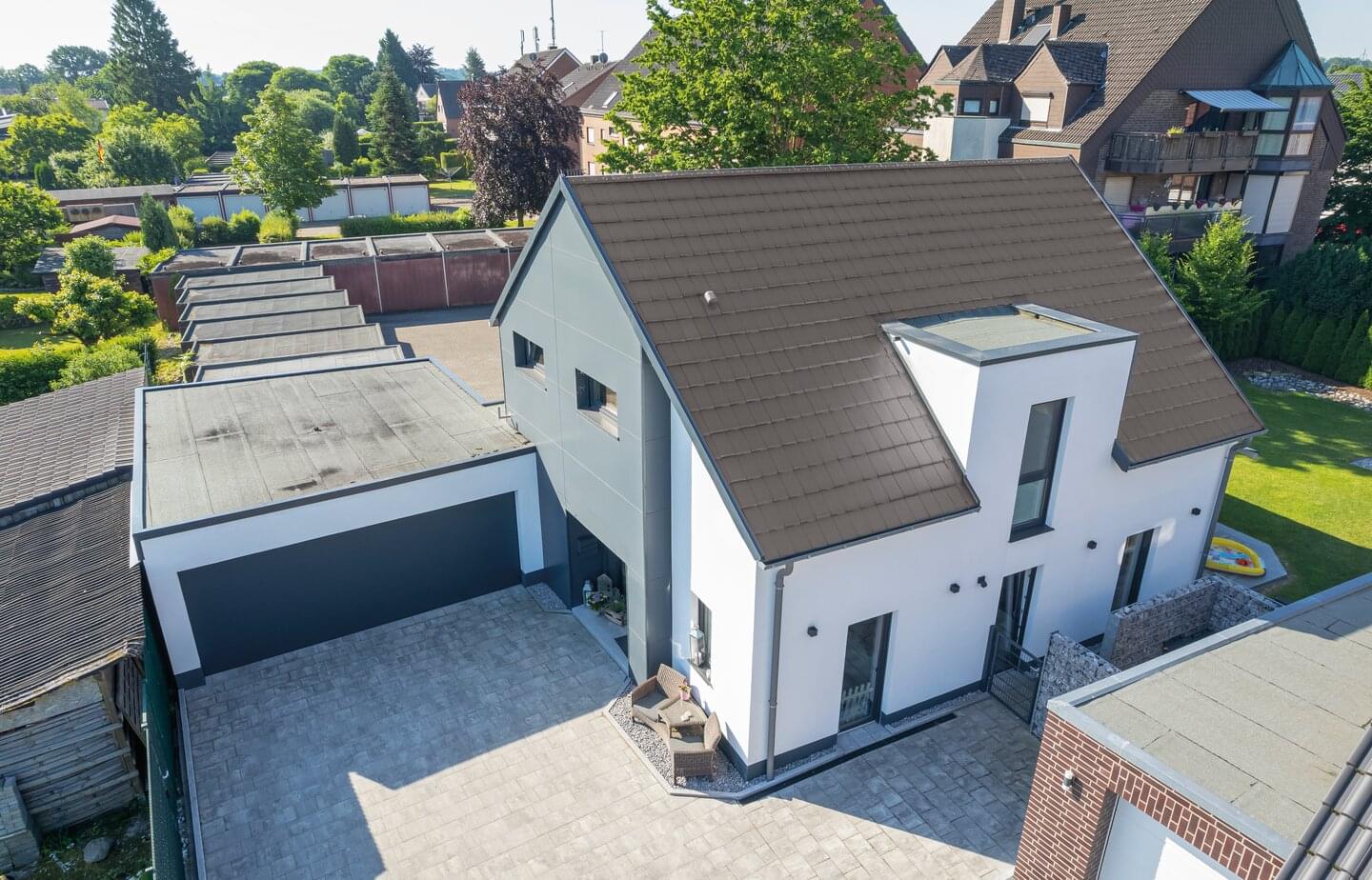

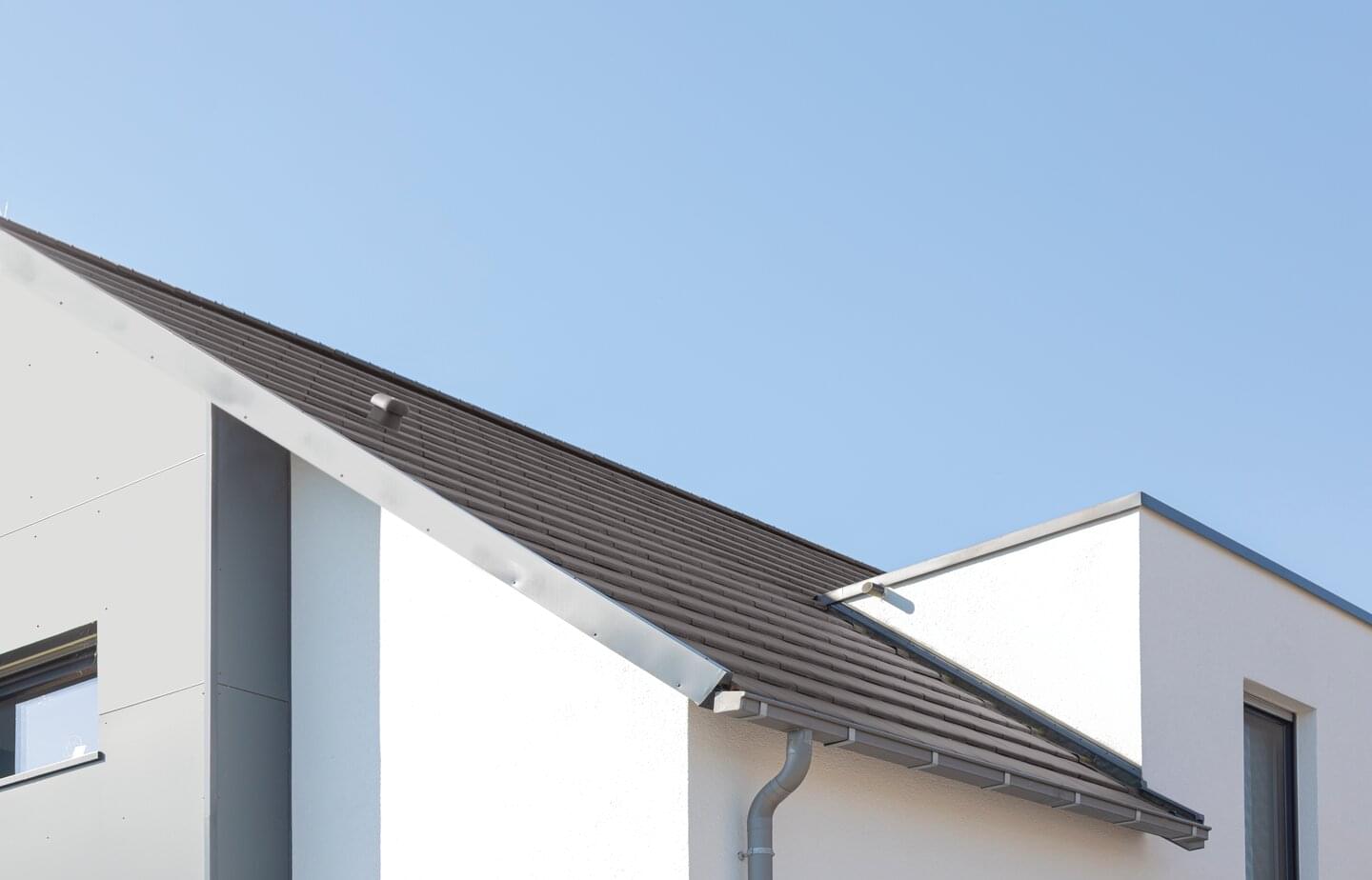

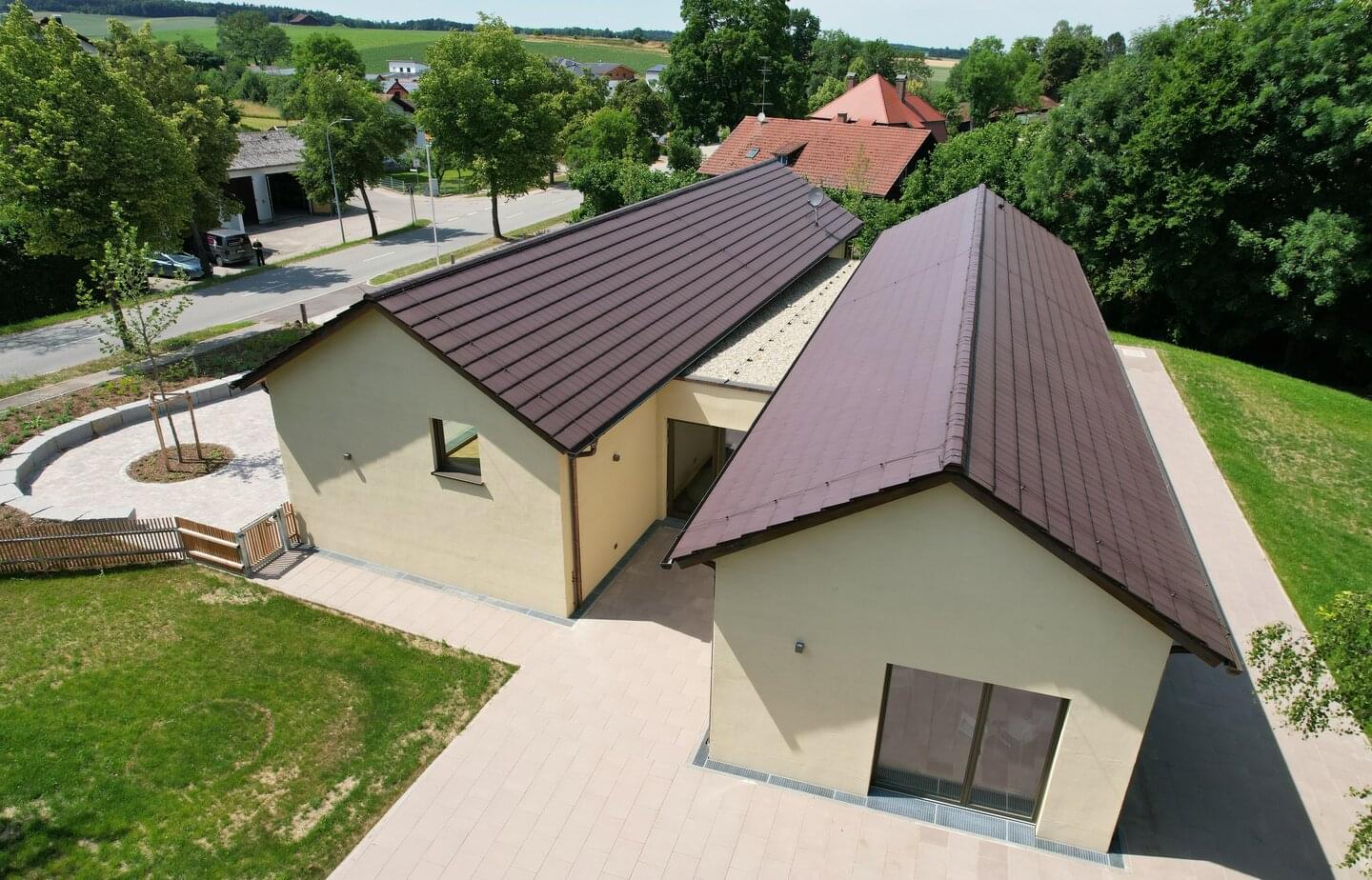

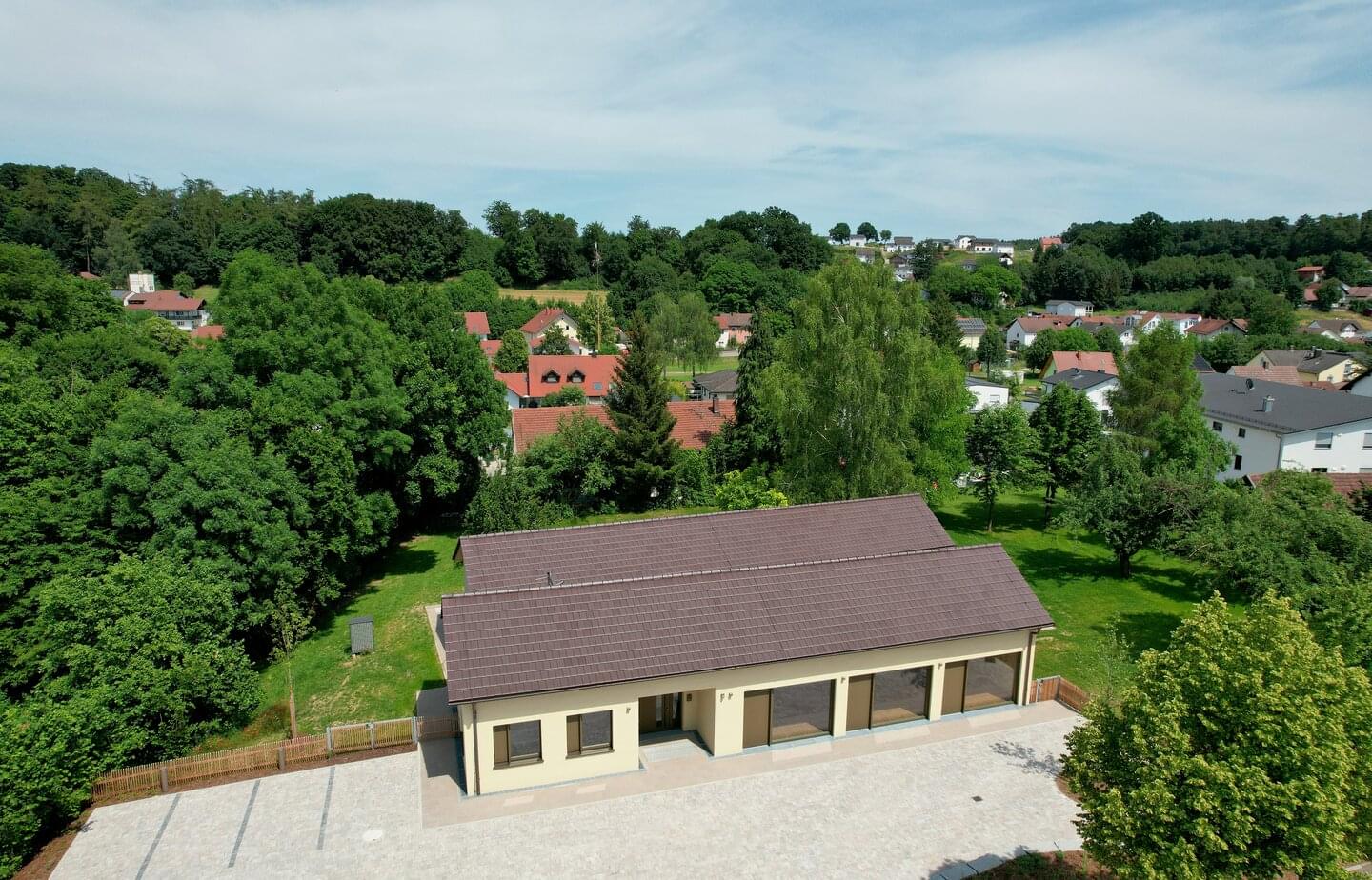

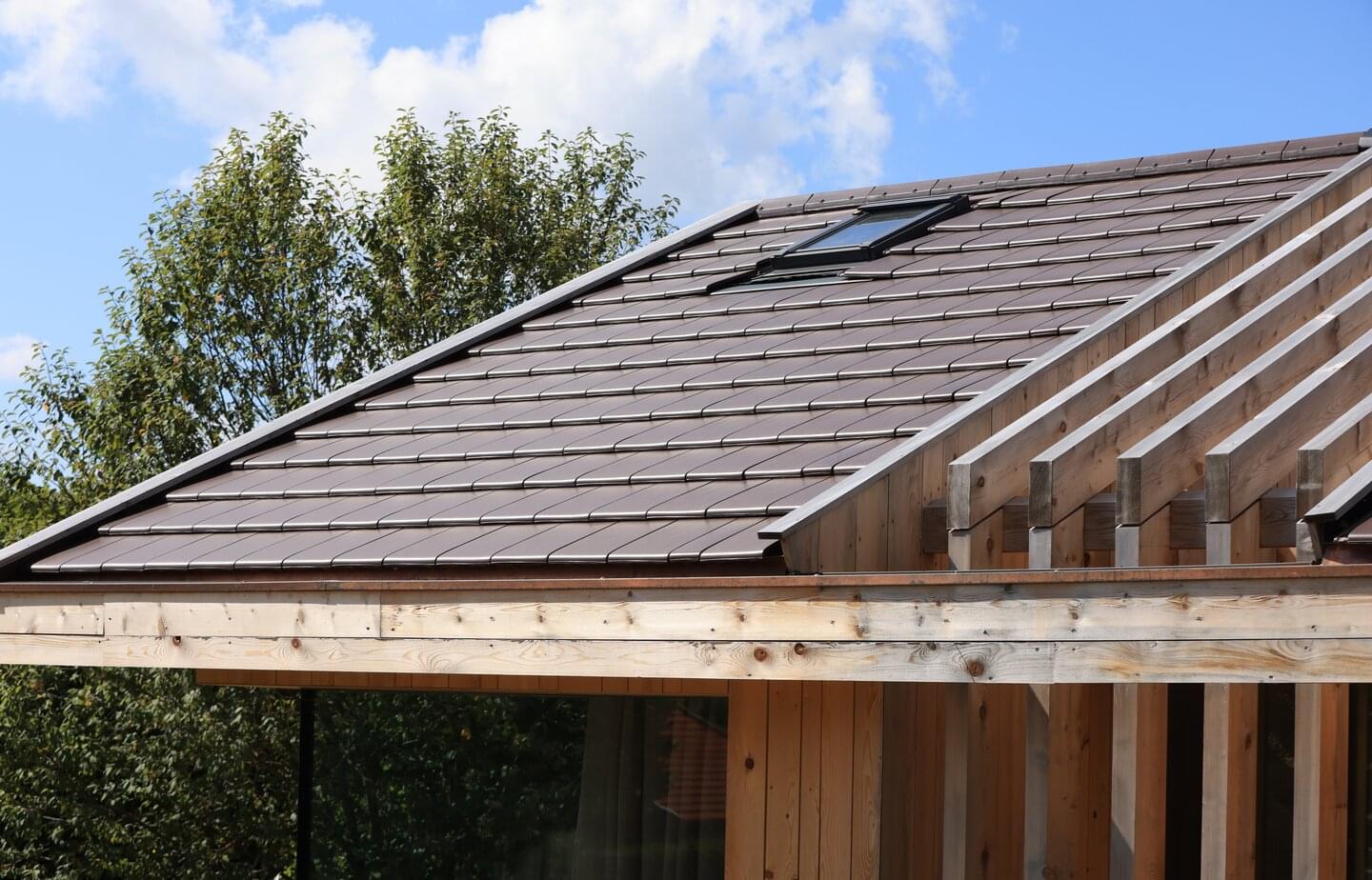

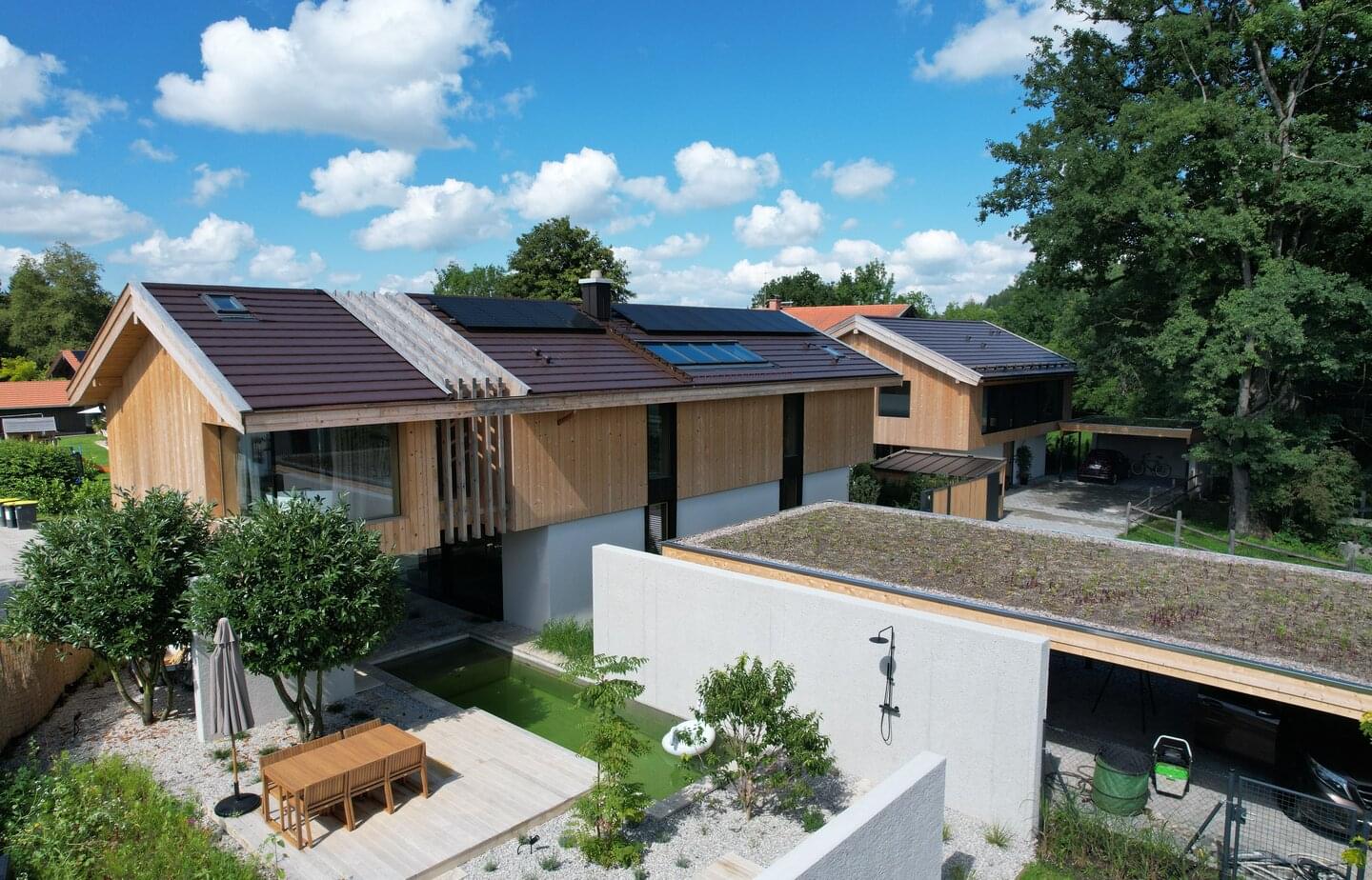

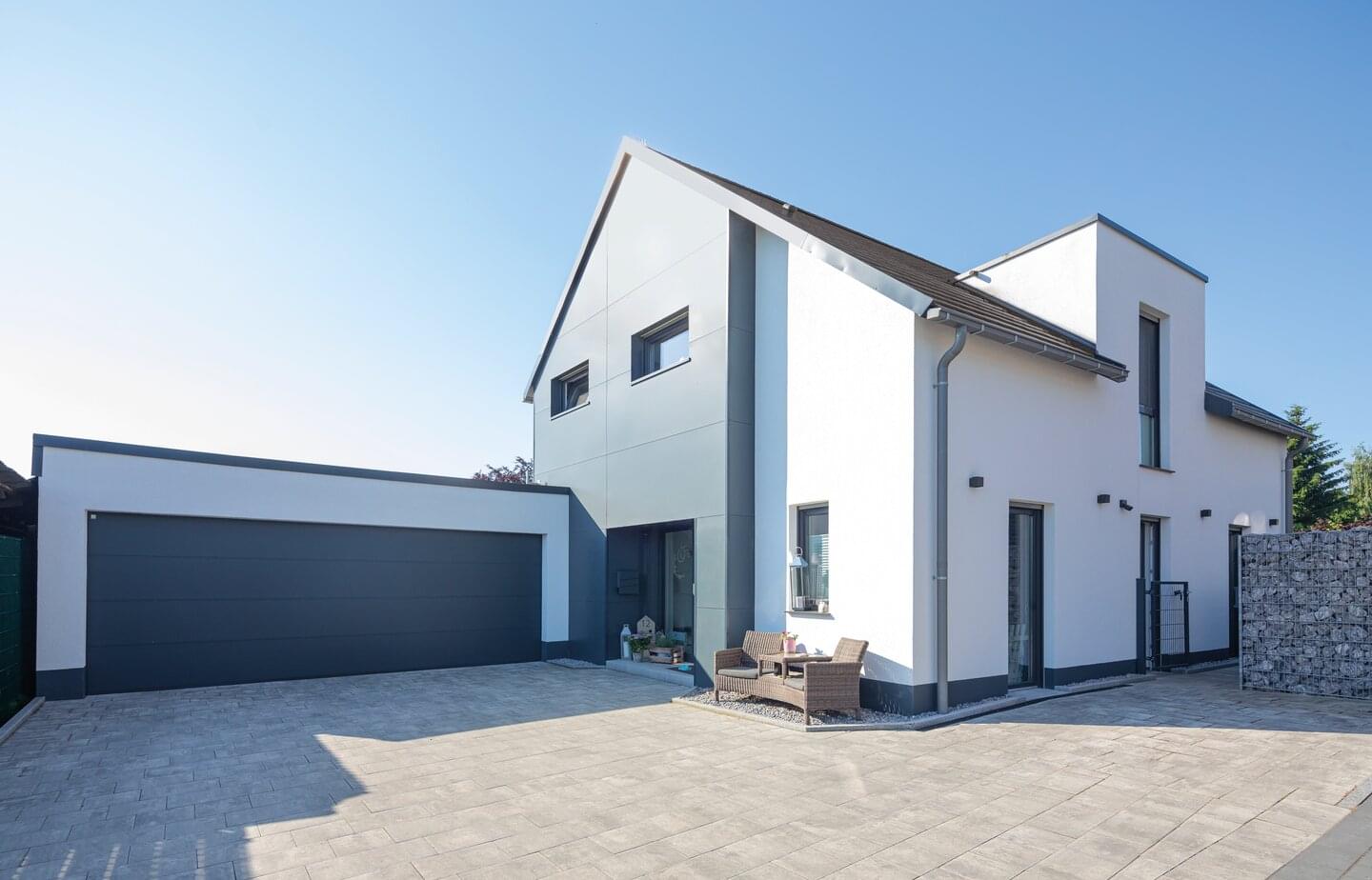

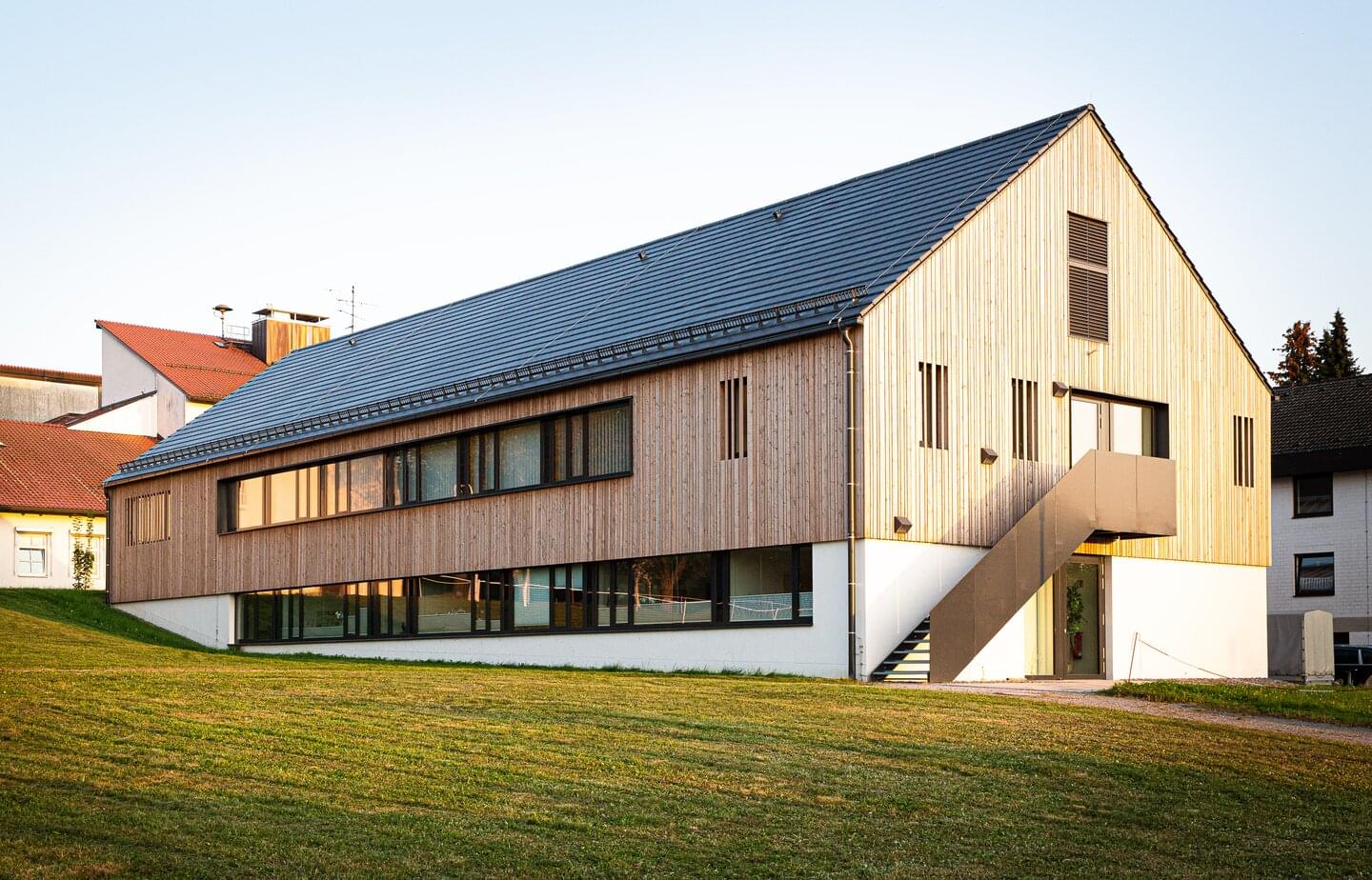

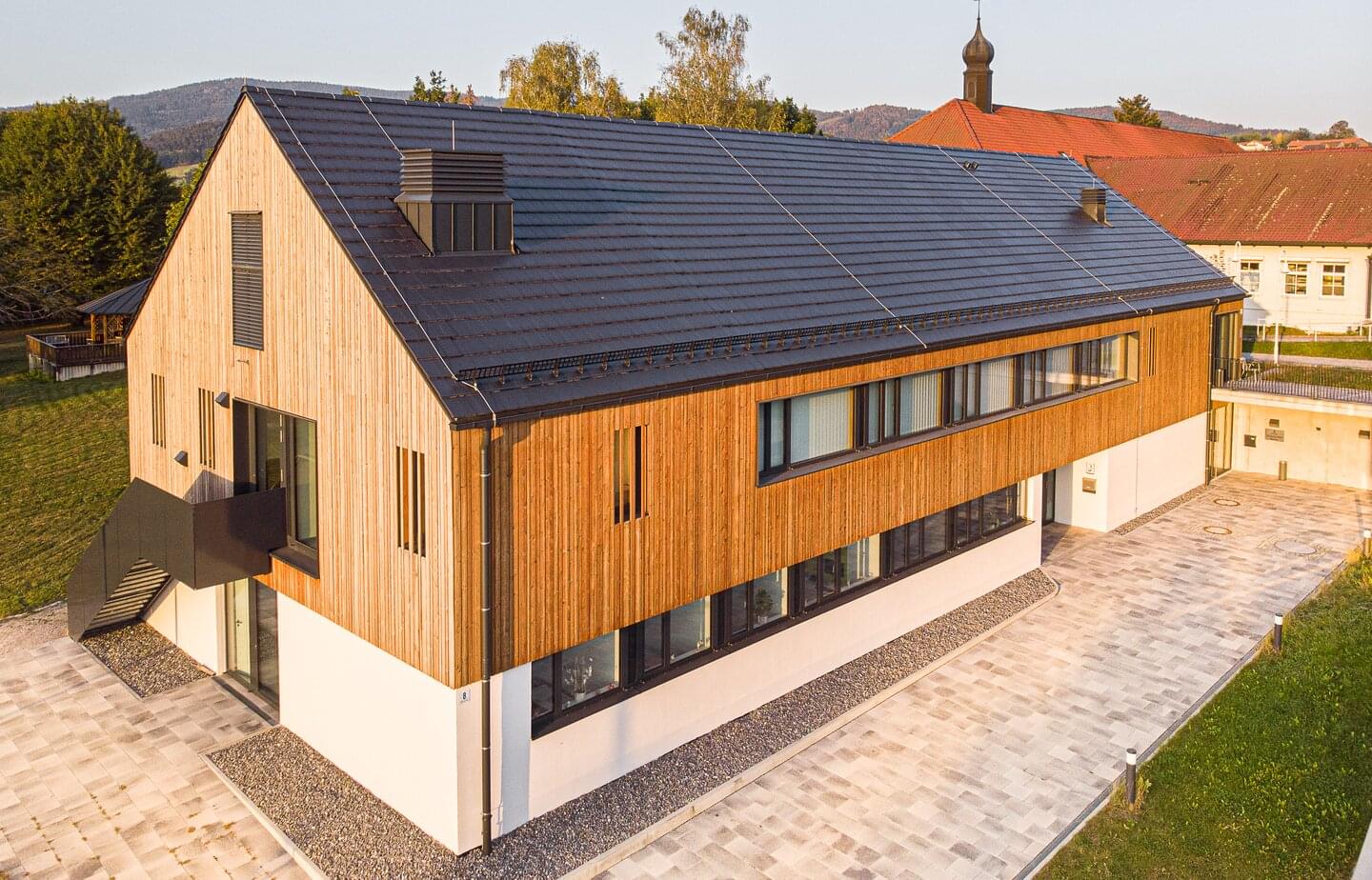

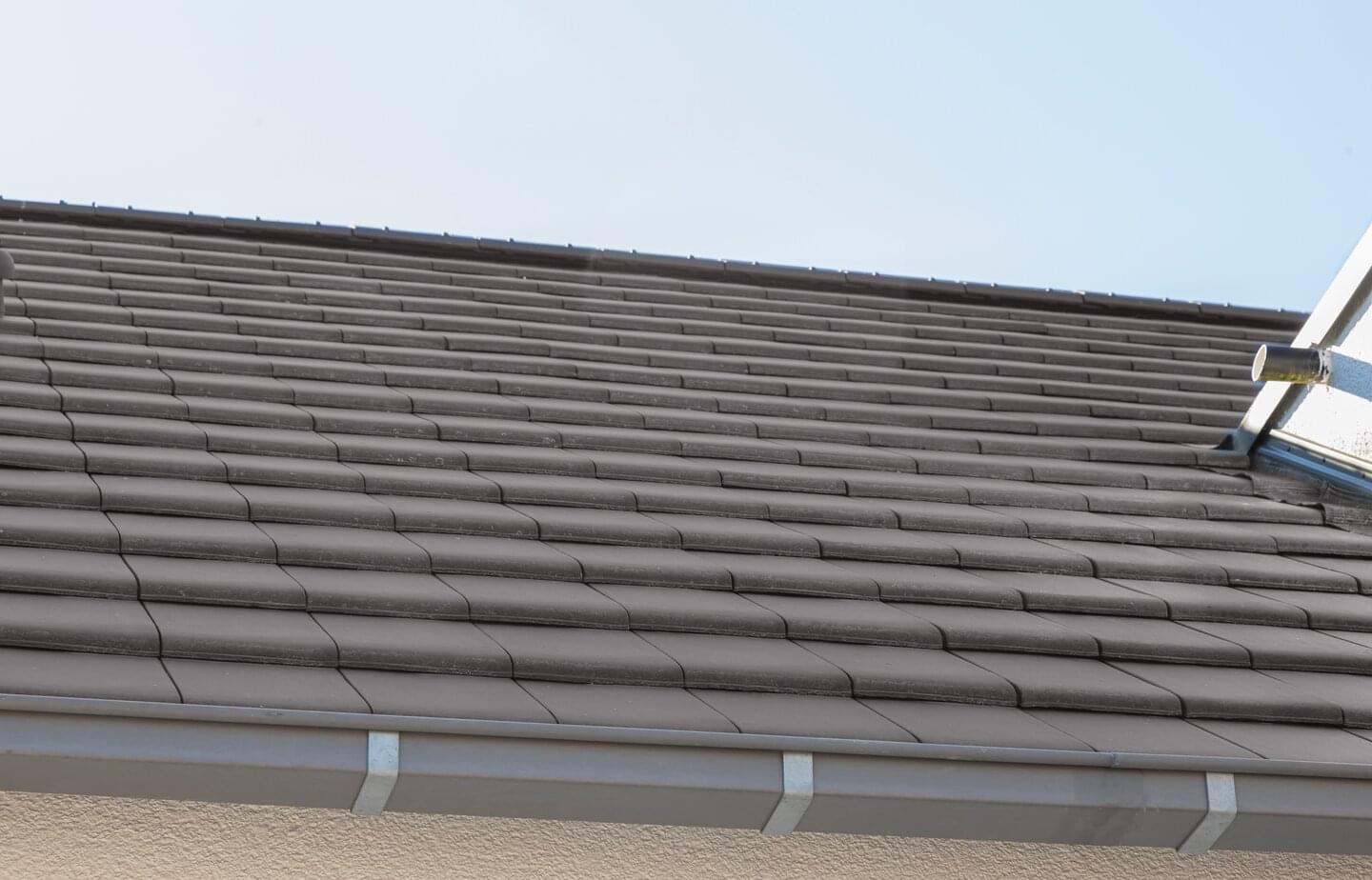

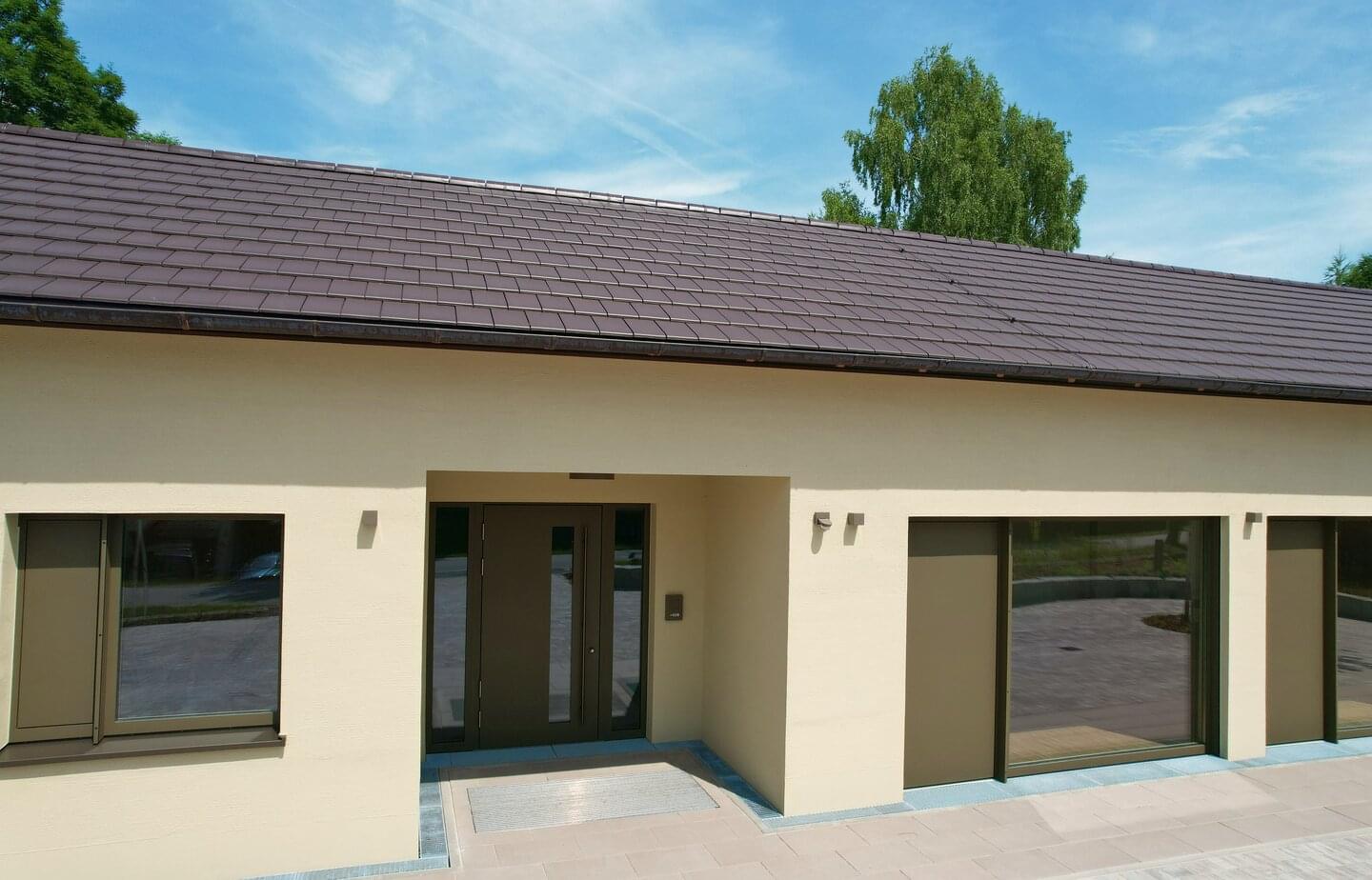

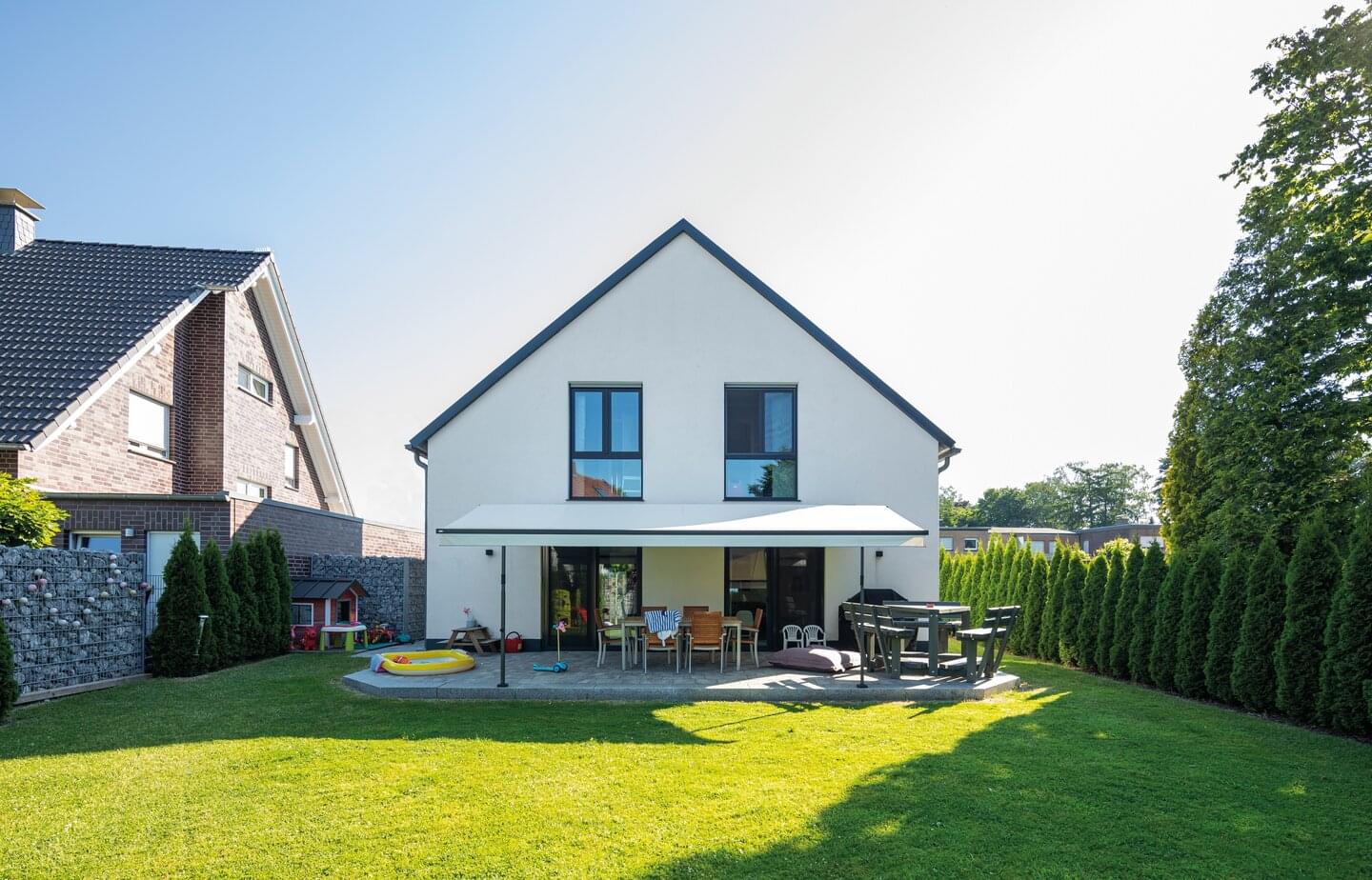

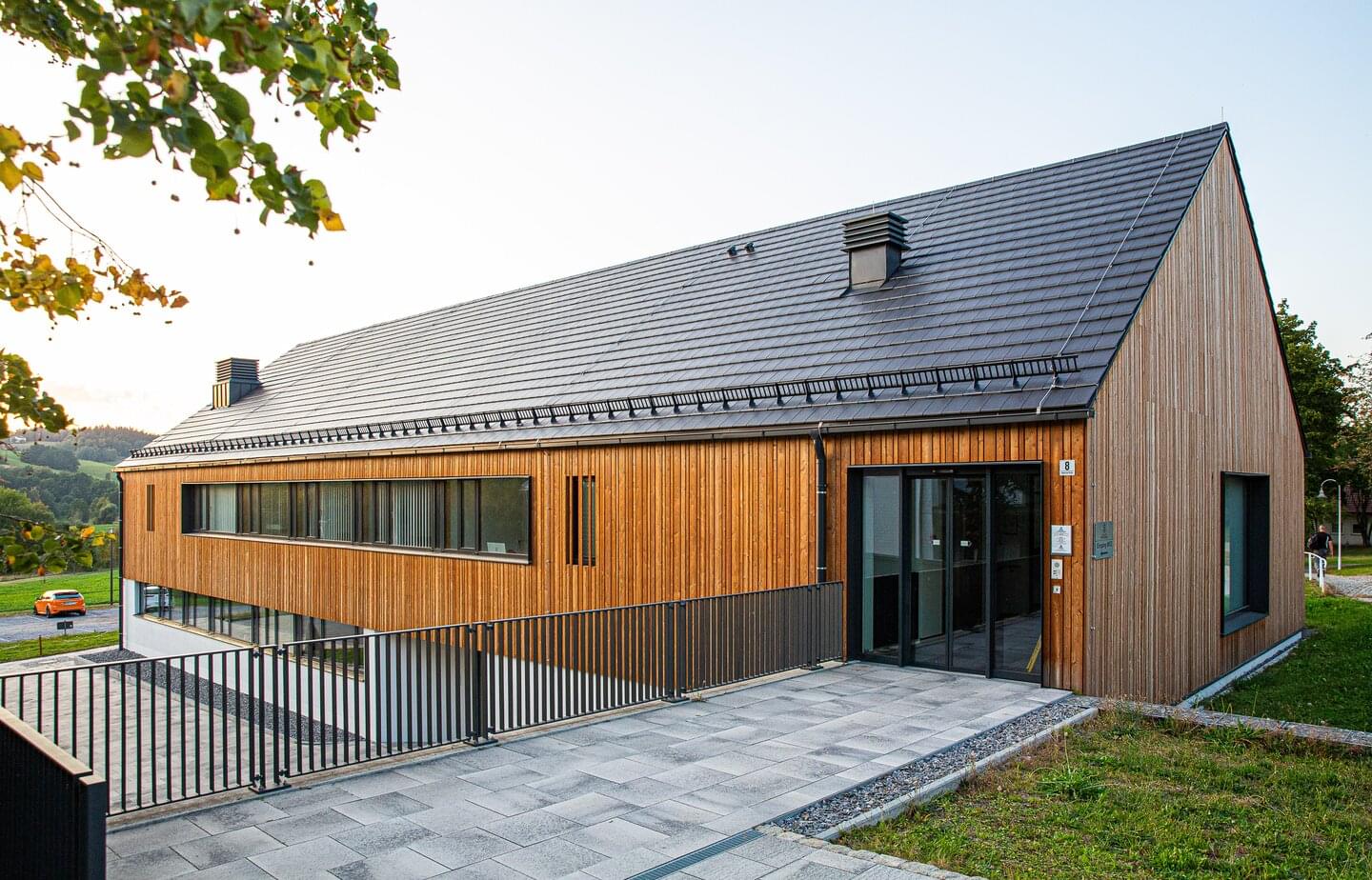

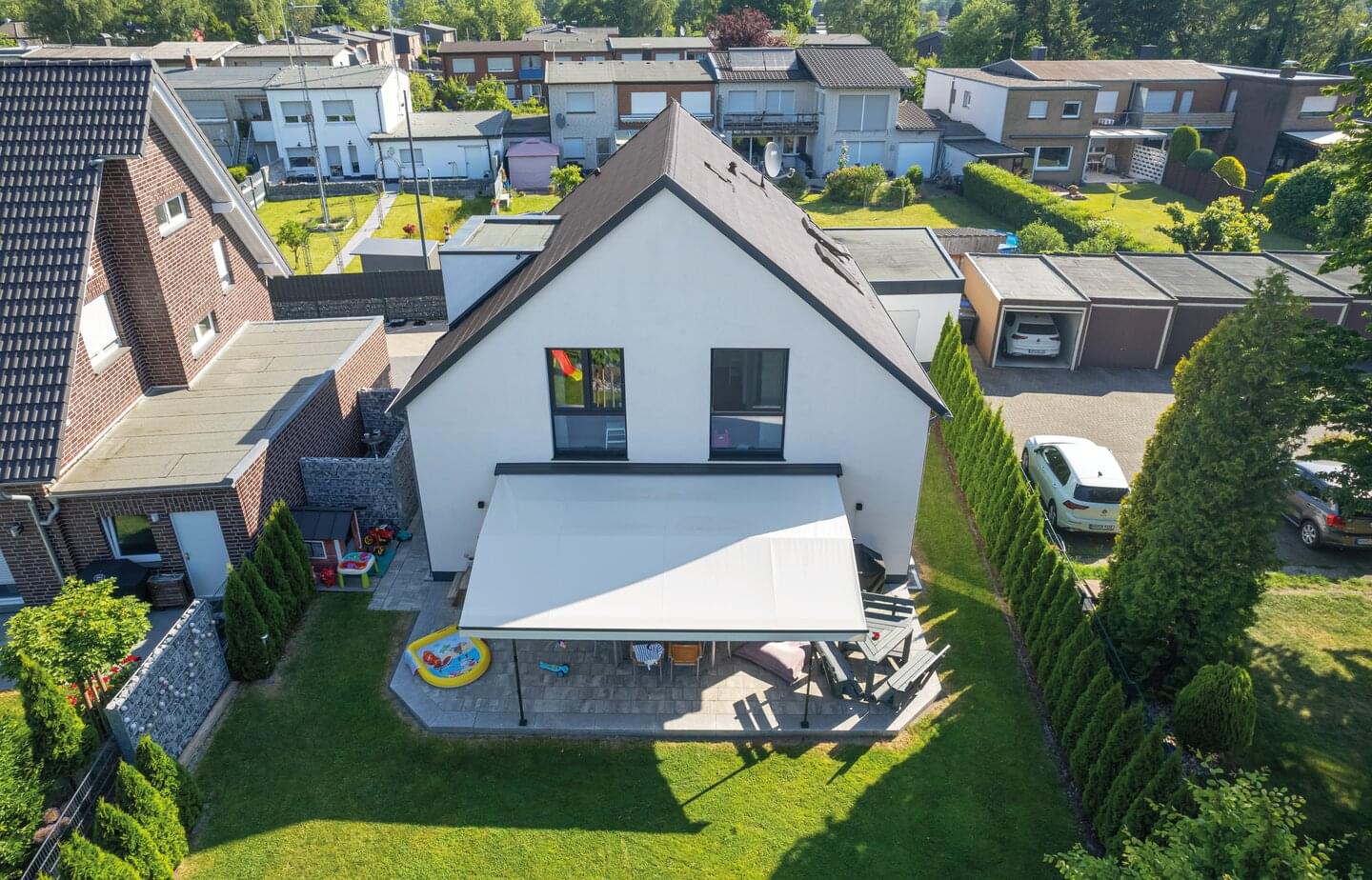

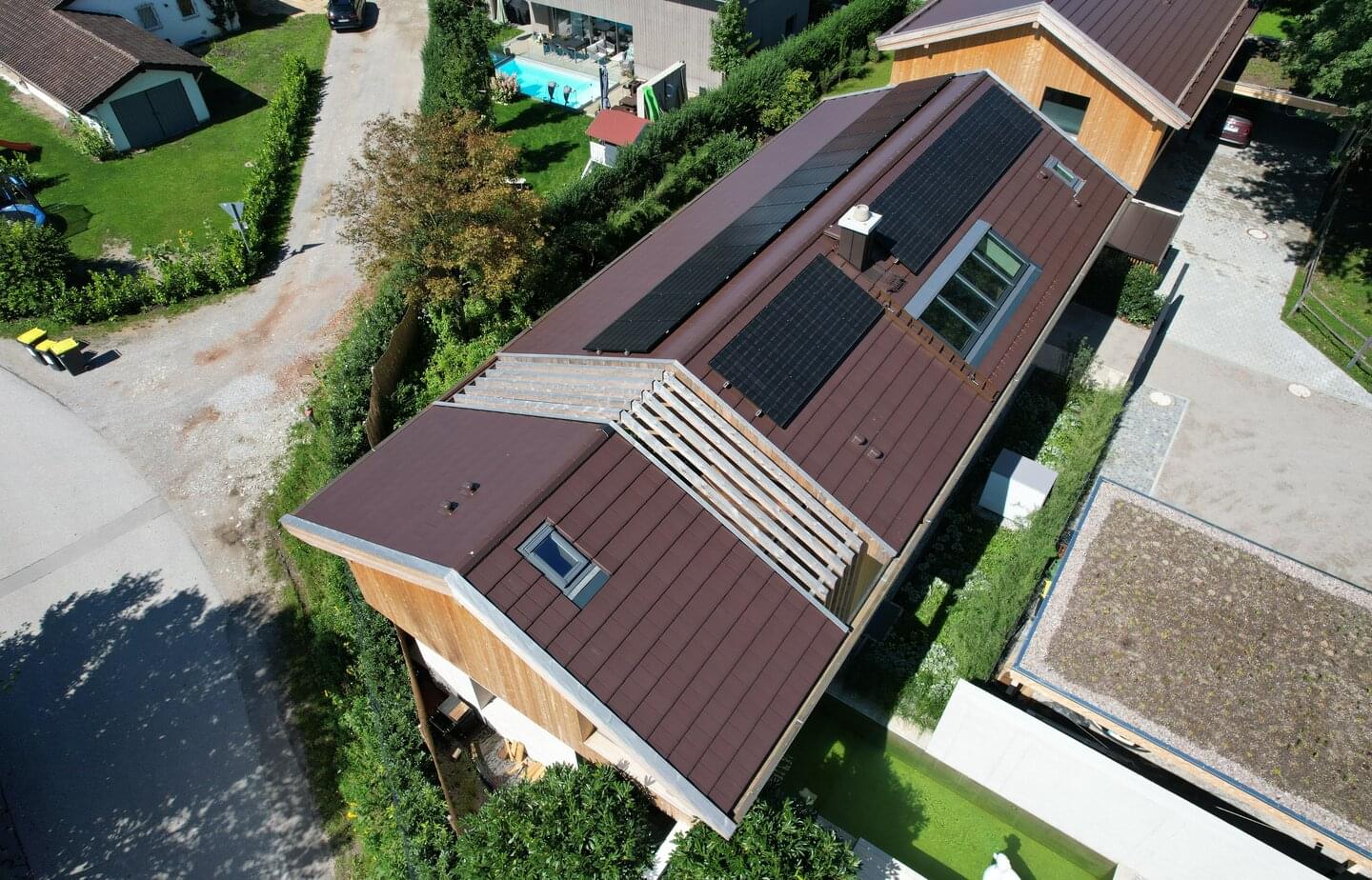

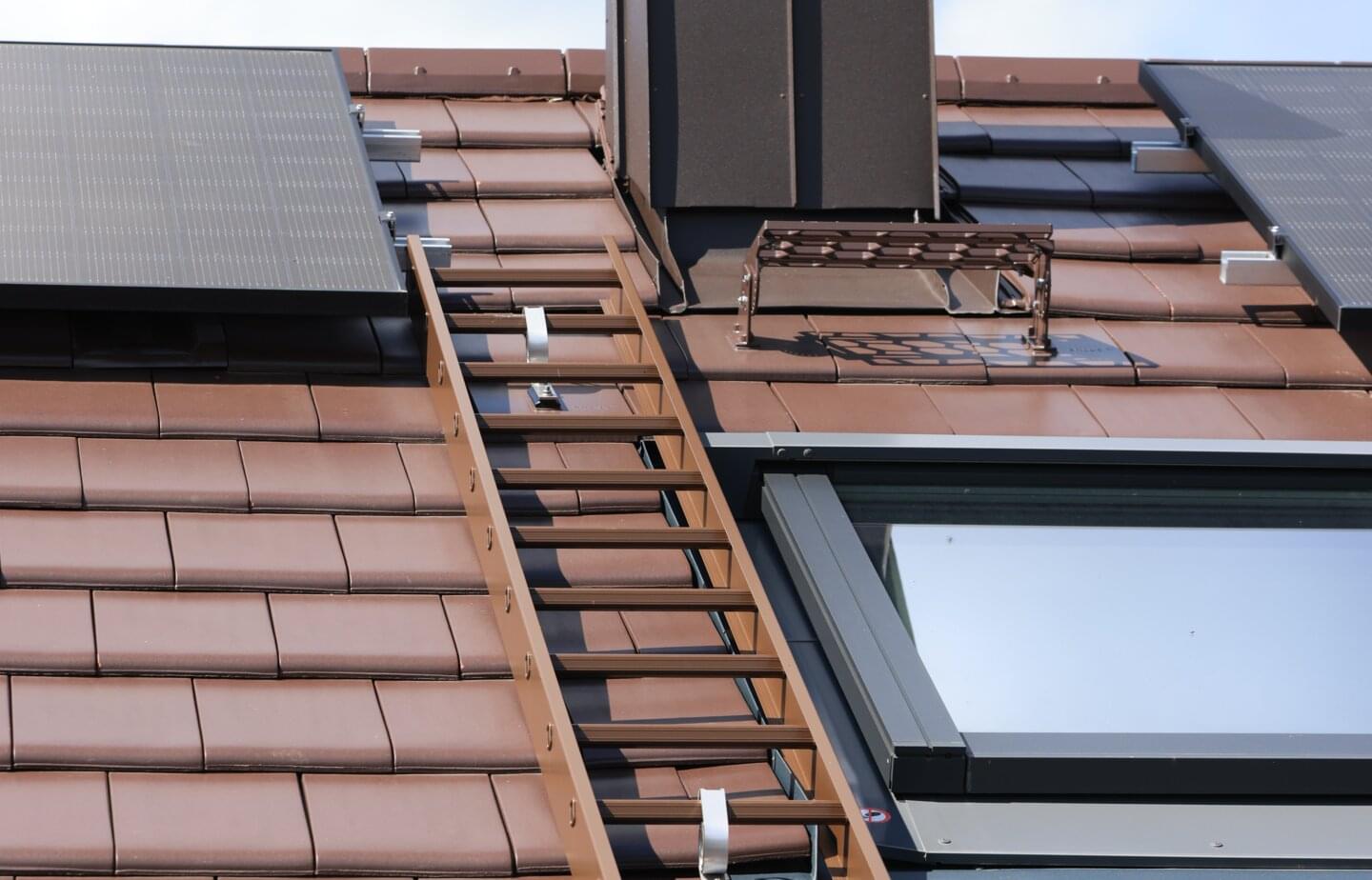

Completed projects

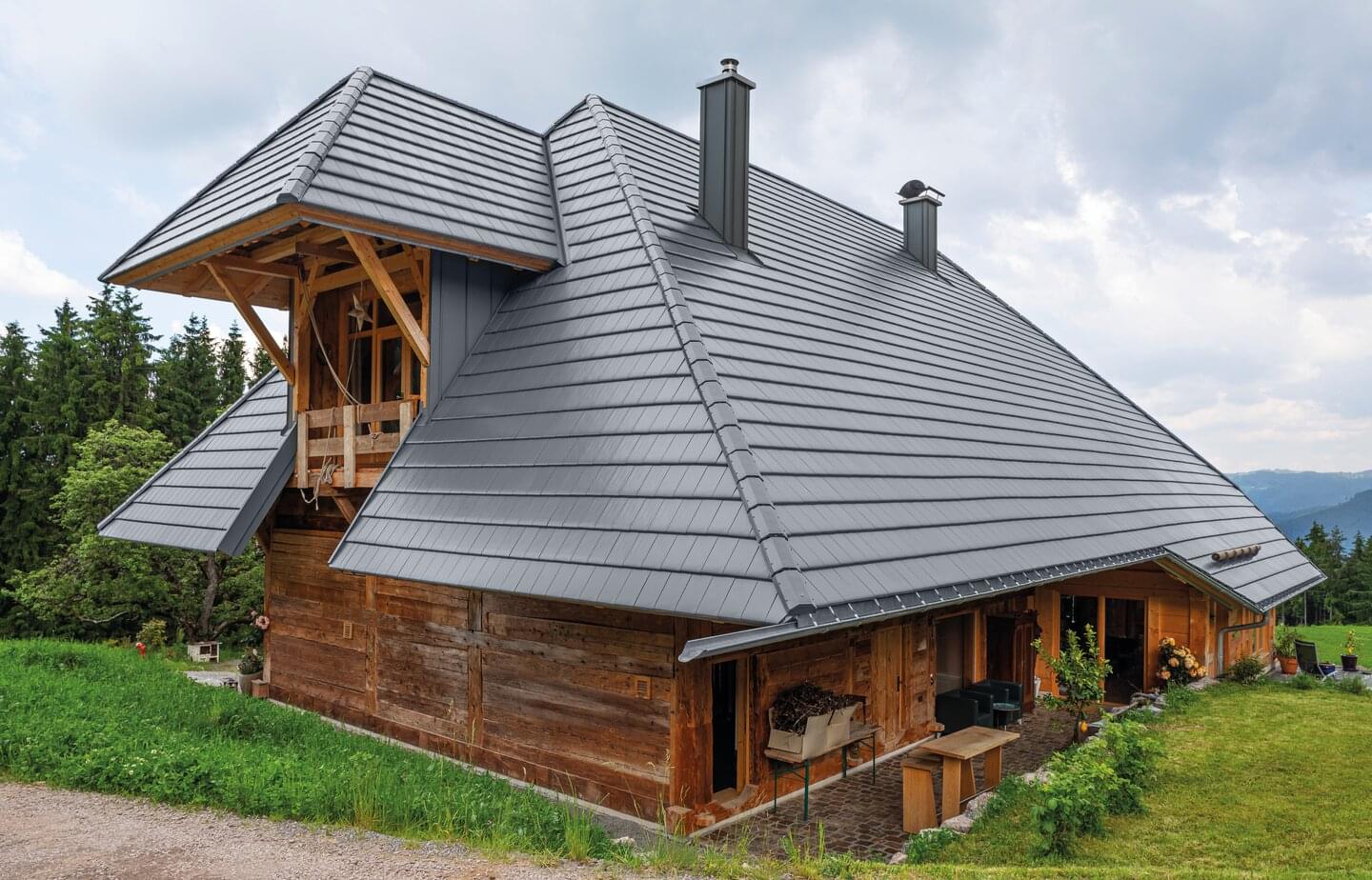

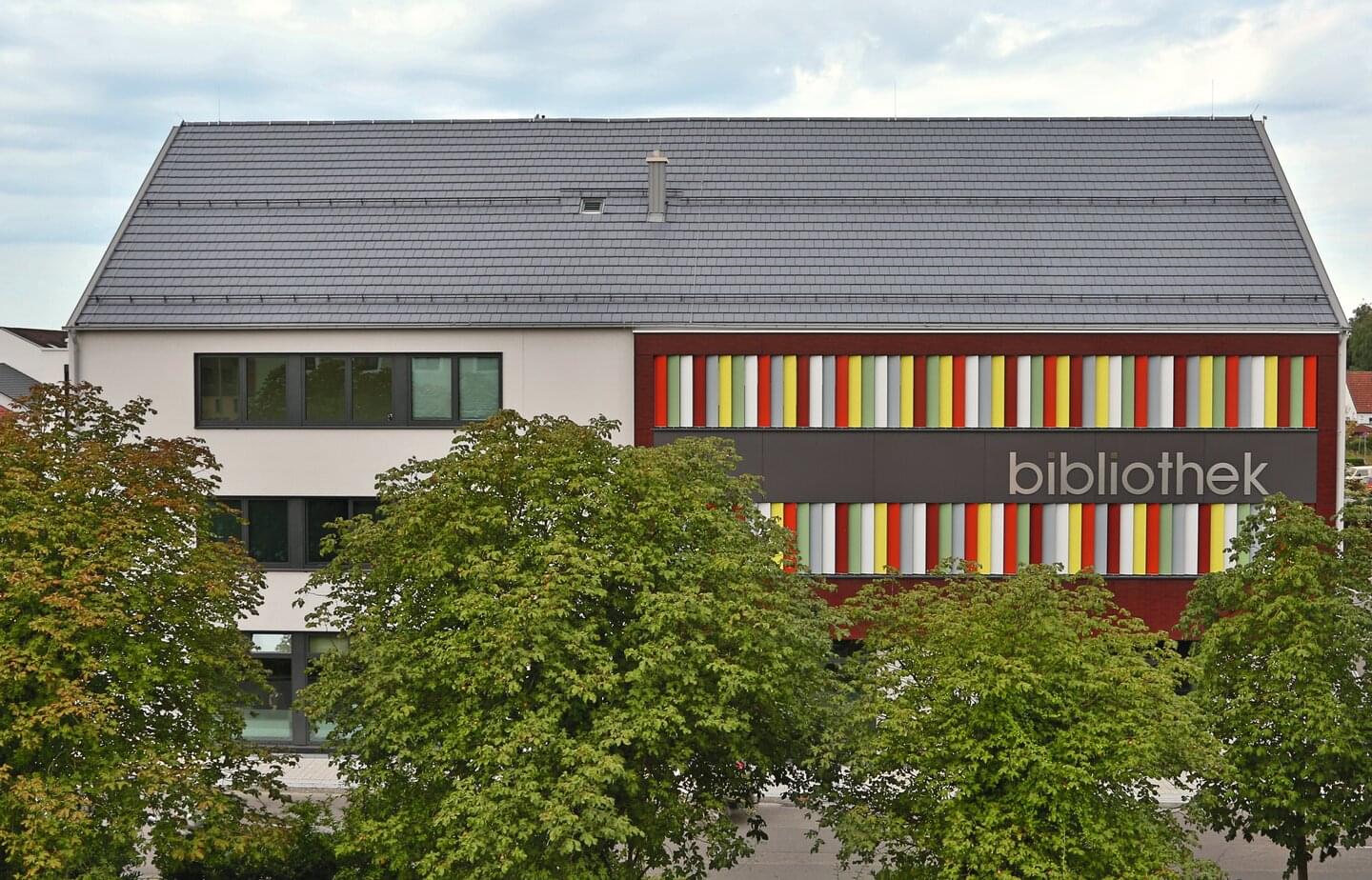

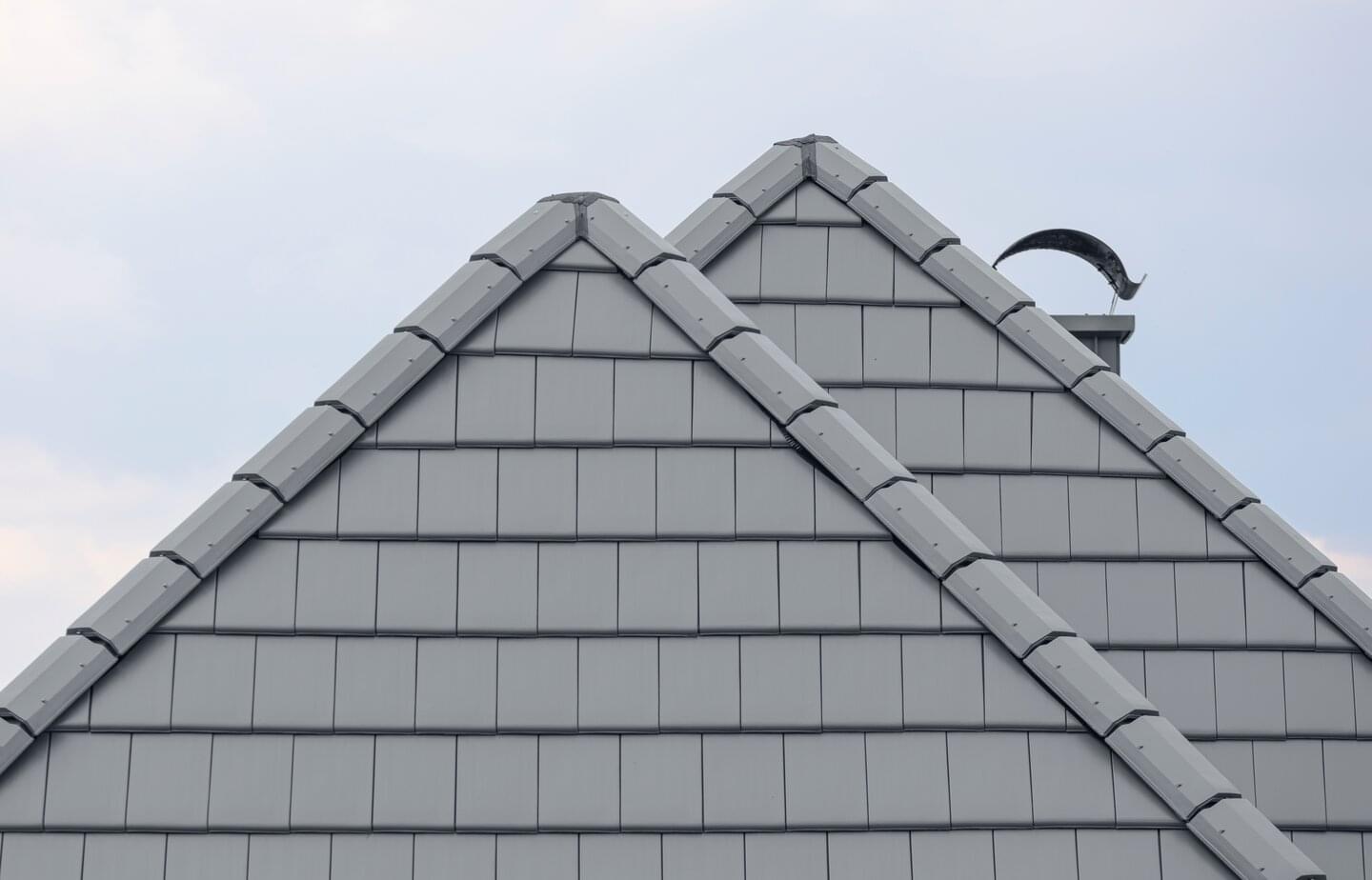

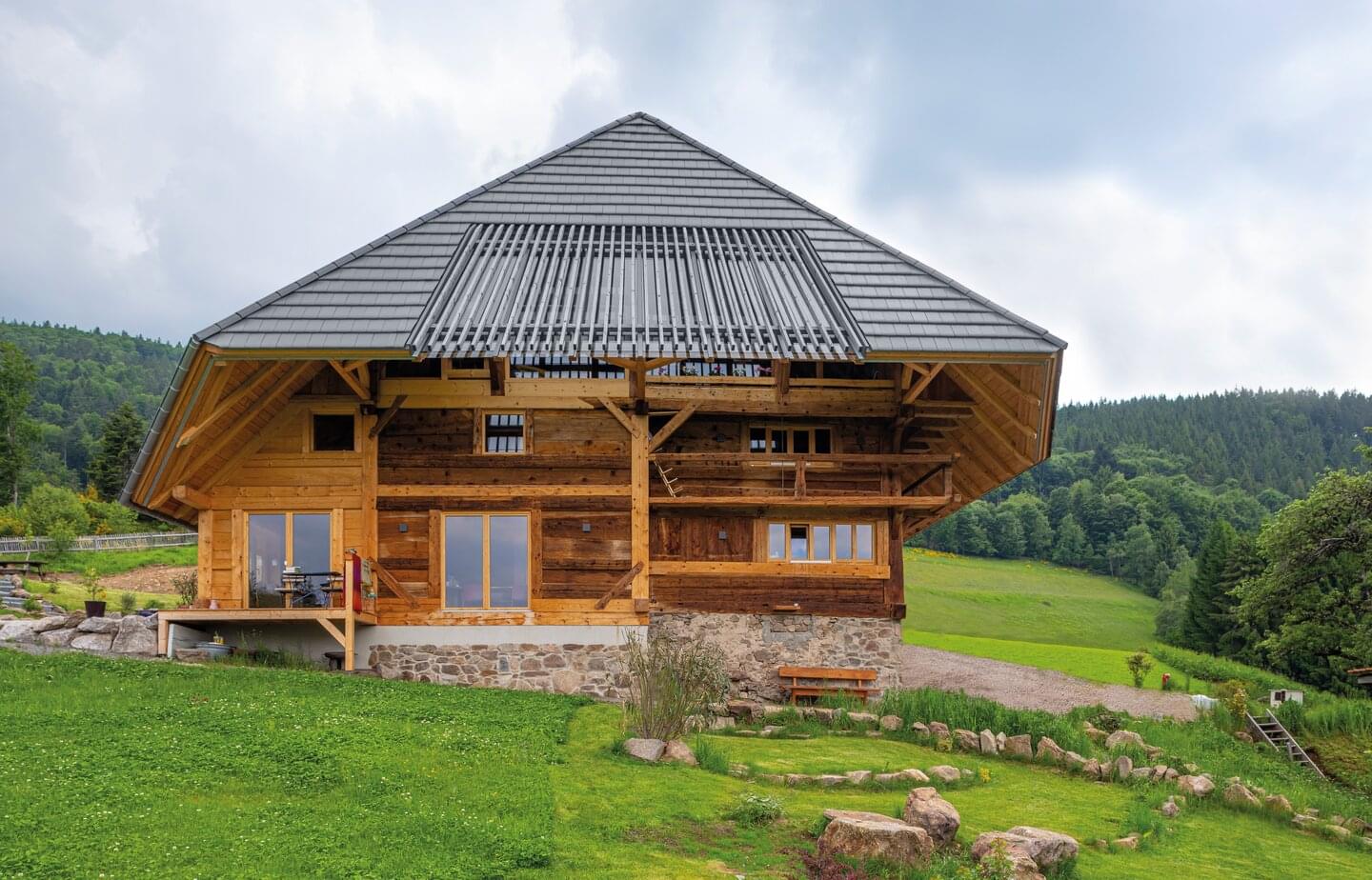

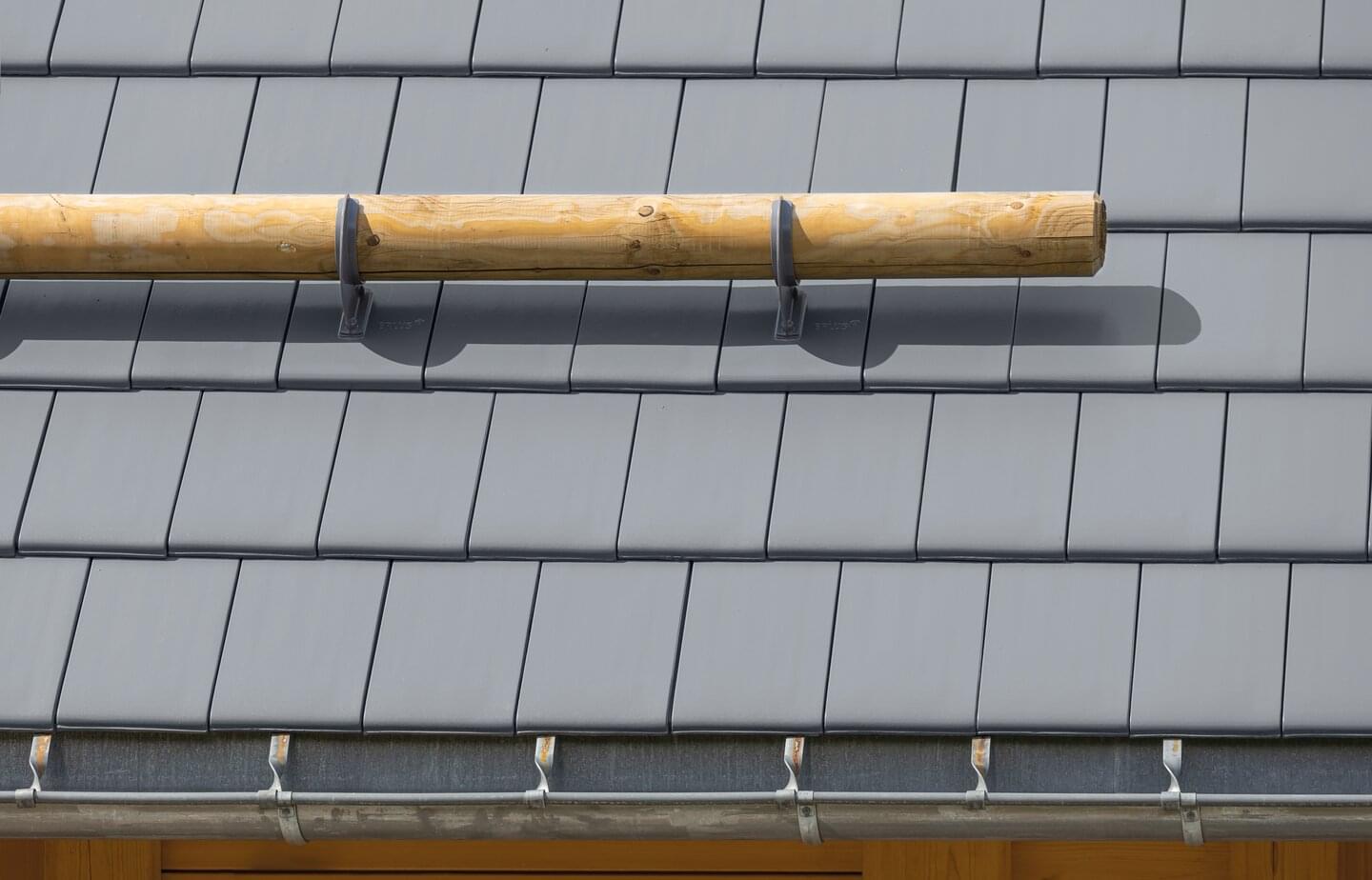

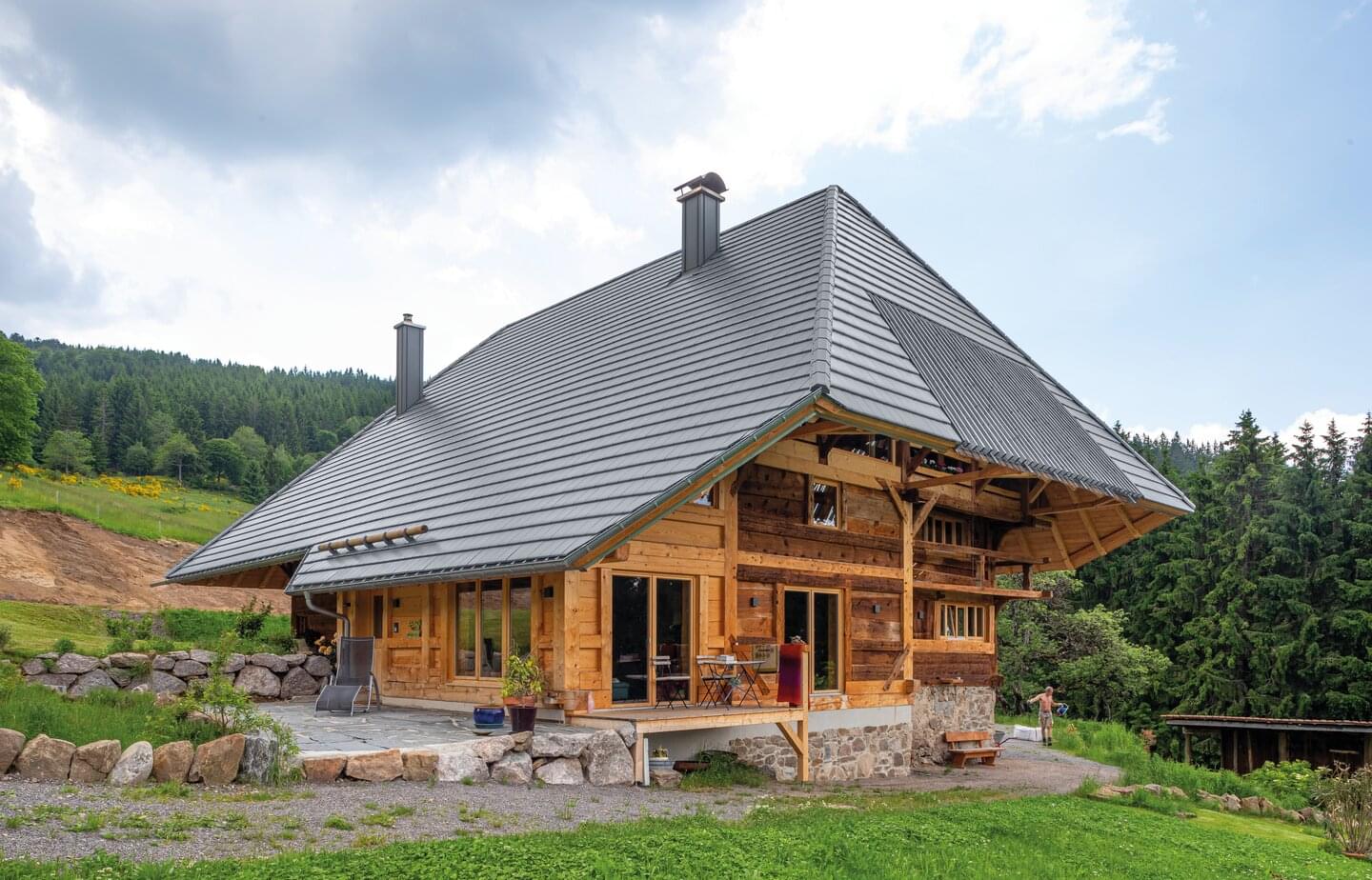

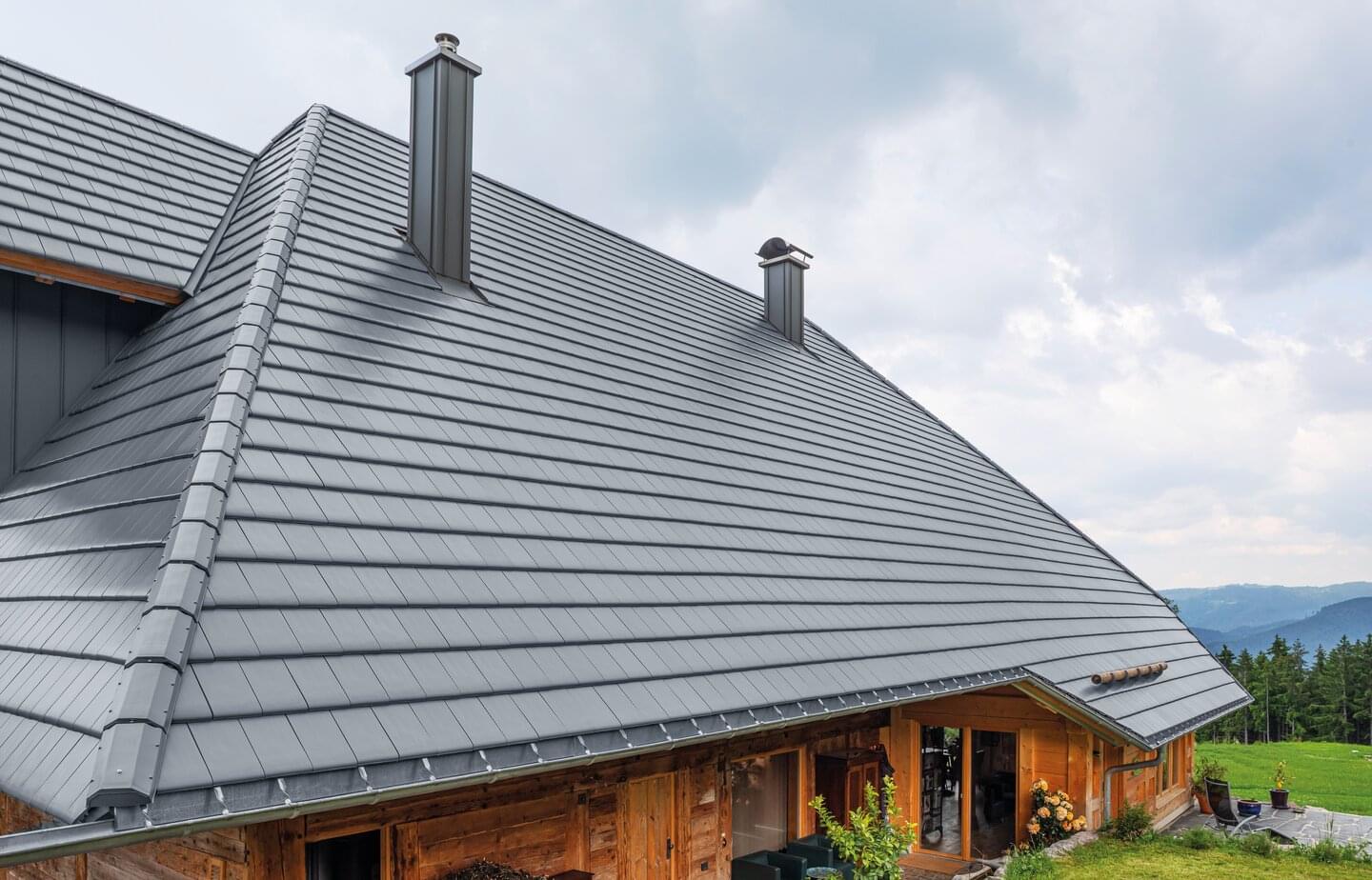

 Ergoldsbacher Linea® - Sinter light grey | © ERLUS AG 2019 Ergoldsbacher Linea® - Sinter light grey

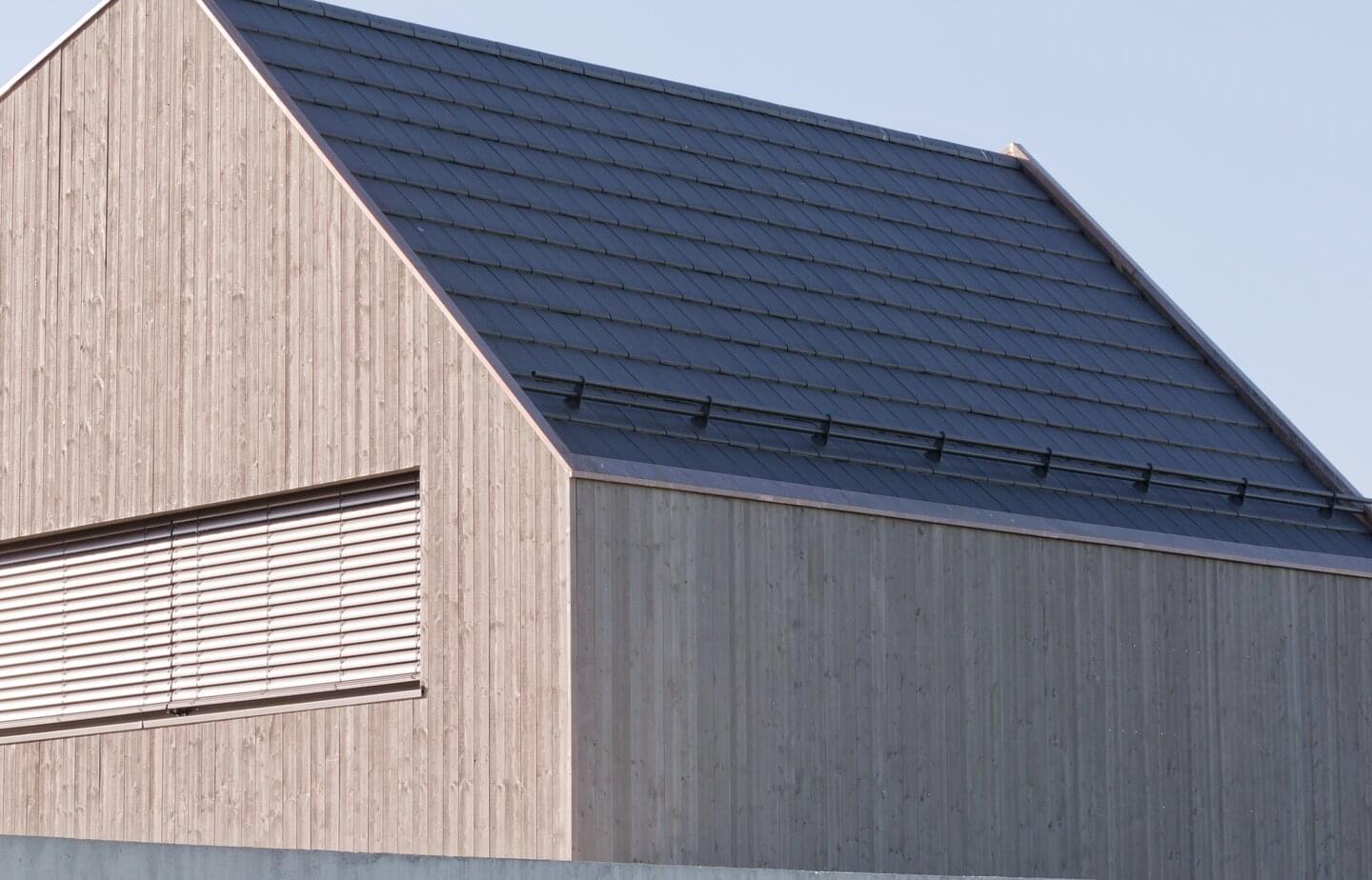

 Ergoldsbacher  Linea® - Black matt | © ERLUS AG 2019 Ergoldsbacher Linea® - Black matt

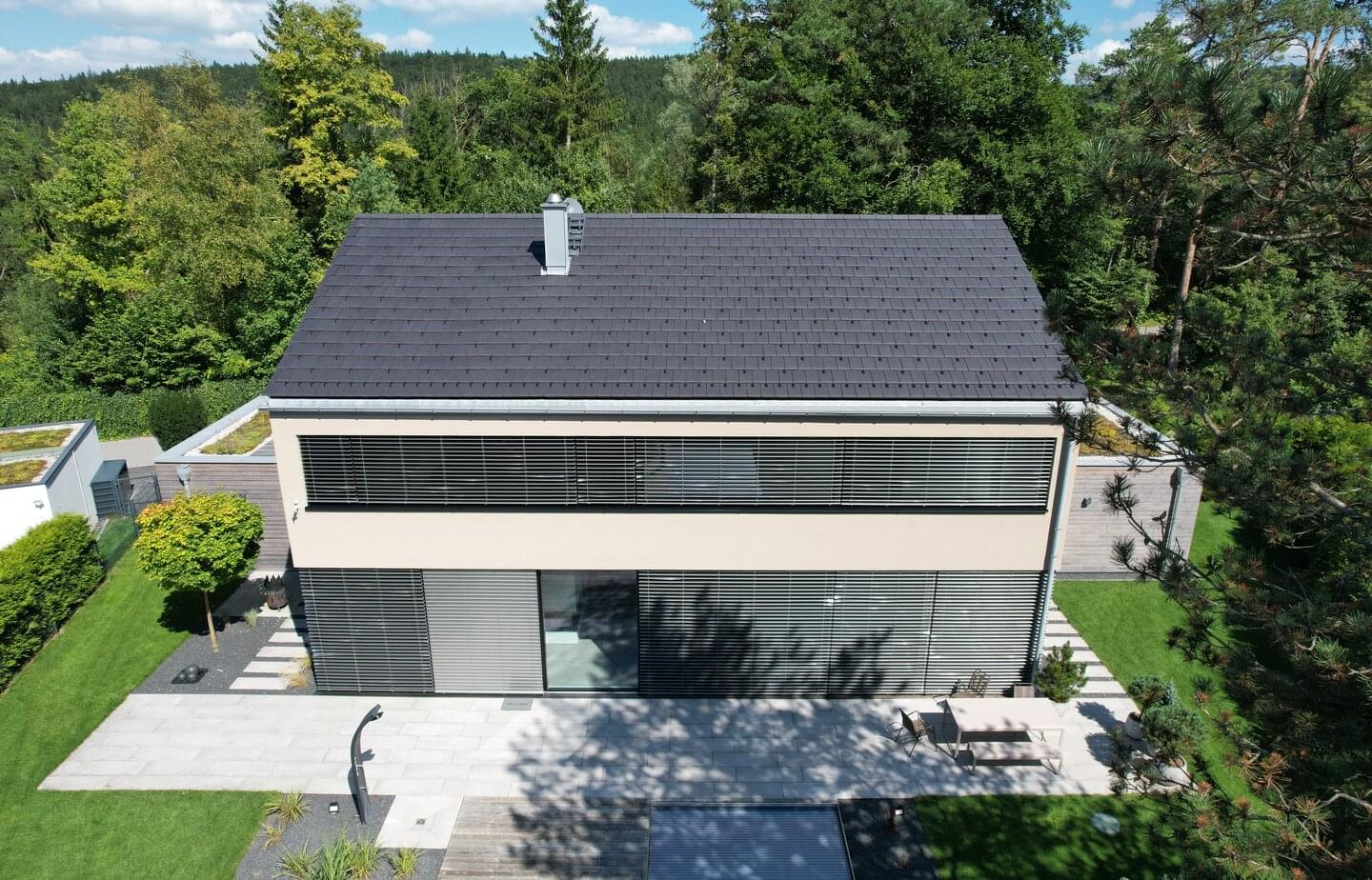

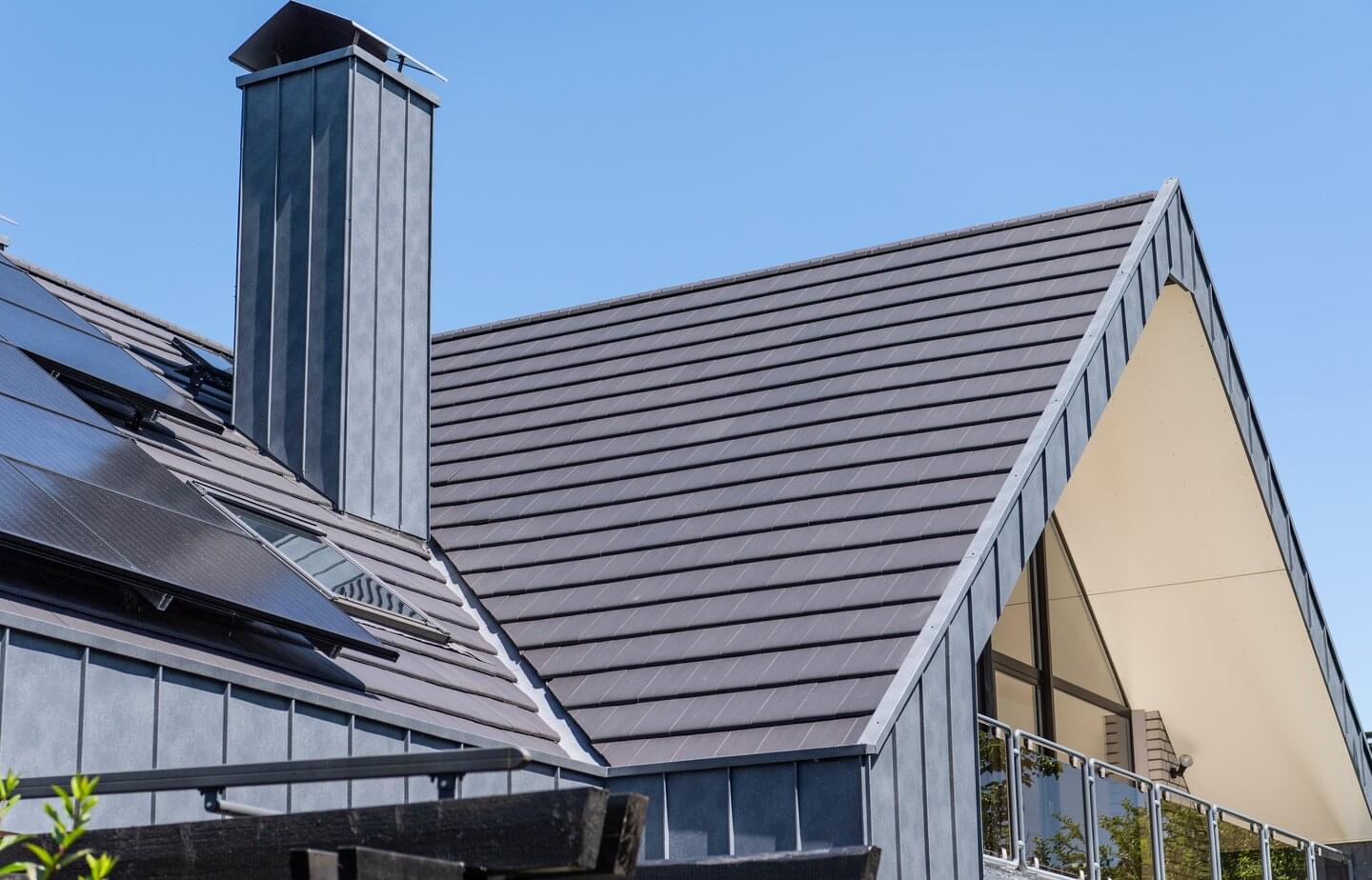

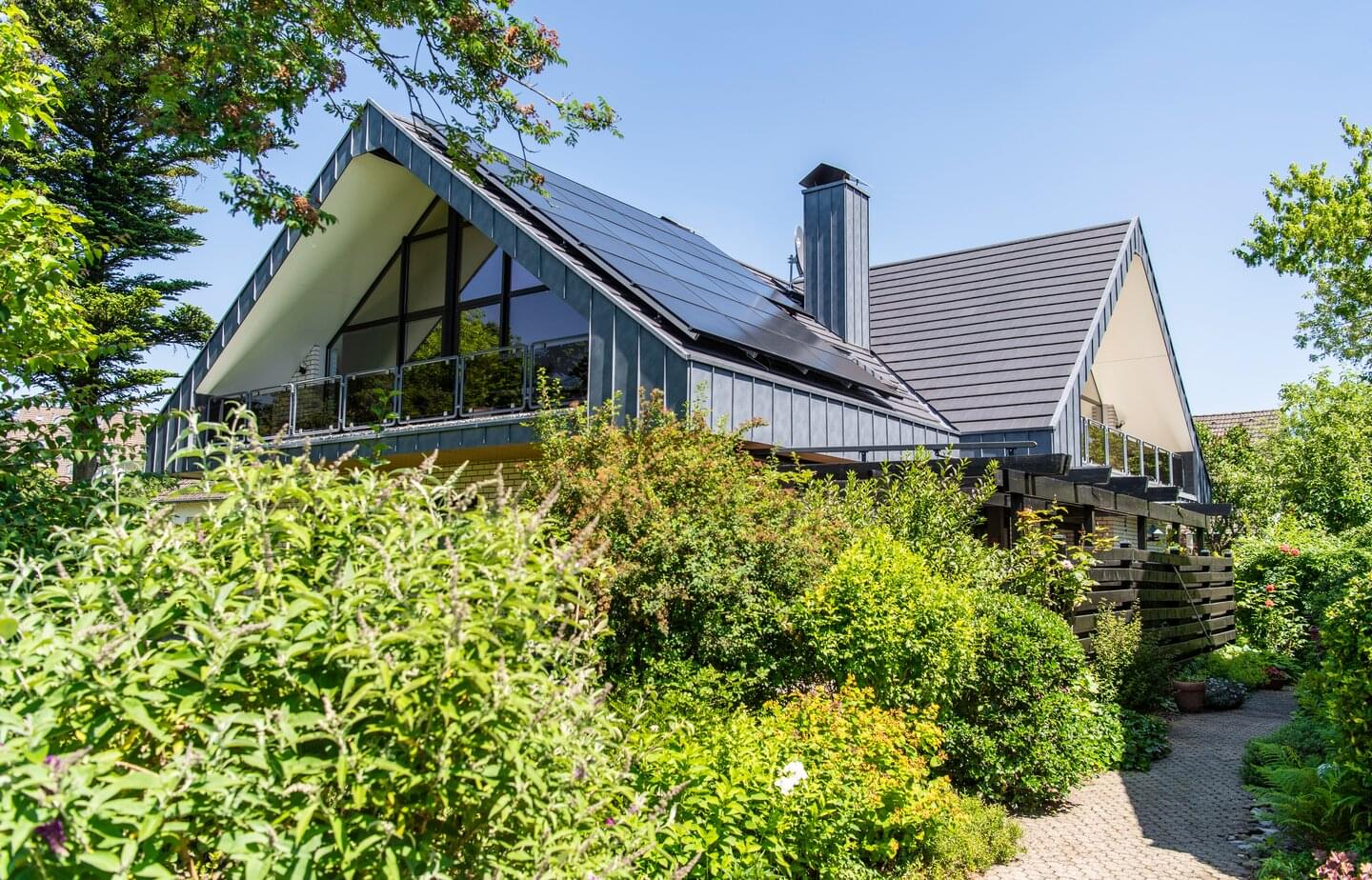

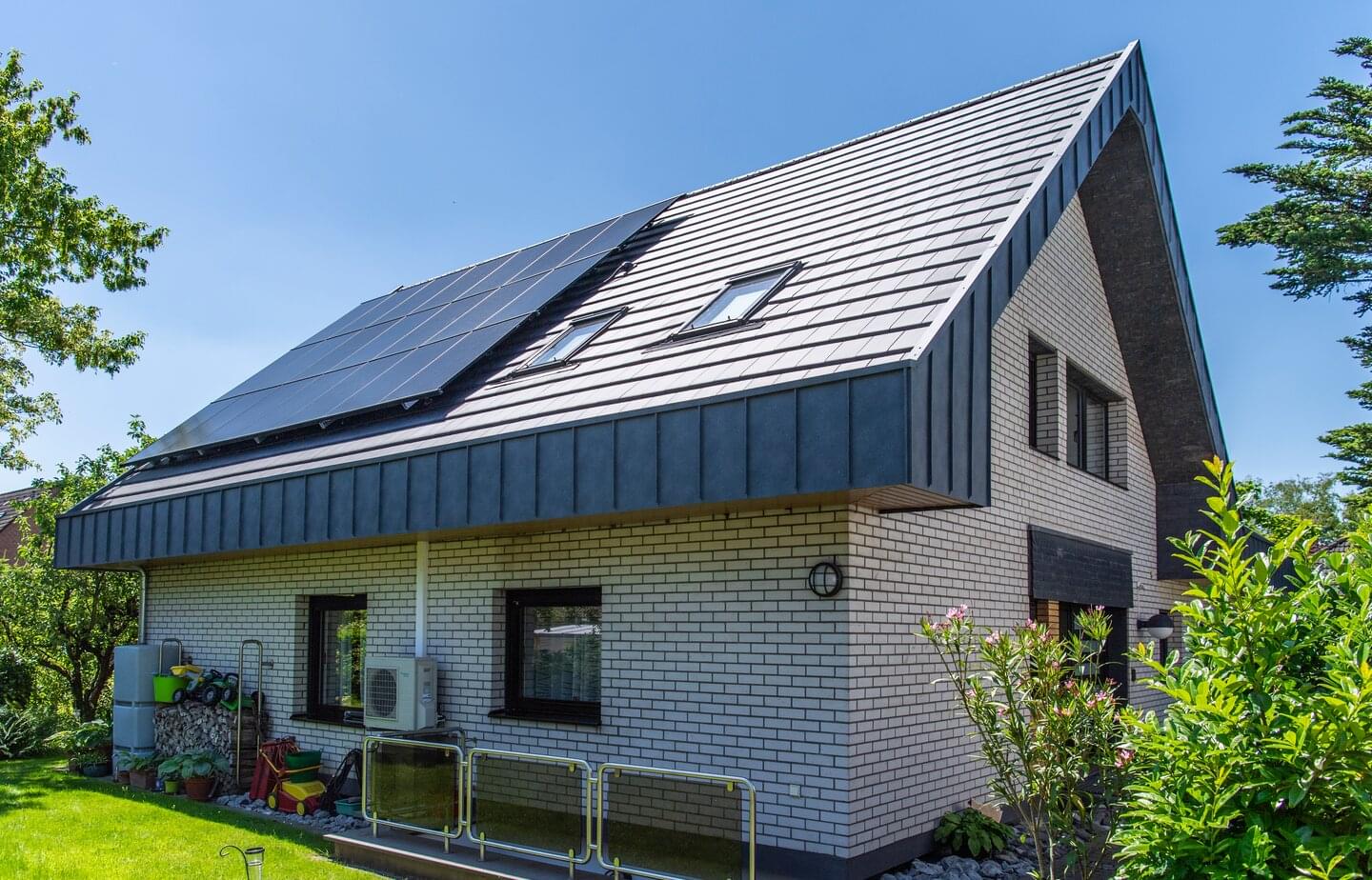

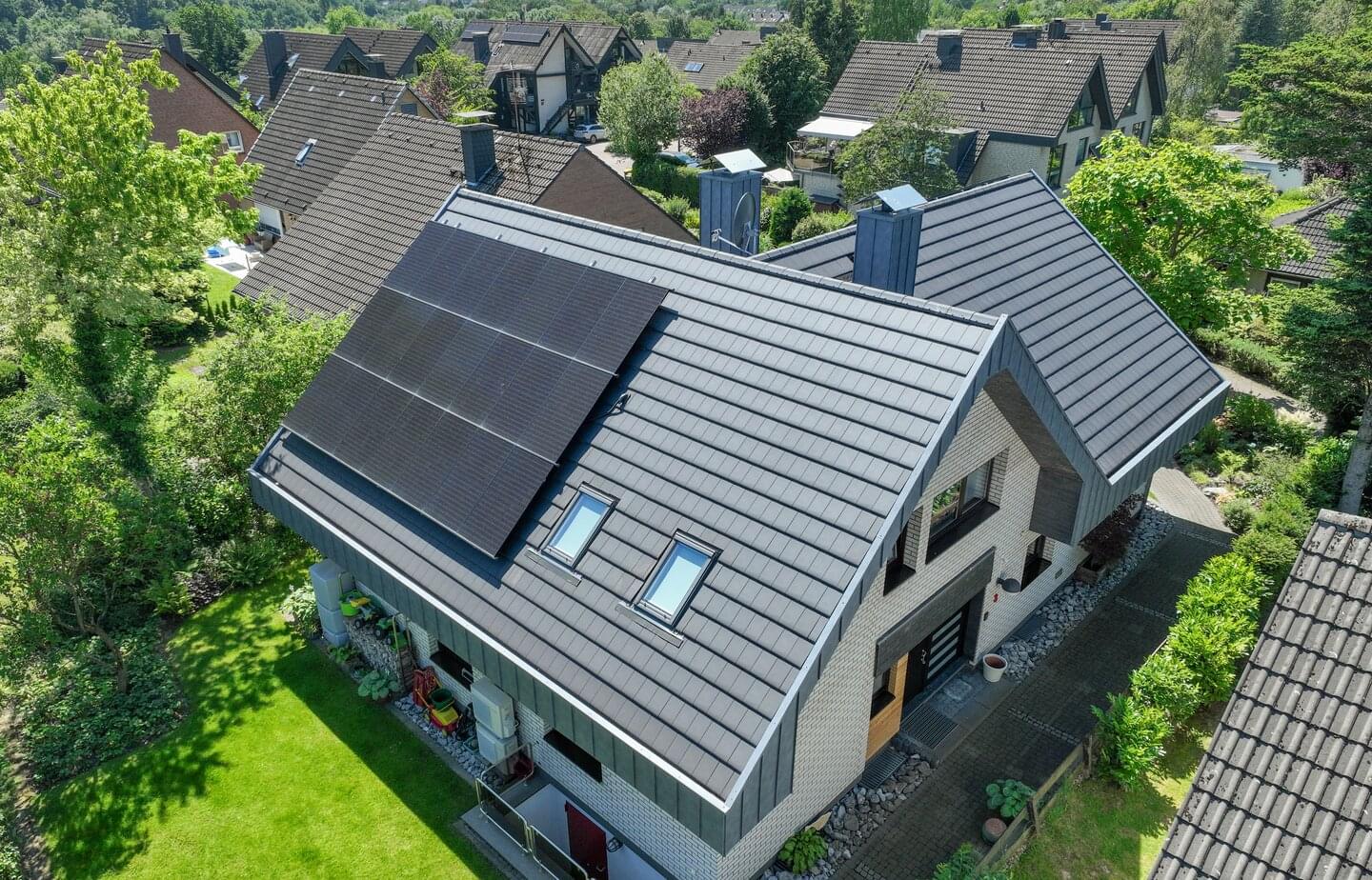

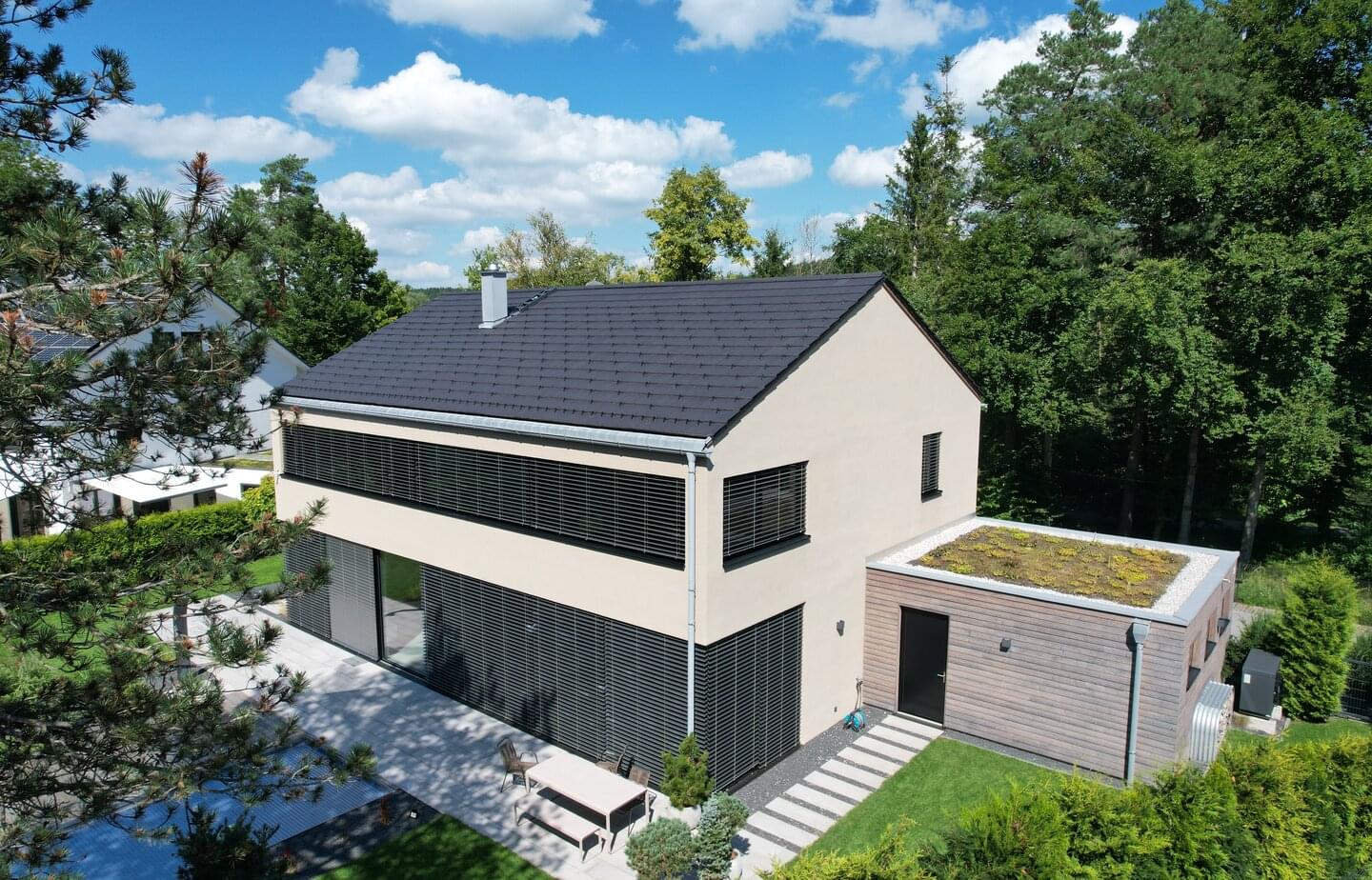

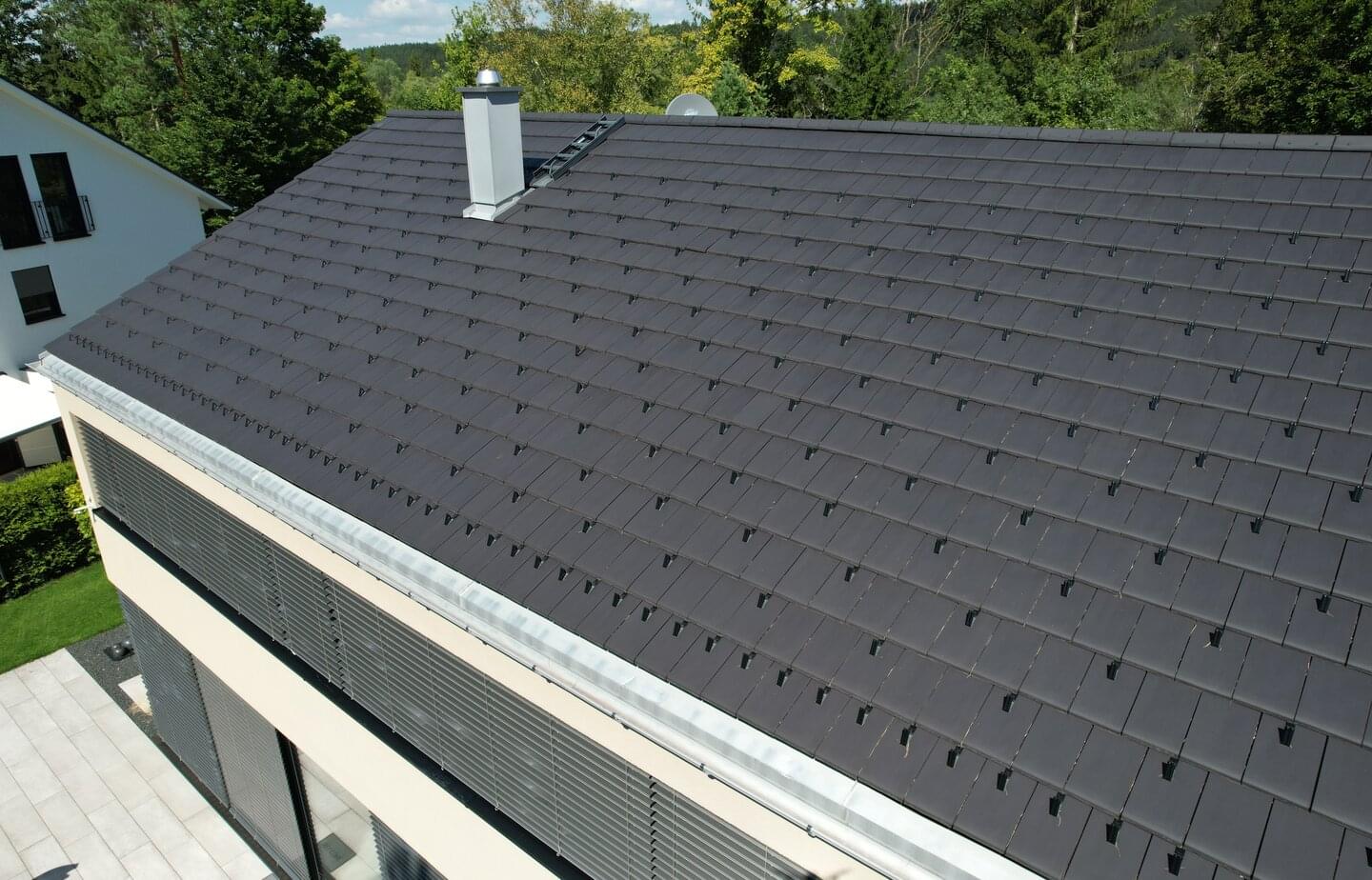

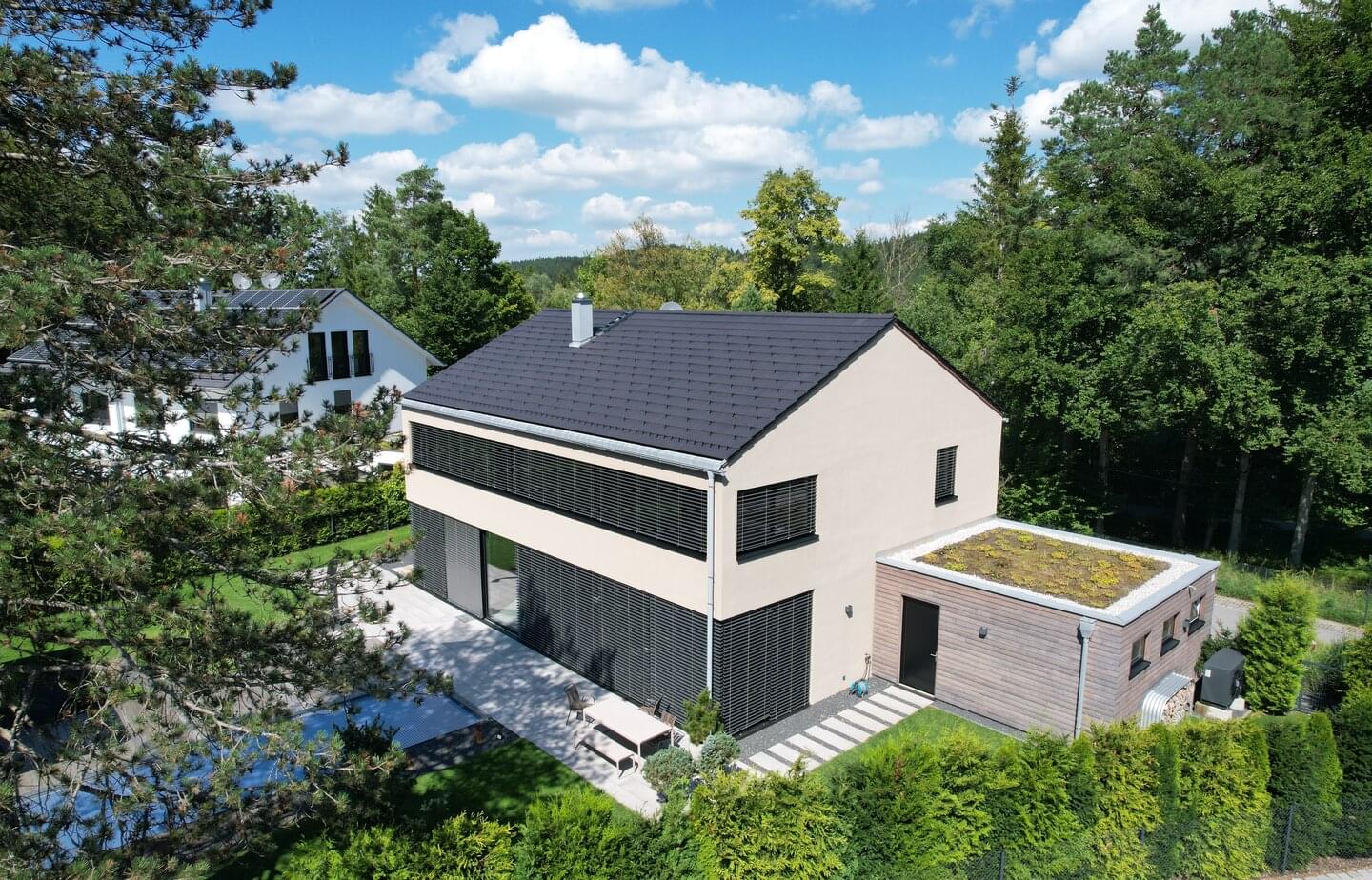

Ergoldsbacher Linea® - Sinter black matt | © ERLUS 2022 Ergoldsbacher Linea® - Sinter black matt

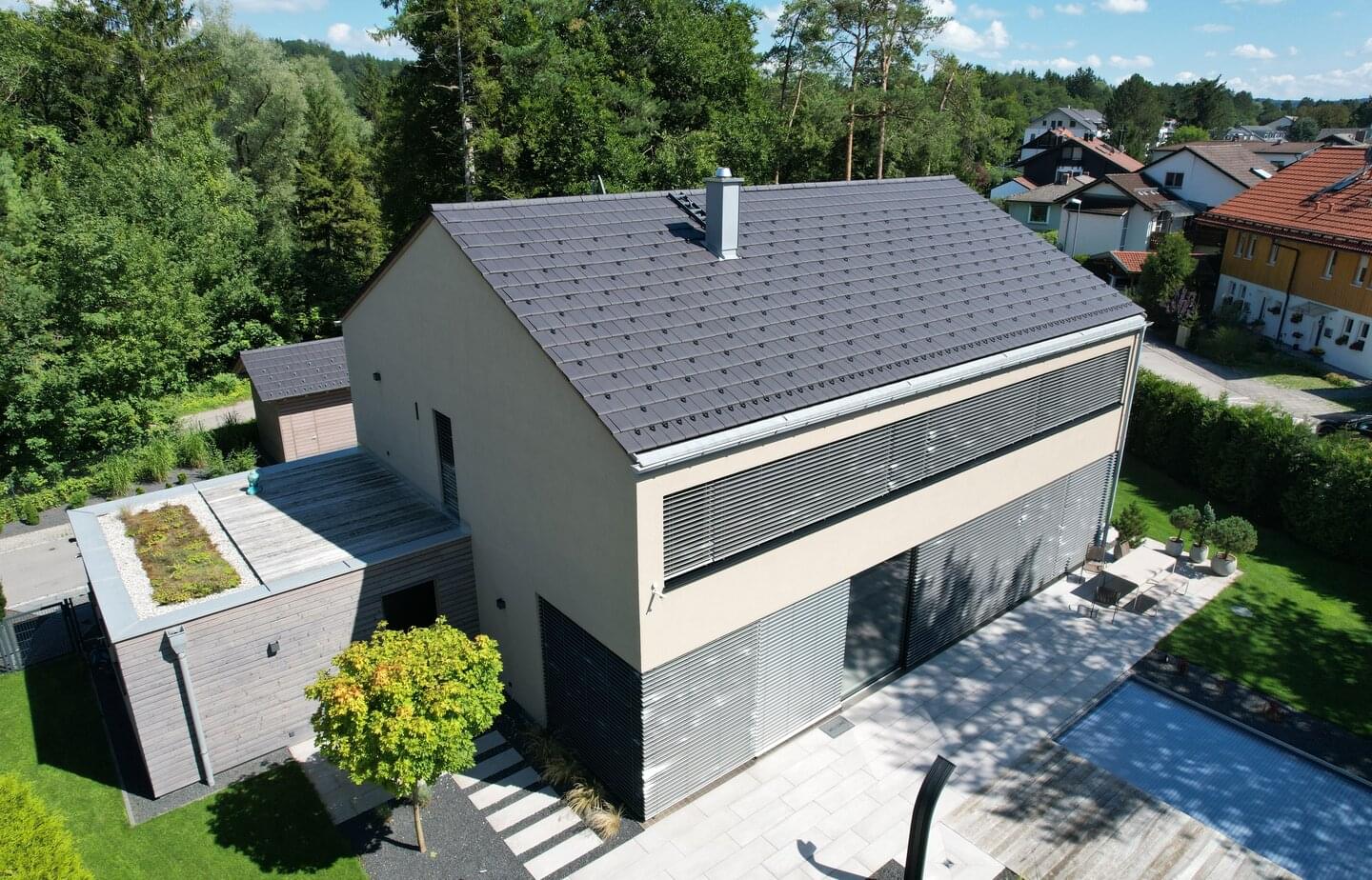

Ergoldsbacher Linea® - Sinter black matt | © ERLUS 2022 Ergoldsbacher Linea® - Sinter black matt
Ergoldsbacher Linea® - Sinter black matt | © ERLUS 2022 Ergoldsbacher Linea® - Sinter black matt
Ergoldsbacher Linea® - Sinter black matt | © ERLUS 2022 Ergoldsbacher Linea® - Sinter black matt

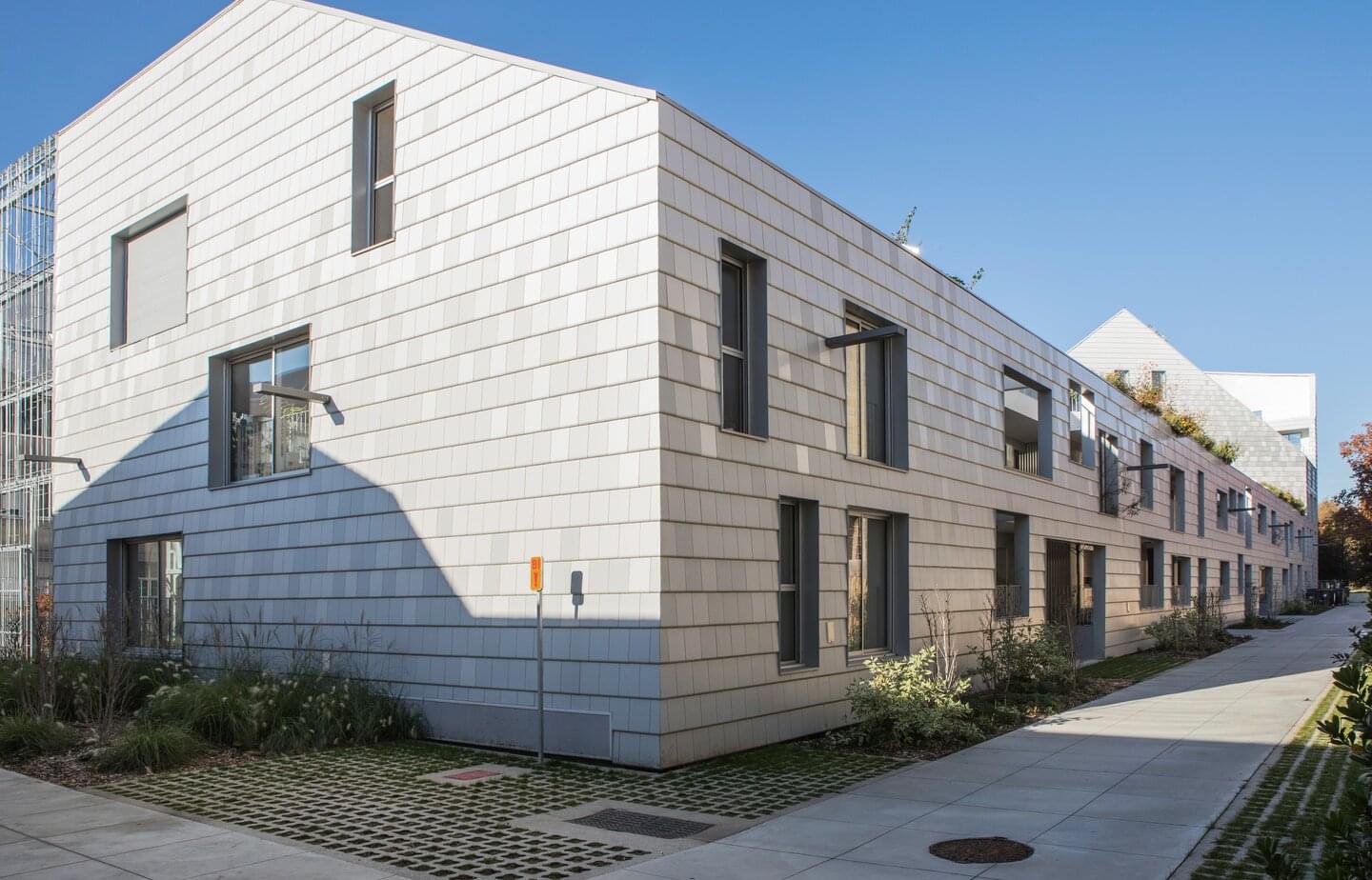

Ergoldsbacher Linea® - Special color white | © ERLUS 2022 Ergoldsbacher Linea® - Special color white

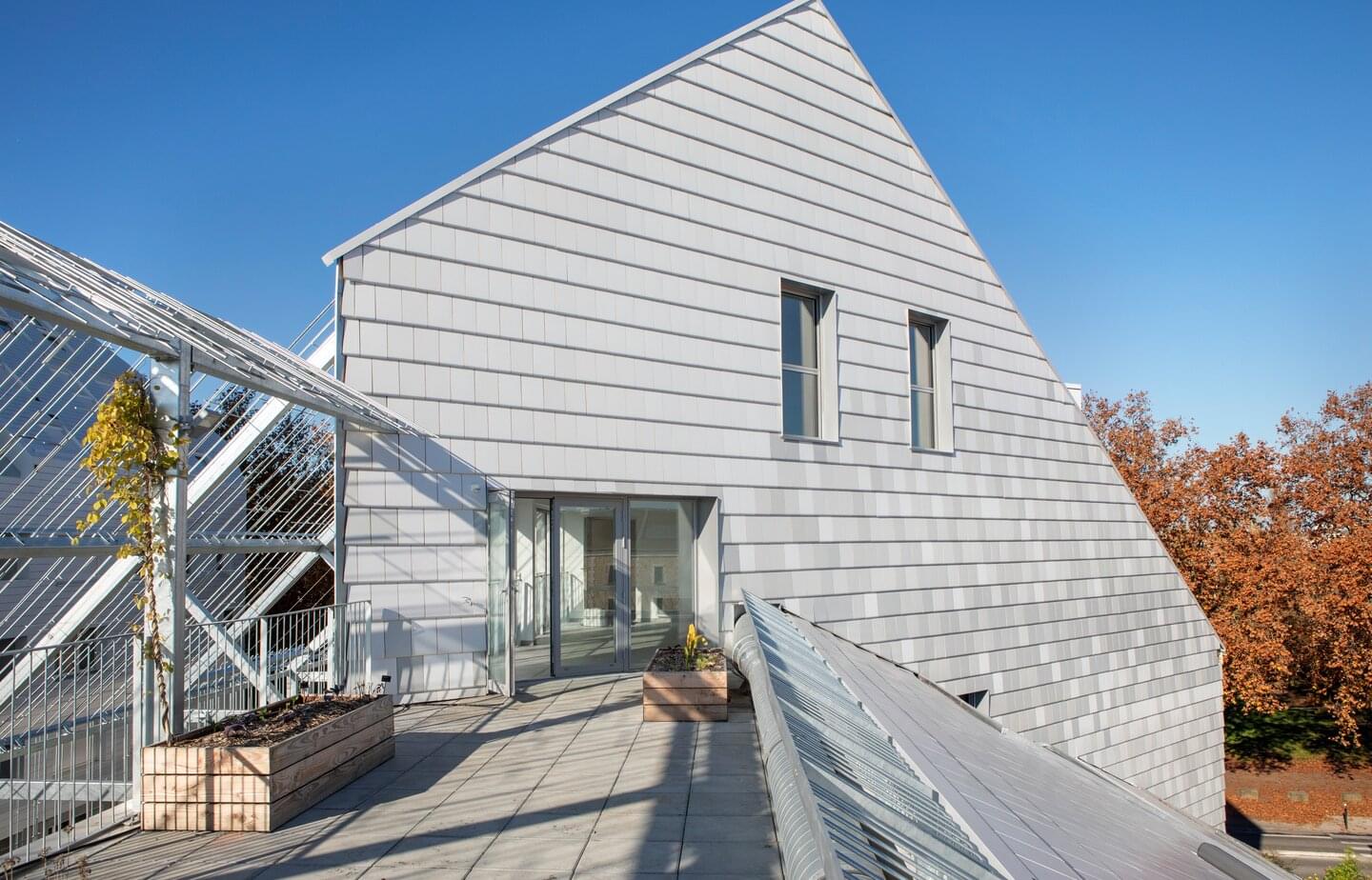

Ergoldsbacher Linea® - Special color white | © ERLUS 2022 Ergoldsbacher Linea® - Special color white

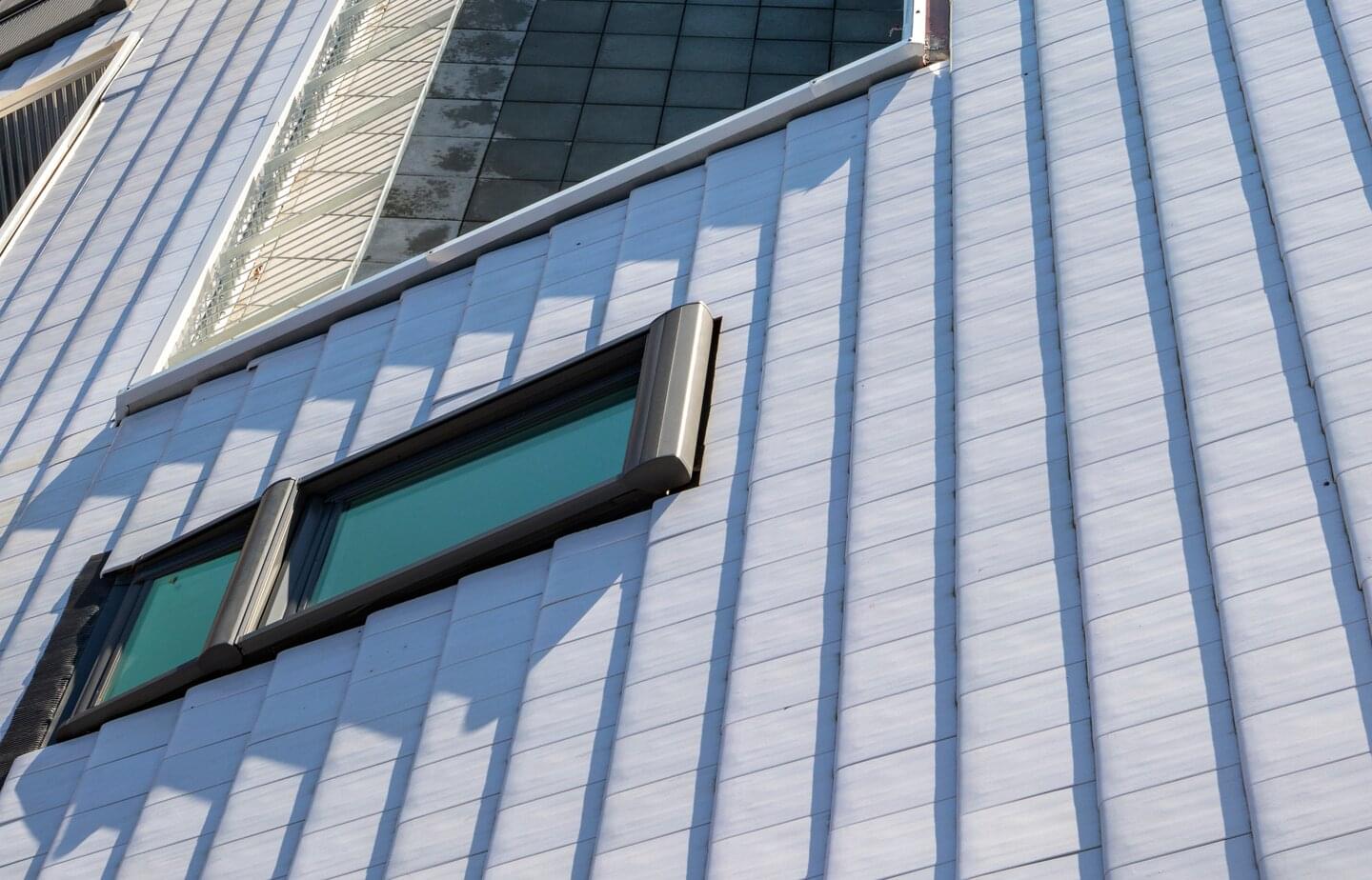

Ergoldsbacher Linea® - Special color white | © ERLUS 2022 Ergoldsbacher Linea® - Special color white

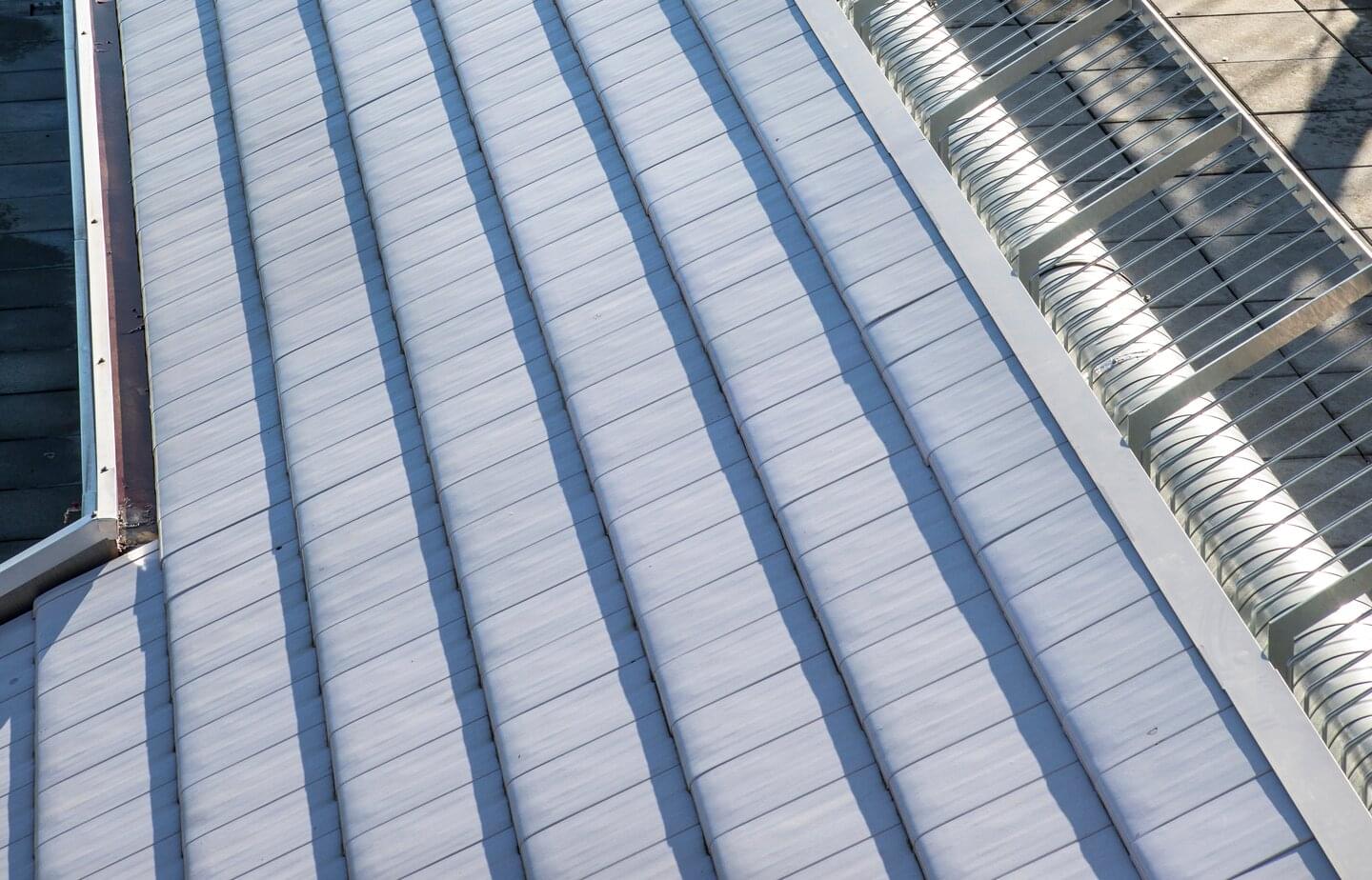

Ergoldsbacher Linea® - Special color white | © ERLUS 2022 Ergoldsbacher Linea® - Special color white
 Ergoldsbacher Linea® - Sinter Brown | © ERLUS 2022 Ergoldsbacher Linea® - Sinter Brown
 Ergoldsbacher Linea® - Sinter Brown | © ERLUS 2022 Ergoldsbacher Linea® - Sinter Brown
 Ergoldsbacher Linea® - Sinter Brown | © ERLUS 2022 Ergoldsbacher Linea® - Sinter Brown
 Ergoldsbacher Linea® - Sinter Brown | © ERLUS 2022 Ergoldsbacher Linea® - Sinter Brown
 Ergoldsbacher Linea® - Sinter grey | © ERLUS 2020 Ergoldsbacher Linea® - Sinter grey
 Ergoldsbacher Linea® - Sinter grey | © ERLUS 2020 Ergoldsbacher Linea® - Sinter grey
 Ergoldsbacher Linea® - Sinter grey | © ERLUS 2020 Ergoldsbacher Linea® - Sinter grey
 Ergoldsbacher Linea® - Sinter grey | © ERLUS 2021 Ergoldsbacher Linea® - Sinter grey
 Ergoldsbacher Linea® - Sinter grey | © ERLUS 2020 Ergoldsbacher Linea® - Sinter grey
 Ergoldsbacher Linea® - Sinter grey | © ERLUS 2020 Ergoldsbacher Linea® - Sinter grey
Ergoldsbacher Linea® - Sinter grey | © ERLUS 2021 Ergoldsbacher Linea® - Sinter grey
Ergoldsbacher Linea® - Sinter grey | © ERLUS 2021 Ergoldsbacher Linea® - Sinter grey
Ergoldsbacher Linea® - Sinter grey | © ERLUS 2021 Ergoldsbacher Linea® - Sinter grey
Ergoldsbacher Linea® - Sinter grey | © ERLUS 2021 Ergoldsbacher Linea® - Sinter grey
Ergoldsbacher Linea® - Sinter grey | © ERLUS 2021 Ergoldsbacher Linea® - Sinter grey
Ergoldsbacher Linea® - Sinter grey | © ERLUS 2021 Ergoldsbacher Linea® - Sinter grey
 Ergoldsbacher Linea® - Sinter light grey | © ERLUS 2021 Ergoldsbacher Linea® - Sinter light grey
 Ergoldsbacher Linea® - Sinter light grey | © ERLUS 2021 Ergoldsbacher Linea® - Sinter light grey
 Ergoldsbacher Linea® - Sinter light grey | © ERLUS 2021 Ergoldsbacher Linea® - Sinter light grey
 Ergoldsbacher Linea® - Sinter light grey | © ERLUS 2021 Ergoldsbacher Linea® - Sinter light grey
 Ergoldsbacher Linea® - Sinter light grey | © ERLUS 2021 Ergoldsbacher Linea® - Sinter light grey
 Ergoldsbacher Linea® - Sinter light grey | © ERLUS 2021 Ergoldsbacher Linea® - Sinter light grey
Ergoldsbacher Linea® - Sinter black matt | © ERLUS 2021 Ergoldsbacher Linea® - Sinter black matt
Ergoldsbacher Linea® - Sinter black matt | © ERLUS 2021 Ergoldsbacher Linea® - Sinter black matt
Ergoldsbacher Linea® - Sinter black matt | © ERLUS 2021 Ergoldsbacher Linea® - Sinter black matt
Ergoldsbacher Linea® - Sinter black matt | © ERLUS 2021 Ergoldsbacher Linea® - Sinter black matt
Ergoldsbacher Linea® - Sinter black matt | © ERLUS 2021 Ergoldsbacher Linea® - Sinter black matt
 Ergoldsbacher Linea® - Sinter Brown | © ERLUS 2021 Ergoldsbacher Linea® - Sinter Brown
 Ergoldsbacher Linea® - Sinter Brown | © ERLUS 2021 Ergoldsbacher Linea® - Sinter Brown
 Ergoldsbacher Linea® - Sinter Brown | © ERLUS 2021 Ergoldsbacher Linea® - Sinter Brown
 Ergoldsbacher Linea® - Sinter Brown | © ERLUS 2021 Ergoldsbacher Linea® - Sinter Brown
 Ergoldsbacher Linea® - Sinter Brown | © ERLUS 2021 Ergoldsbacher Linea® - Sinter Brown
 Ergoldsbacher Linea® - Sinter Brown | © ERLUS 2021 Ergoldsbacher Linea® - Sinter Brown
 Ergoldsbacher Linea® - Sinter Brown | © ERLUS 2021 Ergoldsbacher Linea® - Sinter Brown
 Ergoldsbacher Linea® - Sinter Brown | © ERLUS 2021 Ergoldsbacher Linea® - Sinter Brown

2000: Ergoldsbacher Linea®
2016: Ergoldsbacher Linea® Sinterbraun

Stands for timeless design - smooth, pure and aesthetic

The Ergoldsbacher Linea® is recognisable by its simple design and the smooth appearance of the roof. Together with the attractive ERLUS accessories, it is the perfect tile for modern architecture. Its properties are also impressive: due to the sintering process at around 1.200 °C it achieves clinker quality. That means that it is specially protected against breakage and aggressive environmental influences.

Quantity required per m²: aprox. 10.5 Pieces
Minimum roof pitch: 10 °
Regular roof pitch: 25 °

Zur Speicherung und Verwendung von ERLUS Mediendateien akzeptieren Sie bitte nachfolgende Nutzungsbedingungen.

Hiermit bestätige ich meine Zustimmung.
