Ergoldsbacher Monaco

Color palette
Natural red
  • Monaco - Natural red | Image standard tiles | © © ERLUS AG 2021
  • Monaco - Classic | Image standard tiles | © © ERLUS AG 2021
  • Monaco - Umbra | Image standard tiles | © © ERLUS AG 2021
  • Monaco - Rosso | Image standard tiles | © © ERLUS AG 2021

Technical data

Size: aprox. 25.5 x 42.0 cm
Gauge: aprox. 33.8 - 34.3 cm
Average cover width: aprox. 19.9 cm
Quantity required per m²: aprox. 14.5 Pieces
Weight per m² in accordance with DIN 1055 incl. battens: aprox. 0.55 kN/m²
Real weight without battens: aprox. 55 kg/m²
Pallet capacity: 192 Pieces
Pallet weight: aprox. 770 kg
Bundle capacity: 4 Pieces
Hail resistance class: 4
Gauge class: 34,0 cm

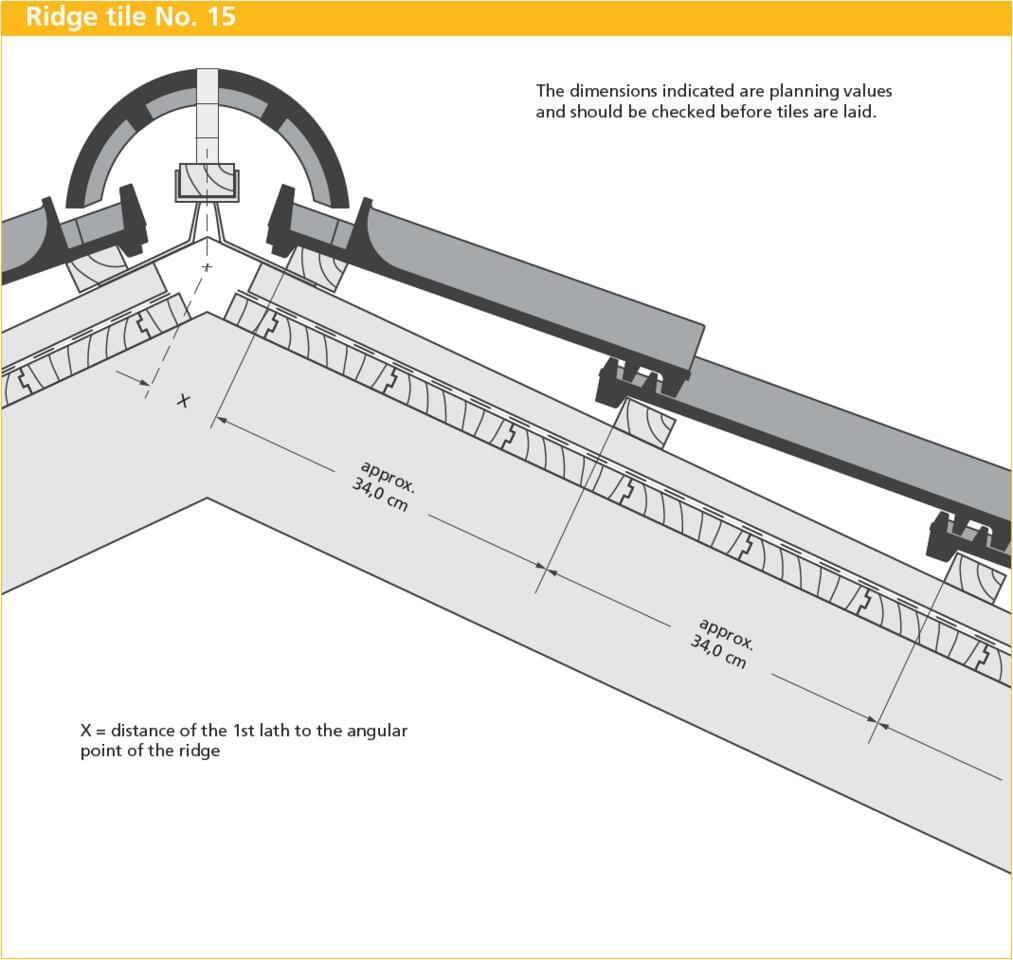

Distance between the 1st lath and the angular point of the ridge with ridge connection tiles and standard tiles
X (distance) in mm Ridge connection tile1)
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 15 90 90 90 80 80 75 70 80 - - -
Ridge ventilation tile no. 15 Lü 100 90 90 80 80 75 75 - - - -
Ridge tile no. 18 95 90 90 80 75 70 60 60 60 - -
Ridge tile no. 21 80 80 80 70 70 60 55 50 45 40 -
X (distance) in mm Standard tiles2)
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 15 60 60 40 40 35 35 30 30 30 25 25
Ridge ventilation tile no. 15 Lü - - - - - - - - - - -
Ridge tile no. 18 50 40 40 35 20 15 15 10 10 10 5
Ridge tile no. 21 40 40 35 30 20 15 15 10 - - -

1) without aluminium ridge ventilation strap2) with aluminium ridge ventilation strap

Assignment of additional measures for the Ergoldsbacher Monaco

According to the Central Association of German Roofers’ pamphlet on sub-roofs, sub-coverings and under-bracings, and the basicregulations of the Roofers’ Guild, regular roof pitch 22°, minimum roof pitch 10°, according to the state of technology.
Country-specific building standards and/or regulations must be adhered to, if no other contractual agreements have been made.

Increased demands due to
Use: of the attic level, especially for residential purposes (residential use equals two increased demands)
Construction: special roof shapes (e.g. butterfly roof), long spar lengths (longer than 10 meters), heavily structured roof shapes (e.g. due to valleys, gables, etc.)
Climate situation: exposed locations, extreme locations, areas with a lot of snow, special weather situations, areas with a lot of wind
Technical installations: On-roof or in-roof systems, air-conditioning systems, antenna systems, roof access systems, rooflight/skylight
systems, snow guard systems, etc.

Classification
Class 1: Waterproof sub-roof (1.1.)
Class 2: Rainproof sub-roof (1.2.)
Class 3: Seam and perforation secured under-bracing (2.1.) Seam and perforation secured sub-covering (3.1.)
Class 4: Welded or glued sub-covering (2.2.) Coated under-bracing made of strips of bitumen (2.3.) Seam-secured sub-covering (3.2.)
Class 5: Overlapped / tongue in groove sub-covering (2.4.)
Class 6: Under-bracing (3.3.)

Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*2 further increased demands*3 further increased demands*
≥ 22° Class 6 Class 6 Class 5 Class 4
from < 22° to ≥ 18° Class 4 Class 4 Class 3 Class 3
from < 18° to ≥ 14° Class 3 Class 3 Class 3 Class 3*
from < 14° to ≥ 10° Class 2 Class 2 Class 1 Class 1
Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*
≥ 22° Class 6 Class 6
from < 22° to ≥ 18° Class 4 Class 4
from < 18° to ≥ 14° Class 3 Class 3
from < 14° to ≥ 10° Class 2 Class 2
roof pitch2 further increased demands*3 further increased demands*
≥ 22° Class 5 Class 4
from < 22° to ≥ 18° Class 3 Class 3
from < 18° to ≥ 14° Class 3 Class 3*
from < 14° to ≥ 10° Class 1 Class 1
* The additional measures listed in the table are minimum measures under consideration of Table 1 in the pamphlet on sub-roofs, sub-coverings and under-bracings. Sub-covering panels are to be assigned according to the classification in the pamphlet on sub-roofs, sub-coverings and under-bracings. Increased demands make up categories according to chapter 1.1.3. Further increased demands can arise out of the weighting within a category according to 1.1.3. For example, climate situations can result in several increased demands. Only permitted if the manufacturer provides proof of the functionality and safety of the products used, including accessories (sealing tapes, sticky tapes, sealing compounds, pre-assembled seam securing, etc.), as part of a deluge test and 24-hour rain test on a roof pitch of 15°. Otherwise, the next class up is to be selected. Any limitations noted by the manufacturer are to be taken into account. See the product data information sheet for instructions regarding protection against perforation. These can be used for classes 3 to 6.

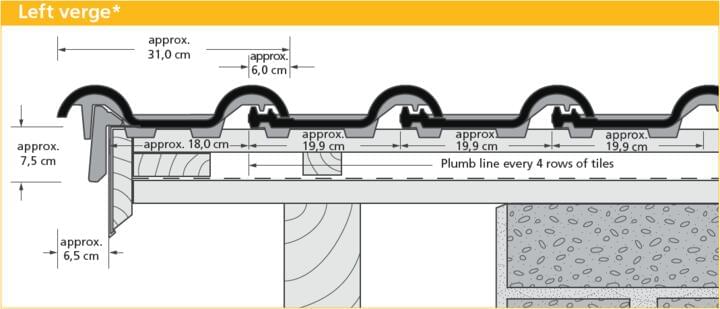

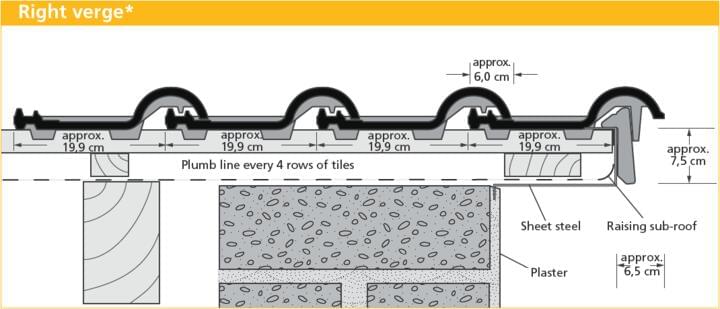

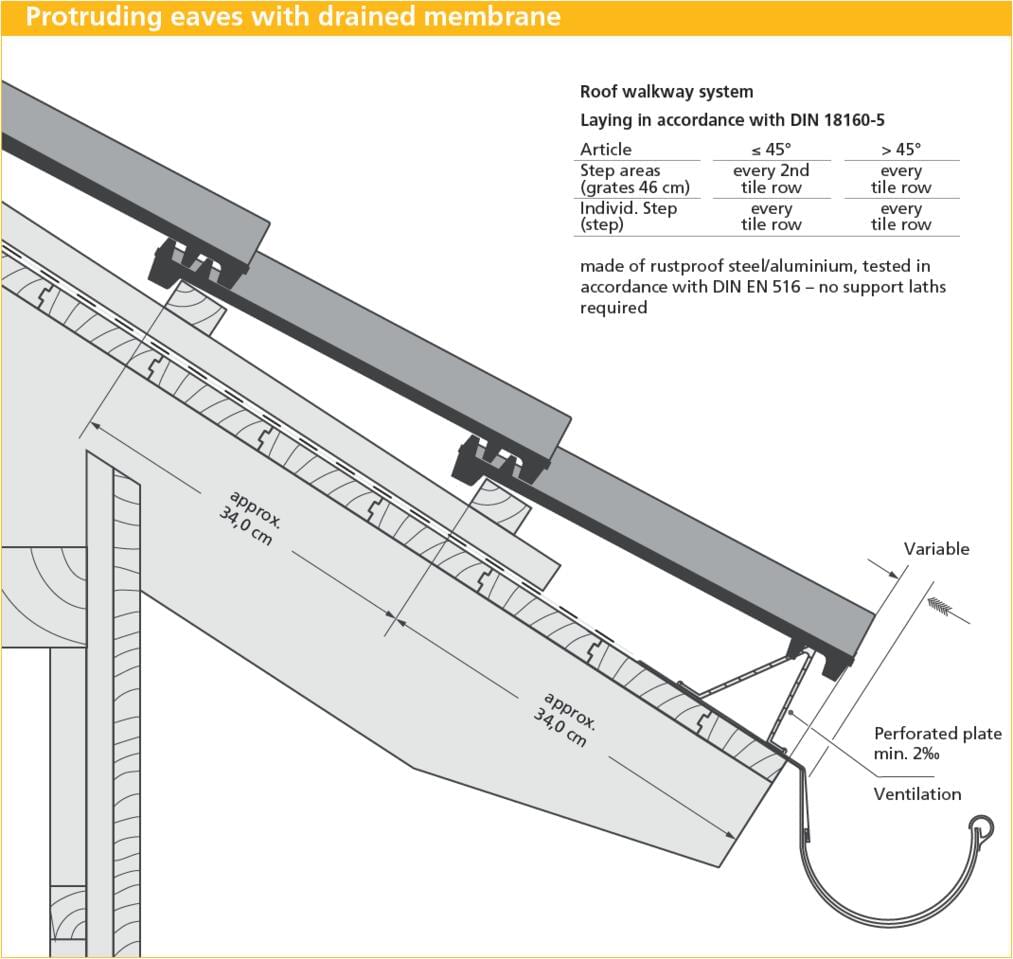

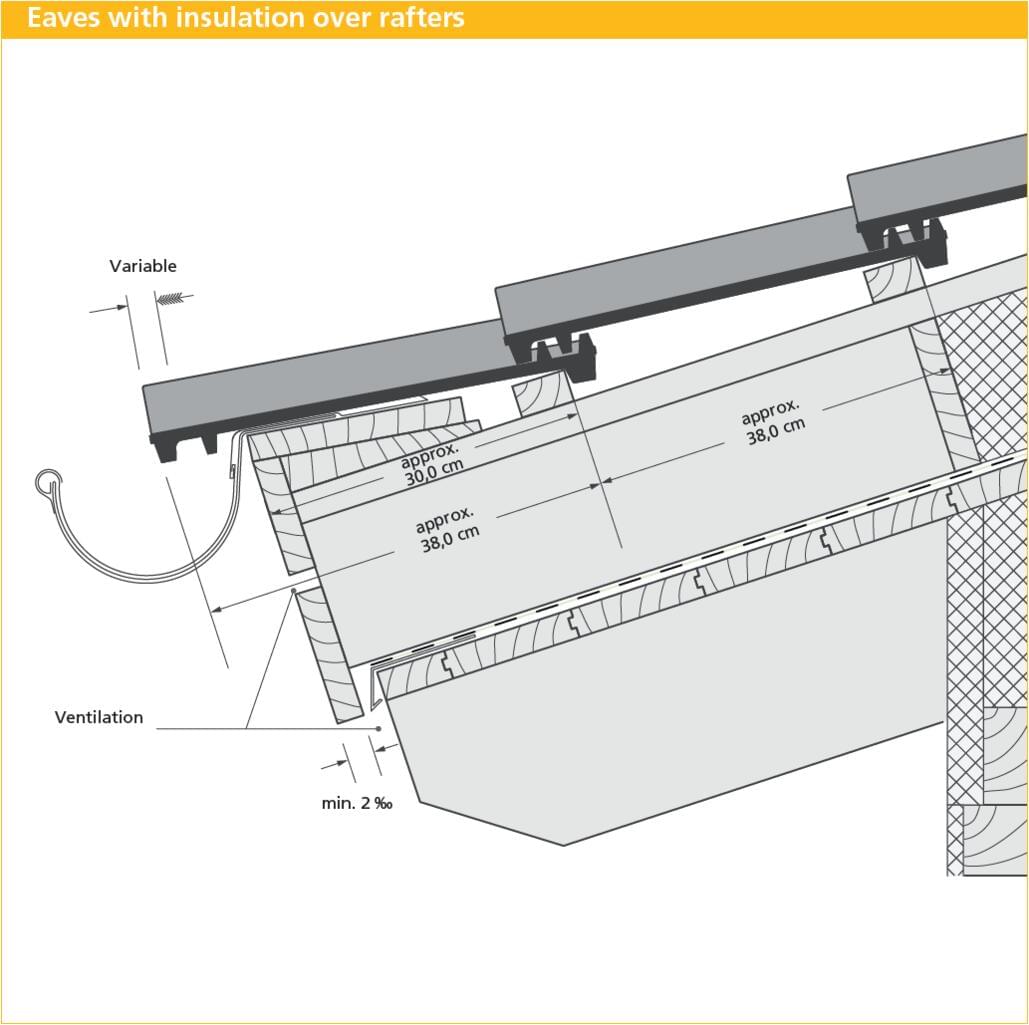

Technical drawings

These are the advantages of the
Ergoldsbacher Monaco

  • Complete accessories including aluminium accessories from one source

  • Very easy to lay

  • Small format flat roof tile

  • Particularly raintight due to high interlocking joint

  • Gauge class: 34,0 cm

  • Long verge board possible

  • Conical undulating appearance like pan and cover tiles

  • Especially robust and break-proof

Standard tile

Monaco - Natural red | Image product range
Standard tile

ERLUS Standard Accessories

Monaco - Verge tile left, with short board Natural red | Image product range | © © ERLUS AG 2021
Verge tile left, with short board
Monaco - Verge tile right, with short board Natural red | Image product range | © © ERLUS AG 2021
Verge tile right, with short board
Monaco - Verge board Natural red | Image product range | © © ERLUS AG 2021
Verge board
Monaco - Ridge connection ventilation tile Natural red | Image product range | © © ERLUS AG 2021
Ridge connection ventilation tile
Monaco - Ridge connection ventilation verge tile left, with short board Natural red | Image product range | © © ERLUS AG 2021
Ridge connection ventilation verge tile left, with short board
Monaco - Ridge connection ventilation verge tile right, with short board Natural red | Image product range | © © ERLUS AG 2021
Ridge connection ventilation verge tile right, with short board
Monaco - Eave tile Natural red | Image product range | © © ERLUS AG 2021
Eave tile
Monaco - Eave verge tile left, with short board Natural red | Image product range | © © ERLUS AG 2021
Eave verge tile left, with short board
Monaco - Ventilation tile Natural red | Image product range | © © ERLUS AG 2021
Ventilation tile
Ridge tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge tile no. 15
Ridge end tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge end tile no. 15
Ridge compensation tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge compensation tile no. 15

ERLUS Special Accessories

Monaco - Aluminium sanitary ventilator with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium sanitary ventilator with base tile
Monaco - Aluminium aerial with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium aerial with base tile
Monaco - Aluminium solar outlet with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium solar outlet with base tile
Level RS® - Aluminium snow stop fence holder with base tile sinterrot - alu | Image product range | © © ERLUS AG 2021
Aluminium snow stop fence holder with base tile
Aluminium snow stop fence, 20 cm high naturrot/rot engobiert | Image product range
Aluminium snow stop fence, 20 cm high
Aluminium snow stop incl. snow guard tube bracket with base tile | Image product range | © © ERLUS AG 2021
Aluminium snow stop incl. snow guard tube bracket with base tile
Aluminium snow guard tube, length 2 m naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium snow guard tube, length 2 m
Aluminium connector for snow guard tube | Image product range | © © ERLUS AG 2021
Aluminium connector for snow guard tube
Aluminium round wood holder with base tile | Image product range | © © ERLUS AG 2021
Aluminium round wood holder with base tile
Aluminium step with base tile | Image product range | © © ERLUS AG 2021
Aluminium step with base tile
Aluminium step grate 46 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 46 cm x 25 cm, with two base tiles
Aluminium step grate 80 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 80 cm x 25 cm, with two base tiles
Aluminium extension step grate, 80 x 25 cm, with base tile | Image product range | © © ERLUS AG 2021
Aluminium extension step grate, 80 x 25 cm, with base tile
Aluminium step grate bracket, uncoated, with base tile | Image product range | © © ERLUS AG 2021
Aluminium step grate bracket, uncoated, with base tile
Aluminium safety hooks for ladder, Type A, with base tile | Image product range | © © ERLUS AG 2021
Aluminium safety hooks for ladder, Type A, with base tile
Monaco - Aluminium solar panel holder with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium solar panel holder with base tile
Monaco - Ceramic sanitary ventilator, Ø 125 Natural red | Image product range | © © ERLUS AG 2021
Ceramic sanitary ventilator, Ø 125
Ceramic ridge end disc with ERLUS-logo Natural red | Image product range
Ceramic ridge end disc with ERLUS-logo
Ceramic hip cap no. 15 N Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap no. 15 N
Ceramic hip cap with four outlets for rigde tiles Natural red | Image product range
Ceramic hip cap with four outlets for rigde tiles
Ceramic hip start for ridge tiles no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip start for ridge tiles no. 15
Universal ERLUS Sturmklammer I Größe "M" 2,5 mm 40/60 V2A Federstahl | Image product range | © © ERLUS AG 2021
ERLUS universal storm clips I M for battens 24/48 mm
First-und Gratklammern für First 15/17 rot beschichtet -Systemverlegung- | Image product range
Ridge clips no. 15/17
Aluminium ridge ventilation strap rot (beschichtet) | Image product range
Aluminium ridge ventilation strap
Aluminium ridge end disc rotbraun/schwarz (beschichtet) | Image product range | © © ERLUS AG 2021
Aluminium ridge end disc

Roof surfaces

Monaco - Natural red | Image roof surface | © © ERLUS AG 2021 Natural red
Monaco - Rosso | Image roof surface | © © ERLUS AG 2021 Rosso
Monaco - Umbra | Image roof surface | © © ERLUS AG 2021 Umbra
Monaco - Classic | Image roof surface | © © ERLUS AG 2021 Classic

Completed projects

Ergoldsbacher Monaco - Classic | © ERLUS AG 2021 Ergoldsbacher Monaco - Classic
 Ergoldsbacher Monaco - Natural red | © ERLUS AG 2021 Ergoldsbacher Monaco - Natural red
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Classic | © ©ERLUS 2021 Ergoldsbacher Monaco - Classic
Ergoldsbacher Monaco - Classic | © ©ERLUS 2021 Ergoldsbacher Monaco - Classic
Ergoldsbacher Monaco - Classic | © ©ERLUS 2021 Ergoldsbacher Monaco - Classic
Ergoldsbacher Monaco - Classic | © ©ERLUS 2021 Ergoldsbacher Monaco - Classic
Ergoldsbacher Monaco - Classic | © ©ERLUS 2021 Ergoldsbacher Monaco - Classic
Ergoldsbacher Monaco - Classic | © ©ERLUS 2021 Ergoldsbacher Monaco - Classic
 Ergoldsbacher Monaco - Natural red | © ©ERLUS 2021 Ergoldsbacher Monaco - Natural red
 Ergoldsbacher Monaco - Natural red | © ©ERLUS 2021 Ergoldsbacher Monaco - Natural red
 Ergoldsbacher Monaco - Natural red | © ©ERLUS 2021 Ergoldsbacher Monaco - Natural red
 Ergoldsbacher Monaco - Natural red | © ©ERLUS 2021 Ergoldsbacher Monaco - Natural red
 Ergoldsbacher Monaco - Natural red | © ©ERLUS 2021 Ergoldsbacher Monaco - Natural red
 Ergoldsbacher Monaco - Natural red | © ©ERLUS 2021 Ergoldsbacher Monaco - Natural red
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra
Ergoldsbacher Monaco - Umbra | © ©ERLUS 2021 Ergoldsbacher Monaco - Umbra

A Mediterranean model made to suit our weather

The shape and warm colours of the Ergoldsbacher Monaco meet the desire for Mediterranean flair and lend the Mediterranean-style house its characteristic appearance. Unlike in the south, roofs in this part of the world are exposed to more severe weather conditions. Sophisticated technical details and the robust material of the Monaco protect it from wind, rain and frost. The small format flat roof tile is also easy to handle and therefore very easy to lay.
Quantity required per m²: aprox. 14.5 Pieces
Minimum roof pitch: 10 °
Regular roof pitch: 22 °
