ERLUS Karat RS

Color palette

Red

2024: Karat RS - Anthrazit

2024: ERLUS Karat RS - Anthrazit

Technical data

Size:	aprox. 27.0 x 43.5 cm
Gauge:	aprox. 33.8 - 34.3 cm
Average cover width:	aprox. 20.0 cm
Quantity required per m²:	aprox. 14.5 Pieces
Weight per m² in accordance with DIN 1055 incl. battens:	aprox. 0.55 kN/m²
Real weight without battens:	aprox. 52 kg/m²
Pallet capacity:
Pallet weight:
Bundle capacity:	5 Pieces
Gauge class:	34,0 cm

More technical data

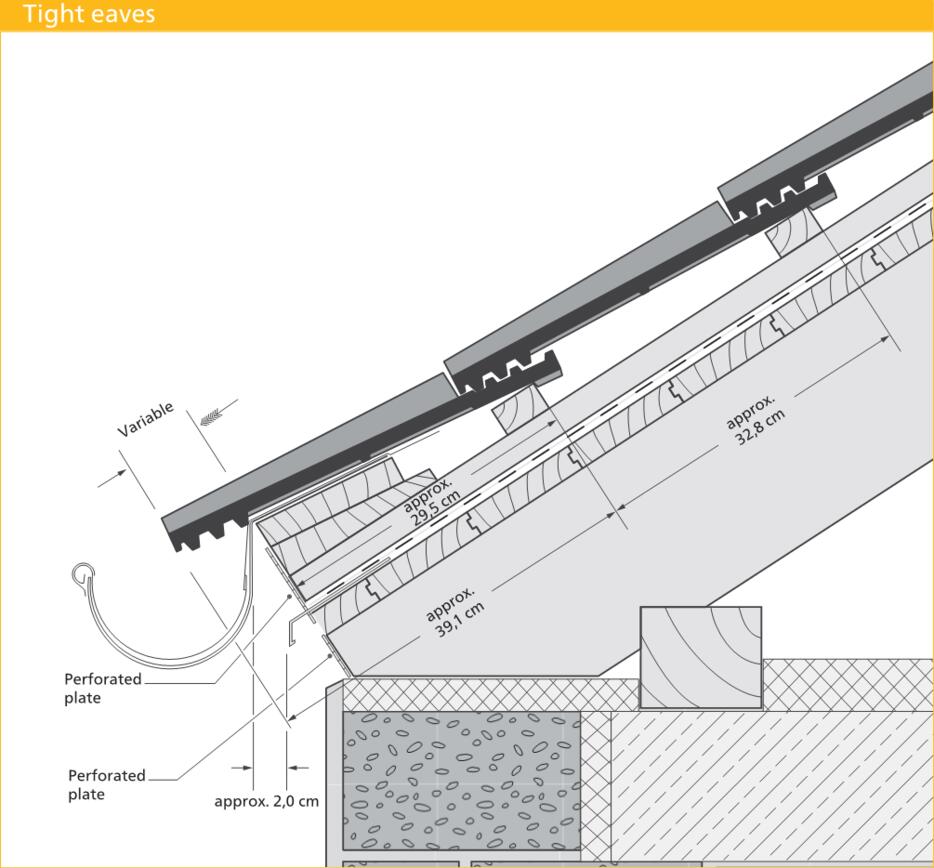

Average eaves gauge	aprox. 29.5 cm

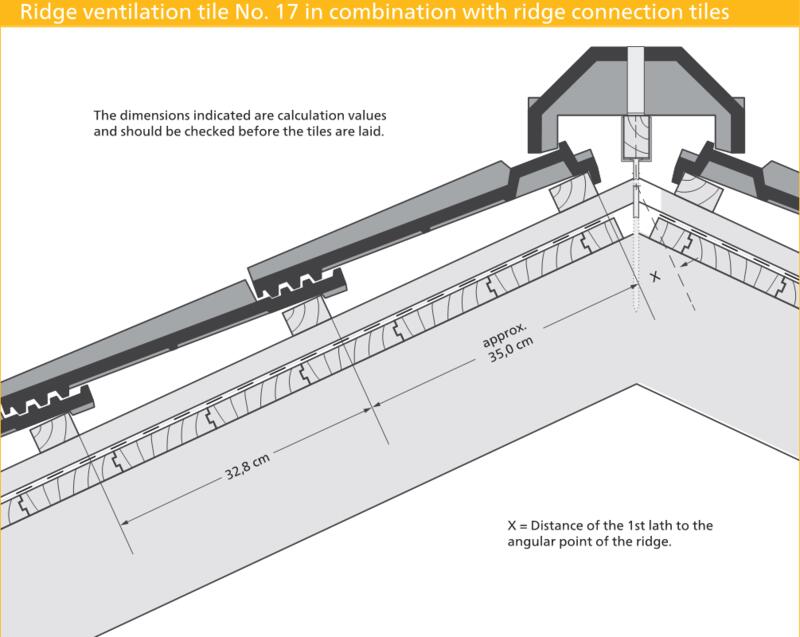

Distance between the 1st lath and the angular point of the ridge with ridge connection tiles and standard tiles
X (distance) in mm	Ridge connection tile¹⁾
Roof pitch in °	10°	15°	20°	25°	30°	35°	40°	45°	50°	55°	60°
Ridge tile no. 17	-	-	-	-	-	-	-	-	-	-	-
Ridge ventilation tile no. 17 Lü	65	60	60	60	60	50	50	45	35²⁾	-	-
Ridge ventilation tile no. 19 Lü	40	40	40	35	35	30	20	20	20	-	-

X (distance) in mm	Standard tiles²⁾
Roof pitch in °	10°	15°	20°	25°	30°	35°	40°	45°	50°	55°	60°
Ridge tile no. 17	65	65	60	60	60	50	55	50	40	45	40
Ridge ventilation tile no. 17 Lü	65	65	60	60	60	50	55	55	-	-	-
Ridge ventilation tile no. 19 Lü	55	50	45	45	45	45	35	30	-	-	-

1) without aluminium ridge ventilation strap2) with aluminium ridge ventilation strap

Assignment of additional measures for the Ergoldsbacher Karat®*

According to the Central Association of German Roofers’ pamphlet on sub-roofs, sub-coverings and under-bracings, and the basic regulations of the Roofers’ Guild, regular roof pitch 16°, minimum roof pitch 7°, generally recognised in professional circles as state of the art, scientifically proven and tried and tested in practice for decades, according to the state of technology.
Country-specific building standards and/or regulations must be adhered to, if no other contractual agreements have been made.

Increased demands due to:
- long spar lengths (longer than 10 metres)
- concentrated water channel on parts of the roof surface, e.g. under drainpipes, where valleys form junctions and the like
- special roofs like cambered dormer windows or arched and conical roofs
- snowy regions ≥ 1,5 kN/m2 of ground snow load - windy regions in wind load zone 4 or in ridge or hill-top positions or where gullies form

Classification
Class 1: waterproof sub-roof consisting of waterproofing membranes or stitched underlay made of diffusion-open UDB-eA (for extended applications; with integrated counter battens in each case)
Class 2: rainproof sub-roof consisting of waterproofing membranes or stitched underlay made of UDB-eA (for extended applications; with exposed counter battens on nail-sealing tape / compound in each case)
Class 3: glued sub-covering/under-bracing with nail-sealing tape / compound - with ETB/ETA verified nail seals or wooden roof sheathing
Class 4: glued sub-covering/under-bracing
Class 5: sub-covering or under-bracing

Definition of sub-roof's type to use
roof pitch	min. req.	inc. dem.	2 further increased demands*	3 further increased demands*
≥ 16°	Class 6	Class 6	Class 5	Class 4
from < 16° to ≥ 12°	Class 4	Class 4	Class 3	Class 3
from < 12° to ≥ 10°	Class 3	Class 3	Class 3	Class 3
from < 10° to ≥ 7°	Class 2	Class 2	Class 1	Class 1

Definition of sub-roof's type to use
roof pitch	min. req.	inc. dem.
≥ 16°	Class 6	Class 6
from < 16° to ≥ 12°	Class 4	Class 4
from < 12° to ≥ 10°	Class 3	Class 3
from < 10° to ≥ 7°	Class 2	Class 2

roof pitch	2 further increased demands*	3 further increased demands*
≥ 16°	Class 5	Class 4
from < 16° to ≥ 12°	Class 3	Class 3
from < 12° to ≥ 10°	Class 3	Class 3
from < 10° to ≥ 7°	Class 1	Class 1

* The additional measures listed in the table are minimum measures under consideration of Table 1 in the pamphlet on sub-roofs, sub-coverings and under-bracings. Sub-covering panels are to be assigned according to the classification in the pamphlet on sub-roofs, sub-coverings and under-bracings. Increased demands make up categories according to chapter 1.1.3. Further increased demands can arise out of the weighting within a category according to 1.1.3. For example, climate situations can result in several increased demands. Only permitted if the manufacturer provides proof of the functionality and safety of the products used, including accessories (sealing tapes, sticky tapes, sealing compounds, pre-assembled seam securing, etc.), as part of a deluge test and 24-hour rain test on a roof pitch of 15°. Otherwise, the next class up is to be selected. Any limitations noted by the manufacturer are to be taken into account. See the product data information sheet for instructions regarding protection against perforation. These can be used for classes 3 to 6.

We recommend concluding separate contracts for designs that are state of the art or state-of-the-art of science and technology.

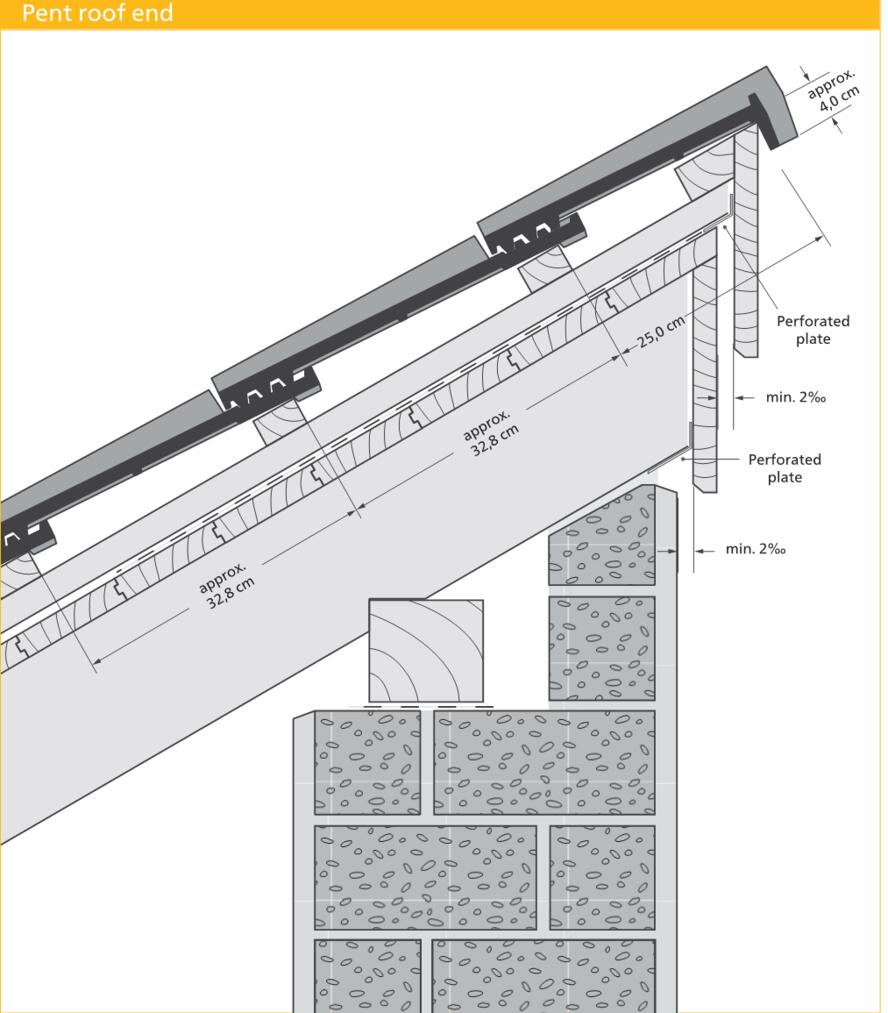

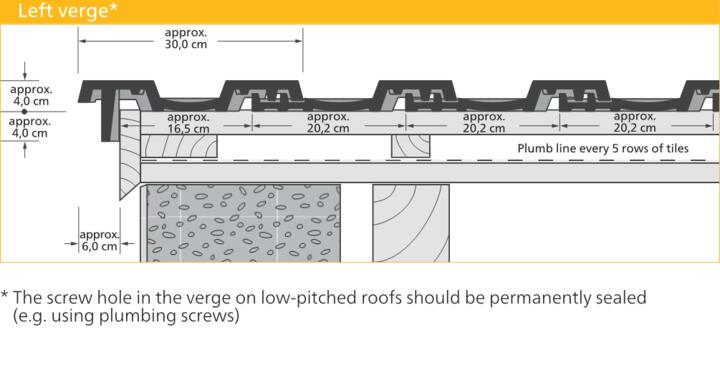

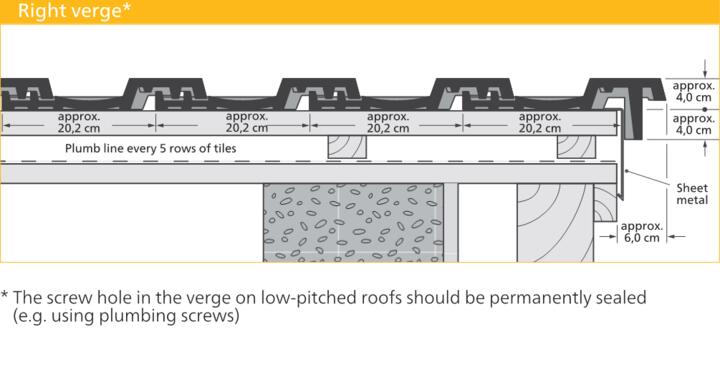

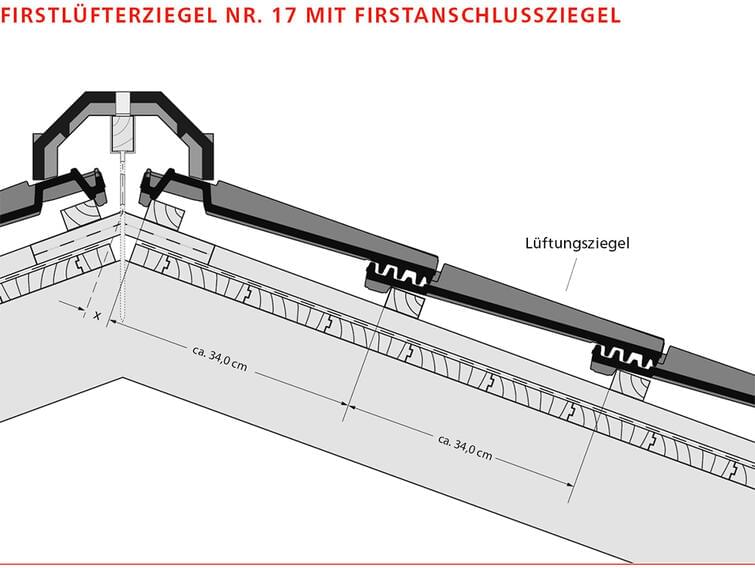

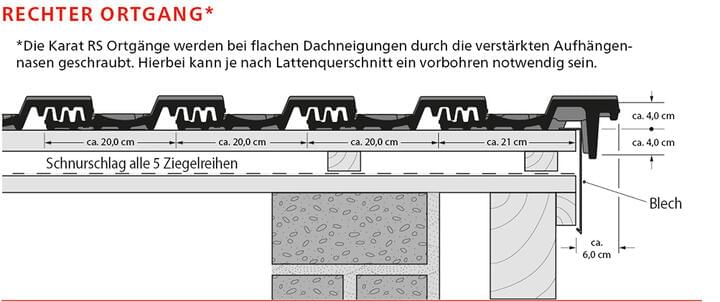

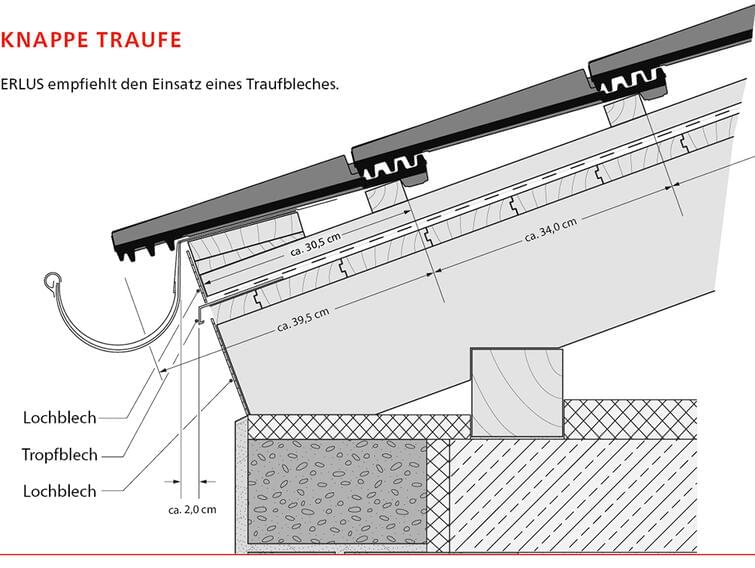

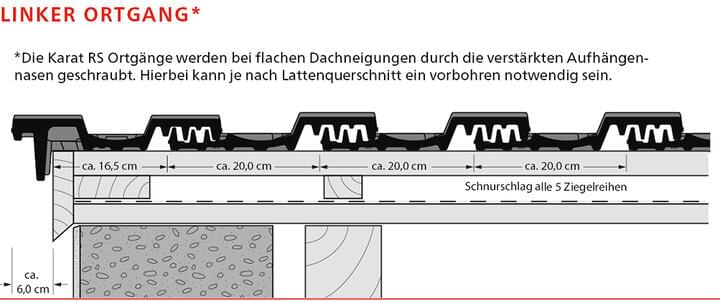

Technical drawings

These are the advantages of the
ERLUS Karat RS

Unique on the market
Complete accessories including aluminium accessories from one source
4-tile corner with protected male lock
Unique design Distinctive alternative to the flat tile
Standard roof pitch 16°
Wide colour range
Particularly raintight due to triple interlocking head joint and double interlocking side joint
iF DESIGN AWARD winner
reddot design award winner

Standard tile

ERLUS Standard Accessories

Double roll tile

Ridge connection tile

Ridge connection verge tile left

Ridge connection verge tile right

Ridge connection double roll tile

Pent roof tile

Pent roof double roll tile

Pent roof verge tile left

Pent roof verge tile right

Ventilation tile

Ridge tile no. 17

Ridge end tile no. 17

Ridge compensation tile no. 17

Ridge ventilation tile no. 17 Lü

Ridge beginning tile no. 17 Lü

Ridge end tile no. 17 Lü

ERLUS Special Accessories

Aluminium sanitary ventilator with base tile

Aluminium aerial with base tile

Aluminium solar outlet with base tile

Aluminium snow stop fence holder with base tile

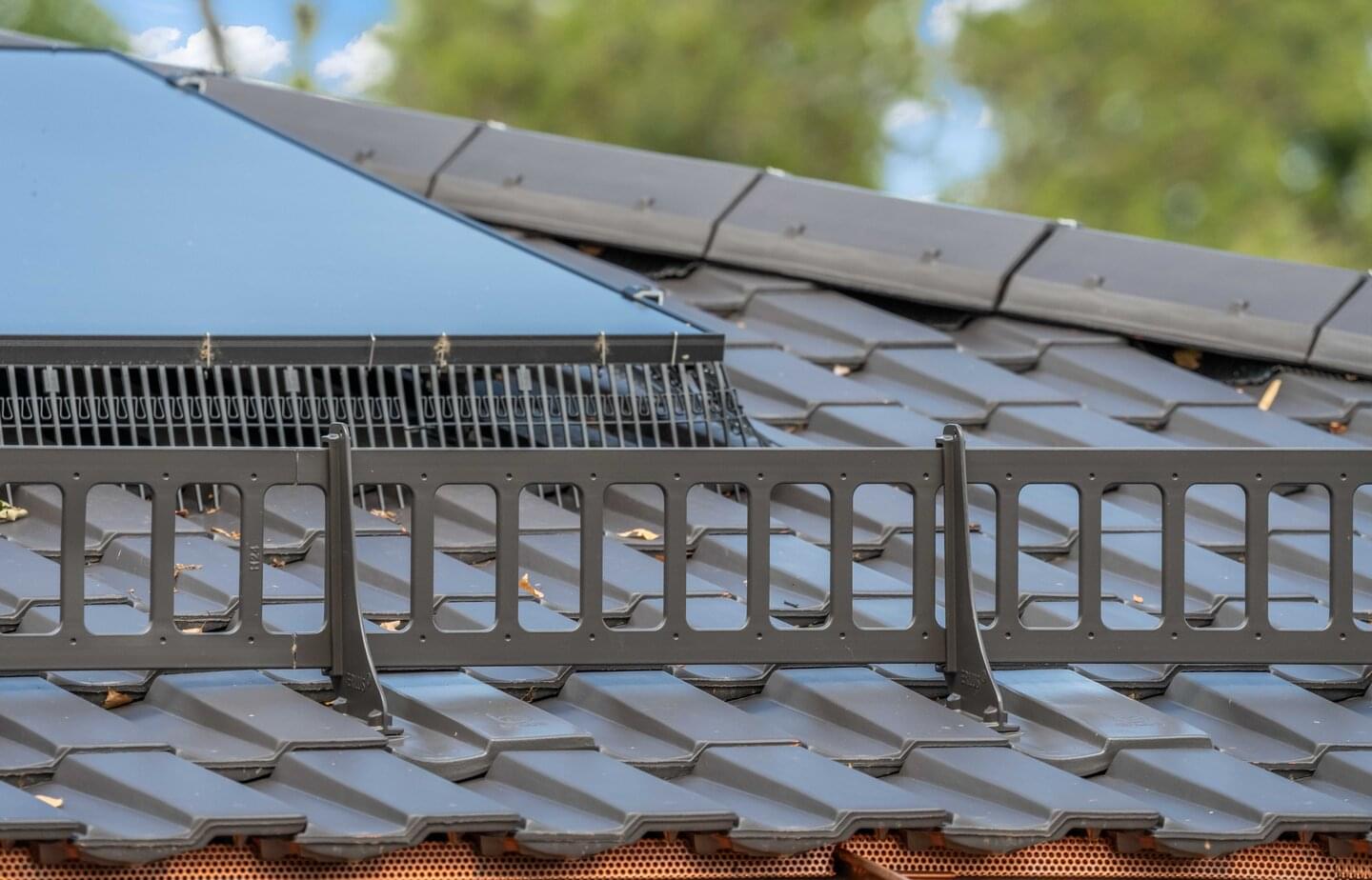

Aluminium snow stop fence, 20 cm high

Aluminium snow stop incl. snow guard tube bracket with base tile

Aluminium snow guard tube, length 2 m

Aluminium connector for snow guard tube

Aluminium round wood holder with base tile

Aluminium step with base tile

Aluminium step grate 50 cm x 25 cm, with two base tiles

Aluminium step grate 80 cm x 25 cm, with two base tiles

Aluminium extension step grate, 80 x 25 cm, with base tile

Aluminium step grate bracket, uncoated, with base tile

Aluminium safety hooks for ladder, Type A, with base tile

Aluminium solar panel holder with base tile

Ceramic extension plate universal for ridge end tile

Ceramic hip start for ridge tiles no. 17

ERLUS universal storm clips I M for battens 24/48 mm

ERLUS universal storm clips II M for battens 30/50 mm

Ridge clips no. 15/17

Ridge clips no. 15/17 Lü

Aluminium ridge ventilation strap

Eave protection tape

Eave ventilation comb, PVC

Aluminium ridge end disc

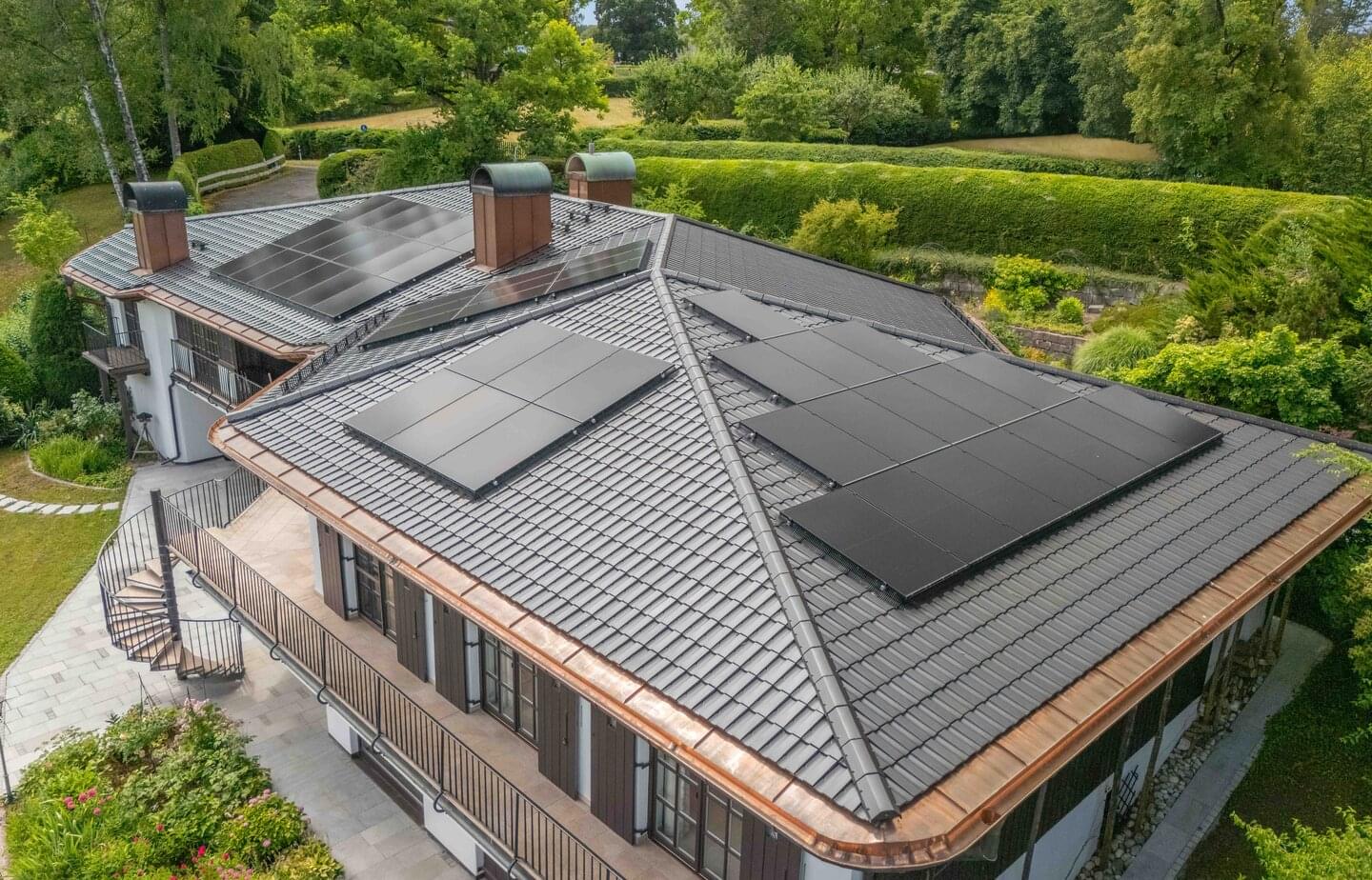

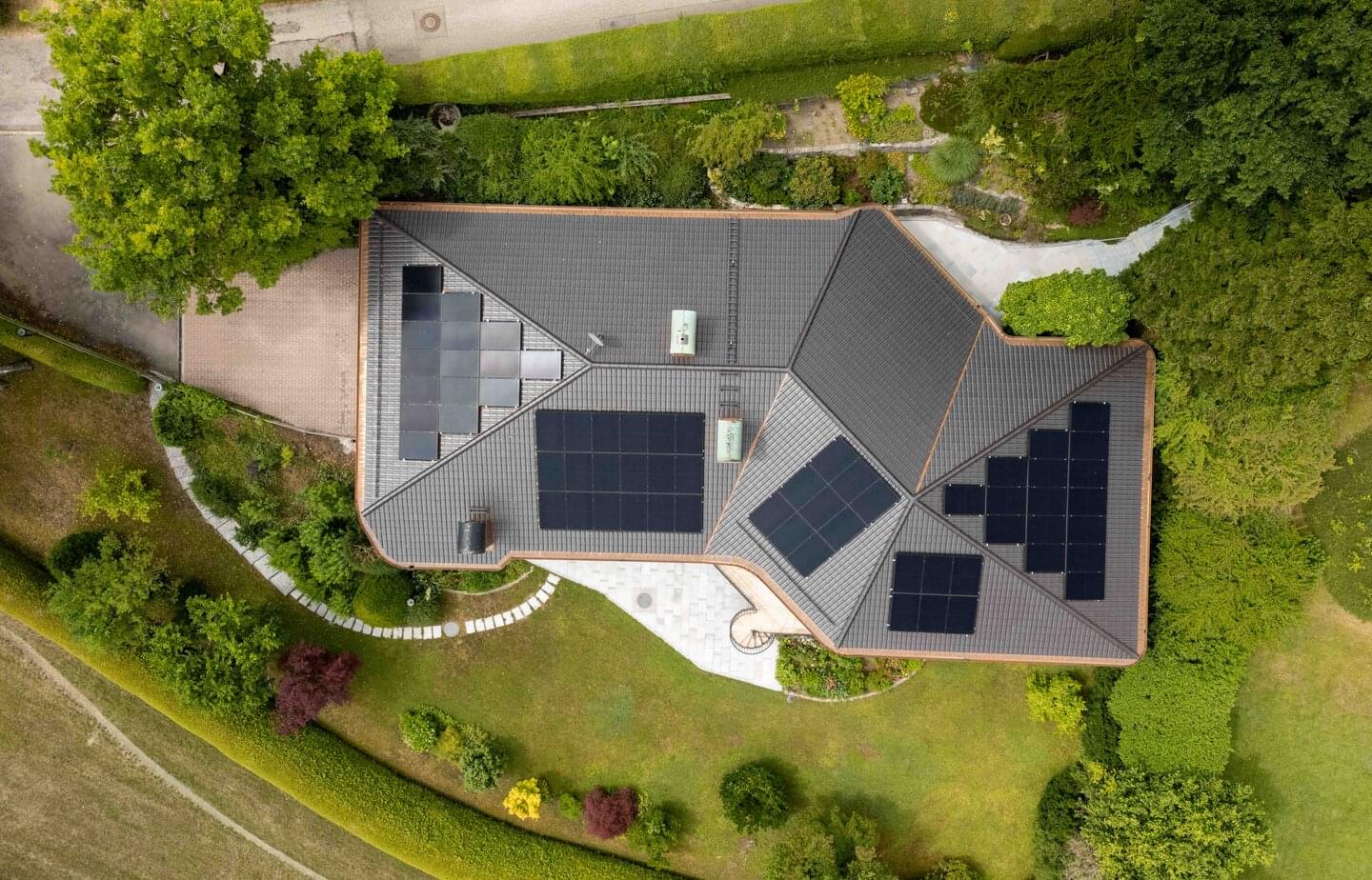

2024: Karat RS - Anthrazit

2024: ERLUS Karat RS - Anthrazit

Stands for good design: timeless and modern for almost 50 years.

After almost 50 years, it’s safe to say that the Ergoldsbacher Karat® is a design classic, as it is still as up-to-date as ever. It is a perfect complement to modern architecture, and its techology is unique. With a standard roof pitch of 16° (min. roof pitch 7°), it is ideally suited to flatter roofs owing to its sophisticated technical design, which also makes the tile particularly raintight: Triple interlocking head joint, double interlocking side joint and a 4-tile corner with protected male lock.

Quantity required per m²: aprox. 14.5 Pieces

Minimum roof pitch: 7 °

Regular roof pitch: 16 °
