Ergoldsbacher Karat® XXL

Color palette
Red

2006: Ergoldsbacher Karat® XXL

  • Karat® XXL - Red | Image standard tiles | © © ERLUS AG 2021
  • Karat® XXL - Copper brown | Image standard tiles | © © ERLUS AG 2021
  • Karat® XXL - Black Matt | Image standard tiles | © © ERLUS AG 2021
  • Karat® XXL - Titan silver | Image standard tiles | © © ERLUS AG 2021
  • Karat® XXL - Sapphire black | Image standard tiles | © © ERLUS AG 2021

Technical data

Size: aprox. 32.5 x 48.0 cm
Gauge: aprox. 38.5 - 40.5 cm
Average cover width: aprox. 26.7 cm
Quantity required per m²: from 9.0 Pieces
Weight per m² in accordance with DIN 1055 incl. battens: aprox. 0.55 kN/m²
Real weight without battens: aprox. 47,7 kg/m²
Pallet capacity: 224 Pieces
Pallet weight: aprox. 1,230 kg
Bundle capacity: 4 Pieces
Hail resistance class: 4
Gauge class: 38,5 cm

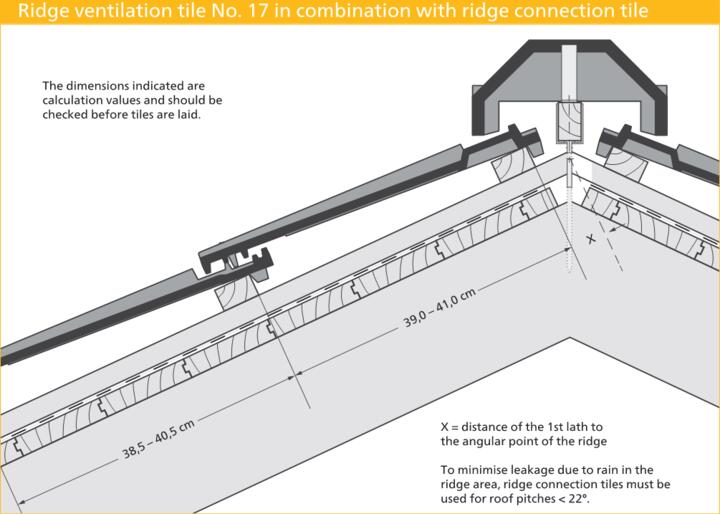

Distance between the 1st lath and the angular point of the ridge with ridge connection tiles and standard tiles
X (distance) in mm Ridge connection tile1)
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 17 50 50 40 40 35 35 35 30 30 - -
Ridge ventilation tile no. 17 Lü 55 50 45 45 40 40 40 30 - - -
Ridge ventilation tile no. 19 Lü 40 30 30 30 - - - - - - -
X (distance) in mm Standard tiles2)
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 17 55 50 45 45 40 40 40 45 - - -
Ridge ventilation tile no. 17 Lü 60 55 50 50 45 45 - - - - -
Ridge ventilation tile no. 19 Lü - - - - - - - - - - -

1) without aluminium ridge ventilation strap2) with aluminium ridge ventilation strap

Assignment of additional measures for the Ergoldsbacher Karat® XXL

According to the Central Association of German Roofers’ pamphlet on sub-roofs, sub-coverings and under-bracings, and the basic regulations of the Roofers’ Guild, regular roof pitch 22°, minimum roof pitch 10°, according to the state of technology.
Country-specific building standards and/or regulations must be adhered to, if no other contractual agreements have been made.

Increased demands due to
Use: of the attic level, especially for residential purposes (residential use equals two increased demands)
Construction: special roof shapes (e.g. butterfly roof), long spar lengths (longer than 10 meters), heavily structured roof shapes (e.g. due to valleys, gables, etc.)
Climate situation: exposed locations, extreme locations, areas with a lot of snow, special weather situations, areas with a lot of wind
Technical installations: On-roof or in-roof systems, air-conditioning systems, antenna systems, roof access systems, rooflight/skylight
systems, snow guard systems, etc.

Classification
Class 1: Waterproof sub-roof (1.1.)
Class 2: Rainproof sub-roof (1.2.)
Class 3: Seam and perforation secured under-bracing (2.1.) Seam and perforation secured sub-covering (3.1.)
Class 4: Welded or glued sub-covering (2.2.) Coated under-bracing made of strips of bitumen (2.3.) Seam-secured sub-covering (3.2.)
Class 5: Overlapped / tongue in groove sub-covering (2.4.)
Class 6: Under-bracing (3.3.)

Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*2 further increased demands*3 further increased demands*
≥ 22° Class 6 Class 6 Class 5 Class 4
from < 22° to ≥ 18° Class 4 Class 4 Class 3 Class 3
from < 18° to ≥ 14° Class 3 Class 3 Class 3 Class 3*
from < 14° to ≥ 10° Class 2 Class 2 Class 1 Class 1
Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*
≥ 22° Class 6 Class 6
from < 22° to ≥ 18° Class 4 Class 4
from < 18° to ≥ 14° Class 3 Class 3
from < 14° to ≥ 10° Class 2 Class 2
roof pitch2 further increased demands*3 further increased demands*
≥ 22° Class 5 Class 4
from < 22° to ≥ 18° Class 3 Class 3
from < 18° to ≥ 14° Class 3 Class 3*
from < 14° to ≥ 10° Class 1 Class 1
* The additional measures listed in the table are minimum measures under consideration of Table 1 in the pamphlet on sub-roofs, sub-coverings and under-bracings. Sub-covering panels are to be assigned according to the classification in the pamphlet on sub-roofs, sub-coverings and under-bracings. Increased demands make up categories according to chapter 1.1.3. Further increased demands can arise out of the weighting within a category according to 1.1.3. For example, climate situations can result in several increased demands. Only permitted if the manufacturer provides proof of the functionality and safety of the products used, including accessories (sealing tapes, sticky tapes, sealing compounds, pre-assembled seam securing, etc.), as part of a deluge test and 24-hour rain test on a roof pitch of 15°. Otherwise, the next class up is to be selected. Any limitations noted by the manufacturer are to be taken into account. See the product data information sheet for instructions regarding protection against perforation. These can be used for classes 3 to 6.

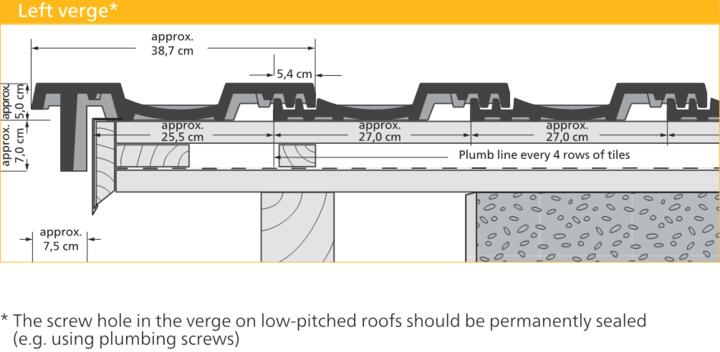

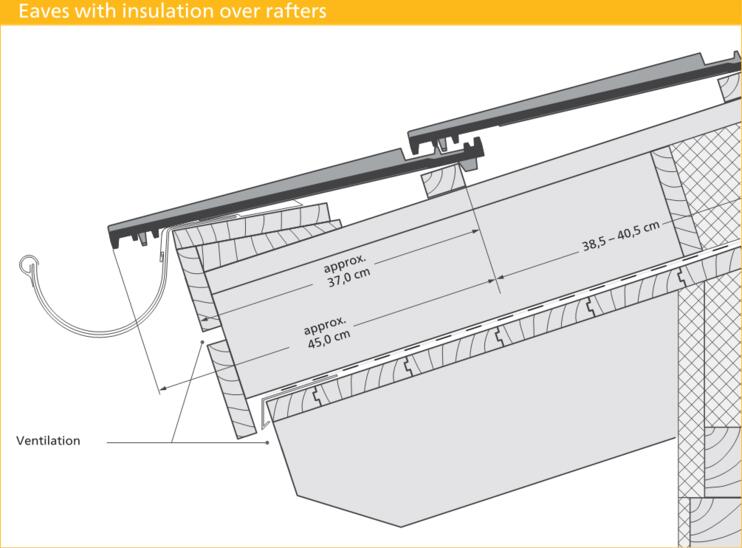

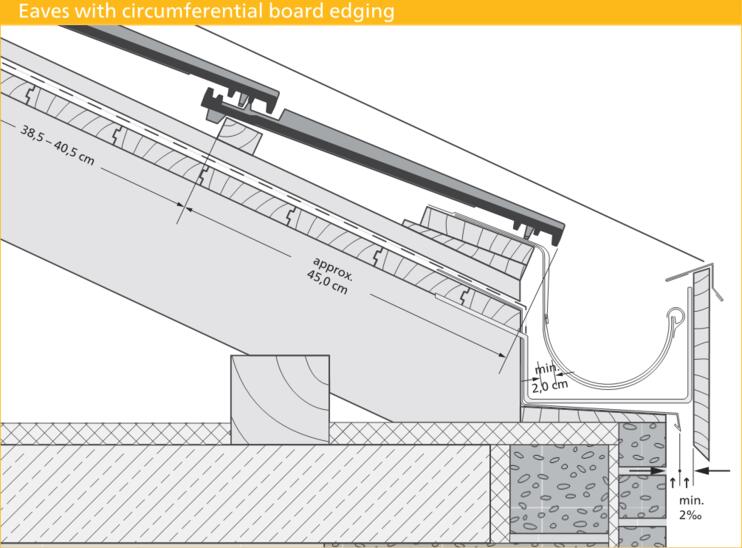

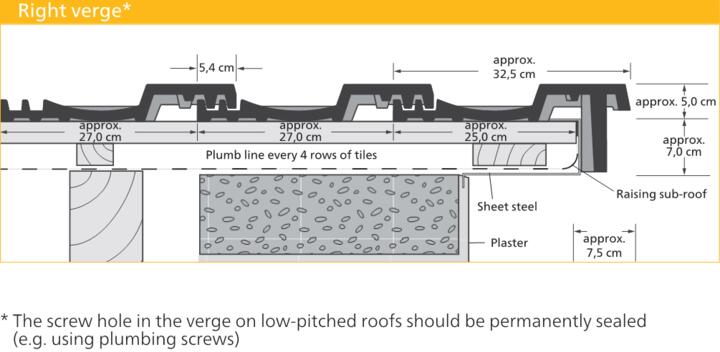

Technical drawings

These are the advantages of the
Ergoldsbacher Karat® XXL

  • Easy to handle 5.3 kg per tile, bundles of 4

  • Double interlocking head and side joints

  • Highly rainproof due to double interlocking head and side joints

  • reddot design award winner

  • Profitable for large surfaces, in the substructure, approx. 10 pcs./m²

  • Regular roof pitch 22°

  • 20 mm sliding range

  • Gauge class 38.5 cm model from the XXL family

Standard tile

Karat® XXL - Red | Image product range
Standard tile

ERLUS Standard Accessories

Karat® XXL - Verge tile left Red | Image product range | © © ERLUS AG 2021
Verge tile left
Karat® XXL - Verge tile right Red | Image product range | © © ERLUS AG 2021
Verge tile right
Karat® XXL - Ridge connection tile Red | Image product range | © © ERLUS AG 2021
Ridge connection tile
Karat® XXL - Ridge connection verge tile left Red | Image product range | © © ERLUS AG 2021
Ridge connection verge tile left
Karat® XXL - Ridge connection verge tile right Red | Image product range | © © ERLUS AG 2021
Ridge connection verge tile right
Karat® XXL - Pent roof tile Red | Image product range
Pent roof tile
Karat® XXL - Pent roof verge tile left Red | Image product range
Pent roof verge tile left
Karat® XXL - Pent roof verge tile right Red | Image product range
Pent roof verge tile right
Karat® XXL - Ventilation tile Red | Image product range | © © ERLUS AG 2021
Ventilation tile
Ridge tile no. 17 Red | Image product range | © © ERLUS AG 2021
Ridge tile no. 17
Ridge end tile no. 17 Red | Image product range | © © ERLUS AG 2021
Ridge end tile no. 17
Ridge tile no. 17 Red | Image product range | © © ERLUS AG 2021
Ridge compensation tile no. 17

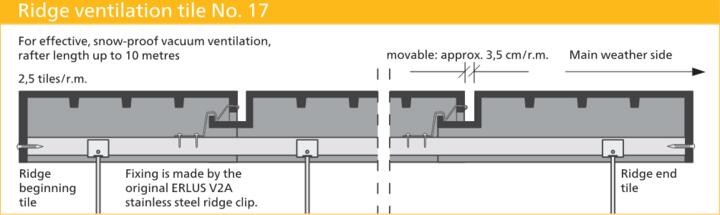

Ridge ventilation tile no. 17 Lü Red | Image product range | © © ERLUS AG 2021
Ridge ventilation tile no. 17 Lü
Ridge beginning tile no. 17 Lü Red | Image product range
Ridge beginning tile no. 17 Lü
Ridge end tile no. 17 Lü Red | Image product range | © © ERLUS AG 2021
Ridge end tile no. 17 Lü

ERLUS Special Accessories

Karat® XXL - Aluminium sanitary ventilator with base tile rot - alu | Image product range | © © ERLUS AG 2021
Aluminium sanitary ventilator with base tile
Karat® XXL - Aluminium aerial with base tile rot - alu | Image product range | © © ERLUS AG 2021
Aluminium aerial with base tile
Karat® XXL - Aluminium solar outlet with base tile rot - alu | Image product range | © © ERLUS AG 2021
Aluminium solar outlet with base tile
Level RS® - Aluminium snow stop fence holder with base tile sinterrot - alu | Image product range | © © ERLUS AG 2021
Aluminium snow stop fence holder with base tile
Aluminium snow stop fence, 20 cm high naturrot/rot engobiert | Image product range
Aluminium snow stop fence, 20 cm high
Aluminium snow stop incl. snow guard tube bracket with base tile | Image product range | © © ERLUS AG 2021
Aluminium snow stop incl. snow guard tube bracket with base tile
Aluminium snow guard tube, length 2 m naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium snow guard tube, length 2 m
Aluminium connector for snow guard tube | Image product range | © © ERLUS AG 2021
Aluminium connector for snow guard tube
Aluminium round wood holder with base tile | Image product range | © © ERLUS AG 2021
Aluminium round wood holder with base tile

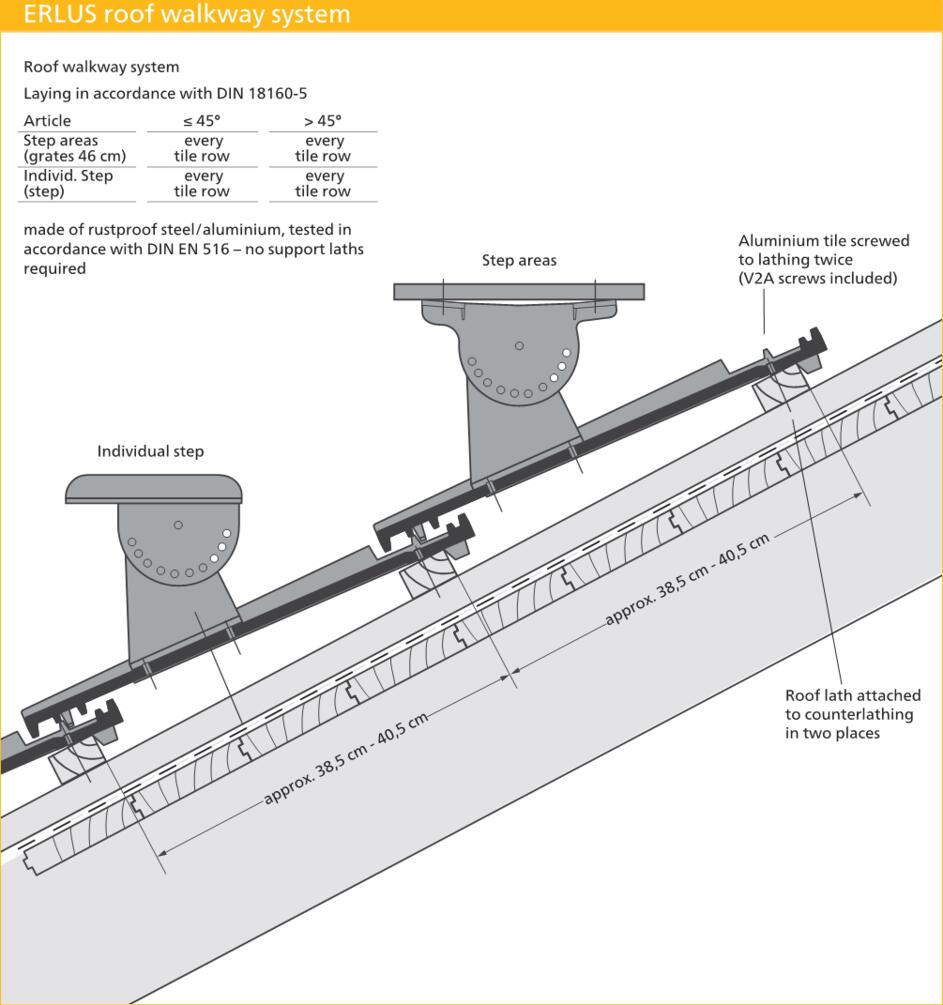

Aluminium step with base tile | Image product range | © © ERLUS AG 2021
Aluminium step with base tile
Aluminium step grate 46 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 46 cm x 25 cm, with two base tiles
Aluminium step grate 80 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 80 cm x 25 cm, with two base tiles
Aluminium extension step grate, 80 x 25 cm, with base tile | Image product range | © © ERLUS AG 2021
Aluminium extension step grate, 80 x 25 cm, with base tile
Aluminium step grate bracket, uncoated, with base tile | Image product range | © © ERLUS AG 2021
Aluminium step grate bracket, uncoated, with base tile
Aluminium safety hooks for ladder, Type A, with base tile | Image product range | © © ERLUS AG 2021
Aluminium safety hooks for ladder, Type A, with base tile
Karat® XXL - Aluminium solar panel holder with base tile rot - alu | Image product range | © © ERLUS AG 2021
Aluminium solar panel holder with base tile
Ceramic extension plate universal for ridge end tile Natural red | Image product range
Ceramic extension plate universal for ridge end tile
Ceramic hip cap no. 17 N
ERLUS universal solar module support, incl. ventilation tile | Image product range | © © ERLUS AG 2021
ERLUS universal solar module support, incl. ventilation tile
Universal ERLUS Sturmklammer I Größe "M" 2,5 mm 40/60 V2A Federstahl | Image product range | © © ERLUS AG 2021
ERLUS universal storm clips I M for battens 24/48 mm
Universal ERLUS Sturmklammer II Größe "M" 2,2 mm 40/60 V2A Federstahl | Image product range | © © ERLUS AG 2021
ERLUS universal storm clips II M for battens 30/50 mm
First-und Gratklammern für First 15/17 rot beschichtet -Systemverlegung- | Image product range
Ridge clips no. 15/17
First- und Gratklammern für Lüfterfirst Nr. 15 / 17  | Image product range
Ridge clips no. 15/17 Lü
Aluminium ridge ventilation strap rot (beschichtet) | Image product range
Aluminium ridge ventilation strap
Eave ventilation comb, PVC rotbraun (beschichtet) | Image product range
Eave ventilation comb, PVC
Aluminium ridge end disc rotbraun/schwarz (beschichtet) | Image product range | © © ERLUS AG 2021
Aluminium ridge end disc

Roof surfaces

Karat® XXL - Copper brown | Image roof surface | © © ERLUS AG 2021 Copper brown
Karat® XXL - Red | Image roof surface | © © ERLUS AG 2021 Red
Karat® XXL - Sapphire black | Image roof surface | © © ERLUS AG 2021 Sapphire black
Karat® XXL - Black Matt | Image roof surface | © © ERLUS AG 2021 Black matt
Karat® XXL - Titan silver | Image roof surface | © © ERLUS AG 2021 Titan silver

Completed projects

Ergoldsbacher Karat® XXL - Black matt | © ERLUS AG 2019 Ergoldsbacher Karat® XXL - Black matt
Ergoldsbacher Karat® XXL - Black matt | © ERLUS AG 2019 Ergoldsbacher Karat® XXL - Black matt
 Ergoldsbacher Karat® XXL - Red | © ©ERLUS 2021 Ergoldsbacher Karat® XXL - Red
 Ergoldsbacher Karat® XXL - Red | © ©ERLUS 2021 Ergoldsbacher Karat® XXL - Red
 Ergoldsbacher Karat® XXL - Red | © ©ERLUS 2021 Ergoldsbacher Karat® XXL - Red
 Ergoldsbacher Karat® XXL - Red | © ©ERLUS 2021 Ergoldsbacher Karat® XXL - Red
Ergoldsbacher Karat® XXL - Black matt | © ©ERLUS 2021 Ergoldsbacher Karat® XXL - Black matt
Ergoldsbacher Karat® XXL - Black matt | © ©ERLUS 2021 Ergoldsbacher Karat® XXL - Black matt
Ergoldsbacher Karat® XXL - Black matt | © ©ERLUS 2021 Ergoldsbacher Karat® XXL - Black matt
Ergoldsbacher Karat® XXL - Black matt | © ©ERLUS 2021 Ergoldsbacher Karat® XXL - Black matt
 Ergoldsbacher Karat® XXL - Titan silver | © ©ERLUS 2021 Ergoldsbacher Karat® XXL - Titan silver
 Ergoldsbacher Karat® XXL - Titan silver | © ©ERLUS 2021 Ergoldsbacher Karat® XXL - Titan silver
Ergoldsbacher Karat® XXL - Red | © ©ERLUS 2021 Ergoldsbacher Karat® XXL - Red
Ergoldsbacher Karat® XXL - Red | © ©ERLUS 2021 Ergoldsbacher Karat® XXL - Red
Ergoldsbacher Karat® XXL - Red | © ©ERLUS 2021 Ergoldsbacher Karat® XXL - Red
Ergoldsbacher Karat® XXL - Red | © ©ERLUS 2021 Ergoldsbacher Karat® XXL - Red
Ergoldsbacher Karat® XXL - Red | © ©ERLUS 2021 Ergoldsbacher Karat® XXL - Red

2006: Ergoldsbacher Karat® XXL

Unique, timeless in economical XXL format

The Ergoldsbacher Karat® XXL is not following a short-lived trend – its beauty is timeless, which is why it received the reddot design award. Like its “little brother” – the design classic Ergoldsbacher Karat® – the unique shape lends distinction to every roof. The Ergoldsbacher Karat® XXL is a universal large tile which is very suitable for both steep and flat roofs.
Quantity required per m²: from 9.0 Pieces
Minimum roof pitch: 10 °
Regular roof pitch: 22 °
