Ergoldsbacher E 58 MAX®

Color palette
Natural red
  • E 58 MAX® - Natural red | Image standard tiles | © © ERLUS AG 2021
  • E 58 MAX® - Red | Image standard tiles | © © ERLUS AG 2021
  • E 58 MAX® - Copper brown | Image standard tiles | © © ERLUS AG 2021
  • E 58 MAX® - Anthracite | Image standard tiles | © © ERLUS AG 2021
  • E 58 MAX® - Maroon | Image standard tiles | © © ERLUS AG 2021
  • E 58 MAX® - Diamond black | Image standard tiles | © © ERLUS AG 2021
  • E 58 MAX® - Cobalt blue | Image standard tiles | © © ERLUS AG 2021
  • E 58 MAX® - Royal green | Image standard tiles | © © ERLUS AG 2021

Technical data

Size: aprox. 29.0 x 46.5 cm
Gauge: aprox. 38.1 - 38.8 cm
Average cover width: aprox. 22.7 cm
Quantity required per m²: aprox. 11.5 Pieces
Weight per m² in accordance with DIN 1055 incl. battens: aprox. 0.55 kN/m²
Real weight without battens: aprox. 42,5 kg/m²
Pallet capacity: 240 Pieces
Pallet weight: aprox. 950 kg
Bundle capacity: 5 Pieces
Hail resistance class: 4
Gauge class: 38,5 cm

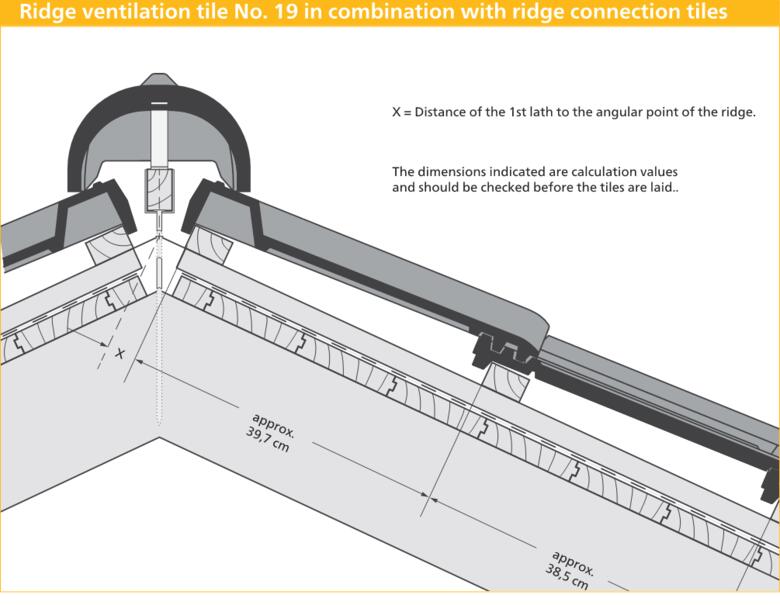

Distance between the 1st lath and the angular point of the ridge with ridge connection tiles and standard tiles
X (distance) in mm Ridge connection tile1)
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 15 60 50 45 45 40 40 35 40 35 - -
Ridge ventilation tile no. 15 Lü 70 65 60 55 50 45 45 40 40²⁾ 40²⁾ 40²⁾
Ridge tile no. 18 40 35 35 30 30 30 25 25 25 25 -
Ridge ventilation tile no. 19 Lü 40 35 30 30 30 30 25 25 - - -
Ridge tile no. 21 40 35 30 30 30 30 25 25 25 25 -
X (distance) in mm Standard tiles2)
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 15 70 65 55 50 45 45 45 35 30 - -
Ridge ventilation tile no. 15 Lü 65 65 60 - - - - - - - -
Ridge tile no. 18 50 45 45 40 35 30 25 25 30 25 20
Ridge ventilation tile no. 19 Lü - - - - - - - - - - -
Ridge tile no. 21 50 40 40 35 30 30 25 - - - -

1) without aluminium ridge ventilation strap2) with aluminium ridge ventilation strap

Assignment of additional measures for the Ergoldsbacher E58 MAX®

According to the Central Association of German Roofers’ pamphlet on sub-roofs, sub-coverings and under-bracings, and the basic regulations of the Roofers’ Guild, regular roof pitch 20°, minimum roof pitch 10°, according to the generally accepted rules of technology.
Country-specific building standards and/or regulations must be adhered to, if no other contractual agreements have been made.

Increased demands due to
Use: of the attic level, especially for residential purposes (residential use equals two increased demands)
Construction: special roof shapes (e.g. butterfly roof), long spar lengths (longer than 10 meters), heavily structured roof shapes (e.g. due to valleys, gables, etc.)
Climate situation: exposed locations, extreme locations, areas with a lot of snow, special weather situations, areas with a lot of wind
Technical installations: On-roof or in-roof systems, air-conditioning systems, antenna systems, roof access systems, rooflight/skylight
systems, snow guard systems, etc.

Classification
Class 1: Waterproof sub-roof (1.1.)
Class 2: Rainproof sub-roof (1.2.)
Class 3: Seam and perforation secured under-bracing (2.1.) Seam and perforation secured sub-covering (3.1.)
Class 4: Welded or glued sub-covering (2.2.) Coated under-bracing made of strips of bitumen (2.3.) Seam-secured sub-covering (3.2.)
Class 5: Overlapped / tongue in groove sub-covering (2.4.)
Class 6: Under-bracing (3.3.)

Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*2 further increased demands*3 further increased demands*
≥ 20° Class 6 Class 6 Class 5 Class 4
from < 20° to ≥ 16° Class 4 Class 4 Class 3 Class 3
from < 16° to ≥ 12° Class 3 Class 3 Class 3 Class 3*
from < 12° to ≥ 10° Class 2 Class 2 Class 1 Class 1
Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*
≥ 20° Class 6 Class 6
from < 20° to ≥ 16° Class 4 Class 4
from < 16° to ≥ 12° Class 3 Class 3
from < 12° to ≥ 10° Class 2 Class 2
roof pitch2 further increased demands*3 further increased demands*
≥ 20° Class 5 Class 4
from < 20° to ≥ 16° Class 3 Class 3
from < 16° to ≥ 12° Class 3 Class 3*
from < 12° to ≥ 10° Class 1 Class 1
* The additional measures listed in the table are minimum measures under consideration of Table 1 in the pamphlet on sub-roofs, sub-coverings and under-bracings. Sub-covering panels are to be assigned according to the classification in the pamphlet on sub-roofs, sub-coverings and under-bracings. Increased demands make up categories according to chapter 1.1.3. Further increased demands can arise out of the weighting within a category according to 1.1.3. For example, climate situations can result in several increased demands. Only permitted if the manufacturer provides proof of the functionality and safety of the products used, including accessories (sealing tapes, sticky tapes, sealing compounds, pre-assembled seam securing, etc.), as part of a deluge test and 24-hour rain test on a roof pitch of 15°. Otherwise, the next class up is to be selected. Any limitations noted by the manufacturer are to be taken into account. See the product data information sheet for instructions regarding protection against perforation. These can be used for classes 3 to 6.

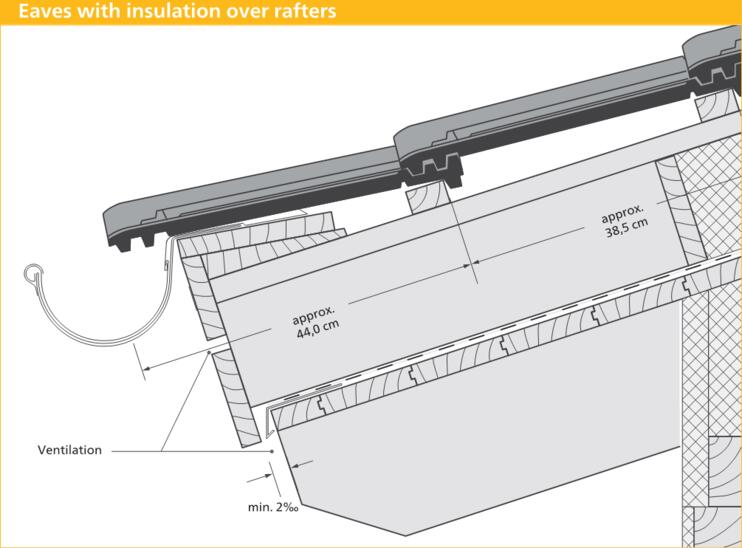

Technical drawings

These are the advantages of the
E 58 MAX®

  • Classic flat roof tile

  • Cost-effective less battening and laying costs

  • Very easy to handle 4-tile corner, bundles of 5

  • Wide colour range

  • Complete accessories including aluminium accessories from one source

  • Optimized roof pitch: 20°

  • Especially robust and break-proof

  • Gauge class 38.5 cm model from the XXL family

Standard tile

E 58 MAX® - Natural red | Image product range
Standard tile

ERLUS Standard Accessories

E 58 MAX® - Verge tile left Natural red | Image product range | © © ERLUS AG 2021
Verge tile left

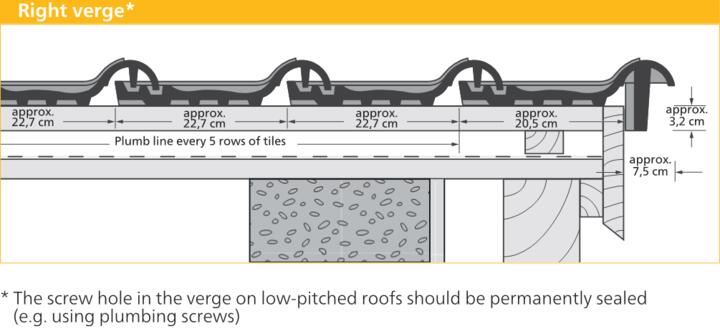

E 58 MAX® - Verge tile right Natural red | Image product range | © © ERLUS AG 2021
Verge tile right
E 58 MAX® - Double roll tile Natural red | Image product range | © © ERLUS AG 2021
Double roll tile
E 58 MAX® - Ridge connection tile Natural red | Image product range | © © ERLUS AG 2021
Ridge connection tile
E 58 MAX® - Ridge connection verge tile left Natural red | Image product range | © © ERLUS AG 2021
Ridge connection verge tile left
E 58 MAX® - Ridge connection verge tile right Natural red | Image product range | © © ERLUS AG 2021
Ridge connection verge tile right
E 58 MAX® - Ridge connection double roll tile Natural red | Image product range | © © ERLUS AG 2021
Ridge connection double roll tile
E 58 MAX® - Ridge connection sliding tile Natural red | Image product range | © © ERLUS AG 2021
Ridge connection sliding tile
E 58 MAX® - Ridge connection sliding verge tile left Natural red | Image product range | © © ERLUS AG 2021
Ridge connection sliding verge tile left
E 58 MAX® - Ridge connection sliding verge tile right Natural red | Image product range | © © ERLUS AG 2021
Ridge connection sliding verge tile right
E 58 MAX® - Ridge connection ventilation sliding tile Natural red | Image product range | © © ERLUS AG 2021
Ridge connection ventilation sliding tile

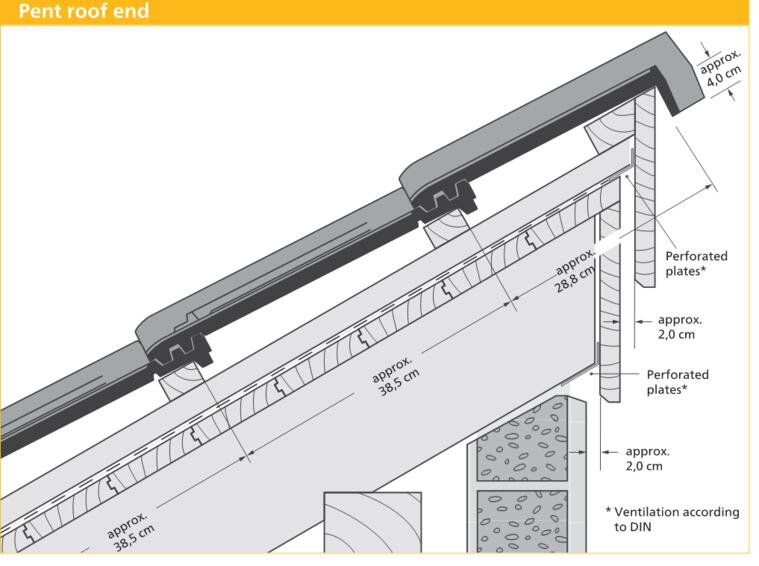

E 58 MAX® - Pent roof tile Natural red | Image product range | © © ERLUS AG 2021
Pent roof tile
E 58 MAX® - Pent roof double roll tile Natural red | Image product range | © © ERLUS AG 2021
Pent roof double roll tile
E 58 MAX® - Pent roof verge tile left Natural red | Image product range | © © ERLUS AG 2021
Pent roof verge tile left
E 58 MAX® - Pent roof verge tile right Natural red | Image product range | © © ERLUS AG 2021
Pent roof verge tile right
E 58 MAX® - Ventilation tile Natural red | Image product range | © © ERLUS AG 2021
Ventilation tile
E 58 MAX® - Snow stop tile Natural red | Image product range | © © ERLUS AG 2021
Snow stop tile
Ridge tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge tile no. 15
Ridge end tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge end tile no. 15
Ridge compensation tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge compensation tile no. 15
Ridge ventilation tile no. 15 Lü Natural red | Image product range | © © ERLUS AG 2021
Ridge ventilation tile no. 15 Lü
Ridge beginning tile no. 15 Lü Natural red | Image product range
Ridge beginning tile no. 15 Lü
Ridge end tile no. 15 Lü Natural red | Image product range
Ridge end tile no. 15 Lü
Ridge tile no. 18 Natural red | Image product range | © © ERLUS AG 2021
Ridge tile no. 18
Ridge end tile no. 18 Natural red | Image product range
Ridge end tile no. 18
Ridge compensation tile no. 18 Natural red | Image product range
Ridge compensation tile no. 18
Ridge ventilation tile no. 19 Lü Natural red | Image product range | © © ERLUS AG 2021
Ridge ventilation tile no. 19 Lü
Ridge beginning tile no. 19 Lü
Ridge end tile no. 19 Lü Natural red | Image product range
Ridge end tile no. 19 Lü
Ridge tile no. 21 Natural red | Image product range | © © ERLUS AG 2021
Ridge tile no. 21
Ridge end tile no. 21 Natural red | Image product range
Ridge end tile no. 21
Ridge compensation tile no. 21 Natural red | Image product range
Ridge compensation tile no. 21

ERLUS Special Accessories

E 58 MAX® - Aluminium sanitary ventilator with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium sanitary ventilator with base tile
E 58 MAX® - Aluminium aerial with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium aerial with base tile
E 58 MAX® - Aluminium solar outlet with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium solar outlet with base tile
Level RS® - Aluminium snow stop fence holder with base tile sinterrot - alu | Image product range | © © ERLUS AG 2021
Aluminium snow stop fence holder with base tile
Aluminium snow stop fence, 20 cm high naturrot/rot engobiert | Image product range
Aluminium snow stop fence, 20 cm high
Aluminium snow stop incl. snow guard tube bracket with base tile | Image product range | © © ERLUS AG 2021
Aluminium snow stop incl. snow guard tube bracket with base tile
Aluminium snow guard tube, length 2 m naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium snow guard tube, length 2 m
Aluminium connector for snow guard tube | Image product range | © © ERLUS AG 2021
Aluminium connector for snow guard tube
Aluminium round wood holder with base tile | Image product range | © © ERLUS AG 2021
Aluminium round wood holder with base tile

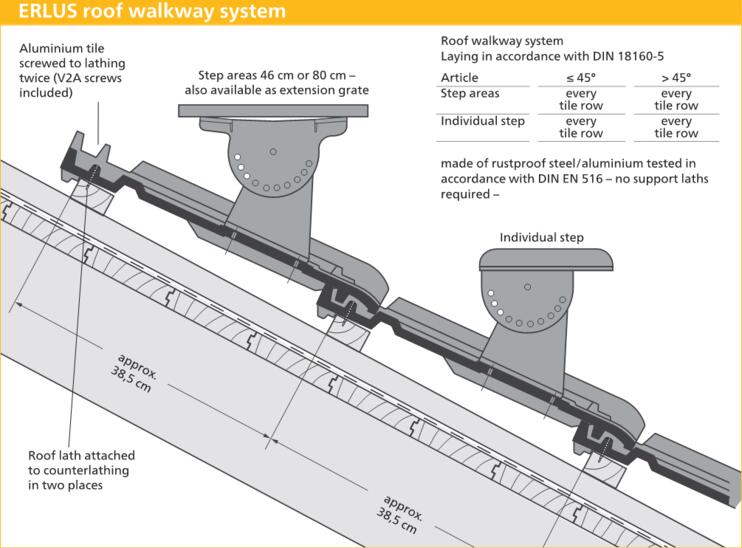

Aluminium step with base tile | Image product range | © © ERLUS AG 2021
Aluminium step with base tile
Aluminium step grate 46 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 46 cm x 25 cm, with two base tiles
Aluminium step grate 80 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 80 cm x 25 cm, with two base tiles
Aluminium extension step grate, 80 x 25 cm, with base tile | Image product range | © © ERLUS AG 2021
Aluminium extension step grate, 80 x 25 cm, with base tile
Aluminium step grate bracket, uncoated, with base tile | Image product range | © © ERLUS AG 2021
Aluminium step grate bracket, uncoated, with base tile
Aluminium safety hooks for ladder, Type A, with base tile | Image product range | © © ERLUS AG 2021
Aluminium safety hooks for ladder, Type A, with base tile
E 58 MAX® - Aluminium solar panel holder with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium solar panel holder with base tile
Ceramic ridge end disc with ERLUS-logo Natural red | Image product range
Ceramic ridge end disc with ERLUS-logo
Ceramic extension plate universal for ridge end tile Natural red | Image product range
Ceramic extension plate universal for ridge end tile
Ceramic hip cap no. 15 N Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap no. 15 N
Ceramic hip cap no. 18 N Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap no. 18 N
Ceramic hip cap für ridge beginning tiles no. 19 Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap für ridge beginning tiles no. 19
Ceramic hip cap for ridge end tiles no. 19 Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap for ridge end tiles no. 19
Ceramic hip cap no. 21 N Natural red | Image product range
Ceramic hip cap no. 21 N
Ceramic hip cap with four outlets for rigde tiles Natural red | Image product range
Ceramic hip cap with four outlets for rigde tiles
Ceramic hip start for ridge tiles no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip start for ridge tiles no. 15
Ceramic hip start for ridge tiles no. 21 N Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip start for ridge tiles no. 21 N
ERLUS universal solar module support, incl. ventilation tile | Image product range | © © ERLUS AG 2021
ERLUS universal solar module support, incl. ventilation tile
Universal ERLUS Sturmklammer I Größe "M" 2,5 mm 40/60 V2A Federstahl | Image product range | © © ERLUS AG 2021
ERLUS universal storm clips I M for battens 24/48 mm
Universal ERLUS Sturmklammer II Größe "M" 2,2 mm 40/60 V2A Federstahl | Image product range | © © ERLUS AG 2021
ERLUS universal storm clips II M for battens 30/50 mm
First-und Gratklammern für First 15/17 rot beschichtet -Systemverlegung- | Image product range
Ridge clips no. 15/17
First- und Gratklammern für Lüfterfirst Nr. 15 / 17  | Image product range
Ridge clips no. 15/17 Lü
First- und Gratklammern für Firstziegel Nr. 18/21 rot besch.  | Image product range
Ridge clips no. 18/21
First- und Gratklammern für Firstziegel Nr. 19  | Image product range
Ridge clips no. 19 Lü
Aluminium ridge ventilation strap rot (beschichtet) | Image product range
Aluminium ridge ventilation strap
Eave protection tape rotbraun (beschichtet) | Image product range
Eave protection tape
Eave ventilation comb, PVC rotbraun (beschichtet) | Image product range
Eave ventilation comb, PVC
E 58 MAX® - Acrylic tile | Image product range | © © ERLUS AG 2021
Acrylic tile
Aluminium ridge end disc rotbraun/schwarz (beschichtet) | Image product range | © © ERLUS AG 2021
Aluminium ridge end disc

Roof surfaces

E 58 MAX® - Natural red | Image roof surface | © © ERLUS AG 2021 Natural red
E 58 MAX® - Copper brown | Image roof surface Copper brown
E 58 MAX® - Diamond black | Image roof surface Diamond black
E 58 MAX® - Maroon | Image roof surface | © © ERLUS AG 2021 Maroon
E 58 MAX® - Anthracite | Image roof surface Antracite
E 58 MAX® - Cobalt blue | Image roof surface | © © ERLUS AG 2021 Cobalt blue
E 58 MAX® - Royal green | Image roof surface | © © ERLUS AG 2021 Royal green

Completed projects

Ergoldsbacher E 58 MAX® - Natural red | © © ERLUS AG 2021 Ergoldsbacher E 58 MAX® - Natural red
Ergoldsbacher E 58 MAX® - Anthracite | © © ERLUS AG 2021 Ergoldsbacher E 58 MAX® - Anthracite
Ergoldsbacher E 58 MAX® - Anthracite | © © ERLUS AG 2021 Ergoldsbacher E 58 MAX® - Anthracite
Ergoldsbacher E 58 MAX® - Anthracite | © © ERLUS AG 2021 Ergoldsbacher E 58 MAX® - Anthracite
Ergoldsbacher E 58 MAX® - Anthracite | © © ERLUS AG 2021 Ergoldsbacher E 58 MAX® - Anthracite
Ergoldsbacher E 58 MAX® - Anthracite | © © ERLUS AG 2021 Ergoldsbacher E 58 MAX® - Anthracite
Ergoldsbacher E 58 MAX® - Anthracite | © © ERLUS AG 2021 Ergoldsbacher E 58 MAX® - Anthracite
Ergoldsbacher E 58 MAX® - Anthracite | © © ERLUS AG 2021 Ergoldsbacher E 58 MAX® - Anthracite

The "large E58" can be laid quickly and profitably

Visually, the Ergoldsbacher E58 MAX® is inspired by its prototype, the Ergoldsbacher E58; but the difference lies in its size. Its 20 per cent greater coverage makes the laying process more efficient. This makes it the first choice for roofs with a large surface area. Its generous interlocking tolerance makes the E58 MAX® easier to install. Thanks to its double interlocking on the sides and perfectly interlocking head and foot, wind suction and driving rain cannot harm the roof.
Quantity required per m²: aprox. 11.5 Pieces
Minimum roof pitch: 10 °
Regular roof pitch: 20 °

Zur Speicherung und Verwendung von ERLUS Mediendateien akzeptieren Sie bitte nachfolgende Nutzungsbedingungen.

Hiermit bestätige ich meine Zustimmung.
