Ergoldsbacher Großfalzziegel XXL®

Color palette

Natural red

1999: Ergoldsbacher Großfalzziegel XXL®

Technical data

Size:	aprox. 29.5 x 46.5 cm
Gauge:	aprox. 37.7 - 39.7 cm
Average cover width:	aprox. 25.7 cm
Quantity required per m²:	from 9.8 Pieces
Weight per m² in accordance with DIN 1055 incl. battens:	aprox. 0.55 kN/m²
Real weight without battens:	aprox. 40 kg/m²
Pallet capacity:	200 Pieces
Pallet weight:	aprox. 955 kg
Bundle capacity:	5 Pieces
Hail resistance class:	4
Gauge class:	38,5 cm

More technical data

Average eaves gauge	aprox. 36 cm

X (distance) in mm	Standard tiles¹⁾
Roof pitch in °	10°	15°	20°	25°	30°	35°	40°	45°	50°	55°	60°
Ridge tile no. 15	65	60	50	50	50	45	45	45	40	-	-
Ridge ventilation tile no. 15 Lü	70	65	60	60	60	60	60	-	-	-	-
Ridge tile no. 17	65	60	55	50	50	45	45	45	40	-	-
Ridge tile no. 18	50	45	35	30	35	35	35	30	30	30	-
Ridge ventilation tile no. 19 Lü	45	40	35	35	35	35	30	25	-	-	-
Ridge tile no. 21	45	40	35	35	35	35	30	25	25	25	25

Assignment of additional measures for the Ergoldsbacher Großfalzziegel XXL®

Assignment of additional measures for the Ergoldsbacher Großfalzziegel XXL®According to the Central Association of German Roofers’ pamphlet on sub-roofs, sub-coverings and under-bracings, and the basicregulations of the Roofers’ Guild, regular roof pitch 22°, minimum roof pitch 10° (can be laid in a cross bond pattern as well as inrows), according to the state of technology.
Country-specific building standards and/or regulations must be adhered to, if no other contractual agreements have been made.

Increased demands due to
Use: of the attic level, especially for residential purposes (residential use equals two increased demands)
Construction: special roof shapes (e.g. butterfly roof), long spar lengths (longer than 10 meters), heavily structured roof shapes (e.g. due to valleys, gables, etc.)
Climate situation: exposed locations, extreme locations, areas with a lot of snow, special weather situations, areas with a lot of wind
Technical installations: On-roof or in-roof systems, air-conditioning systems, antenna systems, roof access systems, rooflight/skylight
systems, snow guard systems, etc.

Classification
Class 1: Waterproof sub-roof (1.1.)
Class 2: Rainproof sub-roof (1.2.)
Class 3: Seam and perforation secured under-bracing (2.1.) Seam and perforation secured sub-covering (3.1.)
Class 4: Welded or glued sub-covering (2.2.) Coated under-bracing made of strips of bitumen (2.3.) Seam-secured sub-covering (3.2.)
Class 5: Overlapped / tongue in groove sub-covering (2.4.)
Class 6: Under-bracing (3.3.)

Definition of sub-roof's type to use
roof pitch	min. req.	inc. dem.
≥ 22°	Class 5	Class 4
from < 22° to ≥ 18°	Class 4	Class 3
from < 18° to ≥ 14°	Class 3	Class 2
from < 14° to ≥ 10°	Class 1	Class 1

Definition of sub-roof's type to use
roof pitch	min. req.	inc. dem.
≥ 22°	Class 5	Class 4
from < 22° to ≥ 18°	Class 4	Class 3
from < 18° to ≥ 14°	Class 3	Class 2
from < 14° to ≥ 10°	Class 1	Class 1

* The additional measures listed in the table are minimum measures under consideration of Table 1 in the pamphlet on sub-roofs, sub-coverings and under-bracings. Sub-covering panels are to be assigned according to the classification in the pamphlet on sub-roofs, sub-coverings and under-bracings. Increased demands make up categories according to chapter 1.1.3. Further increased demands can arise out of the weighting within a category according to 1.1.3. For example, climate situations can result in several increased demands. Only permitted if the manufacturer provides proof of the functionality and safety of the products used, including accessories (sealing tapes, sticky tapes, sealing compounds, pre-assembled seam securing, etc.), as part of a deluge test and 24-hour rain test on a roof pitch of 15°. Otherwise, the next class up is to be selected. Any limitations noted by the manufacturer are to be taken into account. See the product data information sheet for instructions regarding protection against perforation. These can be used for classes 3 to 6.

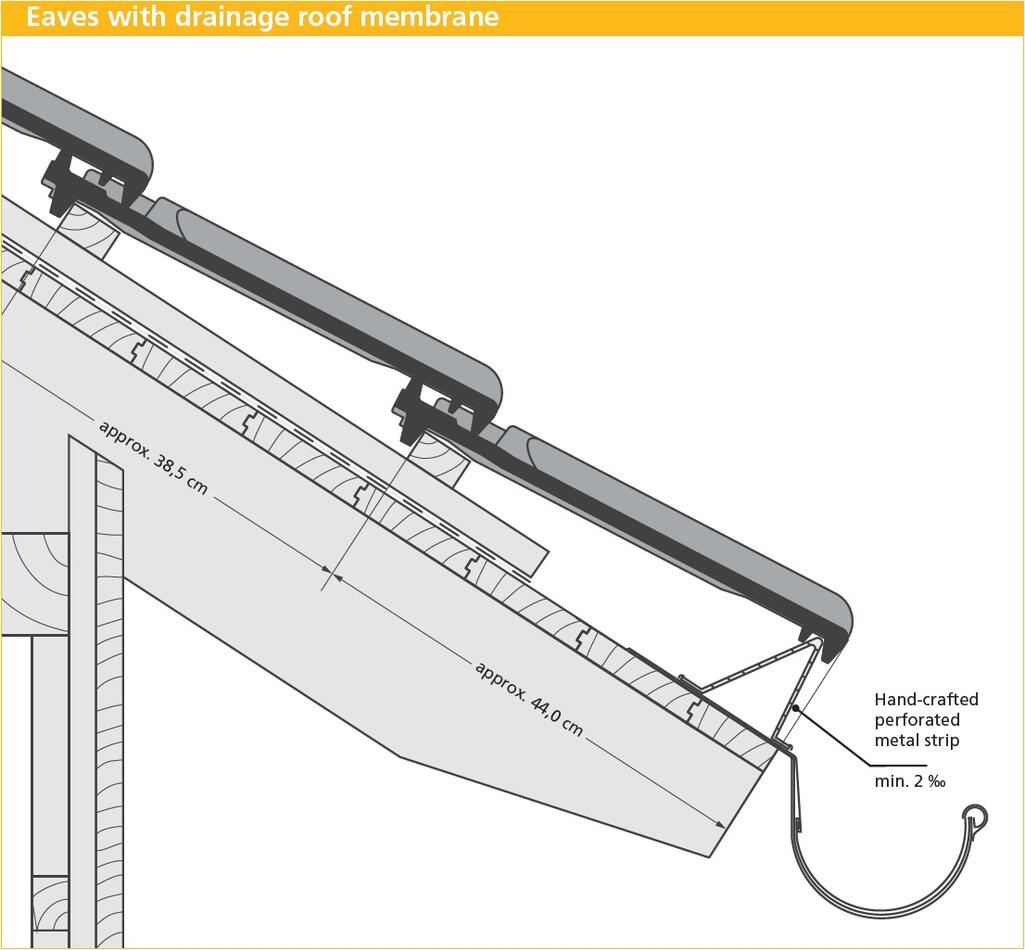

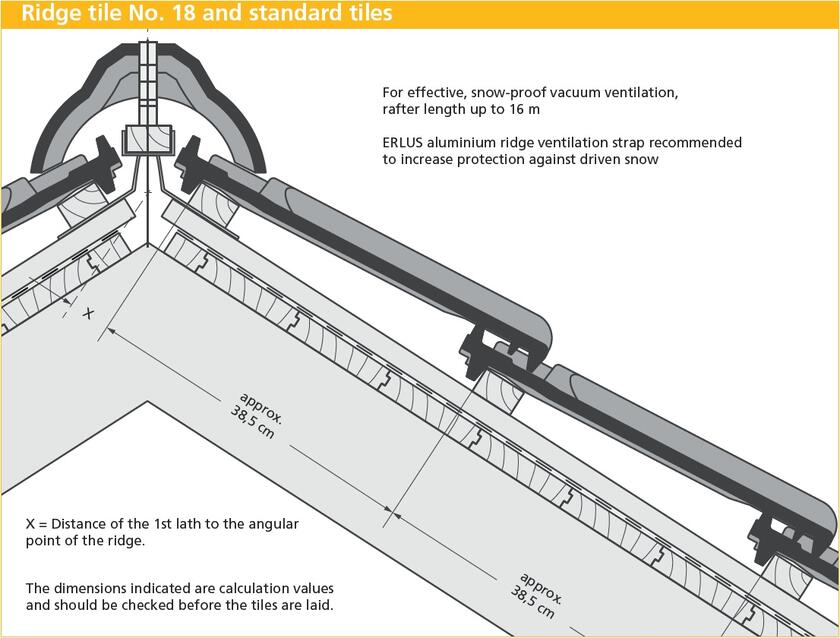

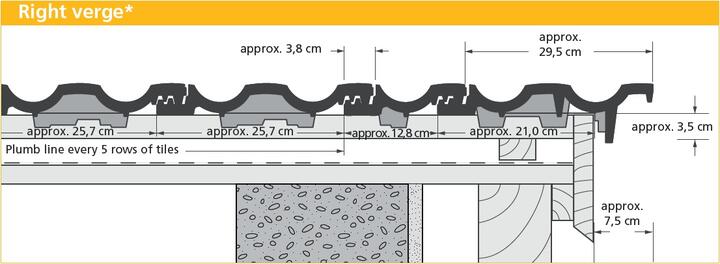

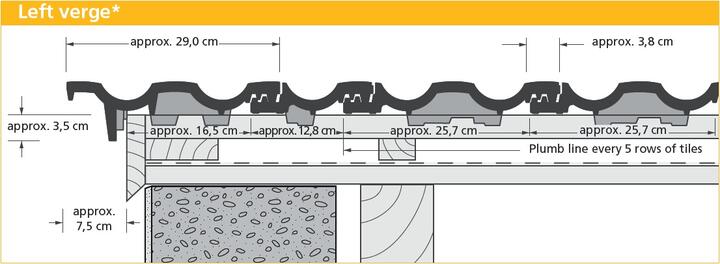

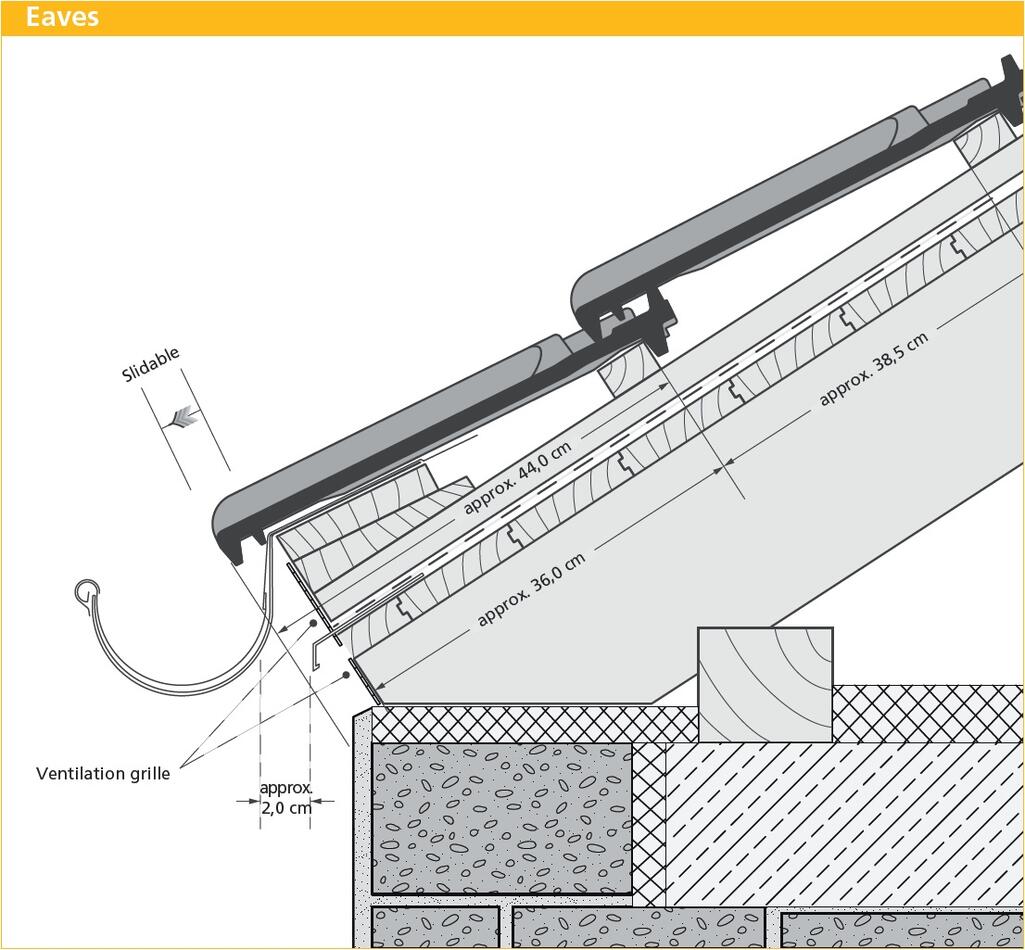

Technical drawings

These are the advantages of the
Ergoldsbacher Großfalzziegel XXL®

Easy to handle 4.0 kg per tile, can be laid with one hand
Low profile Ideal for tented and hip roofs
22° standard roof pitch according to roofing regulations
Highly raintight and stormproof when laid in a cross bond pattern and in rows
iF DESIGN AWARD winner
Profitable in the substructure, approx. 10 pcs./m², fully ceramic ridge ventilation construction without ridge connection tile or other system parts
Complete accessories including aluminium accessories from one source
20 mm sliding range
Gauge class 38.5 cm model from the XXL family

Standard tile

ERLUS Standard Accessories

1/2 Tile

Verge tile left

Verge tile right

Double roll tile

Pent roof tile

Pent roof verge tile left

Pent roof verge tile right

Ventilation tile

Snow stop tile

Ridge tile no. 15

Ridge end tile no. 15

Ridge compensation tile no. 15

Ridge tile no. 18

Ridge end tile no. 18

Ridge compensation tile no. 18

Ridge ventilation tile no. 19 Lü

Ridge beginning tile no. 19 Lü

Ridge end tile no. 19 Lü

ERLUS Special Accessories

Aluminium sanitary ventilator with base tile

Aluminium aerial with base tile

Aluminium solar outlet with base tile

Aluminium snow stop fence, 20 cm high

Aluminium snow stop incl. snow guard tube bracket with base tile

Aluminium snow guard tube, length 2 m

Aluminium connector for snow guard tube

Aluminium round wood holder with base tile

Aluminium step with base tile

Aluminium step grate 50 cm x 25 cm, with two base tiles

Aluminium step grate 80 cm x 25 cm, with two base tiles

Aluminium extension step grate, 80 x 25 cm, with base tile

Aluminium step grate bracket, uncoated, with base tile

Aluminium safety hooks for ladder, Type A, with base tile

Aluminium solar panel holder with base tile

Ceramic ridge end disc with ERLUS-logo

Ceramic extension plate universal for ridge end tile

Ceramic hip cap no. 15 N

Ceramic hip cap no. 18 N

Ceramic hip cap für ridge beginning tiles no. 19

Ceramic hip cap for ridge end tiles no. 19

Ceramic hip cap with four outlets for rigde tiles

Ceramic hip start for ridge tiles no. 15

Ceramic hip start for ridge tiles no. 19

ERLUS universal solar module support, incl. ventilation tile

ERLUS universal storm clips I M for battens 24/48 mm

ERLUS universal storm clips II M for battens 30/50 mm

Ridge clips no. 15/17

Ridge clips no. 18/21

Ridge clips no. 19 Lü

Snow stop hooks

Aluminium ridge ventilation strap

Eave protection tape

Eave ventilation comb, PVC

Acrylic tile

Aluminium ridge end disc

Roof surfaces

Completed projects

1999: Ergoldsbacher Großfalzziegel XXL®

The traditional roof tile interpreted in a modern design

The Ergoldsbacher Großfalzziegel XXL® is the modern interpretation of the traditional interlocking tile, for which it received the iF DESIGN AWARD. However, its technical details are also outstanding: Interlocking joints on all sides, two swirling chambers in the head section, the construction in the joint sliding range and the laying compatibility in cross bond pattern or in rows make the tile particularly raintight. A fully ceramic ridge ventilation construction without ridge connection tile or other system parts also contributes to reducing construction costs.

Quantity required per m²: from 9.8 Pieces

Minimum roof pitch: 10 °

Regular roof pitch: 22 °

Roof tile

Technical data

Technical drawings

Advantages

Product range

References
