Ergoldsbacher Großfalzziegel

Color palette
Natural red
  • Großfalzziegel - Natural red | Image standard tiles | © © ERLUS AG 2021
  • Großfalzziegel - Red | Image standard tiles | © © ERLUS AG 2021
  • Großfalzziegel - Copper brown | Image standard tiles | © © ERLUS AG 2021
  • Großfalzziegel - Anthracite | Image standard tiles | © © ERLUS AG 2021
  • Großfalzziegel - Antique | Image standard tiles | © © ERLUS AG 2021
  • Großfalzziegel - Sepia | Image standard tiles | © © ERLUS AG 2021

Technical data

Size: aprox. 26.0 x 43.0 cm
Gauge: aprox. 33.5 - 35.1 cm
Average cover width: aprox. 22.4 cm
Quantity required per m²: from 12.5 Pieces
Weight per m² in accordance with DIN 1055 incl. battens: aprox. 0.55 kN/m²
Real weight without battens: aprox. 46 kg/m²
Pallet capacity: 224 Pieces
Pallet weight: aprox. 830 kg
Bundle capacity: 4 Pieces
Hail resistance class: 4
Gauge class: 34,0 cm

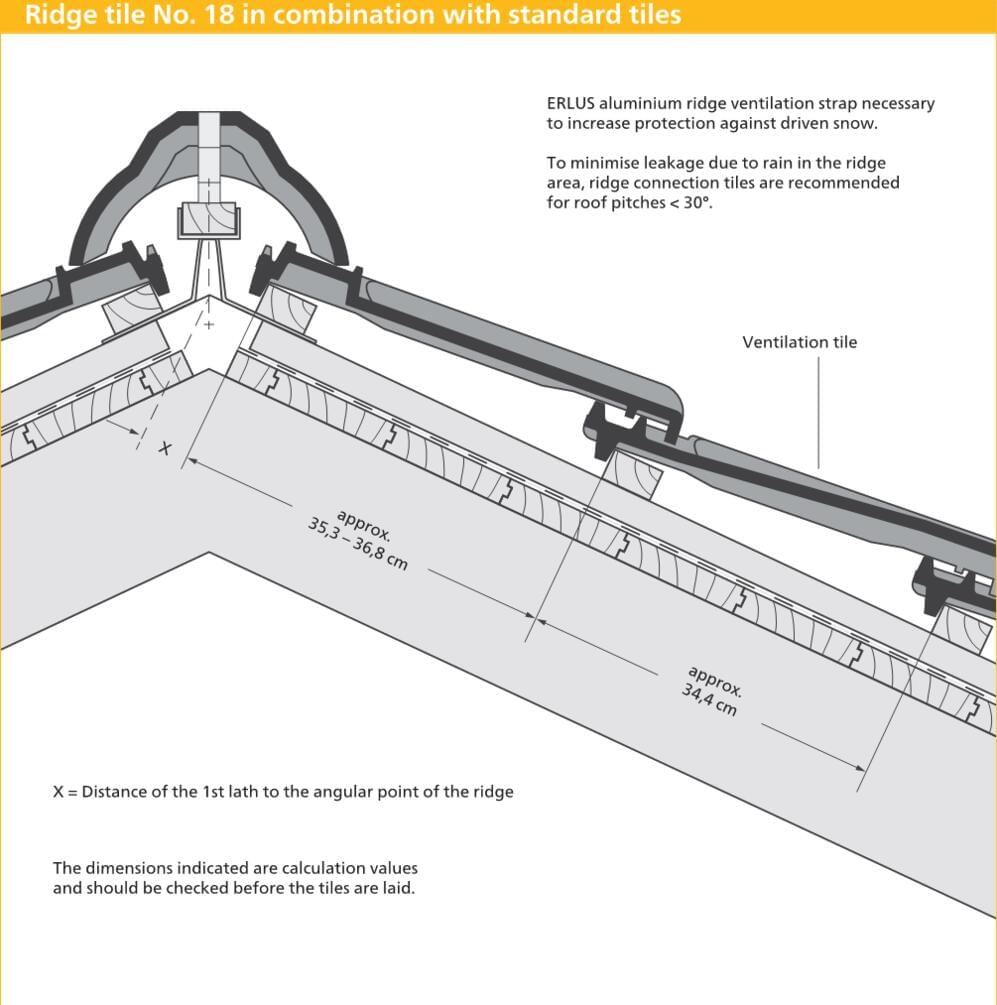

Distance between the 1st lath and the angular point of the ridge with ridge connection tiles and standard tiles
X (distance) in mm Ridge connection tile1)
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 15 60 55 50 45 45 45 45 45 45 - -
Ridge ventilation tile no. 15 Lü 65 65 60 55 50 50 45 45 - - -
Ridge tile no. 17 65 60 50 45 45 45 45 45 40 - -
Ridge ventilation tile no. 17 Lü 65 60 55 45 50 45 45 45 - - -
Ridge tile no. 18 45 40 35 25 30 30 30 30 25 25 -
Ridge ventilation tile no. 19 Lü 40 35 30 25 25 25 25 - - - -
Ridge tile no. 21 40 35 30 25 25 25 25 25 25 25 30
X (distance) in mm Standard tiles2)
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 15 75 70 65 60 60 55 55 55 55 - -
Ridge ventilation tile no. 15 Lü 75 70 65 65 60 60 - - - - -
Ridge tile no. 17 75 70 65 60 60 55 60 55 55 - -
Ridge ventilation tile no. 17 Lü - - - - - - - - - - -
Ridge tile no. 18 60 55 50 45 40 40 40 35 35 30 25
Ridge ventilation tile no. 19 Lü 60 55 50 45 40 40 - - - - -
Ridge tile no. 21 60 55 50 45 40 40 35 35 35 25 20

1) without aluminium ridge ventilation strap2) with aluminium ridge ventilation strap

Assignment of additional measures for the Ergoldsbacher Großfalzziegel

According to the Central Association of German Roofers’ pamphlet on sub-roofs, sub-coverings and under-bracings, and the basic regulations of the Roofers’ Guild, regular roof pitch 25° - when laid in cross pattern, when laid in rows - regular roof pitch 30°, minimum roof pitch 10°, according to the generally accepted rules of technology.
Country-specific building standards and/or regulations must be adhered to, if no other contractual agreements have been made.

Increased demands due to
Use: of the attic level, especially for residential purposes (residential use equals two increased demands)
Construction: special roof shapes (e.g. butterfly roof), long spar lengths (longer than 10 meters), heavily structured roof shapes (e.g. due to valleys, gables, etc.)
Climate situation: exposed locations, extreme locations, areas with a lot of snow, special weather situations, areas with a lot of wind
Technical installations: On-roof or in-roof systems, air-conditioning systems, antenna systems, roof access systems, rooflight/skylight
systems, snow guard systems, etc.

Classification
Class 1: Waterproof sub-roof (1.1.)
Class 2: Rainproof sub-roof (1.2.)
Class 3: Seam and perforation secured under-bracing (2.1.) Seam and perforation secured sub-covering (3.1.)
Class 4: Welded or glued sub-covering (2.2.) Coated under-bracing made of strips of bitumen (2.3.) Seam-secured sub-covering (3.2.)
Class 5: Overlapped / tongue in groove sub-covering (2.4.)
Class 6: Under-bracing (3.3.)

Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*2 further increased demands*3 further increased demands*
≥ 25° Class 6 Class 6 Class 5 Class 4
from < 25° to ≥ 21° Class 4 Class 4 Class 3 Class 3
from < 21° to ≥ 17° Class 3 Class 3 Class 3 Class 3
from < 17° to ≥ 13° Class 2 Class 2 Class 1 Class 1
from < 13° to ≥ 10° Class 1 Class 1 Class 1 Class 1
Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*
≥ 25° Class 6 Class 6
from < 25° to ≥ 21° Class 4 Class 4
from < 21° to ≥ 17° Class 3 Class 3
from < 17° to ≥ 13° Class 2 Class 2
from < 13° to ≥ 10° Class 1 Class 1
roof pitch2 further increased demands*3 further increased demands*
≥ 25° Class 5 Class 4
from < 25° to ≥ 21° Class 3 Class 3
from < 21° to ≥ 17° Class 3 Class 3
from < 17° to ≥ 13° Class 1 Class 1
from < 13° to ≥ 10° Class 1 Class 1

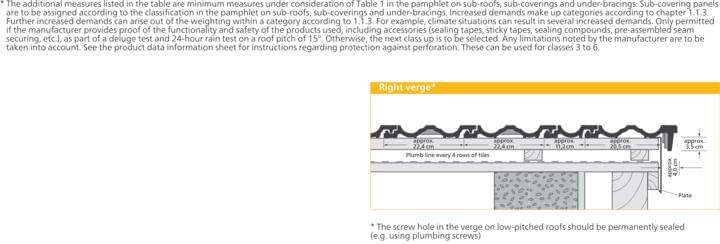

* The additional measures listed in the table are minimum measures under consideration of Table 1 in the pamphlet on sub-roofs, sub-coverings and under-bracings. Sub-covering panels are to be assigned according to the classification in the pamphlet on sub-roofs, sub-coverings and under-bracings. Increased demands make up categories according to chapter 1.1.3. Further increased demands can arise out of the weighting within a category according to 1.1.3. For example, climate situations can result in several increased demands. Only permitted if the manufacturer provides proof of the functionality and safety of the products used, including accessories (sealing tapes, sticky tapes, sealing compounds, pre-assembled seam securing, etc.), as part of a deluge test and 24-hour rain test on a roof pitch of 15°. Otherwise, the next class up is to be selected. Any limitations noted by the manufacturer are to be taken into account. See the product data information sheet for instructions regarding protection against perforation. These can be used for classes 3 to 6.

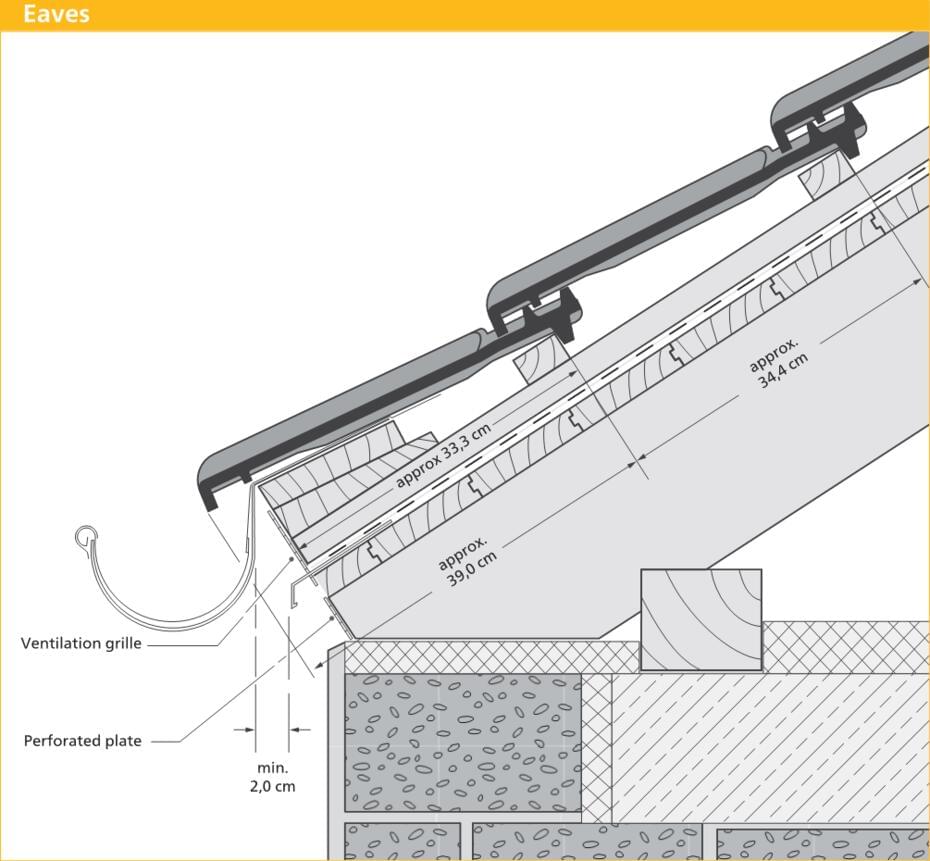

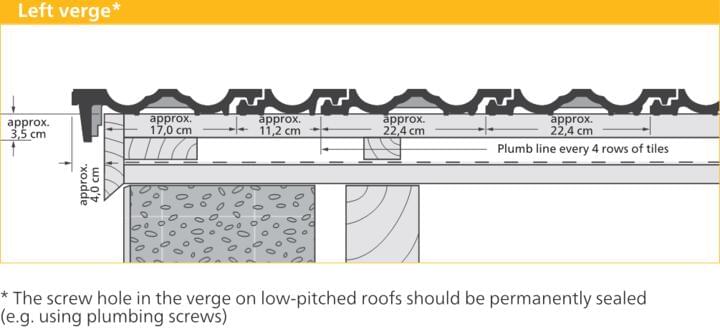

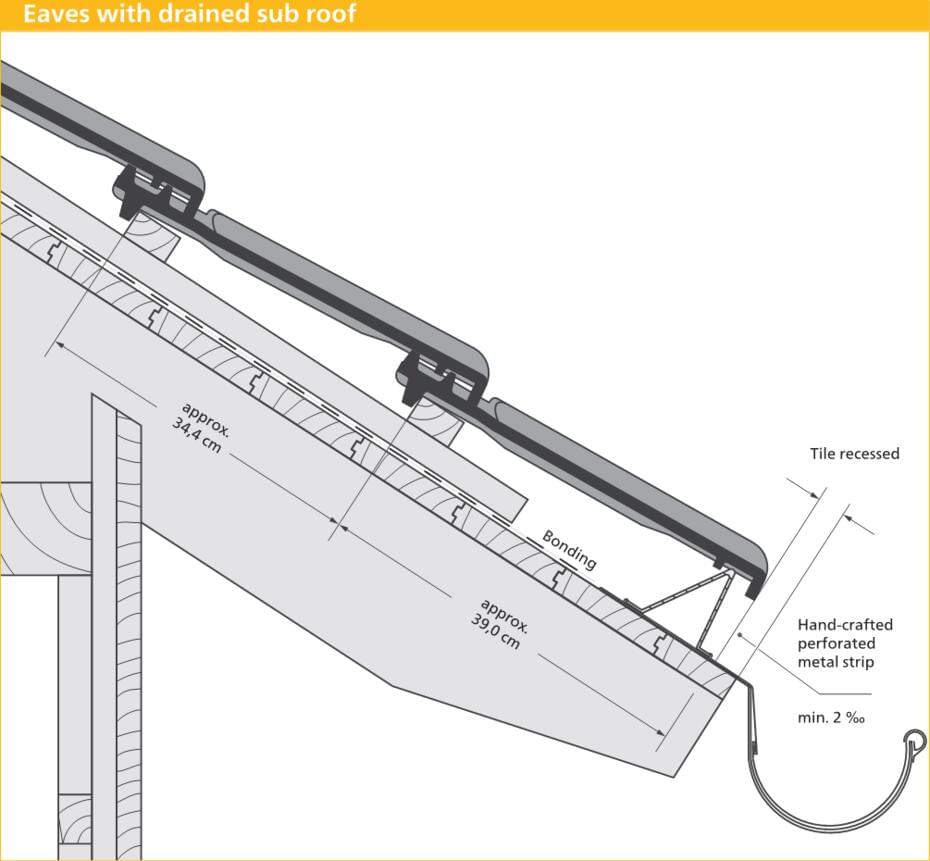

Technical drawings

These are the advantages of the
Ergoldsbacher Großfalzziegel

  • Easy to handle 3.6 kg per tile, can be laid with one hand

  • Gauge class: 34,0 cm

  • Profitable approx. 12,5 pcs./m², fully ceramic ridge ventilation constructions without ridge connection tile or other system parts for rafters up to 12 m long

  • Excellent raintightness and stormproofing with cross bond tiling

  • High single interlocking joint with rods (hence less dirt)

  • 25° standard roof pitch according to roofing regulations

  • Complete accessories including aluminium accessories from one source

  • Ideal renovation tile (16 mm displacement range)

Standard tile

Großfalzziegel - Natural red | Image product range
Standard tile

ERLUS Standard Accessories

Großfalzziegel - 1/2 Tile Natural red | Image product range | © © ERLUS AG 2021
1/2 Tile
Großfalzziegel - Verge tile left Natural red | Image product range | © © ERLUS AG 2021
Verge tile left
Großfalzziegel - Verge tile right Natural red | Image product range | © © ERLUS AG 2021
Verge tile right
Großfalzziegel - Double roll tile Natural red | Image product range | © © ERLUS AG 2021
Double roll tile
Großfalzziegel - Ridge connection tile Natural red | Image product range | © © ERLUS AG 2021
Ridge connection tile
Großfalzziegel - Ridge connection verge tile left Natural red | Image product range | © © ERLUS AG 2021
Ridge connection verge tile left
Großfalzziegel - Ridge connection verge tile right Natural red | Image product range | © © ERLUS AG 2021
Ridge connection verge tile right
Großfalzziegel - Pent roof tile Natural red | Image product range
Pent roof tile
Großfalzziegel - Pent roof verge tile left Natural red | Image product range
Pent roof verge tile left
Großfalzziegel - Pent roof verge tile right Natural red | Image product range
Pent roof verge tile right
Großfalzziegel - Ventilation tile Natural red | Image product range | © © ERLUS AG 2021
Ventilation tile
Großfalzziegel - Snow stop tile Natural red | Image product range | © © ERLUS AG 2021
Snow stop tile
Ridge tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge tile no. 15
Ridge end tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge end tile no. 15
Ridge compensation tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge compensation tile no. 15
Ridge ventilation tile no. 15 Lü Natural red | Image product range | © © ERLUS AG 2021
Ridge ventilation tile no. 15 Lü
Ridge beginning tile no. 15 Lü Natural red | Image product range
Ridge beginning tile no. 15 Lü
Ridge end tile no. 15 Lü Natural red | Image product range
Ridge end tile no. 15 Lü
Ridge tile no. 18 Natural red | Image product range | © © ERLUS AG 2021
Ridge tile no. 18
Ridge end tile no. 18 Natural red | Image product range
Ridge end tile no. 18
Ridge compensation tile no. 18 Natural red | Image product range
Ridge compensation tile no. 18
Ridge ventilation tile no. 19 Lü Natural red | Image product range | © © ERLUS AG 2021
Ridge ventilation tile no. 19 Lü
Ridge beginning tile no. 19 Lü
Ridge end tile no. 19 Lü Natural red | Image product range
Ridge end tile no. 19 Lü

ERLUS Special Accessories

Großfalzziegel - Aluminium sanitary ventilator with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium sanitary ventilator with base tile
Großfalzziegel - Aluminium aerial with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium aerial with base tile
Großfalzziegel - Aluminium solar outlet with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium solar outlet with base tile
Level RS® - Aluminium snow stop fence holder with base tile sinterrot - alu | Image product range | © © ERLUS AG 2021
Aluminium snow stop fence holder with base tile
Aluminium snow stop fence, 20 cm high naturrot/rot engobiert | Image product range
Aluminium snow stop fence, 20 cm high
Aluminium snow stop incl. snow guard tube bracket with base tile | Image product range | © © ERLUS AG 2021
Aluminium snow stop incl. snow guard tube bracket with base tile
Aluminium snow guard tube, length 2 m naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium snow guard tube, length 2 m
Aluminium connector for snow guard tube | Image product range | © © ERLUS AG 2021
Aluminium connector for snow guard tube
Aluminium round wood holder with base tile | Image product range | © © ERLUS AG 2021
Aluminium round wood holder with base tile

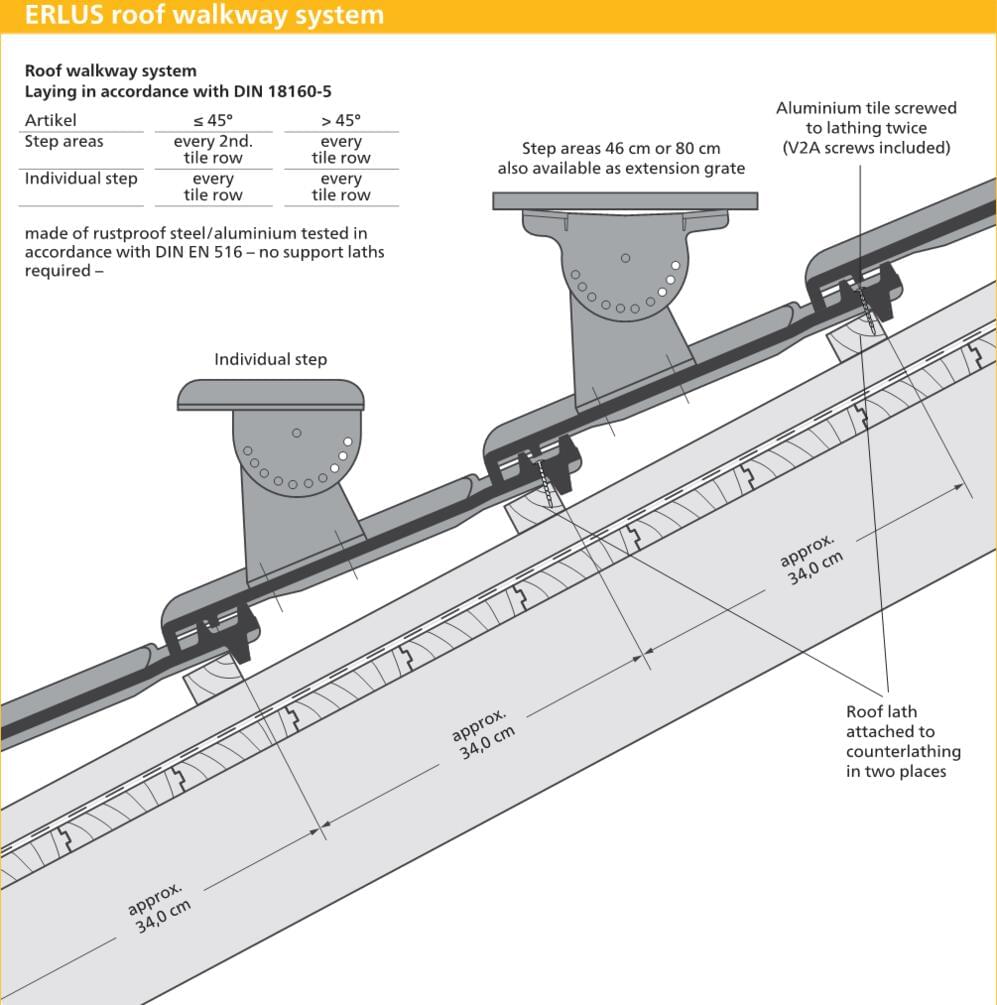

Aluminium step with base tile | Image product range | © © ERLUS AG 2021
Aluminium step with base tile
Aluminium step grate 46 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 46 cm x 25 cm, with two base tiles
Aluminium step grate 80 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 80 cm x 25 cm, with two base tiles
Aluminium extension step grate, 80 x 25 cm, with base tile | Image product range | © © ERLUS AG 2021
Aluminium extension step grate, 80 x 25 cm, with base tile
Aluminium step grate bracket, uncoated, with base tile | Image product range | © © ERLUS AG 2021
Aluminium step grate bracket, uncoated, with base tile
Aluminium safety hooks for ladder, Type A, with base tile | Image product range | © © ERLUS AG 2021
Aluminium safety hooks for ladder, Type A, with base tile
Großfalzziegel - Aluminium solar panel holder with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium solar panel holder with base tile
Ceramic ridge end disc with ERLUS-logo Natural red | Image product range
Ceramic ridge end disc with ERLUS-logo
Ceramic extension plate universal for ridge end tile Natural red | Image product range
Ceramic extension plate universal for ridge end tile
Ceramic hip cap no. 15 N Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap no. 15 N
Ceramic hip cap no. 18 N Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap no. 18 N
Ceramic hip cap für ridge beginning tiles no. 19 Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap für ridge beginning tiles no. 19
Ceramic hip cap for ridge end tiles no. 19 Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap for ridge end tiles no. 19
Ceramic hip cap with four outlets for rigde tiles Natural red | Image product range
Ceramic hip cap with four outlets for rigde tiles
Ceramic hip start for ridge tiles no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip start for ridge tiles no. 15
ERLUS universal solar module support, incl. ventilation tile | Image product range | © © ERLUS AG 2021
ERLUS universal solar module support, incl. ventilation tile
Universal ERLUS Sturmklammer I Größe "M" 2,5 mm 40/60 V2A Federstahl | Image product range | © © ERLUS AG 2021
ERLUS universal storm clips I M for battens 24/48 mm
Universal ERLUS Sturmklammer II Größe "M" 2,2 mm 40/60 V2A Federstahl | Image product range | © © ERLUS AG 2021
ERLUS universal storm clips II M for battens 30/50 mm
First-und Gratklammern für First 15/17 rot beschichtet -Systemverlegung- | Image product range
Ridge clips no. 15/17
First- und Gratklammern für Lüfterfirst Nr. 15 / 17  | Image product range
Ridge clips no. 15/17 Lü
First- und Gratklammern für Firstziegel Nr. 18/21 rot besch.  | Image product range
Ridge clips no. 18/21
First- und Gratklammern für Firstziegel Nr. 19  | Image product range
Ridge clips no. 19 Lü
Snow stop hooks
Aluminium ridge ventilation strap rot (beschichtet) | Image product range
Aluminium ridge ventilation strap
Eave protection tape rotbraun (beschichtet) | Image product range
Eave protection tape
Eave ventilation comb, PVC rotbraun (beschichtet) | Image product range
Eave ventilation comb, PVC
Großfalzziegel - Acrylic tile | Image product range | © © ERLUS AG 2021
Acrylic tile
Aluminium ridge end disc rotbraun/schwarz (beschichtet) | Image product range | © © ERLUS AG 2021
Aluminium ridge end disc

Roof surfaces

Großfalzziegel - Natural red | Image roof surface | © © ERLUS AG 2021 Natural red
Großfalzziegel - Copper brown | Image roof surface | © © ERLUS AG 2021 Copper brown
Großfalzziegel - Antique | Image roof surface | © © ERLUS AG 2021 Antique
Großfalzziegel - Red | Image roof surface | © © ERLUS AG 2021 Red
Großfalzziegel - Sepia | Image roof surface | © © ERLUS AG 2021 Sepia
Großfalzziegel - Anthracite | Image roof surface | © © ERLUS AG 2021 Antracite

Completed projects

Ergoldsbacher Großfalzziegel - Red | © ©ERLUS 2021 Ergoldsbacher Großfalzziegel - Red
Ergoldsbacher Großfalzziegel - Natural red | © ©ERLUS 2021 Ergoldsbacher Großfalzziegel - Natural red
Ergoldsbacher Großfalzziegel - Red | © ©ERLUS 2021 Ergoldsbacher Großfalzziegel - Red
Ergoldsbacher Großfalzziegel - Red | © ©ERLUS 2021 Ergoldsbacher Großfalzziegel - Red
Ergoldsbacher Großfalzziegel - Red | © ©ERLUS 2021 Ergoldsbacher Großfalzziegel - Red
Ergoldsbacher Großfalzziegel - Red | © ©ERLUS 2021 Ergoldsbacher Großfalzziegel - Red
Ergoldsbacher Großfalzziegel - Red | © ©ERLUS 2021 Ergoldsbacher Großfalzziegel - Red

The traditional interlocking tile covering a 20 percent larger surface area

It’s true that the shape of the Ergoldsbacher Großfalzziegel is based on its historic role model, the Ergoldsbacher Falzziegel (interlocking tile), but it covers 20 percent more surface area, so it adapts very well to fit renovation requirements. With a displacement range of 16 mm, it is easy to lay, very flexible, and easy to handle. One of the distinctive features of its shape is its high rib, which separates the interlocking joint from the deep channels which the water flows through: it also adds to the proofing against rain or drifting snow getting in.
Quantity required per m²: from 12.5 Pieces
Minimum roof pitch: 10 °
Regular roof pitch: 25 °

Zur Speicherung und Verwendung von ERLUS Mediendateien akzeptieren Sie bitte nachfolgende Nutzungsbedingungen.

Hiermit bestätige ich meine Zustimmung.
