Ergoldsbacher Falzziegel (Interlocking Tile)

Color palette
Natural red
  • Falzziegel (Interlocking Tile) - Natural red | Image standard tiles | © © ERLUS AG 2021
  • Falzziegel (Interlocking Tile) - Red | Image standard tiles | © © ERLUS AG 2021
  • Falzziegel (Interlocking Tile) - Copper brown | Image standard tiles | © © ERLUS AG 2021
  • Falzziegel (Interlocking Tile) - Sinterfalz Sinter red | Image standard tiles | © © ERLUS AG 2021

Technical data

Size: aprox. 22.5 x 40.5 cm
Gauge: aprox. 32.6 - 34.6 cm
Average cover width: aprox. 19.8 cm
Quantity required per m²: from 15.0 Pieces
Weight per m² in accordance with DIN 1055 incl. battens: aprox. 0.55 kN/m²
Real weight without battens: aprox. 48 kg/m²
Pallet capacity: 280 Pieces
Pallet weight: aprox. 970 kg
Bundle capacity: 4 Pieces
Hail resistance class: 4
Gauge class: 34,0 cm
X (distance) in mm Standard tiles1)
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 5 70 50 50 45 40 40 40 40 35 - -
Ridge ventilation tile no. 6 Lü 60 50 45 45 40 40 40 - - - -
Ridge tile no. 15 80 75 75 70 70 70 65 60 60 55 50
Ridge ventilation tile no. 15 Lü 80 75 75 70 70 65 60 - - - -
Ridge tile no. 17 80 75 75 70 70 70 65 60 60 55 50
Ridge ventilation tile no. 17 Lü 80 75 75 70 70 70 60 60 - - -
Ridge tile no. 18 75 60 55 45 40 40 40 40 35 35 -
Ridge ventilation tile no. 19 Lü 55 50 45 45 40 40 30 35 - - -
Ridge tile no. 21 70 50 45 45 40 40 40 35 35 35 30

1) with aluminium ridge ventilation strap

Assignment of additional measures for the Ergoldsbacher Falzziegel

According to the Central Association of German Roofers’ pamphlet on sub-roofs, sub-coverings and under-bracings, and the basic regulations of the Roofers’ Guild, regular roof pitch 30°, minimum roof pitch 10° (can be laid in a cross bond pattern as well as in rows), according to the generally accepted rules of technology.
Country-specific building standards and/or regulations must be adhered to, if no other contractual agreements have been made.

Increased demands due to
Use: of the attic level, especially for residential purposes (residential use equals two increased demands)
Construction: special roof shapes (e.g. butterfly roof), long spar lengths (longer than 10 meters), heavily structured roof shapes (e.g. due to valleys, gables, etc.)
Climate situation: exposed locations, extreme locations, areas with a lot of snow, special weather situations, areas with a lot of wind
Technical installations: On-roof or in-roof systems, air-conditioning systems, antenna systems, roof access systems, rooflight/skylight
systems, snow guard systems, etc.

Classification
Class 1: Waterproof sub-roof (1.1.)
Class 2: Rainproof sub-roof (1.2.)
Class 3: Seam and perforation secured under-bracing (2.1.) Seam and perforation secured sub-covering (3.1.)
Class 4: Welded or glued sub-covering (2.2.) Coated under-bracing made of strips of bitumen (2.3.) Seam-secured sub-covering (3.2.)
Class 5: Overlapped / tongue in groove sub-covering (2.4.)
Class 6: Under-bracing (3.3.)

Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*2 further increased demands*3 further increased demands*
≥ 30° Class 6 Class 6 Class 5 Class 4
from < 30° to ≥ 26° Class 4 Class 4 Class 3 Class 3
from < 26° to ≥ 22° Class 3 Class 3 Class 3 Class 3
from < 22° to ≥ 18° Class 2 Class 2 Class 1 Class 1
from < 18° to ≥ 10° Class 1 Class 1 Class 1 Class 1
Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*
≥ 30° Class 6 Class 6
from < 30° to ≥ 26° Class 4 Class 4
from < 26° to ≥ 22° Class 3 Class 3
from < 22° to ≥ 18° Class 2 Class 2
from < 18° to ≥ 10° Class 1 Class 1
roof pitch2 further increased demands*3 further increased demands*
≥ 30° Class 5 Class 4
from < 30° to ≥ 26° Class 3 Class 3
from < 26° to ≥ 22° Class 3 Class 3
from < 22° to ≥ 18° Class 1 Class 1
from < 18° to ≥ 10° Class 1 Class 1
* The additional measures listed in the table are minimum measures under consideration of Table 1 in the pamphlet on sub-roofs, sub-coverings and under-bracings. Sub-covering panels are to be assigned according to the classification in the pamphlet on sub-roofs, sub-coverings and under-bracings. Increased demands make up categories according to chapter 1.1.3. Further increased demands can arise out of the weighting within a category according to 1.1.3. For example, climate situations can result in several increased demands. Only permitted if the manufacturer provides proof of the functionality and safety of the products used, including accessories (sealing tapes, sticky tapes, sealing compounds, pre-assembled seam securing, etc.), as part of a deluge test and 24-hour rain test on a roof pitch of 15°. Otherwise, the next class up is to be selected. Any limitations noted by the manufacturer are to be taken into account. See the product data information sheet for instructions regarding protection against perforation. These can be used for classes 3 to 6.

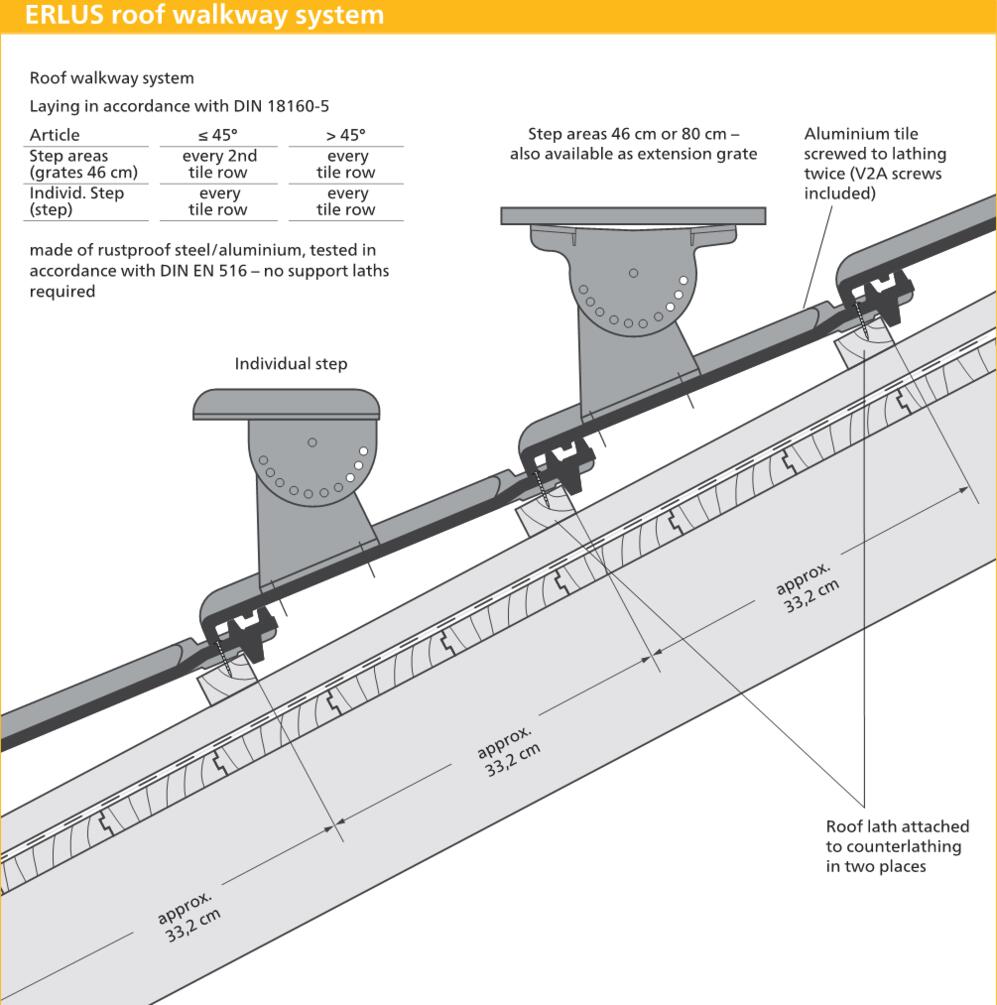

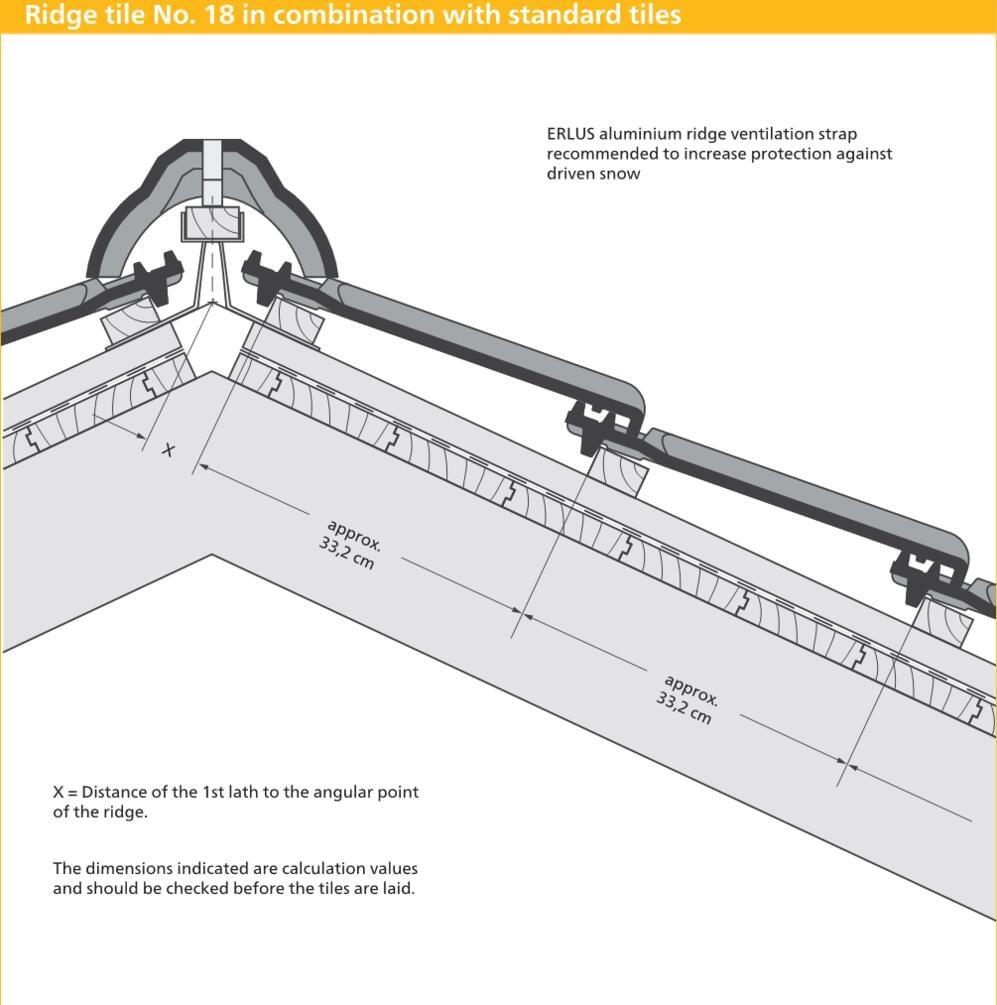

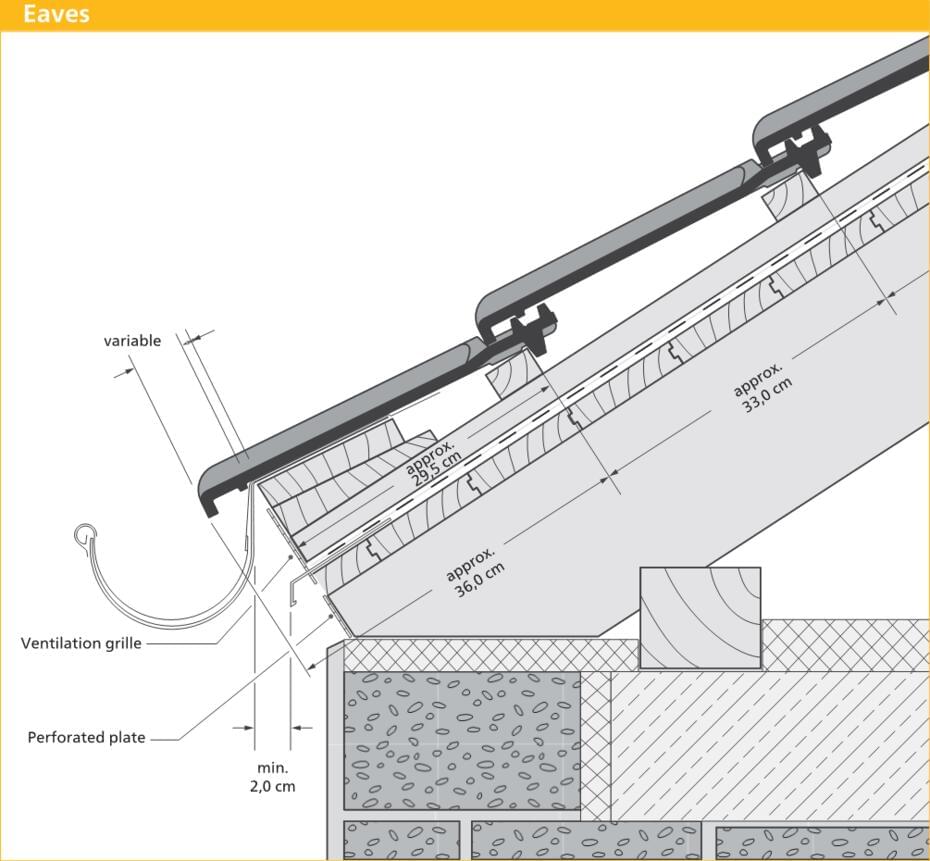

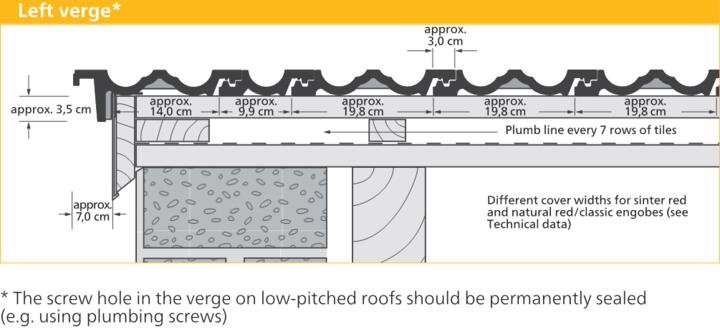

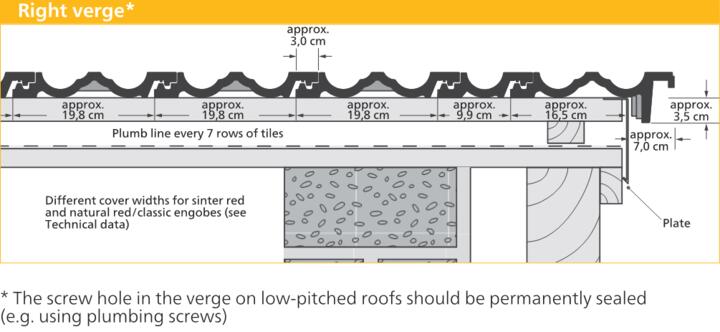

Technical drawings

These are the advantages of the
Ergoldsbacher Falzziegel

  • Complete accessories including aluminium accessories from one source

  • Also available in sintered quality (fired to clinker hardness at 1.200°C)

  • Profitable All-ceramic ventilated ridge design without ridge connection tiles or other system components up to 8 m rafter length

  • Excellent raintightness and stormproofing with cross bond tiling

  • Standard roof pitch 30° according to roofing regulations

  • High single interlocking joint with rods (hence less dirt)

  • Ideal for roof renovation robust, 20 mm sliding range

Standard tile

Falzziegel (Interlocking Tile) - Natural red | Image product range | © © ERLUS AG 2021
Standard tile

ERLUS Standard Accessories

Falzziegel (Interlocking Tile) - 1/2 Tile Natural red | Image product range | © © ERLUS AG 2021
1/2 Tile
Falzziegel (Interlocking Tile) - Verge tile left Natural red | Image product range | © © ERLUS AG 2021
Verge tile left
Falzziegel (Interlocking Tile) - Verge tile right Natural red | Image product range | © © ERLUS AG 2021
Verge tile right
Falzziegel (Interlocking Tile) - Ventilation tile Natural red | Image product range | © © ERLUS AG 2021
Ventilation tile
Ridge tile no. 5 Natural red | Image product range | © © ERLUS AG 2021
Ridge tile no. 5
Ridge beginning tile no. 5 Natural red | Image product range
Ridge beginning tile no. 5
Ridge end tile no. 5 Natural red | Image product range
Ridge end tile no. 5
 | Image product range | © © ERLUS AG 2021
Ridge ventilation tile no. 6 Lü
Ridge beginning tile no. 6 Lü Natural red | Image product range
Ridge beginning tile no. 6 Lü
Ridge end tile no. 6 Lü Natural red | Image product range
Ridge end tile no. 6 Lü
Ridge tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge tile no. 15
Ridge end tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge end tile no. 15
Ridge compensation tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge compensation tile no. 15
Ridge tile no. 18 Natural red | Image product range | © © ERLUS AG 2021
Ridge tile no. 18
Ridge end tile no. 18 Natural red | Image product range
Ridge end tile no. 18
Ridge compensation tile no. 18 Natural red | Image product range
Ridge compensation tile no. 18
Ridge ventilation tile no. 19 Lü Natural red | Image product range | © © ERLUS AG 2021
Ridge ventilation tile no. 19 Lü
Ridge beginning tile no. 19 Lü
Ridge end tile no. 19 Lü Natural red | Image product range
Ridge end tile no. 19 Lü

ERLUS Special Accessories

Falzziegel (Interlocking Tile) - Aluminium sanitary ventilator with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium sanitary ventilator with base tile
Falzziegel (Interlocking Tile) - Aluminium aerial with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium aerial with base tile
Falzziegel (Interlocking Tile) - Aluminium solar outlet with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium solar outlet with base tile
Level RS® - Aluminium snow stop fence holder with base tile sinterrot - alu | Image product range | © © ERLUS AG 2021
Aluminium snow stop fence holder with base tile
Aluminium snow stop fence, 20 cm high naturrot/rot engobiert | Image product range
Aluminium snow stop fence, 20 cm high
Aluminium snow stop incl. snow guard tube bracket with base tile | Image product range | © © ERLUS AG 2021
Aluminium snow stop incl. snow guard tube bracket with base tile
Aluminium snow guard tube, length 2 m naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium snow guard tube, length 2 m
Aluminium connector for snow guard tube | Image product range | © © ERLUS AG 2021
Aluminium connector for snow guard tube
Aluminium round wood holder with base tile | Image product range | © © ERLUS AG 2021
Aluminium round wood holder with base tile
Aluminium step with base tile | Image product range | © © ERLUS AG 2021
Aluminium step with base tile
Aluminium step grate 46 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 46 cm x 25 cm, with two base tiles
Aluminium step grate 80 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 80 cm x 25 cm, with two base tiles
Aluminium extension step grate, 80 x 25 cm, with base tile | Image product range | © © ERLUS AG 2021
Aluminium extension step grate, 80 x 25 cm, with base tile
Aluminium step grate bracket, uncoated, with base tile | Image product range | © © ERLUS AG 2021
Aluminium step grate bracket, uncoated, with base tile
Aluminium safety hooks for ladder, Type A, with base tile | Image product range | © © ERLUS AG 2021
Aluminium safety hooks for ladder, Type A, with base tile
Falzziegel (Interlocking Tile) - Aluminium solar panel holder with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium solar panel holder with base tile
Ceramic ridge end disc with ERLUS-logo Natural red | Image product range
Ceramic ridge end disc with ERLUS-logo
Ceramic extension plate universal for ridge end tile Natural red | Image product range
Ceramic extension plate universal for ridge end tile
Ceramic hip cap no. 15 N Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap no. 15 N
Ceramic hip cap no. 18 N Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap no. 18 N
Ceramic hip cap für ridge beginning tiles no. 19 Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap für ridge beginning tiles no. 19
Ceramic hip cap for ridge end tiles no. 19 Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap for ridge end tiles no. 19
Ceramic hip cap with four outlets for rigde tiles Natural red | Image product range
Ceramic hip cap with four outlets for rigde tiles
Ceramic hip start for ridge tiles no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip start for ridge tiles no. 15
Universal ERLUS Sturmklammer I Größe "M" 2,5 mm 40/60 V2A Federstahl | Image product range | © © ERLUS AG 2021
ERLUS universal storm clips I M for battens 24/48 mm
Universal ERLUS Sturmklammer II Größe "M" 2,2 mm 40/60 V2A Federstahl | Image product range | © © ERLUS AG 2021
ERLUS universal storm clips II M for battens 30/50 mm
First- und Gratklammern für Firstziegel Nr. 5 rot besch.  | Image product range
Ridge clips no. 5
First-und Gratklammern für First 15/17 rot beschichtet -Systemverlegung- | Image product range
Ridge clips no. 15/17
First- und Gratklammern für Firstziegel Nr. 18/21 rot besch.  | Image product range
Ridge clips no. 18/21
First- und Gratklammern für Firstziegel Nr. 19  | Image product range
Ridge clips no. 19 Lü
Falzziegel (Interlocking Tile) - Snow stop hooks rot (beschichtet) | Image product range
Snow stop hooks
Aluminium ridge ventilation strap rot (beschichtet) | Image product range
Aluminium ridge ventilation strap
Eave protection tape rotbraun (beschichtet) | Image product range
Eave protection tape
Eave ventilation comb, PVC rotbraun (beschichtet) | Image product range
Eave ventilation comb, PVC
Falzziegel (Interlocking Tile) - Acrylic tile | Image product range | © © ERLUS AG 2021
Acrylic tile
Aluminium ridge end disc rotbraun/schwarz (beschichtet) | Image product range | © © ERLUS AG 2021
Aluminium ridge end disc

Roof surfaces

Falzziegel (Interlocking Tile) - Natural red | Image roof surface | © © ERLUS AG 2021 Natural red
Falzziegel (Interlocking Tile) - Copper brown | Image roof surface | © © ERLUS AG 2021 Copper brown
Falzziegel (Interlocking Tile) - Red | Image roof surface | © © ERLUS AG 2021 Red
Falzziegel (Interlocking Tile) - Sinterfalz Sinter red | Image roof surface | © © ERLUS AG 2021 Sinterfalz Sinter red

The historic original - robust and typical for the region

The Ergoldsbacher interlocking tile has a long tradition: This model has been produced at ERLUS for more than a hundred years. Today, this classic tile meets modern requirements offering the best quality without losing its authentic character. These are requirements mandated by the preservation of historical monuments. With the new 20 mm sliding range* – available in natural red and red – the tile has been even better adapted to renovation. This means that it fits on almost all roof battens and is ideally suited for retiling or extending existing roofs with new tiles.
Quantity required per m²: from 15.0 Pieces
Minimum roof pitch: 10 °
Regular roof pitch: 30 °
