Ergoldsbacher Scala®

Color palette
Natural red
  • Scala® - Natural red | Image standard tiles | © © ERLUS AG 2021
  • Scala® - Sinter red | Image standard tiles | © © ERLUS AG 2021
  • Scala® - Anthracite | Image standard tiles | © © ERLUS AG 2021
  • Scala® - Sinter black matt | Image standard tiles | © © ERLUS AG 2021

Technical data

Size: aprox. 27.5 x 47.0 cm
Gauge:1)2) aprox. 31.0 - 38.0 cm
Average cover width: aprox. 24.6 cm 3) / 24.4 cm 4)
Quantity required per m²: aprox. 11.0 Pieces
Weight per m² in accordance with DIN 1055 incl. battens: aprox. 0.55 kN/m²
Real weight without battens: aprox. 51 kg/m²
Pallet capacity: 192 Pieces
Pallet weight: aprox. 930 kg
Bundle capacity: 4 Pieces
Hail resistance class: 4
Gauge class: 34,0 cm

1) Klassik-Engoben (naturrot, anthrazit)

2) Sinterrot, Sinterschwarz Matt
3) Klassik-Engoben (naturrot, anthrazit)
4) Sinterrot, Sinterschwarz Matt
X (distance) in mm Standard tiles1)
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 15 60 60 50 50 45 45 50 50 50 50
Ridge ventilation tile no. 15 Lü 60 60 50 50 45 45 50 50 70 70
Ridge tile no. 17 60 60 50 50 45 45 50 50 50 50
Ridge ventilation tile no. 17 Lü 60 60 50 50 45 45 50 50 70 70
Ridge tile no. 18 40 40 30 30 30 30 30 30 30 30
Ridge ventilation tile no. 19 Lü 40 40 30 30 30 30 30 30 30 -
Ridge tile no. 21 40 40 30 30 30 30 30 30 30 30

1) with aluminium ridge ventilation strap

Assignment of additional measures for the Ergoldsbacher Scala®

According to the Central Association of German Roofers’ pamphlet on sub-roofs, sub-coverings and under-bracings, and the basic regulations of the Roofers’ Guild, regular roof pitch 25° when layed in a cross bond pattern, according to the state of technology.
Country-specific building standards and/or regulations must be adhered to, if no other contractual agreements have been made.

Increased demands due to
Use: of the attic level, especially for residential purposes (residential use equals two increased demands)
Construction: special roof shapes (e.g. butterfly roof), long spar lengths (longer than 10 meters), heavily structured roof shapes (e.g. due to valleys, gables, etc.)
Climate situation: exposed locations, extreme locations, areas with a lot of snow, special weather situations, areas with a lot of wind
Technical installations: On-roof or in-roof systems, air-conditioning systems, antenna systems, roof access systems, rooflight/skylight
systems, snow guard systems, etc.

Classification
Class 1: Waterproof sub-roof (1.1.)
Class 2: Rainproof sub-roof (1.2.)
Class 3: Seam and perforation secured under-bracing (2.1.) Seam and perforation secured sub-covering (3.1.)
Class 4: Welded or glued sub-covering (2.2.) Coated under-bracing made of strips of bitumen (2.3.) Seam-secured sub-covering (3.2.)
Class 5: Overlapped / tongue in groove sub-covering (2.4.)
Class 6: Under-bracing (3.3.)

Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*2 further increased demands*3 further increased demands*
≥ 25° Class 6 Class 6 Class 5 Class 4
from < 25° to ≥ 21° Class 4 Class 4 Class 3 Class 3
from < 21° to ≥ 17° Class 3 Class 3 Class 3 Class 3*
from < 17° to ≥ 13° Class 2 Class 2 Class 1 Class 1
from < 13° to ≥ 10° Class 1 Class 1 Class 1 Class 1
Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*
≥ 25° Class 6 Class 6
from < 25° to ≥ 21° Class 4 Class 4
from < 21° to ≥ 17° Class 3 Class 3
from < 17° to ≥ 13° Class 2 Class 2
from < 13° to ≥ 10° Class 1 Class 1
roof pitch2 further increased demands*3 further increased demands*
≥ 25° Class 5 Class 4
from < 25° to ≥ 21° Class 3 Class 3
from < 21° to ≥ 17° Class 3 Class 3*
from < 17° to ≥ 13° Class 1 Class 1
from < 13° to ≥ 10° Class 1 Class 1
* The additional measures listed in the table are minimum measures under consideration of Table 1 in the pamphlet on sub-roofs, sub-coverings and under-bracings. Sub-covering panels are to be assigned according to the classification in the pamphlet on sub-roofs, sub-coverings and under-bracings. Increased demands make up categories according to chapter 1.1.3. Further increased demands can arise out of the weighting within a category according to 1.1.3. For example, climate situations can result in several increased demands. Only permitted if the manufacturer provides proof of the functionality and safety of the products used, including accessories (sealing tapes, sticky tapes, sealing compounds, pre-assembled seam securing, etc.), as part of a deluge test and 24-hour rain test on a roof pitch of 15°. Otherwise, the next class up is to be selected. Any limitations noted by the manufacturer are to be taken into account. See the product data information sheet for instructions regarding protection against perforation. These can be used for classes 3 to 6.

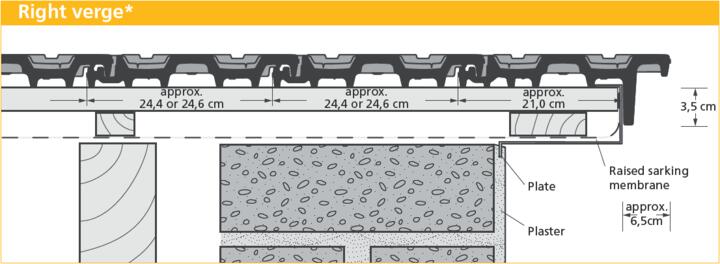

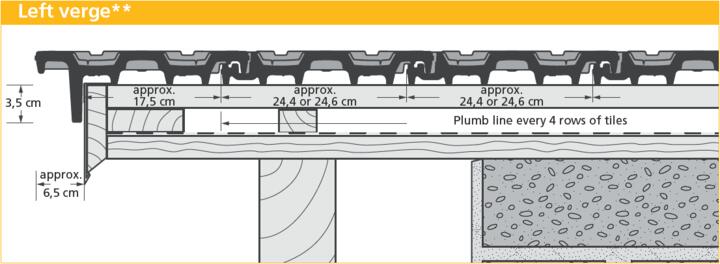

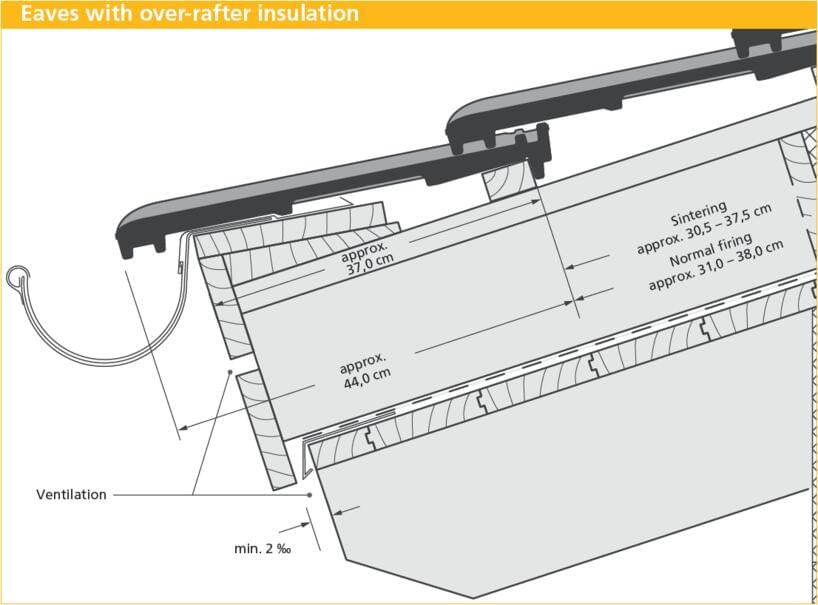

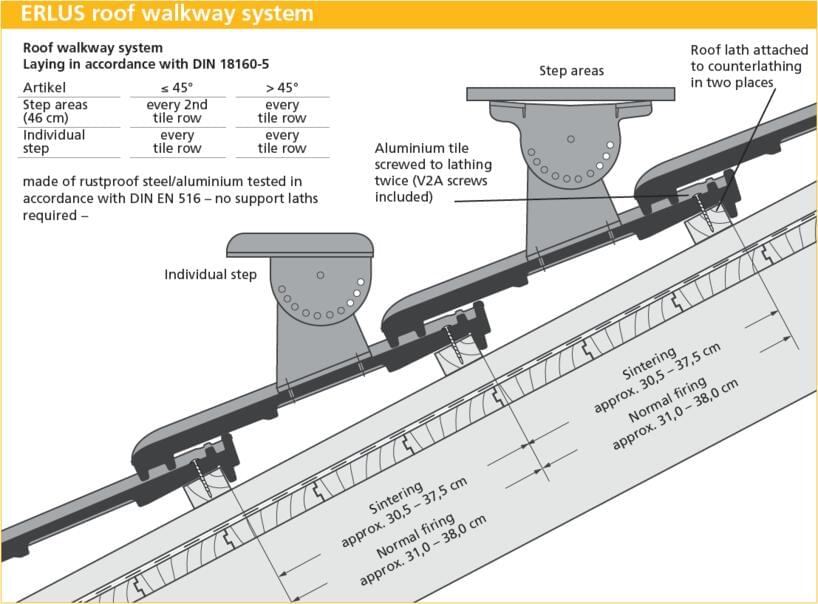

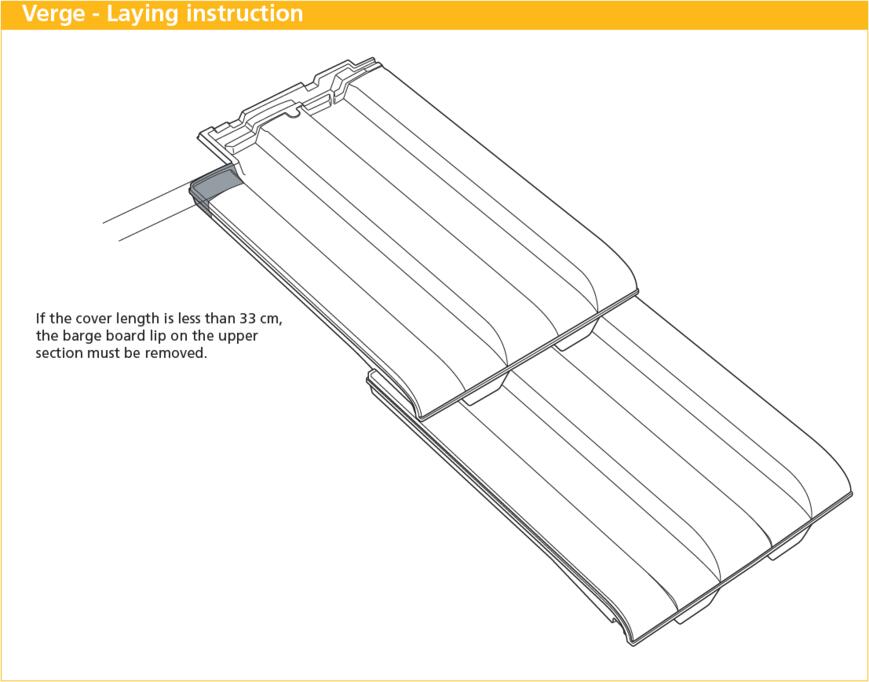

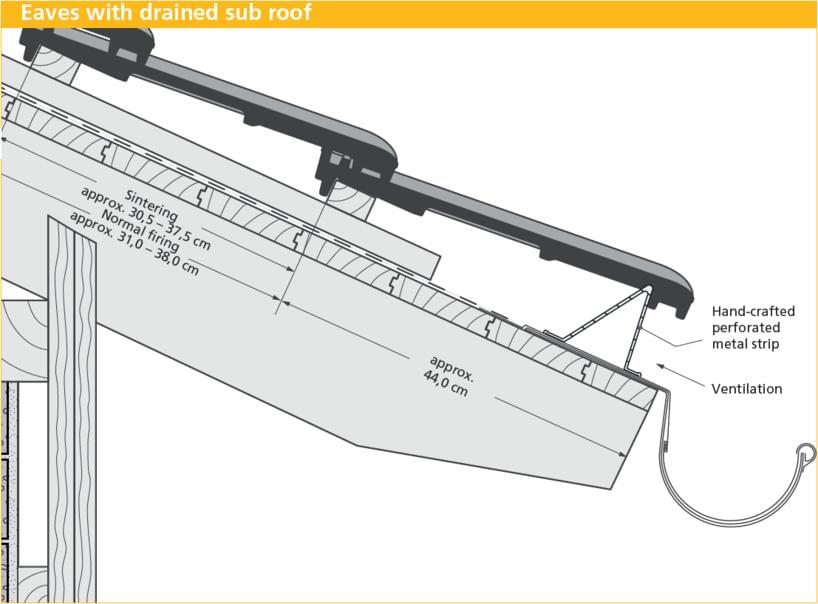

Technical drawings

These are the advantages of the
Ergoldsbacher Scala®

  • 70 mm sliding range

  • Also available in sintered quality

  • Extremely robust Hail resistance class 4

  • Particularly safe against rain and snow getting in due to double interlocking head and side joints

  • Highly stormproof when laid in a cross bond pattern, even when used without storm-clips

  • Profitable from 11 pcs./m² on, can also be laid in rows (standard roof pitch 25° or 30°)

  • Four-tile corner

  • Storm groove

  • Reliable water channel

  • Gauge class: 34,0 cm

Standard tile

Standard tile

ERLUS Standard Accessories

Scala® - 1/2 Tile Natural red | Image product range
1/2 Tile
Scala® - Verge tile left Natural red | Image product range
Verge tile left
Scala® - Verge tile right Natural red | Image product range
Verge tile right
Scala® - Pent roof tile Natural red | Image product range | © © ERLUS AG 2021
Pent roof tile
Scala® - 1/2 Pent roof tile Natural red | Image product range | © © ERLUS AG 2021
1/2 Pent roof tile
Scala® - Pent roof verge tile left Natural red | Image product range | © © ERLUS AG 2021
Pent roof verge tile left
Scala® - Pent roof verge tile right Natural red | Image product range | © © ERLUS AG 2021
Pent roof verge tile right
Scala® - Ventilation tile Natural red | Image product range
Ventilation tile
Ridge tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge tile no. 15
Ridge end tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge end tile no. 15
Ridge compensation tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge compensation tile no. 15
Ridge tile no. 17 Natural red | Image product range | © © ERLUS AG 2021
Ridge tile no. 17
Ridge end tile no. 17 Natural red | Image product range
Ridge end tile no. 17
Ridge tile no. 17 Natural red | Image product range
Ridge compensation tile no. 17
Ridge ventilation tile no. 17 Lü Natural red | Image product range | © © ERLUS AG 2021
Ridge ventilation tile no. 17 Lü
Ridge beginning tile no. 17 Lü Natural red | Image product range
Ridge beginning tile no. 17 Lü
Ridge end tile no. 17 Lü Natural red | Image product range
Ridge end tile no. 17 Lü
Ridge ventilation tile no. 19 Lü Natural red | Image product range | © © ERLUS AG 2021
Ridge ventilation tile no. 19 Lü
Ridge beginning tile no. 19 Lü
Ridge end tile no. 19 Lü Natural red | Image product range
Ridge end tile no. 19 Lü

ERLUS Special Accessories

Scala® - Aluminium sanitary ventilator with base tile naturrot/rot engobiert | Image product range
Aluminium sanitary ventilator with base tile
Scala® - Aluminium aerial with base tile naturrot/rot engobiert | Image product range
Aluminium aerial with base tile
Scala® - Aluminium solar outlet with base tile naturrot/rot engobiert | Image product range
Aluminium solar outlet with base tile
Level RS® - Aluminium snow stop fence holder with base tile sinterrot - alu | Image product range | © © ERLUS AG 2021
Aluminium snow stop fence holder with base tile
Aluminium snow stop fence, 20 cm high naturrot/rot engobiert | Image product range
Aluminium snow stop fence, 20 cm high
Aluminium snow stop incl. snow guard tube bracket with base tile | Image product range | © © ERLUS AG 2021
Aluminium snow stop incl. snow guard tube bracket with base tile
Aluminium snow guard tube, length 2 m naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium snow guard tube, length 2 m
Aluminium connector for snow guard tube | Image product range | © © ERLUS AG 2021
Aluminium connector for snow guard tube
Aluminium round wood holder with base tile | Image product range | © © ERLUS AG 2021
Aluminium round wood holder with base tile
Aluminium step with base tile | Image product range | © © ERLUS AG 2021
Aluminium step with base tile
Aluminium step grate 46 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 46 cm x 25 cm, with two base tiles
Aluminium step grate 80 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 80 cm x 25 cm, with two base tiles
Aluminium extension step grate, 80 x 25 cm, with base tile | Image product range | © © ERLUS AG 2021
Aluminium extension step grate, 80 x 25 cm, with base tile
Aluminium step grate bracket, uncoated, with base tile | Image product range | © © ERLUS AG 2021
Aluminium step grate bracket, uncoated, with base tile
Aluminium safety hooks for ladder, Type A, with base tile | Image product range | © © ERLUS AG 2021
Aluminium safety hooks for ladder, Type A, with base tile
Scala® - Aluminium solar panel holder with base tile naturrot/rot engobiert | Image product range
Aluminium solar panel holder with base tile
Scala® - Ceramic thermal exhaust gas through tile, Ø 70 / 110 Natural red | Image product range | © © ERLUS AG 2021
Ceramic thermal exhaust gas through tile, Ø 70 / 110
Ceramic ridge end disc with ERLUS-logo Natural red | Image product range
Ceramic ridge end disc with ERLUS-logo
Ceramic extension plate universal for ridge end tile Natural red | Image product range
Ceramic extension plate universal for ridge end tile
Ceramic hip cap no. 15 N Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap no. 15 N
Ceramic hip cap no. 17 N Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap no. 17 N
Ceramic hip cap für ridge beginning tiles no. 19 Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap für ridge beginning tiles no. 19
Ceramic hip cap for ridge end tiles no. 19 Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap for ridge end tiles no. 19
Ceramic hip cap with four outlets for rigde tiles Natural red | Image product range
Ceramic hip cap with four outlets for rigde tiles
Ceramic hip start for ridge tiles no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip start for ridge tiles no. 15
Universal ERLUS Sturmklammer I Größe "M" 2,5 mm 40/60 V2A Federstahl | Image product range | © © ERLUS AG 2021
ERLUS universal storm clips I M for battens 24/48 mm
First-und Gratklammern für First 15/17 rot beschichtet -Systemverlegung- | Image product range
Ridge clips no. 15/17
First- und Gratklammern für Lüfterfirst Nr. 15 / 17  | Image product range
Ridge clips no. 15/17 Lü
First- und Gratklammern für Firstziegel Nr. 19  | Image product range
Ridge clips no. 19 Lü
Aluminium ridge ventilation strap rot (beschichtet) | Image product range
Aluminium ridge ventilation strap
Eave protection tape rotbraun (beschichtet) | Image product range
Eave protection tape
Eave ventilation comb, PVC rotbraun (beschichtet) | Image product range
Eave ventilation comb, PVC
Aluminium ridge end disc rotbraun/schwarz (beschichtet) | Image product range | © © ERLUS AG 2021
Aluminium ridge end disc

Roof surfaces

Scala® - Natural red | Image roof surface | © © ERLUS AG 2021 Natural red
Scala® - Sinter red | Image roof surface | © © ERLUS AG 2021 Sinter red
Scala® - Sinter black matt | Image roof surface | © © ERLUS AG 2021 Sinter black matt
Scala® - Anthracite | Image roof surface | © © ERLUS AG 2021 Antracite

Very flexible – with a 70 mm sliding range

The Ergoldsbacher Scala® will surprise you with its generous sliding range of 70 mm, which particularly pays when retiling the roof or extending existing tiling with new tiles. The variable covering length is not only practical and economical - laid in an overlapped or fully slotted manner, the modern sliding tile also makes exceptional tiling designs possible. Regarding its form, it is perfectly equipped to prevent drifting snow or rain getting in, and to withstand wind suction: due to the double interlocking side joint and watercourse in the four-tile corner, a double foot joint and two head joint ribs.
Quantity required per m²: aprox. 11.0 Pieces
Minimum roof pitch: 10 °
Regular roof pitch: 25 °
