Ergoldsbacher Plain Tile

Color palette
Natural red
  • Plain Tile  - Standard tile Natural red | Image standard tiles | © © ERLUS AG 2021
  • Plain Tile  - Standard tile Red | Image standard tiles | © © ERLUS AG 2021
  • Plain Tile  - Standard tile Copper brown | Image standard tiles | © © ERLUS AG 2021
  • Plain Tile  - Standard tile Brazil brown | Image standard tiles | © © ERLUS AG 2021
  • Plain Tile  - Standard tile Anthracite | Image standard tiles | © © ERLUS AG 2021
  • Plain Tile  - Standard tile Historic | Image standard tiles | © © ERLUS AG 2021
  • Plain Tile  - Standard tile Maroon | Image standard tiles | © © ERLUS AG 2021
  • Plain Tile  - Standard tile Diamond black | Image standard tiles | © © ERLUS AG 2021
  • Ergoldsbacher Sinterbiber Rundschnitt 1. Sorte sinterrot  | Image standard tiles | © © ERLUS AG 2021
  • Ergoldsbacher Sinterbiber Rundschnitt 1. Sorte siena  | Image standard tiles | © © ERLUS AG 2021

Technical data

Size: aprox. 18.0 x 38.0 x 1.5 cm ± 2%
Gauge: each from 30 °: 14.5 - 16.5 cm 1) | 29.0 - 33.0 cm 2)
Average cover width: aprox. 18.0 cm ± 2%
Quantity required per m²: 1) 2) 33.7 - 44.5 Pieces 3)
Weight per m² in accordance with DIN 1055 incl. battens: 1) 2) aprox. 0.75 kN/m²
Pallet capacity: 512 Pieces
Pallet weight: aprox. 1,040 kg
Bundle capacity: 8 Pieces
1) Double formation
2) Crown formation
3) depends on cover and format

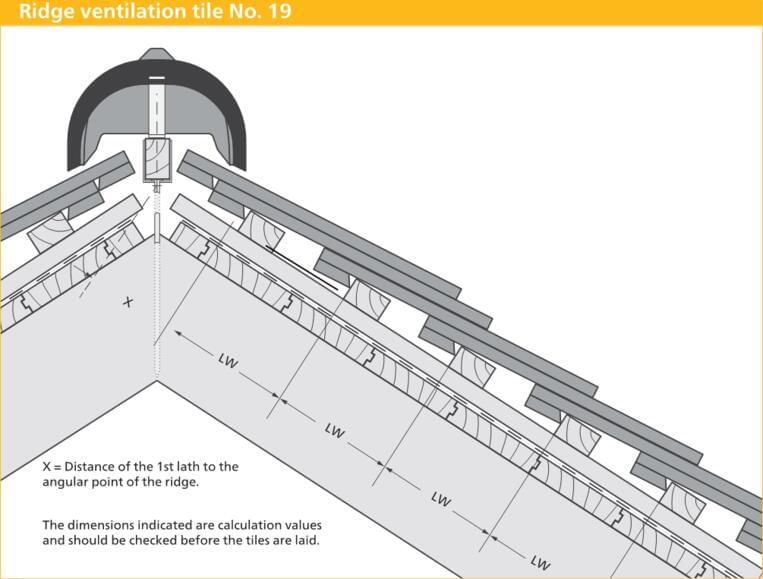

Distance between the 1st lath and the angular point of the ridge with ridge connection tiles and standard tiles
X (distance) in mm Plain tile
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 1 - - - - 65 60 55 45 40 - -
Ridge tile no. 2 90 90 80 80 80 80 75 70 70 65 65
Ridge tile no. 15 100 100 100 90 90 90 90 90 90 90 -
Ridge ventilation tile no. 15 Lü 100 100 100 90 90 90 - - - - -
Ridge ventilation tile no. 19 Lü 100 100 90 80 80 80 80 85 90 90 100*
Ridge tile no. 21 100 100 90 80 80 80 80 70 70 65 60
X (distance) in mm Sinter plain tile
Roof pitch in ° 10°15°20°25°30°35°40°45°50°55°60°
Ridge tile no. 1 - - - - 65 60 55 45 40 - -
Ridge tile no. 2 90 90 80 80 80 80 75 70 70 65 65
Ridge tile no. 15 - - - - - - - - - - -
Ridge ventilation tile no. 15 Lü - - - - - - - - - - -
Ridge ventilation tile no. 19 Lü 100 100 90 80 80 80 80 85 90 90 100*
Ridge tile no. 21 - - - - - - - - - - -

* vermörtelt

Tabelle Lattung
Roof pitch in ° < 30°> 30° - ≤ 35°> 35° - ≤ 40°
Mindestüberdeckung 9,0 cm 9,0 cm 8,0 cm

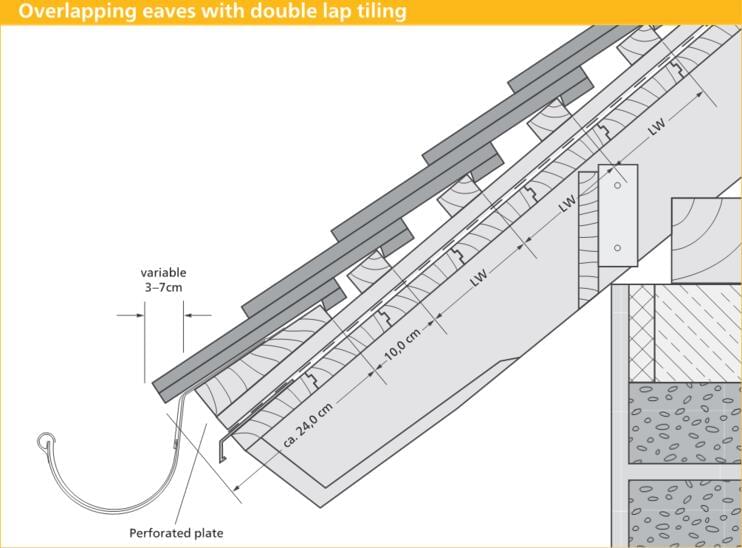

Gauge double formation 14,5 cm 14,5 cm 15,0 cm

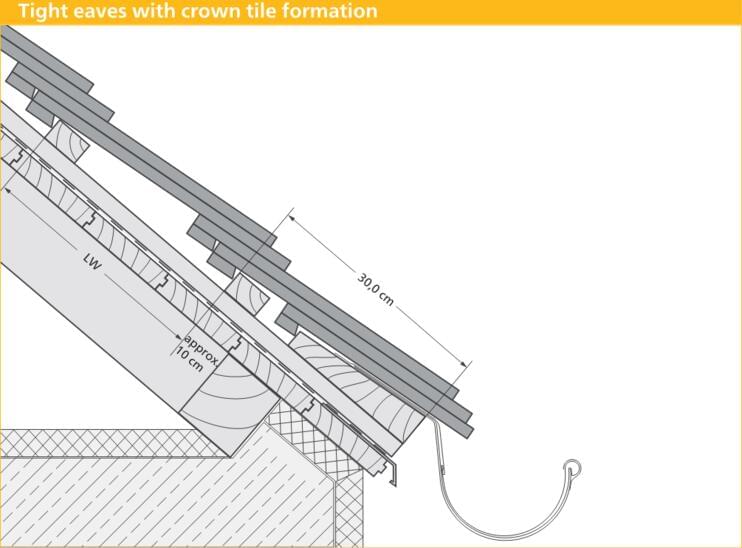

Gauge crown formation 29,0 cm 29,0 cm 30,0 cm
Roof pitch in ° > 40° - ≤ 45°> 45° - ≤ 60°> 60°
Mindestüberdeckung 7,0 cm 6,0 cm 5,0 cm
Gauge double formation 15,5 cm 16,0 cm 16,5 cm
Gauge crown formation 31,0 cm 32,0 cm 33,0 cm

Assignment of additional measures for the Ergoldsbacher Plain Tiles

According to the Central Association of German Roofers’ pamphlet on sub-roofs, sub-coverings and under-bracings, and the basic regulations of the Roofers’ Guild, regular roof pitch 30°, minimum roof pitch Plain tile 18°/Sinter Plain tile 10°, according to the state of technology.
Country-specific building standards and/or regulations must be adhered to, if no other contractual agreements have been made.

Increased demands due to
Use: of the attic level, especially for residential purposes (residential use equals two increased demands)
Construction: special roof shapes (e.g. butterfly roof), long spar lengths (longer than 10 meters), heavily structured roof shapes (e.g. due to valleys, gables, etc.)
Climate situation: exposed locations, extreme locations, areas with a lot of snow, special weather situations, areas with a lot of wind
Technical installations: On-roof or in-roof systems, air-conditioning systems, antenna systems, roof access systems, rooflight/skylight
systems, snow guard systems, etc.

Classification
Class 1: Waterproof sub-roof (1.1.)
Class 2: Rainproof sub-roof (1.2.)
Class 3: Seam and perforation secured under-bracing (2.1.) Seam and perforation secured sub-covering (3.1.)
Class 4: Welded or glued sub-covering (2.2.) Coated under-bracing made of strips of bitumen (2.3.) Seam-secured sub-covering (3.2.)
Class 5: Overlapped / tongue in groove sub-covering (2.4.)
Class 6: Under-bracing (3.3.)

Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*2 further increased demands*3 further increased demands*
≥ 30° Class 6 Class 6 Class 5 Class 4
from < 30° to ≥ 26° Class 4 Class 4 Class 3 Class 3
from < 26° to ≥ 22° Class 3 Class 3 Class 3 Class 3*
from < 22° to ≥ 18° Class 2 Class 2 Class 1 Class 1
from < 18° to ≥ 10° Class 1 Class 1 Class 1 Class 1
Definition of sub-roof's type to use
roof pitchNo further increased demands*1 further increased demands*
≥ 30° Class 6 Class 6
from < 30° to ≥ 26° Class 4 Class 4
from < 26° to ≥ 22° Class 3 Class 3
from < 22° to ≥ 18° Class 2 Class 2
from < 18° to ≥ 10° Class 1 Class 1
roof pitch2 further increased demands*3 further increased demands*
≥ 30° Class 5 Class 4
from < 30° to ≥ 26° Class 3 Class 3
from < 26° to ≥ 22° Class 3 Class 3*
from < 22° to ≥ 18° Class 1 Class 1
from < 18° to ≥ 10° Class 1 Class 1
* The additional measures listed in the table are minimum measures under consideration of Table 1 in the pamphlet on sub-roofs, sub-coverings and under-bracings. Sub-covering panels are to be assigned according to the classification in the pamphlet on sub-roofs, sub-coverings and under-bracings. Increased demands make up categories according to chapter 1.1.3. Further increased demands can arise out of the weighting within a category according to 1.1.3. For example, climate situations can result in several increased demands. Only permitted if the manufacturer provides proof of the functionality and safety of the products used, including accessories (sealing tapes, sticky tapes, sealing compounds, pre-assembled seam securing, etc.), as part of a deluge test and 24-hour rain test on a roof pitch of 15°. Otherwise, the next class up is to be selected. Any limitations noted by the manufacturer are to be taken into account. See the product data information sheet for instructions regarding protection against perforation. These can be used for classes 3 to 6.

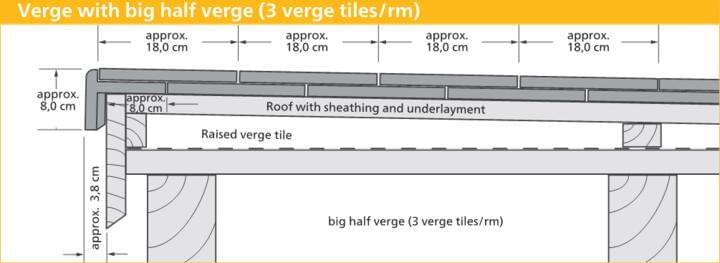

Technical drawings

These are the advantages of the
Ergoldsbacher Plain Tile

  • Countless surfaces and profiles from the ERLUS plain tile manufacture

  • Complete accessories including aluminium accessories from one source

  • Different verge tile solutions 6 pcs./m, 3 pcs./m, ¾, 1¼

  • Wide range of colours

  • Particularly robust and shatter-resistant e.g. hail resistance class 5 for the 18 mm-thick church plain tile

  • Very good proofing against drifting snow (no convex plain tiles)

  • Also available sintered

  • Economical barge board (3 tiles/m.), ridge type without groove vents for ridge 2 or ridge 19

Standard tile

Plain Tile  - Standard tile Natural red | Image product range
Standard tile

ERLUS Standard Accessories

Plain Tile  - 1/2 Plain tile (separable) Natural red | Image product range | © © ERLUS AG 2021
1/2 Plain tile (separable)
Plain Tile  - 3/4 Plain tile Natural red | Image product range | © © ERLUS AG 2021
3/4 Plain tile
Plain Tile  - 1 1/4 Plain tile Natural red | Image product range | © © ERLUS AG 2021
1 1/4 Plain tile

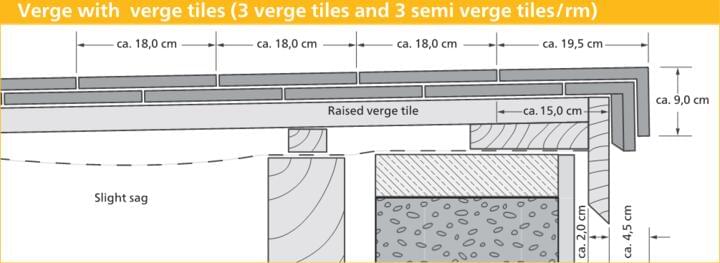

Plain Tile  - Verge tile left Natural red | Image product range | © © ERLUS AG 2021
Verge tile left
Plain Tile  - Verge tile right Natural red | Image product range | © © ERLUS AG 2021
Verge tile right
Plain Tile  - 1/2 Verge tile left Natural red | Image product range | © © ERLUS AG 2021
1/2 Verge tile left
Plain Tile  - 1/2 Verge tile right Natural red | Image product range | © © ERLUS AG 2021
1/2 Verge tile right

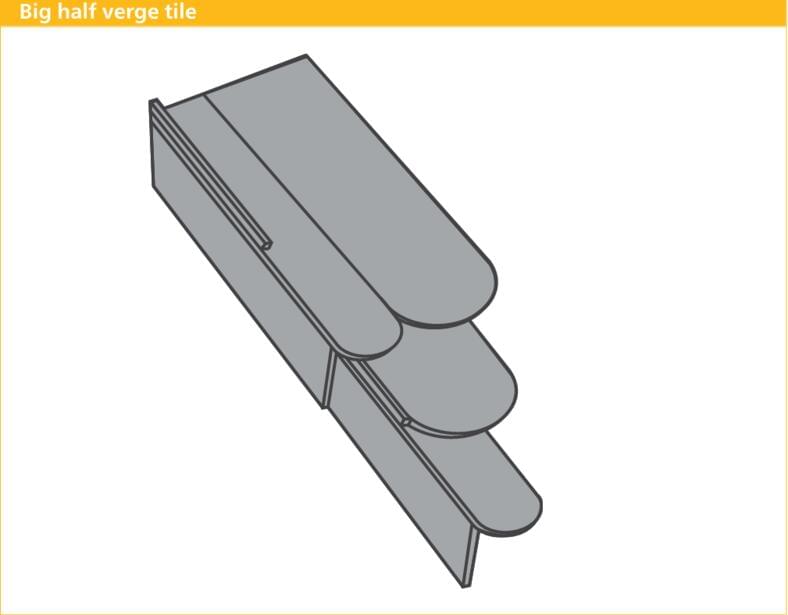

Plain Tile  - Big 1/2 Verge tile left Natural red | Image product range | © © ERLUS AG 2021
Big 1/2 Verge tile left
Plain Tile  - Big 1/2 Verge tile right Natural red | Image product range | © © ERLUS AG 2021
Big 1/2 Verge tile right
Plain Tile  - Ridge connection tile Natural red | Image product range | © © ERLUS AG 2021
Ridge connection tile
Plain Tile  - Eave tile Natural red | Image product range | © © ERLUS AG 2021
Eave tile
Plain Tile  - Ventilation tile Natural red | Image product range | © © ERLUS AG 2021
Ventilation tile (Froschmaul)
Plain Tile  - Biber groove ventilation tile Natural red | Image product range | © © ERLUS AG 2021
Biber groove ventilation tile
Ridge tile no. 1 Natural red | Image product range | © © ERLUS AG 2021
Ridge tile no. 1
Ridge end tile no. 1 Natural red | Image product range
Ridge end tile no. 1
Ridge tile no. 2 Natural red | Image product range | © © ERLUS AG 2021
Ridge tile no. 2
Ridge end tile no. 2 Natural red | Image product range
Ridge end tile no. 2
Ridge tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge tile no. 15
Ridge end tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge end tile no. 15
Ridge compensation tile no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ridge compensation tile no. 15
Ridge ventilation tile no. 19 Lü Natural red | Image product range | © © ERLUS AG 2021
Ridge ventilation tile no. 19 Lü
Ridge beginning tile no. 19 Lü
Ridge end tile no. 19 Lü Natural red | Image product range
Ridge end tile no. 19 Lü

ERLUS Special Accessories

Plain Tile  - Aluminium sanitary ventilator with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium sanitary ventilator with base tile
Plain Tile  - Aluminium aerial with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium aerial with base tile
Plain Tile  - Aluminium solar outlet with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium solar outlet with base tile
Level RS® - Aluminium snow stop fence holder with base tile sinterrot - alu | Image product range | © © ERLUS AG 2021
Aluminium snow stop fence holder with base tile
Aluminium snow stop fence, 20 cm high naturrot/rot engobiert | Image product range
Aluminium snow stop fence, 20 cm high
Aluminium snow stop incl. snow guard tube bracket with base tile | Image product range | © © ERLUS AG 2021
Aluminium snow stop incl. snow guard tube bracket with base tile
Aluminium snow guard tube, length 2 m naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium snow guard tube, length 2 m
Aluminium connector for snow guard tube | Image product range | © © ERLUS AG 2021
Aluminium connector for snow guard tube
Aluminium round wood holder with base tile | Image product range | © © ERLUS AG 2021
Aluminium round wood holder with base tile

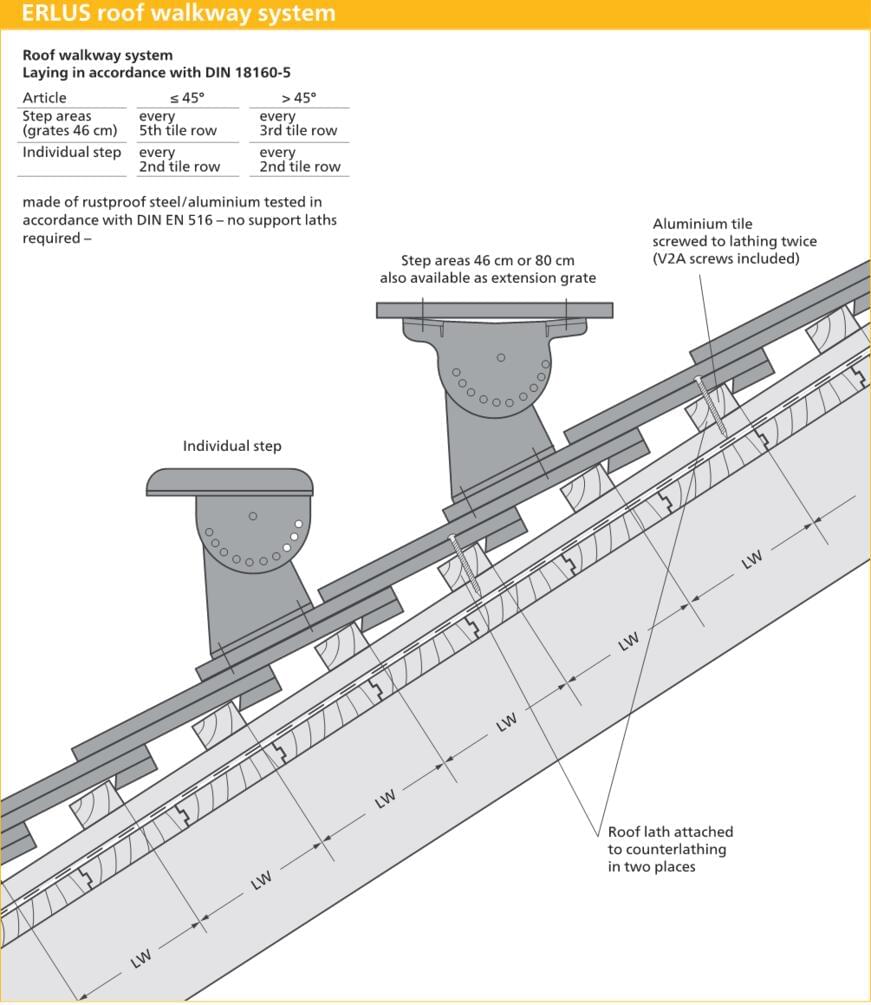

Aluminium step with base tile | Image product range | © © ERLUS AG 2021
Aluminium step with base tile
Aluminium step grate 46 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 46 cm x 25 cm, with two base tiles
Aluminium step grate 80 cm x 25 cm, with two base tiles | Image product range | © © ERLUS AG 2021
Aluminium step grate 80 cm x 25 cm, with two base tiles
Aluminium extension step grate, 80 x 25 cm, with base tile | Image product range | © © ERLUS AG 2021
Aluminium extension step grate, 80 x 25 cm, with base tile
Aluminium step grate bracket, uncoated, with base tile | Image product range | © © ERLUS AG 2021
Aluminium step grate bracket, uncoated, with base tile
Aluminium safety hooks for ladder, Type A, with base tile | Image product range | © © ERLUS AG 2021
Aluminium safety hooks for ladder, Type A, with base tile
Plain Tile  - Aluminium solar panel holder with base tile naturrot/rot engobiert | Image product range | © © ERLUS AG 2021
Aluminium solar panel holder with base tile
Plain Tile  - Ceramic sanitary ventilator, Ø 125 Natural red | Image product range
Ceramic sanitary ventilator, Ø 125
Ceramic ridge end disc with ERLUS-logo Natural red | Image product range
Ceramic ridge end disc with ERLUS-logo
Ceramic extension plate universal for ridge end tile Natural red | Image product range
Ceramic extension plate universal for ridge end tile
Ceramic hip cap no. 1 Natural red | Image product range
Ceramic hip cap no. 1
Ceramic hip cap no. 2 Natural red | Image product range
Ceramic hip cap no. 2
Ceramic hip cap no. 15 N Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap no. 15 N
Ceramic hip cap für ridge beginning tiles no. 19 Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap für ridge beginning tiles no. 19
Ceramic hip cap for ridge end tiles no. 19 Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip cap for ridge end tiles no. 19
Ceramic hip cap with four outlets for rigde tiles Natural red | Image product range
Ceramic hip cap with four outlets for rigde tiles
Ceramic hip start for ridge tiles no. 15 Natural red | Image product range | © © ERLUS AG 2021
Ceramic hip start for ridge tiles no. 15
First- und Gratklammern für Firstziegel Nr. 1/2 rot besch.  | Image product range
Ridge clips no. 1/2
First-und Gratklammern für First 15/17 rot beschichtet -Systemverlegung- | Image product range
Ridge clips no. 15/17
First- und Gratklammern für Firstziegel Nr. 19  | Image product range
Ridge clips no. 19 Lü
Aluminium ridge ventilation strap rot (beschichtet) | Image product range
Aluminium ridge ventilation strap
Eave protection tape rotbraun (beschichtet) | Image product range
Eave protection tape
Eave ventilation comb, PVC rotbraun (beschichtet) | Image product range
Eave ventilation comb, PVC
Plain Tile  - Acrylic tile | Image product range | © © ERLUS AG 2021
Acrylic tile
Aluminium ridge end disc rotbraun/schwarz (beschichtet) | Image product range | © © ERLUS AG 2021
Aluminium ridge end disc

Roof surfaces

Plain Tile  - Standard tile Natural red | Image roof surface | © © ERLUS AG 2021 Natural red
Plain Tile  - Standard tile Copper brown | Image roof surface | © © ERLUS AG 2021 Copper brown
Plain Tile  - Standard tile Red | Image roof surface | © © ERLUS AG 2021 Red
Plain Tile  - Standard tile Historic | Image roof surface | © © ERLUS AG 2021 Historic
Plain Tile  - Standard tile Diamond black | Image roof surface | © © ERLUS AG 2021 Diamond black
Plain Tile  - Standard tile Maroon | Image roof surface | © © ERLUS AG 2021 Maroon
Plain Tile  - Standard tile Anthracite | Image roof surface | © © ERLUS AG 2021 Antracite
Plain Tile  - Standard tile Brazil brown | Image roof surface | © © ERLUS AG 2021 Brazil brown
Ergoldsbacher Sinterbiber Rundschnitt 1. Sorte sinterrot  | Image roof surface | © © ERLUS AG 2021 Sinter Plain Tile Sinter red
Ergoldsbacher Sinterbiber Rundschnitt 1. Sorte siena  | Image roof surface | © © ERLUS AG 2021 Sinter Plain Tile Siena

Completed projects

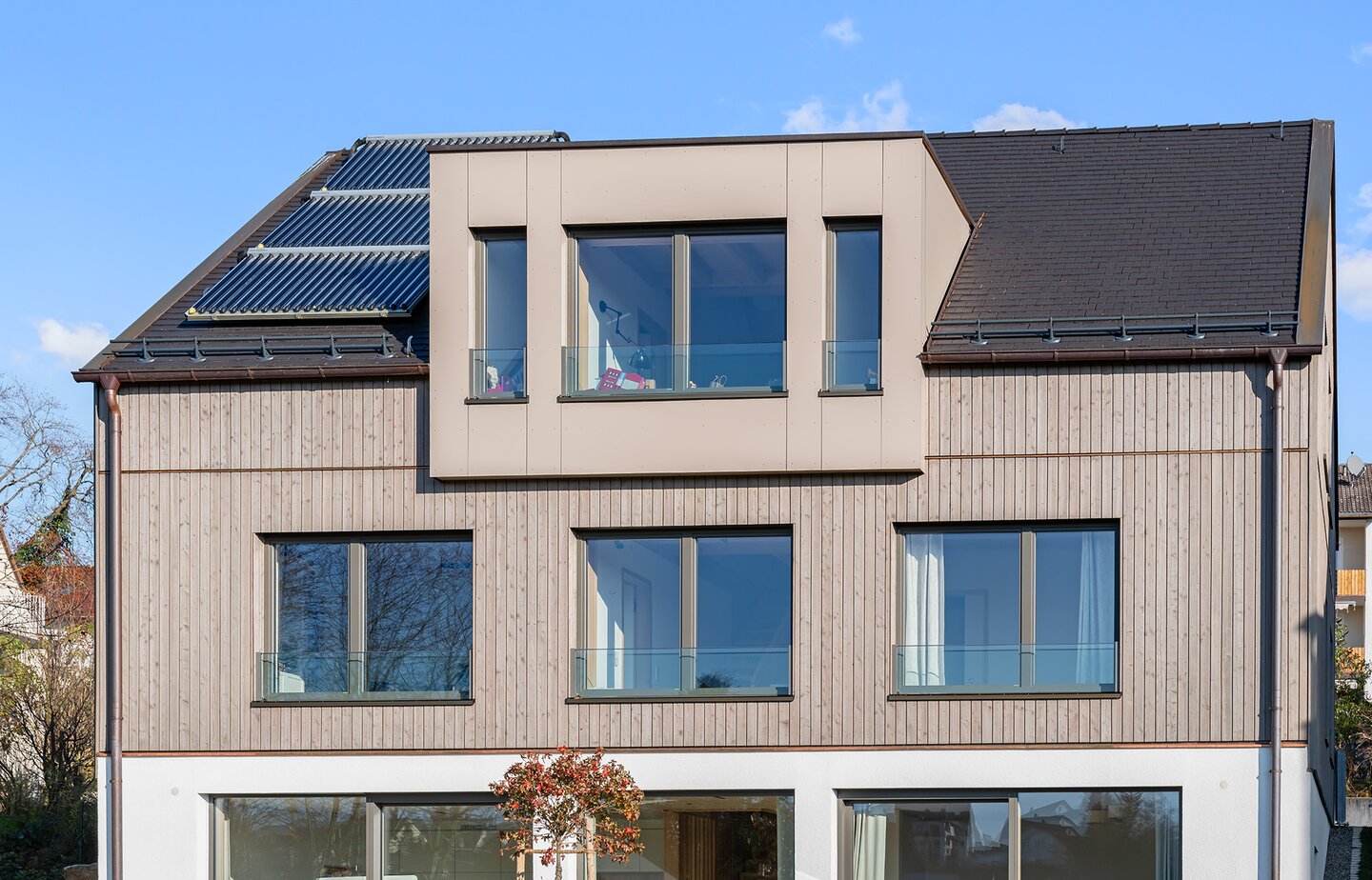

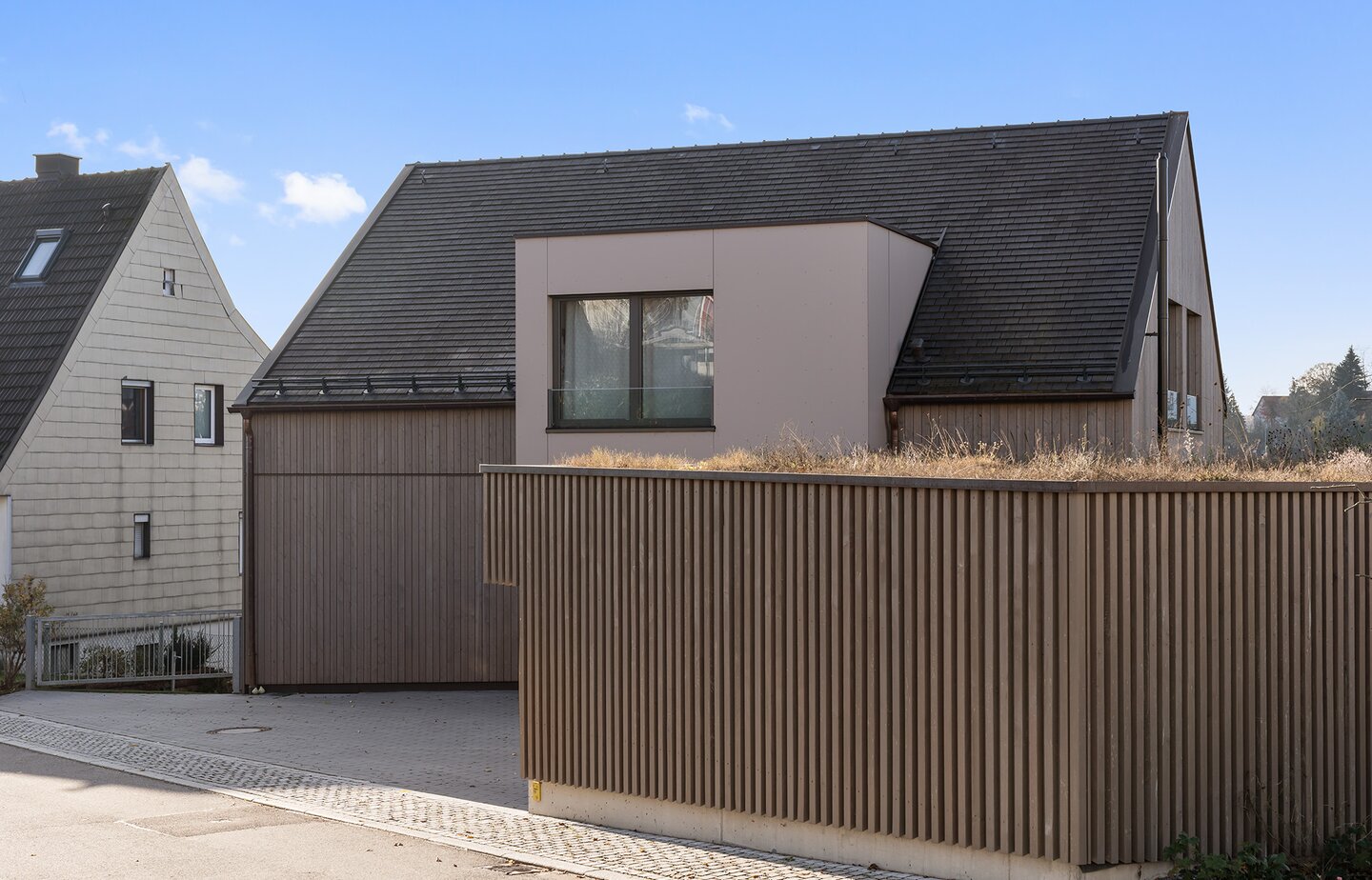

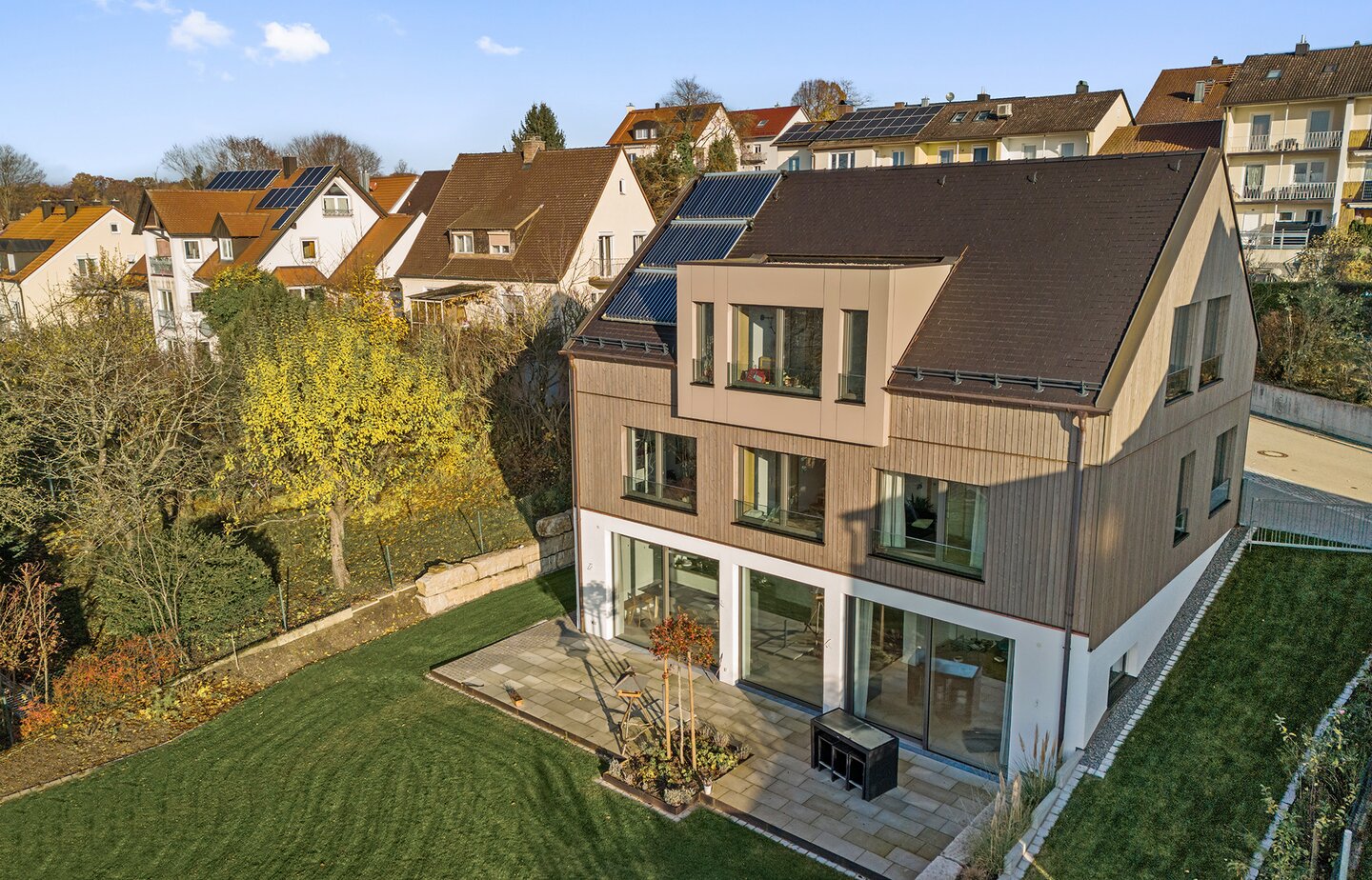

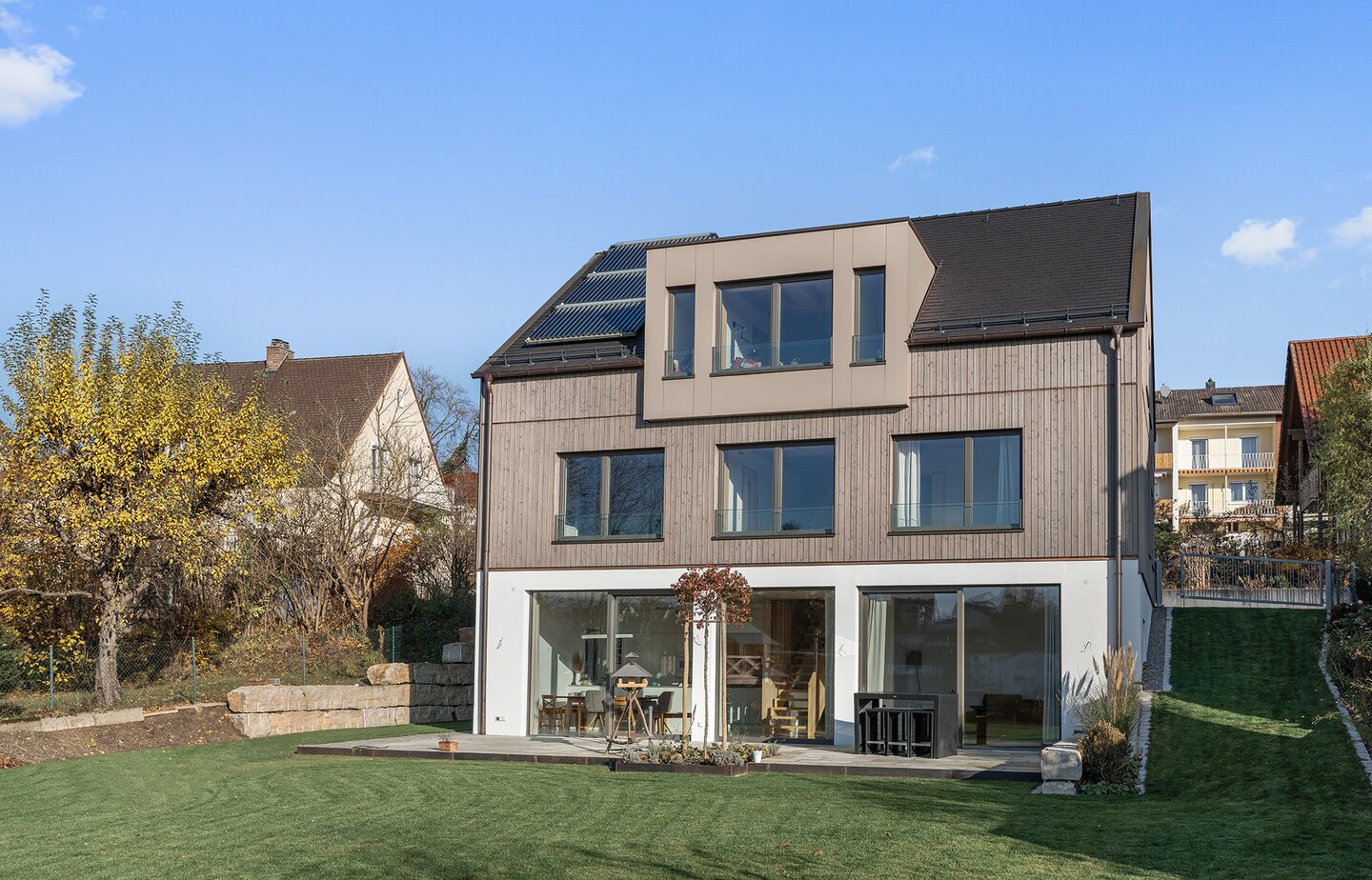

Ergoldsbacher Plain tile - Anthracite | © ©ERLUS 2021 Ergoldsbacher Plain tile - Anthracite
Ergoldsbacher "Church Beaver" Gothic - Natural red | © ©ERLUS 2021 Ergoldsbacher "Church Beaver" Gothic - Natural red
Ergoldsbacher "Church Beaver" Gothic - Natural red | © ©ERLUS 2021 Ergoldsbacher "Church Beaver" Gothic - Natural red
Ergoldsbacher "Church Beaver" Gothic - Natural red | © ©ERLUS 2021 Ergoldsbacher "Church Beaver" Gothic - Natural red
Ergoldsbacher "Chruch Beaver" Gothic - Natural red | © ©ERLUS 2021 Ergoldsbacher "Chruch Beaver" Gothic - Natural red
Ergoldsbacher "Church Beaver" - Natural red | © ©ERLUS 2021 Ergoldsbacher "Church Beaver" - Natural red
Ergoldsbacher "Church Beaver" - Natural red | © ©ERLUS 2021 Ergoldsbacher "Church Beaver" - Natural red
Ergoldsbacher "Church Beaver" - Natural red | © ©ERLUS 2021 Ergoldsbacher "Church Beaver" - Natural red
Ergoldsbacher "Church Beaver" - Natural red | © ©ERLUS 2021 Ergoldsbacher "Church Beaver" - Natural red
Ergoldsbacher "Church Beaver" - Natural red | © ©ERLUS 2021 Ergoldsbacher "Church Beaver" - Natural red
Ergoldsbacher "Church Beaver" - Natural red | © ©ERLUS 2021 Ergoldsbacher "Church Beaver" - Natural red
Ergoldsbacher "Church Beaver" - Natural red | © ©ERLUS 2021 Ergoldsbacher "Church Beaver" - Natural red
Ergoldsbacher "Church Beaver" - Natural red | © ©ERLUS 2021 Ergoldsbacher "Church Beaver" - Natural red
Ergoldsbacher "Church Beaver" - Natural red | © ©ERLUS 2021 Ergoldsbacher "Church Beaver" - Natural red
Ergoldsbacher "Church Beaver" - Natural red | © ©ERLUS 2021 Ergoldsbacher "Church Beaver" - Natural red
Ergoldsbacher "Church Beaver" - Natural red | © ©ERLUS 2021 Ergoldsbacher "Church Beaver" - Natural red
Ergoldsbacher "Church Beaver" - Natural red | © ©ERLUS 2021 Ergoldsbacher "Church Beaver" - Natural red
Ergoldsbacher Plain tile Round cut - Anthracite | © ©ERLUS 2021 Ergoldsbacher Plain tile Round cut - Anthracite
Ergoldsbacher Plain tile Round cut - Anthracite | © ©ERLUS 2021 Ergoldsbacher Plain tile Round cut - Anthracite
Ergoldsbacher Plain tile Round cut - Anthracite | © ©ERLUS 2021 Ergoldsbacher Plain tile Round cut - Anthracite
Ergoldsbacher Plain tile Round cut - Anthracite | © ©ERLUS 2021 Ergoldsbacher Plain tile Round cut - Anthracite
Ergoldsbacher Plain tile Round cut - Anthracite | © ©ERLUS 2021 Ergoldsbacher Plain tile Round cut - Anthracite
Ergoldsbacher Plain tile Round cut - Anthracite | © ©ERLUS 2021 Ergoldsbacher Plain tile Round cut - Anthracite
Ergoldsbacher Plain tile Round cut - Natural red | © ©ERLUS 2021 Ergoldsbacher Plain tile Round cut - Natural red
Ergoldsbacher Plain tile Round cut - Natural red | © ©ERLUS 2021 Ergoldsbacher Plain tile Round cut - Natural red
Ergoldsbacher Plain tile Round cut - Natural red | © ©ERLUS 2021 Ergoldsbacher Plain tile Round cut - Natural red
Ergoldsbacher Plain tile Round cut - Natural red | © ©ERLUS 2021 Ergoldsbacher Plain tile Round cut - Natural red
Ergoldsbacher Plain tile Round cut - Natural red | © ©ERLUS 2021 Ergoldsbacher Plain tile Round cut - Natural red
Ergoldsbacher Plain tile Round cut - Natural red | © ©ERLUS 2021 Ergoldsbacher Plain tile Round cut - Natural red
Ergoldsbacher Plain tile Round cut - Natural red | © ©ERLUS 2021 Ergoldsbacher Plain tile Round cut - Natural red
Ergoldsbacher Plain tile Round cut - Natural red | © ©ERLUS 2021 Ergoldsbacher Plain tile Round cut - Natural red
Ergoldsbacher Plain tile Round cut - Natural red | © ©ERLUS 2021 Ergoldsbacher Plain tile Round cut - Natural red

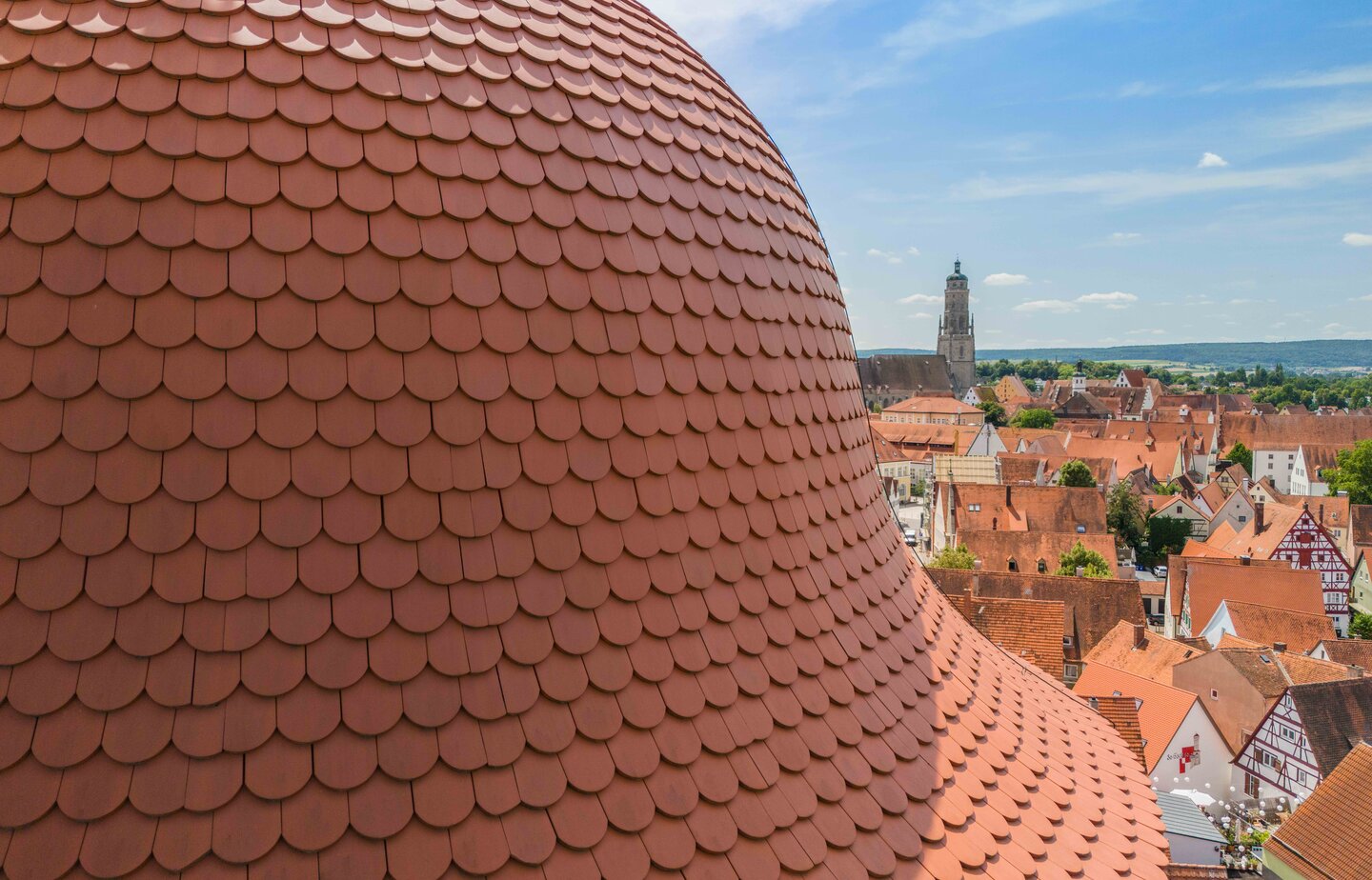

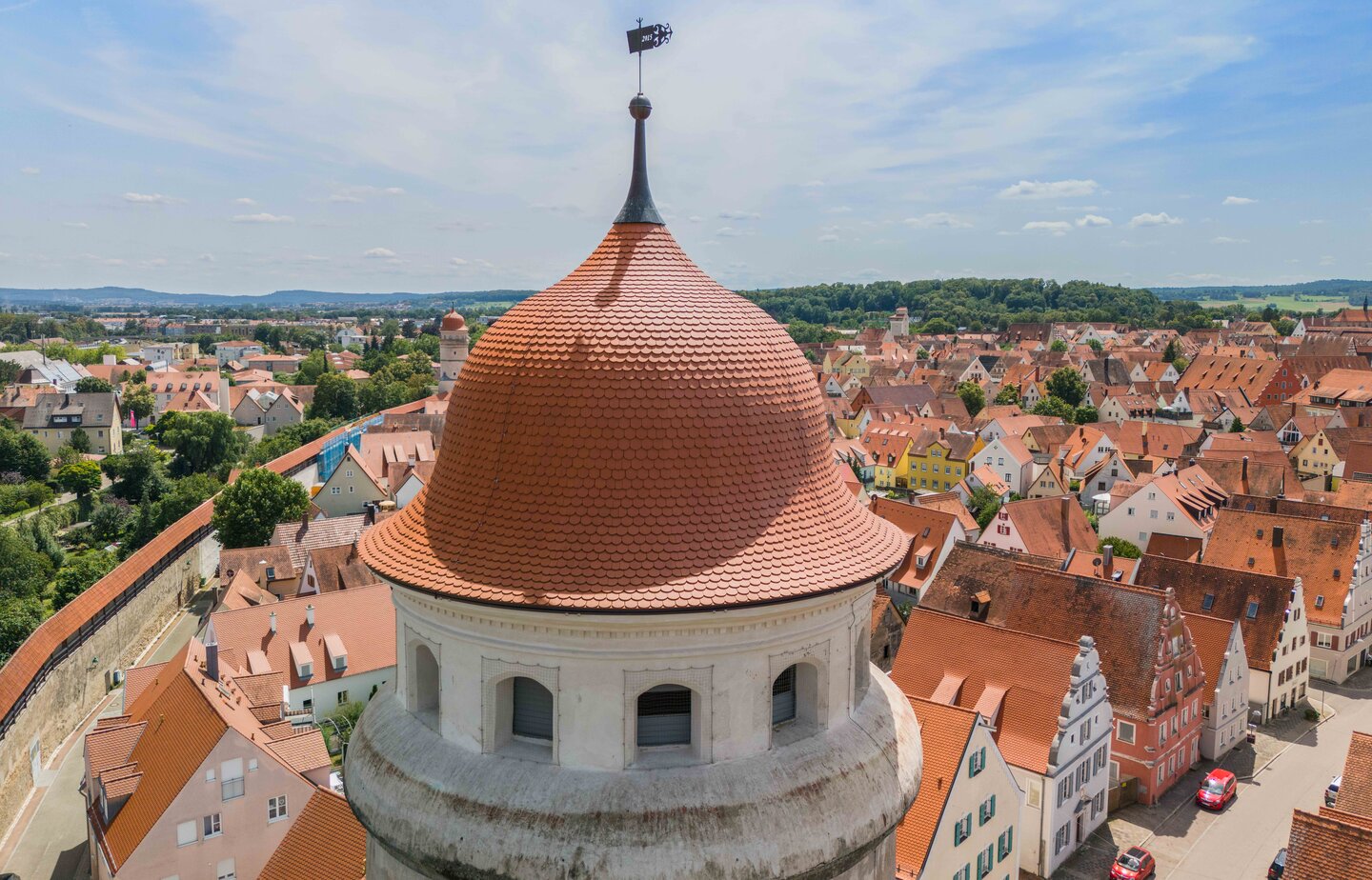

Ergoldsbacher Plain tile Round cut - Sinter red ©ERLUS/HASIT  | © ERLUS/HASIT 2021 Ergoldsbacher Plain tile Round cut - Sinter red ©ERLUS/HASIT
Ergoldsbacher Plain tile Round cut - Sinter red ©ERLUS/HASIT  | © ERLUS/HASIT 2021 Ergoldsbacher Plain tile Round cut - Sinter red ©ERLUS/HASIT
Ergoldsbacher Plain tile Round cut - Sinter red ©ERLUS/HASIT  | © ERLUS/HASIT 2021 Ergoldsbacher Plain tile Round cut - Sinter red ©ERLUS/HASIT
Ergoldsbacher Plain tile Round cut - Sinter red ©ERLUS/HASIT  | © ERLUS/HASIT 2021 Ergoldsbacher Plain tile Round cut - Sinter red ©ERLUS/HASIT
Ergoldsbacher Plain tile Round cut - Sinter red ©ERLUS/HASIT | © ERLUS/HASIT 2021 Ergoldsbacher Plain tile Round cut - Sinter red ©ERLUS/HASIT
Ergoldsbacher Plain tile Round cut - Sinter red ©ERLUS/HASIT  | © ERLUS/HASIT 2021 Ergoldsbacher Plain tile Round cut - Sinter red ©ERLUS/HASIT
Ergoldsbacher Plain tile Round cut - Sinter red ©ERLUS/HASIT  | © ERLUS/HASIT 2021 Ergoldsbacher Plain tile Round cut - Sinter red ©ERLUS/HASIT
Ergoldsbacher Plain tile "Segment "cut" - Siena | © ©ERLUS 2021 Ergoldsbacher Plain tile "Segment "cut" - Siena
Ergoldsbacher Plain tile "Segment "cut" - Siena | © ©ERLUS 2021 Ergoldsbacher Plain tile "Segment "cut" - Siena
Ergoldsbacher Plain tile "Segment "cut" - Siena | © ©ERLUS 2021 Ergoldsbacher Plain tile "Segment "cut" - Siena
Ergoldsbacher Plain tile "Segment "cut" - Siena | © ©ERLUS 2021 Ergoldsbacher Plain tile "Segment "cut" - Siena
Ergoldsbacher Plain tile "Segment "cut" - Siena | © ©ERLUS 2021 Ergoldsbacher Plain tile "Segment "cut" - Siena
Ergoldsbacher Plain tile "Segment "cut" - Siena | © ©ERLUS 2021 Ergoldsbacher Plain tile "Segment "cut" - Siena

A historical shape for distinctive properties

The Ergoldsbacher plain tile plays an important role when it comes to the preservation of historical monuments. And because standard sizes or solutions can rarely be used here, ERLUS offers readily available custom-made commodities in consistent top quality. With it, ERLUS plain tile manufacture encompasses one of the largest ranges of plain tile in the industry. This historical tile can also provide an exciting contrast in new construction projects as well though, particularly as the classic tile is available in numerous colours and profiles.
Quantity required per m²: 33.7 - 44.5 Pieces
Minimum roof pitch: 18 °
Regular roof pitch: 30 °

Zur Speicherung und Verwendung von ERLUS Mediendateien akzeptieren Sie bitte nachfolgende Nutzungsbedingungen.

Hiermit bestätige ich meine Zustimmung.
